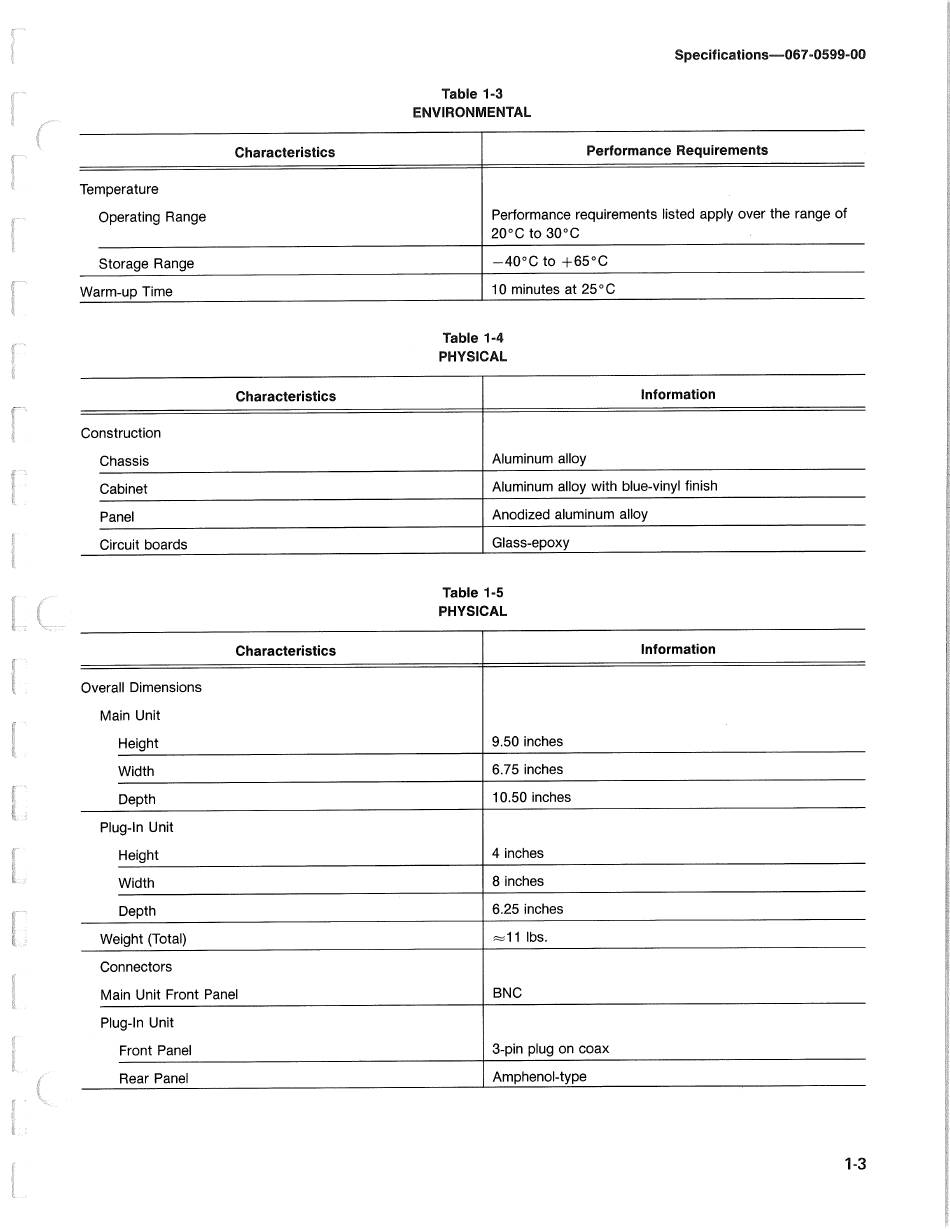

Table 1-3
ENVIRONMENTAL
Specifications—067-0599-00
Characteristics
Performance Requirements
Temperature
Operating Range
20°C to 30°C
Performance requirements listed apply over the range of
Storage Range
—40°C to + 65°C
Warm-up Time
10 minutes at 25°C
Table 1-4
PHYSICAL
Characteristics information
Construction
Chassis Aluminum alloy
Cabinet
Aluminum alloy with blue-vinyl finish
Panel
Anodized aluminum alloy
Circuit boards Glass-epoxy
Table 1-5
PHYSICAL
Characteristics information
Overall Dimensions
Main Unit
Height 9.50 inches
Width 6.75 inches
Depth 10.50 inches
Plug-In Unit
Height 4 inches
Width 8 inches
Depth 6.25 inches
Weight (Total) -~11 Ibs.
Connectors
Main Unit Front Panel BNC
Plug-In Unit
Front Panel 3-pin plug on coax
Rear Panel Amphenol-type
