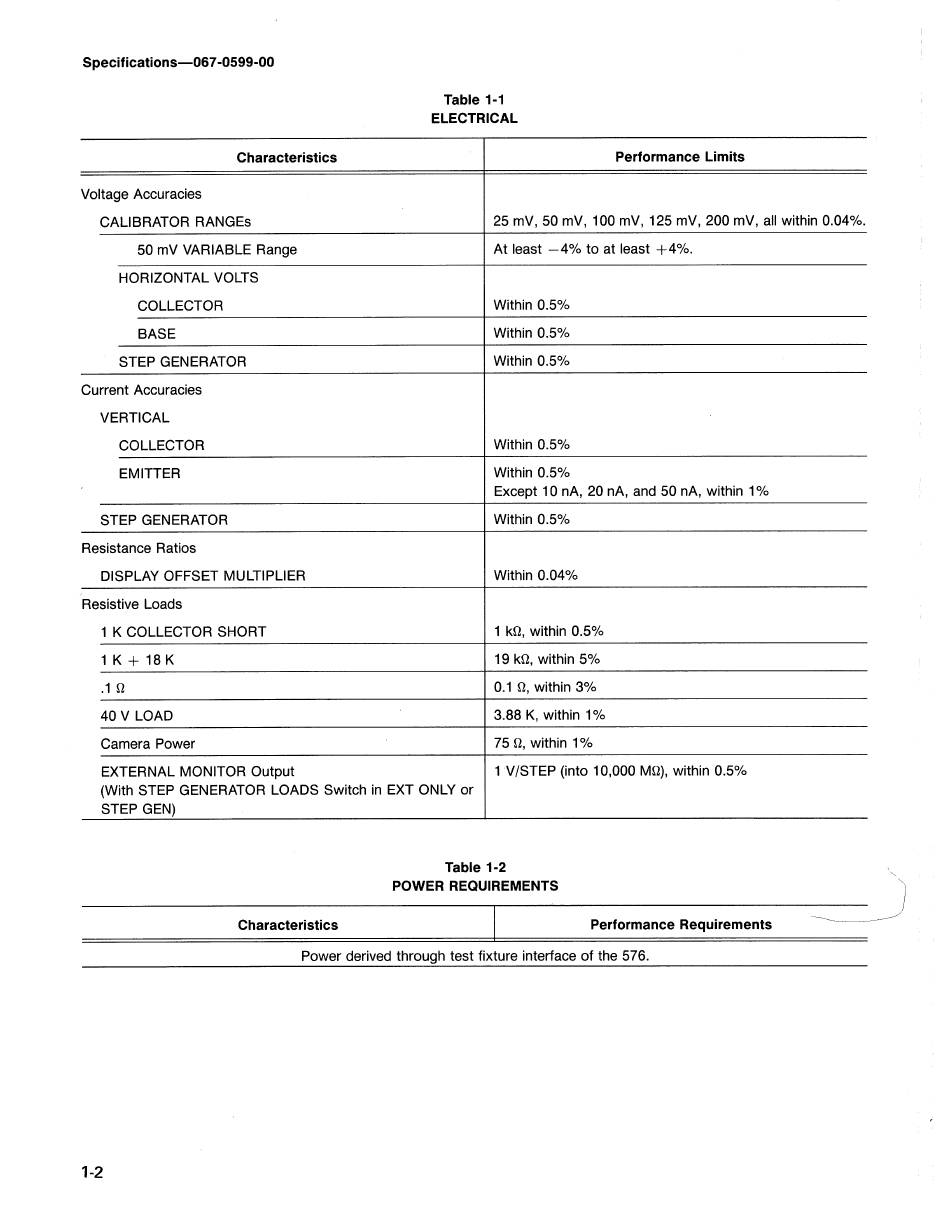

Specifications—067-0599-00
Table 1-1
ELECTRICAL
Characteristics
Performance Limits
Voltage Accuracies
CALIBRATOR RANGEs 25 mV, 50 mV, 100 mV, 125 mV, 200 mV, all within 0.04%.
50 mV VARIABLE Range At least —4% to at least +4%.
HORIZONTAL VOLTS
COLLECTOR Within 0.5%
BASE Within 0.5%
STEP GENERATOR Within 0.5%
Current Accuracies
VERTICAL
COLLECTOR Within 0.5%
EMITTER Within 0.5%
Except 10 nA, 20 nA, and 50 nA, within 1%
STEP GENERATOR Within 0.5%
Resistance Ratios
DISPLAY OFFSET MULTIPLIER Within 0.04%
Resistive Loads
1 K COLLECTOR SHORT
1 kQ, within 0.5%
1K 4 18K 19 kQ, within 5%
10 0.1 Q, within 3%
40 V LOAD 3.88 K, within 1%
Camera Power
75 Q, within 1%
EXTERNAL MONITOR Output
(With STEP GENERATOR LOADS Switch in EXT ONLY or
STEP GEN)
1V/STEP (into 10,000 MQ), within 0.5%
POWER REQUIREMENTS
Table 1-2
Characteristics
. ee
Performance Requirements
Power derived through test fixture interface of the 576.
