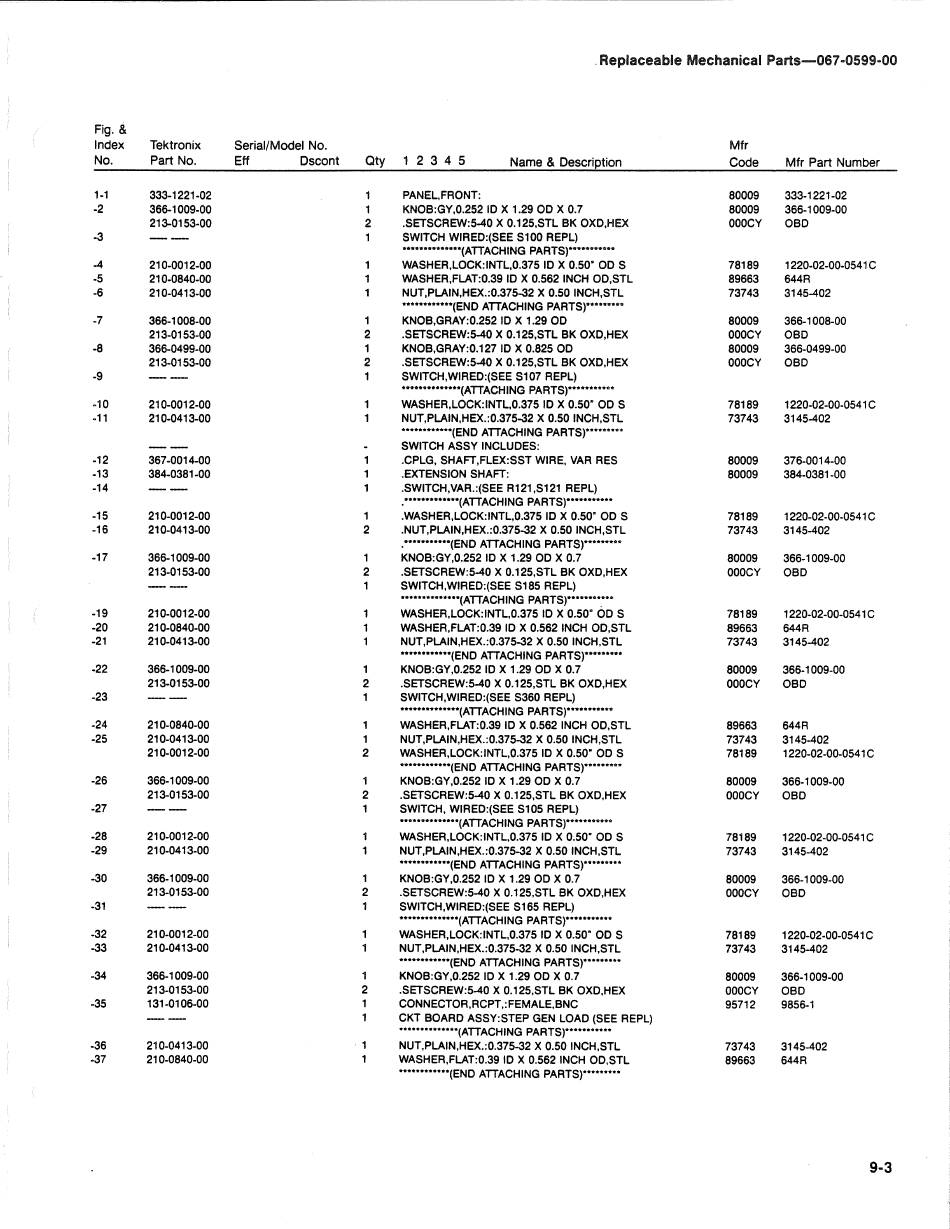

.Replaceable Mechanical Parts—067-0599-00
Fig. &
Index = Tektronix Serial/Model No. Mfr
No. Part No. Eff Dscont Qty 12345 Name & Description Code Mfr Part Number
1-1 333-1221-02 1 PANEL,FRONT: 80009 333-1221-02
-2 366-1009-00 1 KNOB:GY,0.252 ID X 1.29 OD X 0.7 80009 366-1009-00
213-0153-00 2 -SETSCREW:5-40 X 0.125,STL BK OXD,HEX O000CY OBD
-3 — — 1 SWITCH WIRED:(SEE $100 REPL)
suwewenweeees*( ATTACHING PARTS)***°*""""""
4 210-0012-00 1 WASHER,LOCK:INTL,0.375 ID X 0.50" OD S 78189 1220-02-00-0541C
5 210-0840-00 1 WASHER,FLAT:0.39 ID X 0.562 INCH OD,STL 89663 644R
6 210-0413-00 1 NUT,PLAIN,HEX.:0.375-32 X 0.50 INCH,STL 73743 3145-402
seevesesees*(END ATTACHING PARTS)****"""""
"7 366-1008-00 1 KNOB,GRAY:0.252 ID X 1.29 OD 80009 366-1008-00
213-0153-00 2 -SETSCREW:5-40 X 0.125,STL BK OXD,HEX ooocy OBD
-8 366-0499-00 1 KNOB,GRAY:0.127 ID X 0.825 OD 80009 366-0499-00
213-0153-00 2 SETSCREW:5-40 X 0.125,STL BK OXD,HEX O000CY OBD
-9 —- 1 SWITCH,WIRED:(SEE S107 REPL)
sueosaeeasee** (ATTACHING PARTS)***?"""""""
-10 210-0012-00 1 WASHER,LOCK:INTL,0.375 ID X.0.50" OD S 78189 1220-02-00-0541C
"11 210-0413-00 1 NUT,PLAIN,HEX.:0.375-32 X 0.50 INCH,STL 73743 3145-402
seveneseeese(END ATTACHING PARTS)**°*""*""
—_— —— : SWITCH ASSY INCLUDES:
12 367-0014-00 1 .CPLG, SHAFT,FLEX:SST WIRE, VAR RES 80009 376-0014-00
-13 384-0381-00 1 -EXTENSION SHAFT: 80009 384-0381-00
-14 —— 1 -SWITCH,VAR.:(SEE R121,S121 REPL)
_eeneessesers ATTACHING PARTS)***********
"18 210-0012-00 1 -WASHER,LOCK:INTL,0.375 ID X 0.50" OD S 78189 1220-02-00-0541C
-16 210-0413-00 2 .NUT, PLAIN, HEX.:0.375-32 X 0.50 INCH,STL 73743 3145-402
rereweeses2(END ATTACHING PARTS)******"""
"17 366-1009-00 1 KNOB:GY,0.252 ID X 1.29 OD X 0.7 80009 366-1009-00
213-0153-00 2 -SETSCREW:5-40 X 0.125,STL BK OXD,HEX O00CY OBD
woe eee 1 SWITCH,WIRED:(SEE S185 REPL)
weensenweeeee*( ATTACHING PARTS)****"*°****
-19 210-0012-00 1 WASHER,LOCK:INTL,0.375 ID X 0.50" OD S 78189 1220-02-00-0541C
-20 210-0840-00 1 WASHER, FLAT:0.39 ID X 0.562 INCH OD,STL 89663 644R
-21 210-0413-00 1 NUT,PLAIN,HEX.:0.375-32 X 0.50 INCH,STL 73743 3145-402
seevevesse**(END ATTACHING PARTS)*********
22 366-1009-00 1 KNOB:GY,0.252 ID X 1.29 OD X 0.7 80009 366-1009-00
213-0153-00 2 -SETSCREW:5-40 X 0.125,STL BK OXD,HEX 000CY OBD
-23 —_ — 1 SWITCH,WIRED:(SEE S360 REPL)
suawsenseeess*( ATTACHING PARTS)******"**""
24 210-0840-00 1 WASHER, FLAT:0.39 ID X 0.562 INCH OD,STL 89663 644R
-25 210-0413-00 1 NUT,PLAIN,HEX.:0.375-32 X 0.50 INCH,STL 73743 3145-402
210-0012-00 2 WASHER,LOCK:INTL,0.375 ID X 0.50" OD S 78189 1220-02-00-0541C
sesesessse"*(END ATTACHING PARTS)********"
-26 366-1009-00 1 KNOB:GY,0.252 ID X 1.29 OD X 0.7 80009 366-1009-00
213-0153-00 2 -SETSCREW:5-40 X 0.125,STL BK OXD,HEX O00CY OBD
-27 —- = 1 SWITCH, WIRED:(SEE S105 REPL)
senwceesees*¢* (ATTACHING PARTS)*****"*"**"
-28 210-0012-00 1 WASHER,LOCK:INTL,0.375 ID X 0.50" OD S 78189 1220-02-00-0541C
-29 210-0413-00 1 NUT,PLAIN,HEX.:0.375-32 X 0.50 INCH,STL 73743 3145-402
steweseeeese(END ATTACHING PARTS)*******"*
-30 366-1009-00 1 KNOB:GY,0.252 ID X 1.29 OD X 0.7 80009 366-1009-00
213-0153-00 2 SETSCREW:5-40 X 0.125,STL BK OXD,HEX o00CY OBD
-31 sees onan 1 SWITCH, WIRED:(SEE S165 REPL)
eawewasseese*( ATTACHING PARTS)°***********
-32 210-0012-00 1 WASHER, LOCK:INTL,0.375 ID X 0.50" OD S 78189 1220-02-00-0541C
-33 210-0413-00 1 NUT,PLAIN,HEX.:0.375-32 X 0.50 INCH,STL 73743 3145-402
seseaeeses"*(END ATTACHING PARTS)*********
-34 366-1009-00 1 KNOB:GY,0.252 ID X 1.29 OD X 0.7 80009 366-1009-00
213-0153-00 2 -SETSCREW:5-40 X 0.125,STL BK OXD,HEX o000CY OBD
-35 131-0106-00 1 CONNECTOR,RCPT,:FEMALE,BNC 95712 9856-1
——- = 1 CKT BOARD ASSY:STEP GEN LOAD (SEE REPL)
seneensonses**( ATTACHING PARTS)*****"**"**
-36 210-0413-00 "4 NUT,PLAIN,HEX.:0.375-32 X 0.50 INCH,STL 73743 3145-402
-37 210-0840-00 1 WASHER, FLAT:0.39 ID X 0.562 INCH OD,STL 89663 644R
seeeesseeess(END ATTACHING PARTS)*********
9-3
