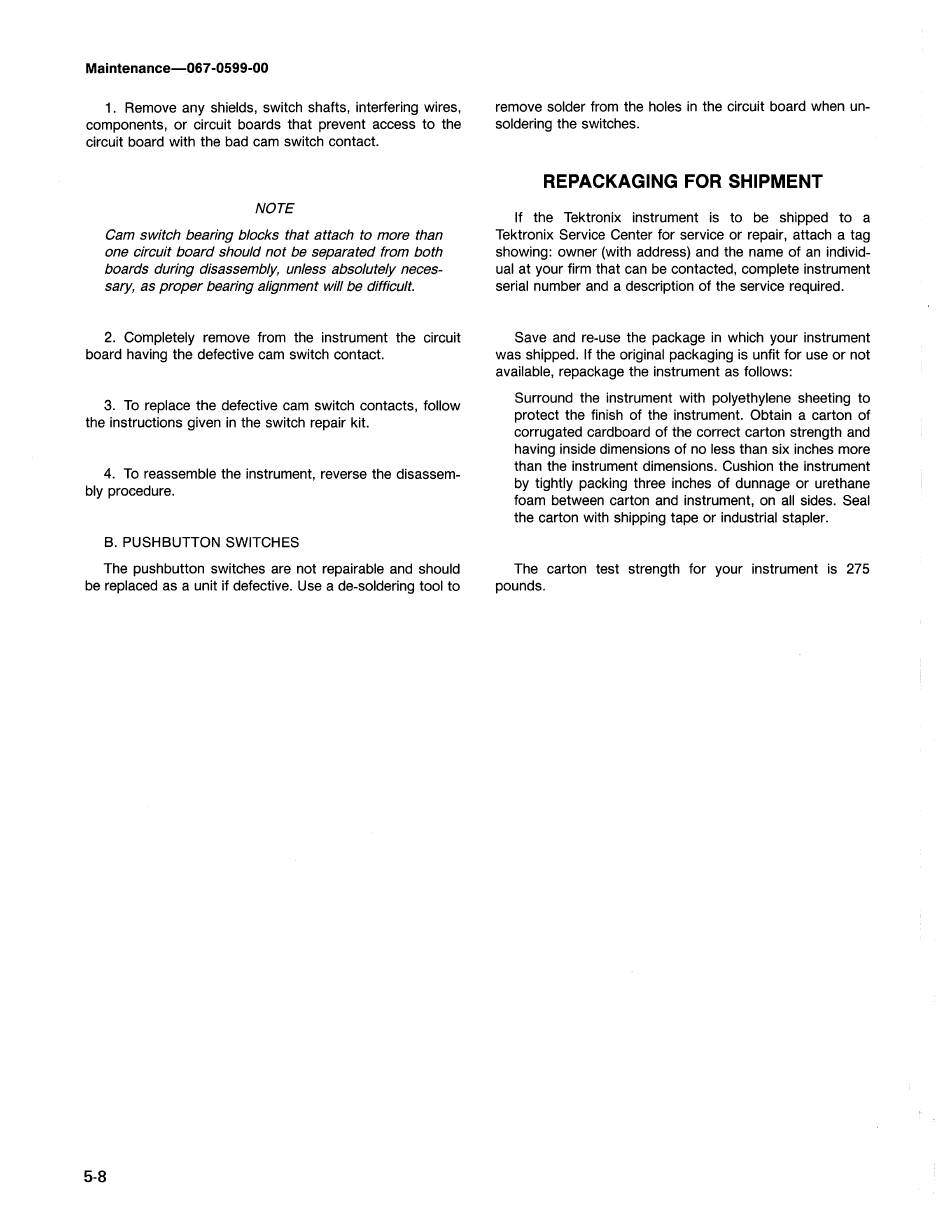

Maintenance—067-0599-00
1. Remove any shields, switch shafts, interfering wires,
components, or circuit boards that prevent access to the
circuit board with the bad cam switch contact.
NOTE
Cam switch bearing blocks that attach to more than
one circuit board should not be separated from both
boards during disassembly, unless absolutely neces-
Sary, as proper bearing alignment will be difficult.
2. Completely remove from the instrument the circuit
board having the defective cam switch contact.
3. To replace the defective cam switch contacts, follow
the instructions given in the switch repair kit.
4. To reassemble the instrument, reverse the disassem-
bly procedure.
B. PUSHBUTTON SWITCHES
The pushbutton switches are not repairable and should
be replaced as a unit if defective. Use a de-soldering tool to
remove solder from the holes in the circuit board when un-
soldering the switches.
REPACKAGING FOR SHIPMENT
If the Tektronix instrument is to be shipped to a
Tektronix Service Center for service or repair, attach a tag
showing: owner (with address) and the name of an individ-
ual at your firm that can be contacted, complete instrument
serial number and a description of the service required.
Save and re-use the package in which your instrument
was shipped. If the original packaging is unfit for use or not
available, repackage the instrument as follows:
Surround the instrument with polyethylene sheeting to
protect the finish of the instrument. Obtain a carton of
corrugated cardboard of the correct carton strength and
having inside dimensions of no less than six inches more
than the instrument dimensions. Cushion the instrument
by tightly packing three inches of dunnage or urethane
foam between carton and instrument, on all sides. Seal
the carton with shipping tape or industrial stapler.
The carton test strength for your instrument is 275
pounds.
