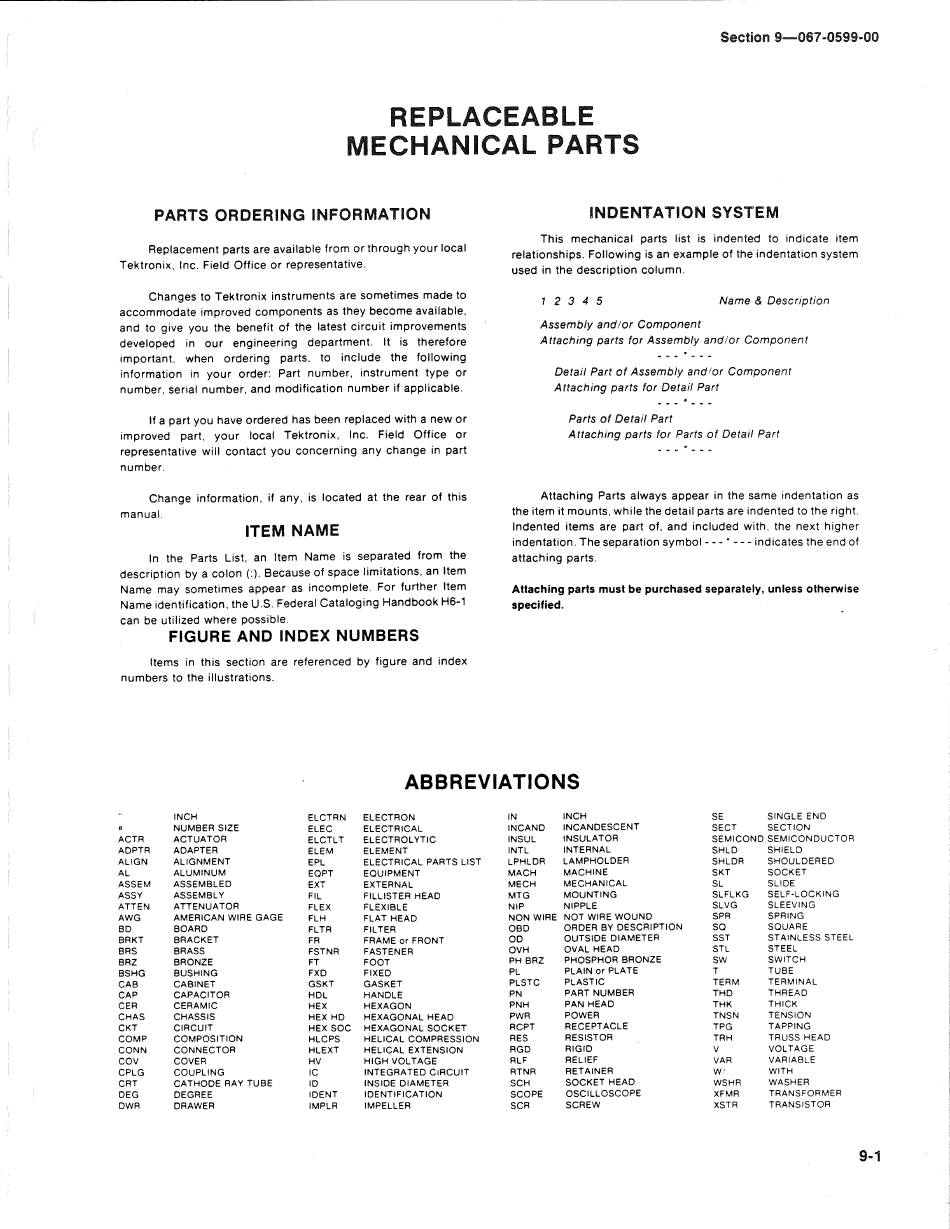

Section 9—067-0599-00
REPLACEABLE
MECHANICAL PARTS
PARTS ORDERING INFORMATION
Replacement parts are available from or through your local
Tektronix, Inc. Field Office or representative.
Changes to Tektronix instruments are sometimes made to
accommodate improved components as they become available,
and to give you the benefit of the latest circuit improvements
developed in our engineering department. It is therefore
important, when ordering parts, to include the following
information in your order: Part number, instrument type or
number, serial number, and modification number if applicable.
If a part you have ordered has been replaced with a new or
improved part, your local Tektronix, Inc. Field Office or
representative will contact you concerning any change in part
number.
Change information, if any, is located at the rear of this
manual.
ITEM NAME
FIGURE AND INDEX NUMBERS
items in this section are referenced by figure and index
numbers to the illustrations.
INDENTATION SYSTEM
This mechanical parts list is indented to indicate item
relationships. Following is an example of the indentation system
used in the description column.
172345 Name & Description
Assembly and/or Component
Attaching parts for Assembly and/or Component
Detail Part of Assembly and/or Component
Attaching parts for Detail Part
Parts of Detail Part
Attaching parts for Parts of Detail Part
Attaching Parts always appear in the same indentation as
the itern it mounts, while the detail parts are indented to the right.
Indented items are part of, and included with, the next higher
indentation. The separation symbol - -- * --- indicates the end of
attaching parts.
Attaching parts must be purchased separately, unless otherwise
specified.
ABBREVIATIONS
INCH ELCTRN ELECTRON
® NUMBER SIZE ELEC ELECTRICAL
ACTR ACTUATOR ELCTLT ELECTROLYTIC
ADPTR ADAPTER ELEM ELEMENT
ALIGN ALIGNMENT EPL ELECTRICAL PARTS LIST
AL ALUMINUM EQPT EQUIPMENT
ASSEM ASSEMBLED EXT EXTERNAL
ASSY ASSEMBLY FIL FILLISTER HEAD
ATTEN ATTENUATOR FLEX FLEXIBLE
AWG AMERICAN WIRE GAGE FLH FLAT HEAD
BD BOARD FLTR FILTER
BRKT BRACKET FR FRAME or FRONT
BRS BRASS FSTNR FASTENER
BRZ BRONZE FT FOOT
BSHG BUSHING FXD FIXED
CAB CABINET GSKT GASKET
CAP CAPACITOR HDL HANDLE
CER CERAMIC HEX HEXAGON
CHAS CHASSIS HEX HD HEXAGONAL HEAD
CKT CIRCUIT HEX SOC HEXAGONAL SOCKET
COMP COMPOSITION HLCPS HELICAL COMPRESSION
CONN CONNECTOR HLEXT HELICAL EXTENSION
COV COVER HV HIGH VOLTAGE
CPLG COUPLING Ic INTEGRATED CIRCUIT
CRT CATHODE RAY TUBE ID INSIDE DIAMETER
DEG DEGREE IDENT IDENTIFICATION
DWR DRAWER IMPLR IMPELLER
IN INCH SE SINGLE END
tINCAND INCANDESCENT SECT SECTION
INSUL INSULATOR SEMICOND SEMICONDUCTOR
INTL INTERNAL SHLD SHIELD
LPHLDR LAMPHOLDER SHLDR SHOULDERED
MACH MACHINE SKT SOCKET
MECH MECHANICAL SL SLIDE
MTG MOUNTING SLFLKG SELF-LOCKING
NIP NIPPLE SLVG SLEEVING
NON WIRE NOT WIRE WOUND SPR SPRING
OBD ORDER BY DESCRIPTION SQ SQUARE
oD OUTSIDE DIAMETER SST STAINLESS STEEL
OVH OVAL HEAD STL STEEL
PH BRZ PHOSPHOR BRONZE Sw SWITCH
PL PLAIN or PLATE T TUBE
PLSTC PLASTIC TERM TERMINAL
PN PART NUMBER THD THREAD
PNH PAN HEAD THK THICK
PWR POWER TNSN TENSION
RCPT RECEPTACLE TPG TAPPING
RES RESISTOR TRH TRUSS HEAD
RGD RIGID V VOLTAGE
RLF RELIEF VAR VARIABLE
RTNR RETAINER Ww! WITH
SCH SOCKET HEAD WSHR WASHER
SCOPE OSCILLOSCOPE XFMR TRANSFORMER
SCR SCREW XSTR TRANSISTOR
