Serial/Mode! No.

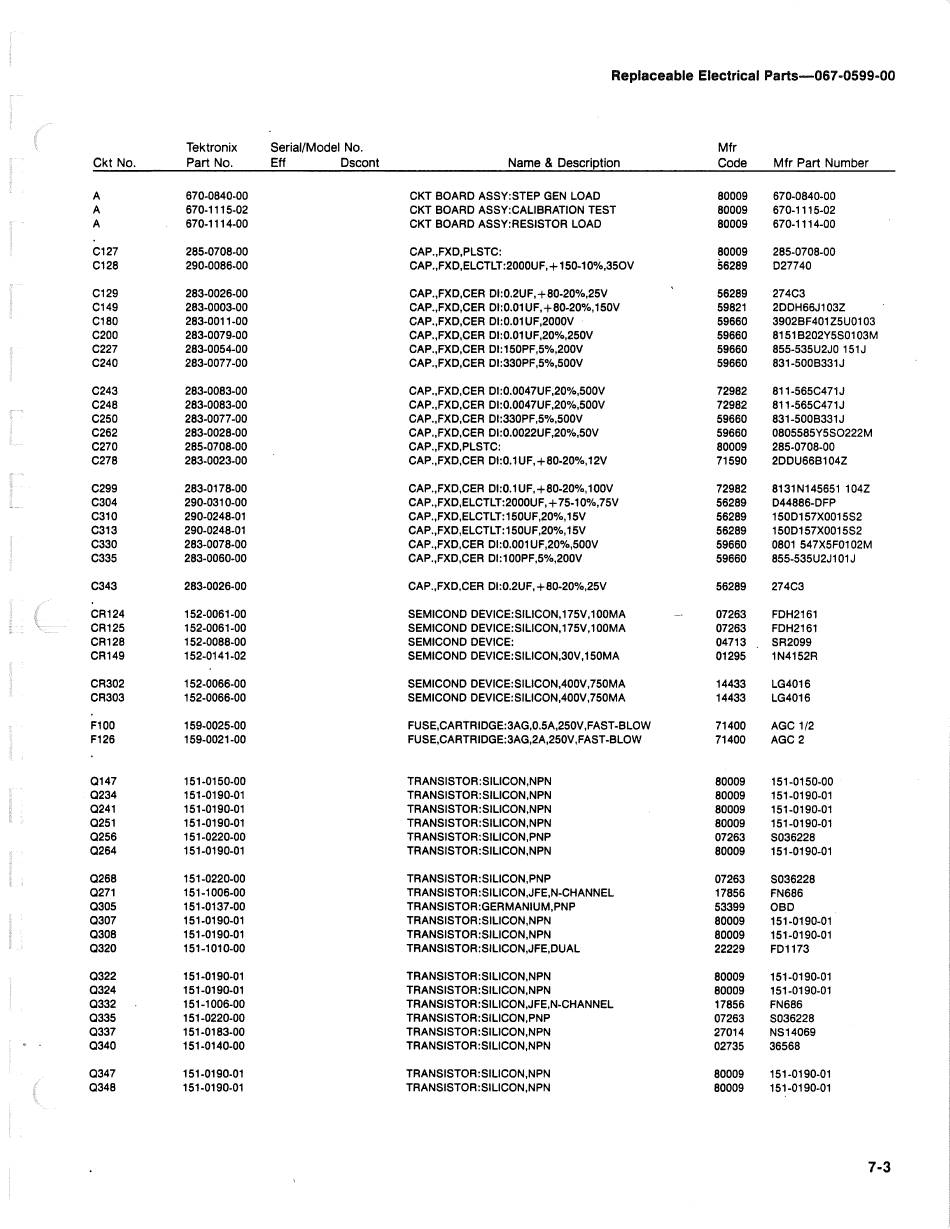

Replaceable Electrical Parts—067-0599-00
Tektronix Mfr
Ckt No. Part No. Eff Dscont Name & Description Code Mfr Part Number
A 670-0840-00 CKT BOARD ASSY:STEP GEN LOAD 80009 670-0840-00
A 670-1115-02 CKT BOARD ASSY:CALIBRATION TEST 80009 670-1115-02
A 670-1114-00 CKT BOARD ASSY:RESISTOR LOAD 80009 670-1114-00
C127 285-0708-00 CAP.,FXD,PLSTC: 80009 285-0708-00
C128 290-0086-00 CAP.,FXD,ELCTLT:2000UF, + 150-10%,350V 56289 D27740
C129 283-0026-00 CAP.,FXD,CER DI:0.2UF, + 80-20%,25V 56289 27403
C149 283-0003-00 CAP.,FXD,CER Dl:0.01UF, + 80-20%,150V 59821 2DDH66J103Z
C180 283-0011-00 CAP.,FXD,CER Dt:0.01UF,2000V © 59660 3902BF401Z5U0103
C200 283-0079-00 CAP.,FXD,CER DI:0.01UF,20%,250V 59660 8151B202Y5S0103M
C227 283-0054-00 CAP.,FXD,CER DlI:150PF,5%,200V 59660 855-535U2J0 151J
C240 283-0077-00 CAP.,FXD,CER DI:330PF,5%,500V 59660 831-500B331J
C243 283-0083-00 CAP.,FXD,CER DI:0.0047UF,20%,500V 72982 811-565C471J
C248 283-0083-00 CAP.,FXD,CER DI:0.0047UF,20%,500V 72982 811-565C471J
C250 283-0077-00 CAP.,FXD,CER DI:330PF,5%,500V 59660 831-500B331J
C262 283-0028-00 CAP.,FXD,CER DI:0.0022UF,20%,50V 59660 0805585Y5S0222M
C270 285-0708-00 CAP.,FXD,PLSTC: 80009 285-0708-00
C278 283-0023-00 CAP.,FXD,CER Dt:0.1UF, + 80-20%,12V 71590 2DDU66B1042
C299 283-0178-00 CAP.,FXD,CER DI:0.1UF, + 80-20%, 100V 72982 8131N145651 104Z
C304 290-0310-00 CAP.,FXD,ELCTLT:2000UF, + 75-10%,75V §6289 D44886-DFP
C310 290-0248-01 CAP.,FXD,ELCTLT:150UF,20%,15V 56289 150D157X0015S2
C313 290-0248-01 CAP.,FXD,ELCTLT:150UF,20%,15V §6289 150D157X0015S2
C330 283-0078-00 CAP.,FXD,CER DI:0.001UF,20%,500V 59660 0801 547X5F0102M
C335 283-0060-00 CAP.,FXD,CER DI:100PF,5%,200V 59660 855-535U2J101J
C343 283-0026-00 CAP.,FXD,CER Dt:0.2UF, + 80-20%,25V 56289 27403
CR124 152-0061-00 SEMICOND DEVICE:SILICON,175V,100MA 07263 FDH2161
CR125 152-0061-00 SEMICOND DEVICE:SILICON,175V,100MA 07263 FDH2161
CR128 152-0088-00 SEMICOND DEVICE: 04713 SR2099
CR149 152-0141-02 SEMICOND DEVICE:SILICON,30V,150MA 01295 1N4152R
CR302 152-0066-00 SEMICOND DEVICE:SILICON,400V,750MA 14433 LG4016
CR303 152-0066-00 SEMICOND DEVICE:SILICON,400V,750MA 14433 LG4016
F100 159-0025-00 FUSE,CARTRIDGE:3AG,0.5A,250V,FAST-BLOW 71400 AGC 1/2
F126 159-0021-00 FUSE,CARTRIDGE:3AG,2A,250V FAST-BLOW 71400 AGC 2
Q147 151-0150-00 TRANSISTOR: SILICON,NPN 80009 151-0150-00
Q234 151-0190-01 TRANSISTOR: SILICON,NPN 80009 151-0190-01
Q241 151-0190-01 TRANSISTOR: SILICON,NPN 80009 151-0190-01
Q251 151-0190-01 TRANSISTOR: SILICON,NPN 80009 151-0190-01
Q256 151-0220-00 TRANSISTOR: SILICON,PNP 07263 $036228
Q264 151-0190-01 TRANSISTOR: SILICON,NPN 80009 151-0190-01
Q268 151-0220-00 TRANSISTOR: SILICON, PNP 07263 $036228
Q271 151-1006-00 TRANSISTOR: SILICON, JFE,N-CHANNEL 17856 FN686
Q305 151-0137-00 TRANSISTOR:GERMANIUM,PNP 53399 OBD
Q307 151-0190-01 TRANSISTOR: SILICON,NPN 80009 151-0190-01
Q308 151-0190-01 TRANSISTOR: SILICON,NPN 80009 151-0190-01
Q320 151-1010-00 TRANSISTOR: SILICON, JFE,DUAL 22229 FD1173
Q322 1§1-0190-01 TRANSISTOR: SILICON,NPN 80009 151-0190-01
Q324 151-0190-01 TRANSISTOR: SILICON,NPN 80009 151-0190-01
Q332 151-1006-00 TRANSISTOR: SILICON, JFE,N-CHANNEL 17856 FN686
Q335 151-0220-00 TRANSISTOR: SILICON,PNP 07263 $036228
Q337 161-0183-00 TRANSISTOR: SILICON,NPN 27014 NS14069
Q340 151-0140-00 TRANSISTOR: SILICON,NPN 02735 36568
Q347 151-0190-01 TRANSISTOR: SILICON,NPN 80009 151-0190-01
Q348 151-0190-01 TRANSISTOR: SILICON,NPN 80009 161-0190-01
7-3
