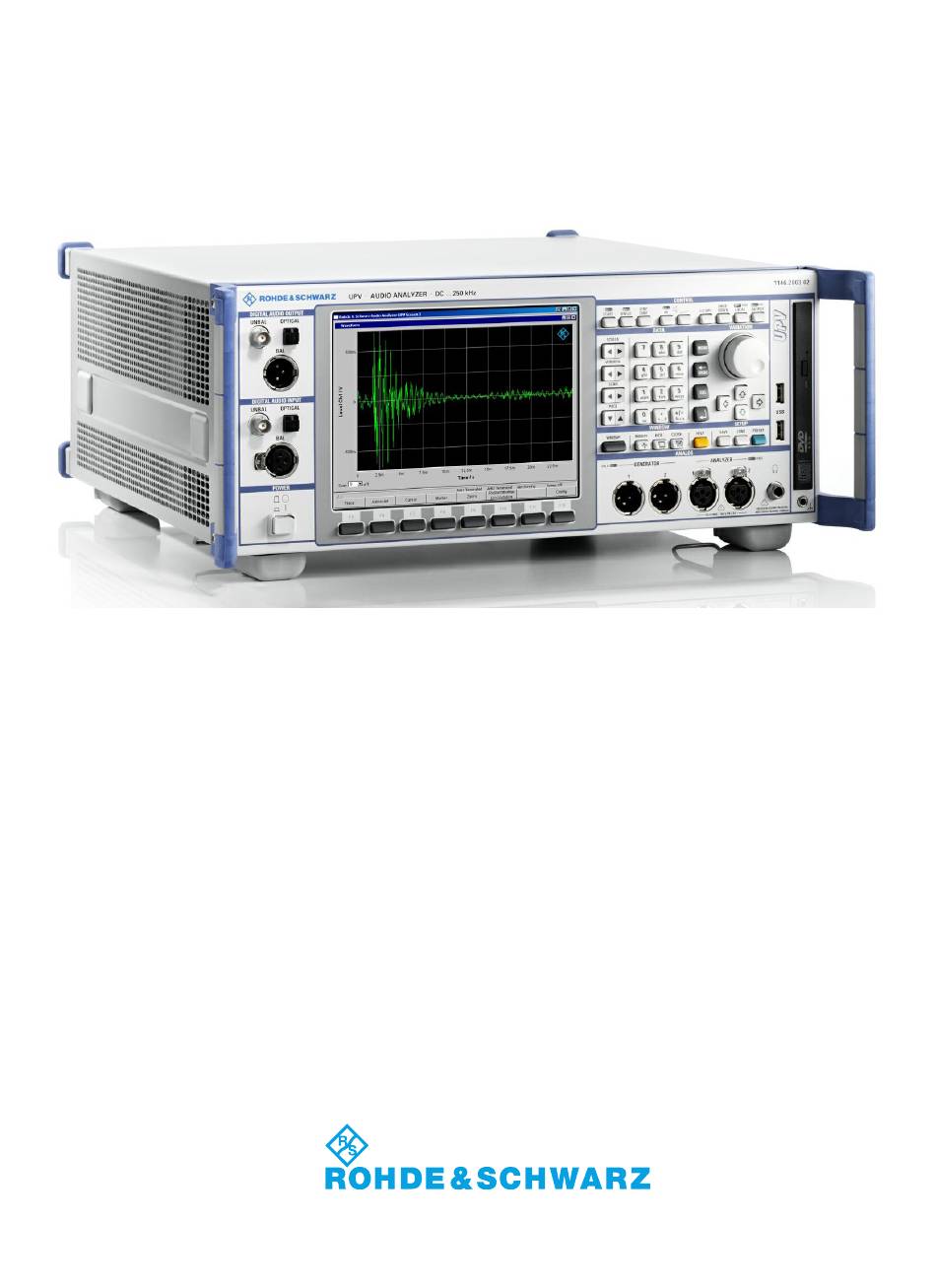

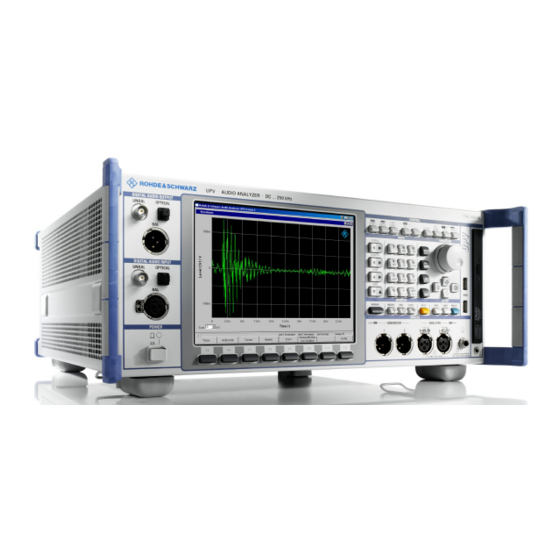

Service Manual
Audio Analyzer DC to 250 kHz
R&S
UPV
1146.2003.02
1146.2084.82-07
R&S
UPV66
1146.2003.66
Test & Measurement
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R&S UPV and is the answer not in the manual?

Questions and answers

Related Manuals for Rohde & Schwarz R&S UPV

Summary of Contents for Rohde & Schwarz R&S UPV

  • Page 1 Service Manual Audio Analyzer DC to 250 kHz   R&S R&S UPV66 1146.2003.02 1146.2003.66 Test & Measurement 1146.2084.82-07...
  • Page 2 R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG. Trade names are trademarks of the owners. 1146.2084.82-07...
  • Page 3 R&S UPV Tabbed Divider Overview Tabbed Divider Overview Safety Instructions Procedure in Case of Service and Ordering of Spare Parts Tabbed Divider Chapter 1: Performance Test Chapter 2: Adjustment Chapter 3: Repair Chapter 4: Firmware Update / Installing Options Chapter 5: Documents 1146.2084.82...
  • Page 5 Basic Safety Instructions Always read through and comply with the following safety instructions! All plants and locations of the Rohde & Schwarz group of companies make every effort to keep the safety standards of our products up to date and to offer our customers the highest possible degree of safety. Our products and the auxiliary equipment they require are designed, built and tested in accordance with the safety standards that apply in each case.
  • Page 6 Basic Safety Instructions Symbol Meaning Symbol Meaning Warning! Hot surface Alternating current (AC) Protective conductor terminal Direct/alternating current (DC/AC) Ground Device fully protected by double (reinforced) insulation Ground terminal EU labeling for batteries and accumulators For additional information, see section "Waste disposal/Environmental protection", item 1.
  • Page 7 Basic Safety Instructions Operating states and operating positions The product may be operated only under the operating conditions and in the positions specified by the manufacturer, without the product's ventilation being obstructed. If the manufacturer's specifications are not observed, this can result in electric shock, fire and/or serious personal injury or death. Applicable local or national safety regulations and rules for the prevention of accidents must be observed in all work performed.
  • Page 8 Basic Safety Instructions 6. The product may be operated only from TN/TT supply networks fuse-protected with max. 16 A (higher fuse only after consulting with the Rohde & Schwarz group of companies). 7. Do not insert the plug into sockets that are dusty or dirty. Insert the plug firmly and all the way into the socket provided for this purpose.
  • Page 9 Basic Safety Instructions 2. Before you move or transport the product, read and observe the section titled "Transport". 3. As with all industrially manufactured goods, the use of substances that induce an allergic reaction (allergens) such as nickel cannot be generally excluded. If you develop an allergic reaction (such as a skin rash, frequent sneezing, red eyes or respiratory difficulties) when using a Rohde &...
  • Page 10 Basic Safety Instructions 2. Adjustments, replacement of parts, maintenance and repair may be performed only by electrical experts authorized by Rohde & Schwarz. Only original parts may be used for replacing parts relevant to safety (e.g. power switches, power transformers, fuses). A safety test must always be performed after parts relevant to safety have been replaced (visual inspection, protective conductor test, insulation resistance measurement, leakage current measurement, functional test).
  • Page 11 Instrucciones de seguridad elementales Waste disposal/Environmental protection 1. Specially marked equipment has a battery or accumulator that must not be disposed of with unsorted municipal waste, but must be collected separately. It may only be disposed of at a suitable collection point or via a Rohde &...
  • Page 12 Instrucciones de seguridad elementales Se parte del uso correcto del producto para los fines definidos si el producto es utilizado conforme a las indicaciones de la correspondiente documentación del producto y dentro del margen de rendimiento definido (ver hoja de datos, documentación, informaciones de seguridad que siguen). El uso del producto hace necesarios conocimientos técnicos y ciertos conocimientos del idioma inglés.
  • Page 13 Instrucciones de seguridad elementales Símbolo Significado Símbolo Significado Aviso: Cuidado en el manejo de dispositivos Distintivo de la UE para la eliminación por sensibles a la electrostática (ESD) separado de dispositivos eléctricos y electrónicos Más información en la sección "Eliminación/protección del medio ambiente", punto 2.
  • Page 14 Instrucciones de seguridad elementales 1. Si no se convino de otra manera, es para los productos Rohde & Schwarz válido lo que sigue: como posición de funcionamiento se define por principio la posición con el suelo de la caja para abajo, modo de protección IP 2X, uso solamente en estancias interiores, utilización hasta 2000 m sobre el nivel del mar, transporte hasta 4500 m sobre el nivel del mar.
  • Page 15 Instrucciones de seguridad elementales 6. Solamente está permitido el funcionamiento en redes de alimentación TN/TT aseguradas con fusibles de 16 A como máximo (utilización de fusibles de mayor amperaje solo previa consulta con el grupo de empresas Rohde & Schwarz). 7.
  • Page 16 Instrucciones de seguridad elementales Funcionamiento 1. El uso del producto requiere instrucciones especiales y una alta concentración durante el manejo. Debe asegurarse que las personas que manejen el producto estén a la altura de los requerimientos necesarios en cuanto a aptitudes físicas, psíquicas y emocionales, ya que de otra manera no se pueden excluir lesiones o daños de objetos.
  • Page 17 Instrucciones de seguridad elementales Reparación y mantenimiento 1. El producto solamente debe ser abierto por personal especializado con autorización para ello. Antes de manipular el producto o abrirlo, es obligatorio desconectarlo de la tensión de alimentación, para evitar toda posibilidad de choque eléctrico. 2.
  • Page 18 Instrucciones de seguridad elementales 2. Las asas instaladas en los productos sirven solamente de ayuda para el transporte del producto por personas. Por eso no está permitido utilizar las asas para la sujeción en o sobre medios de transporte como p. ej. grúas, carretillas elevadoras de horquilla, carros etc. Es responsabilidad suya fijar los productos de manera segura a los medios de transporte o elevación.
  • Page 19 Instructions - Instrucciones Instructions for Electrostatic Discharge Protection Risk of damaging electronic components To avoid damage of electronic components, the operational site must be protected against electrostatic discharge (ESD). Wrist strap with cord Floor mat Heel strap Ground connection of operational site The following two methods of ESD protection may be used together or separately: , Wrist strap with cord to ground connection...
  • Page 20 Instructions - Instrucciones Instrucciones para la protección contra descargas electroestáticas Riesgo de avería de los componentes electrónicos Para evitar averías en los componentes electrónicos, el área de trabajo tiene que estar protegido contra descargas electroestáticas ESD (elec- trostatic discharge). Muñequera con cordón Estera Talonera Conexión a tierra del...
  • Page 21 Safety Instructions - Informaciones de seguridad Safety Instructions for Units with Removable Cabinet Danger of injuries When removing the rear feet, the unit can slip out of the cabinet. Put the unit onto the front handles, before removing the rear feet and taking off the cabinet.
  • Page 22 Safety Instructions - Informaciones de seguridad Informaciones de seguridad para aparatos con tubo de quita y pon Peligro de heridas Al sacar los piés de la pared posterior puede deslizarse el aparato fue- ra de la caja. Posicionar el aparato de manera segura sobre las asas delanteras, antes de sacar los piés de la pared posterior y entonces sacar la caja.
  • Page 23 Procedure in Case of Service and Ordering of Spare Parts This section contains information on shipping an instrument to your service center and ordering spare parts. Please contact your local Rohde & Schwarz service center if you need service or repair work of your equipment or to order spare parts.
  • Page 24 Ordering Spare Parts To deliver spare parts promptly and correctly, we need the following information: ● Stock number (see list of spare parts in chapter "Documents") ● Designation ● Component number according to list of spare parts ● Number of pieces ●...

  • Page 25: Table Of Contents

    R&S UPV Contents Chapter 1 Contents 1 Performance Test ........................1.1 Measuring Equipment and Accessories ..................1.1 Difference-frequency distortion lowpass LP DFD ...............1.2 Notch filter NOTCH THD, for THD measurement of generator ..........1.3 Test cable for measurement of the source resistance ...............1.4 Test cable for measurement of the unbalance rejection.............1.4 Test cable for measurement of the common mode rejection .............1.5 Cable from XLR female to 2...
  • Page 26 Contents Chapter 1 R&S UPV DC measurement......................1.30 DC offset ......................1.30 DC measurement error.................1.30 THD total harmonic distortion ..................1.31 THD inherent distortion.................1.31 THD measurement error ................1.32 THD+N total harmonic distortion + noise ..............1.34 THD+N inherent distortion ................1.34 THD+N measurement error................1.36 Mod Dist modulation factor ..................1.39 Mod Dist inherent distortion ................1.39 Mod Dist measurement error................1.41 DFD difference-frequency distortion ................1.43...
  • Page 27 R&S UPV Contents Chapter 1 Performance Test R&S UPV-B3 (Second Analog Generator)..........1.68 Sinewave level error at 1 kHz ..................1.68 Sinewave frequency response ..................1.69 Sinewave frequency error (Ch2) ..................1.69 DC offset 0 V: residual DC (Ch2).................1.70 DC offset: setting error (Ch2)..................1.71 THD+N inherent distortion (Ch2) .................1.72 DIM level error (Ch2)....................1.73 DIM inherent distortion (Ch2) ..................1.74...
  • Page 28 Contents Chapter 1 R&S UPV Performance Test R&S UPV-K22 (Jitter and Interface Test) ..........1.105 Common-Mode ......................1.105 Level Measurement, Unbal Input..............1.105 Level Measurement, Bal Input ..............1.106 Common-Mode Amplitude................1.106 Common-Mode Frequency Response............1.106 Cable Simulator ..................1.106 Input to Ref Phase Deviation ..................1.107 Jitter Generation and Measurement ................1.108 Jitter Amplitude ...................1.108 Jitter Frequency Response.................1.109 Jitter Spurious.....................1.109...

  • Page 29: Performance Test

    R&S UPV Measuring Equipment and Accessories 1 Performance Test Warm-up time for the R&S UPV 1 hour Measuring Equipment and Accessories Measuring equipment Characteristics Recommendation ACV, DCV,  Digital multimeter HP3458A Frequency counter PM6680 Including option PM9691/011, extremely stable oven oscillator for PM 668x Audio analyzer Reference R&S UPV...

  • Page 30: Difference-Frequency Distortion Lowpass Lp Dfd

    Measuring Equipment and Accessories R&S UPV Difference-frequency distortion lowpass LP DFD Circuit diagram: 3.3n 2.43k 2.43k 26.7k 26.7k 3.3n 3.3n 1.21k 13.3k Setup: To avoid any interference, the filter should be built in a metal housing. Use BNC connectors for the input and output.

  • Page 31: Notch Filter Notch Thd, For Thd Measurement Of Generator

    R&S UPV Measuring Equipment and Accessories Notch filter NOTCH THD, for THD measurement of generator Circuit diagram: Setup: To avoid any interference, the filter should be built in a metal housing. Use BNC connectors for the input and output. Components: Resistors: Metal film, tolerance ±0.1 % Capacitors:...

  • Page 32: Test Cable For Measurement Of The Source Resistance

    Measuring Equipment and Accessories R&S UPV Test cable for measurement of the source resistance Material: XLR female connector 2 two-leaded cables 4 banana plugs Setup: Banana plugs XLR female Input HI pin 2 Sense HI Input LO pin 3 Sense LO Housing and pin 1 not connected Test cable for measurement of the unbalance rejection Material:...

  • Page 33: Test Cable For Measurement Of The Common Mode Rejection

    R&S UPV Measuring Equipment and Accessories Test cable for measurement of the common mode rejection Material: XLR cable connector, consisting of: - Housing (order name: NM3FXI, Neutrik) - Cable outlet (order name: CML, Neutrik) - BNC cable - 2 matched 300  resistors The two 300 ...

  • Page 34: Cable From Xlr Female To Bnc Male

    Measuring Equipment and Accessories R&S UPV Cable from XLR female to BNC male Material: XLR female cable connector BNC cable Setup: Remove the BNC connector on one end of the BNC cable. Connect pin 2 of the XLR female connector to the inner conductor of the BNC cable. Connect pin 3 of the XLR female connector to the outer conductor (shielding) of the BNC cable.

  • Page 35: Short-Circuit For R&S Upv-B42

    R&S UPV Measuring Equipment and Accessories Short-circuit for R&S UPV-B42 Part No: 3584.7986.00 TX_MCLK_OUT RX_MCLK_OUT TX_MCLK_IN RX_MCLK_IN TX_SCK_OUT RX_SCK_OUT TX_SCK_IN RX_SCK_IN TX_FSYNC_OUT RX_FSYNC_OUT TX_FSYNC_IN RX_FSYNC_IN RX_DATA1_IN TX_DATA1_OUT RX_DATA2_IN TX_DATA2_OUT RX_DATA3_IN TX_DATA3_OUT RX_DATA4_IN TX_DATA4_OUT 1146.2084.82...

  • Page 36: Test Sequence

    Test Sequence R&S UPV Test Sequence Performance Test Analog Generator Adaptation of the measuring instruments to the generator output The output of the generator is XLR male. The balanced signal is present between pin 2 and pin 3. The same is true for the unbalanced signal, however: pin 2 is HI, pin 3 is LO (corresponding to AES- 14).

  • Page 37: Sinewave Frequency Response

    R&S UPV Test Sequence Sinewave frequency response Set R&S UPV: *) according to test report Meas. instrument: AC voltmeter Measurement: Connect the frequency counter to the output of the R&S UPV generator. You will need an adapter XLR female / 2 * banana plug for this purpose. Relative display in dB, reference is the voltage measured at 1 kHz.

  • Page 38: Dc Offset 0 V: Residual

    Test Sequence R&S UPV DC offset 0 V: Residual DC Set R&S UPV: *) according to test report Meas. instrument: DC voltmeter Measurement: To enable measurement of the small DC offset, the AC level of the generator must be switched off (set voltage in generator function panel to 0 V). To set the generator hardware according to the levels specified in the performance test report, select Volt Range = Fix in the Generator Config Panel and choose the desired voltages.

  • Page 39: Dc Offset: Setting Error

    R&S UPV Test Sequence DC offset: setting error Set R&S UPV: *) according to test report *) according to test report Meas. instrument: DC voltmeter Measurement: Connect the DC voltmeter to the output of R&S UPV generator and measure the DC voltage at the output of the R&S UPV generator. You will need an adapter XLR female / 2 * banana plug for this purpose.

  • Page 40: Thd+N Inherent Distortion

    Test Sequence R&S UPV THD+N inherent distortion Set R&S UPV: *) according to test report Meas. instrument: Analyzer for THD+N: R&S UPV Settings of the Ref R&S UPV analyzer: Instrument Analog 22 kHz Analog 80 kHz Channel Ch1 Input Ch1 Range Auto Auto Function...

  • Page 41: Mod Dist Inherent Distortion

    R&S UPV Test Sequence Mod Dist inherent distortion Set R&S UPV: *) according to test report Meas. instrument: Analyzer for Mod Dist: Ref R&S UPV Set Ref R&S UPV: Instrument Analog 22 kHz (Analyzer) Channel(s) Ch1 Input Ch1 Range Auto Function Mod Dist Dynamic Mode...

  • Page 42: Dfd Level Error

    Test Sequence R&S UPV DFD level error Set R&S UPV: *) according to test report Meas. instrument: AC voltmeter Measurement: Connect the AC voltmeter to the output of the R&S UPV generator. You will need an adapter XLR female / 2 * banana plug for this purpose. Measure the RMS value of the output voltage of the UPV generator.

  • Page 43: Dfd D2 Inherent Distortion

    R&S UPV Test Sequence DFD d2 inherent distortion Set R&S UPV: *) according to test report Meas. instrument: Selective voltmeter: Ref R&S UPV Set Ref R&S UPV: Instrument Analog 22 kHz (Analyzer) Channel Ch1 Input Ch1 Range Auto Function RMS Selective Unit Ch1 Reference Value:...

  • Page 44: Dfd D3 Inherent Distortion

    Test Sequence R&S UPV DFD d3 inherent distortion Set R&S UPV: This is the same setting as the one used for measurement of DFD d2. Meas. instrument: Analyzer for DFD d3: Ref R&S UPV Set Ref R&S UPV: Instrument Analog 22 kHz (Analyzer) Channel Ch1 Input Ch1 Range...
  • Page 45 R&S UPV Test Sequence Test setup for measurement of R  Retrofit both channels of the R&S UPV generator to BNC female using R&S UPL-Z1 (XLR/BNC adapter).  Connect the shortest possible BNC cables of the same length to both channels (if the cables are of the same length, their lead resistances cancel each other out in the formula for R ...

  • Page 46: Crosstalk

    Test Sequence R&S UPV Crosstalk Due to the high crosstalk attenuation of typ. 120 dB a very small voltage of only a few V must be measured on the deactivated channel. For this purpose, a selective voltmeter like the one provided in the Ref R&S UPV analyzer, for example, is required.

  • Page 47: Unbalance Rejection

    R&S UPV Test Sequence Unbalance rejection Set R&S UPV: *) according to test report Meas. instrument: Selective voltmeter: Ref R&S UPV Set Ref R&S UPV: *) according to the frequency of the R&S UPV generator 1146.2084.82 1.19...
  • Page 48 Test Sequence R&S UPV Test setup: Gen Com The two 300  resistors must be matched to an accuracy of at least 0.01 % in order to achieve a measurement limit of <-90 dB. The absolute value is not critical, but it should be in the range between 295  and 305 . The three resistors must be installed in an XLR cable jack.

  • Page 49: Performance Test, Analog Analyzer

    R&S UPV Test Sequence Performance Test, Analog Analyzer Note: The test equipment is listed in section "Measuring Equipment and Accessories" on page 1.1. In the following section, the abbreviation "DL" is used to refer to the limits in the data sheet.

  • Page 50: Level Measurement Rms

    Test Sequence R&S UPV Level measurement RMS Set R&S UPV: Analyzer Config Analyzer Function Instrument Analog Function 2  1 Channel Meas Time Auto Coupling Bandwidth according to test report Input Impedance 200 k Range Fix: according to test report Generator, Channel(s) 2 ...

  • Page 51: Level Error At 1 Khz

    R&S UPV Test Sequence Level error at 1 kHz Tolerance: = ±0.05 dB = ±0.03 dB (typical value in data sheet – no check is made) typ. R&S UPV analyzer: Bandwidth 22 kHz (adjusted in the range 3.0 V RMS) Range Input Divider Preamplifier...

  • Page 52: Frequency Response

    Test Sequence R&S UPV Frequency response Set R&S UPV: Analyzer Config Analyzer Function Instrument Analog Function 2  1 Channel Meas Time Auto Coupling Bandwidth according to test report Input Impedance 200 k Range Fix: according to test report ADS Sig. generator: Level and frequency according to test report. Meas.

  • Page 53: Overrange Test

    R&S UPV Test Sequence Overrange test Set R&S UPV: Generator Config Generator Function 2  1 Channel Function Sine Frequency 1 kHz Output Type Voltage 3.7 V Analyzer Config Analyzer Function Instrument Analog Function 2  1 Channel Meas Time Auto Coupling Bandwidth...

  • Page 54: Input Impedances

    Test Sequence R&S UPV Input impedances Set R&S UPV: Analyzer Config Analyzer Function Instrument Analog Function RMS or DC Bandwidth 22 kHz Meas Time Auto 2  1 Channel Input Impedance Coupling Range Fix: 30.0 V RMS *) according to test report Meas.

  • Page 55: Common Mode Rejection Cmr

    R&S UPV Test Sequence Common mode rejection CMR Set R&S UPV: Analyzer Config Analyzer Function Instrument Analog Function RMS Selective 2  1 Channel Meas Time Auto Bandwidth BP Fix 3 % Coupling Freq Mode Fix: *) Bandwidth 22 kHz Input Impedance 200 k...

  • Page 56: Frequency Error

    Test Sequence R&S UPV Frequency error Set R&S UPV: Generator Config Generator Function Instrument Analog Function Sine 2  1 Channel Low Dist Output Type Frequency Unbal Bandwidth Voltage 80 kHz *) according to test report Analyzer Config Analyzer Function Instrument Analog Function...

  • Page 57: Phase Coincidence

    R&S UPV Test Sequence Phase coincidence Set R&S UPV: Generator Config Generator Function Instrument Analog Function Sine 2  1 Channel Low Dist Output Type Frequency Bandwidth Voltage 80 kHz *) according to test report Analyzer Config Analyzer Function Instrument Analog Function 2 ...

  • Page 58: Dc Measurement

    Test Sequence R&S UPV DC measurement Set R&S UPV: Generator Config Generator Function Instrument Analog Function Sine 2  1 Channel Voltage Output Type DC-Offset Analyzer Config Analyzer Function Instrument Analog Level Monitor 2  1 Channel Meas Time Auto Fast Freq/Phase Coupling DC **)

  • Page 59: Thd Total Harmonic Distortion

    R&S UPV Test Sequence THD total harmonic distortion THD inherent distortion Note: The test THD Inherent Distortion is to be performed as a loop measurement with the R&S UPV generator / analyzer since the specifications in the data sheet apply to the total distortion of the analyzer and generator. This test must always be made together with the R&S UPV Low Dist Generator, Option R&S UPV-B1.

  • Page 60: Thd Measurement Error

    Test Sequence R&S UPV THD measurement error Set R&S UPV: Generator Config Generator Function Instrument Analog Function Sine 2  1 Channel Low Dist Output Type Frequency Voltage Analyzer Config Analyzer Function Instrument Analog Function 2  1 Channel Meas Mode Select di Even Coupling...
  • Page 61 R&S UPV Test Sequence Frequency and level settings: Frequency Level Fundamental Harmonic d2 xy dBr The reference for dBr is the "Ref-Volt" in the R&S UPV generator panel. If "Ref-Volt" = voltage of the fundamental, then the following applies: xy = Harmonic d2 Measurement: Set the R&S UPV analyzer and generators according to the test report.

  • Page 62: Thd+N Total Harmonic Distortion + Noise

    Test Sequence R&S UPV THD+N total harmonic distortion + noise THD+N inherent distortion Note: The test THD+N Inherent Distortion is to be performed as a loop measurement with the R&S UPV generator / analyzer since the specifications in the data sheet apply to the total distortion of the analyzer and generator. The test is always made along with the appropriate R&S UPV generator.
  • Page 63 R&S UPV Test Sequence THD+N without Low Dist Generator Note: This test is made as a loop measurement along with the R&S UPV universal generator. Set R&S UPV: Generator Config Generator Function Instrument Analog Function Sine 2  1 Channel Low Dist Output Type Frequency...

  • Page 64: Thd+N Measurement Error

    Test Sequence R&S UPV THD+N measurement error Set R&S UPV: Generator Config Generator Function Instrument Analog Function Multisine Channel No of Sine Output Type Freq No1 1 kHz Bandwidth 22 kHz Volt No1 0 dBr Ref Voltage 3.0 V Freq No2 2 kHz 50 dBr Volt No2...
  • Page 65 R&S UPV Test Sequence Notch filter frequency response test Note: For the THD, THD+N, Mod Dist distortion measurements, the analog notch filter is automatically activated with dynamic mode “precision” to improve the dynamic range of the measurement function routine. The notch filter can also be manually activated for the functions FFT, RMS, RMS Selective.
  • Page 66 Test Sequence R&S UPV Test 2 with analyzer bandwidth 250 kHz: Note: This test is performed at different base frequencies up to 90 kHz. The frequency response is tested with respect to the fundamental tuning and the gain. Set R&S UPV: Generator Config Generator Function Instrument...

  • Page 67: Mod Dist Modulation Factor

    R&S UPV Test Sequence Mod Dist modulation factor Mod Dist inherent distortion Note: For this test, the DUT R&S UPV Low Dist Generator, Option R&S UPV-B1 is used in the signal processing along with the Ref R&S UPV Low Dist Generator for higher test frequencies.
  • Page 68 Test Sequence R&S UPV Test setup: 995 / 0.1% DUT UPV 995 / 0.1% Ref UPV The addition of two sinusoidal signals is handled with a resistor network. Both generators must be sufficiently decoupled and the possibility of inherent modulation distortion in signal generation must be excluded. When mixing the signals, the DUT R&S UPV provides the HF carrier frequency and the Ref R&S UPV the low-frequency interference.

  • Page 69: Mod Dist Measurement Error

    R&S UPV Test Sequence Mod Dist measurement error Set R&S UPV: Generator Config Generator Function Instrument Analog Function Multisine Channel No of sine Output Type Unbal Freq No1 Bandwidth 80 kHz Volt No1 Ref Voltage 0.7 V   Volt No6 Freq No6 *) according to table below and test report...
  • Page 70 Test Sequence R&S UPV Signal generation: LF signal: R&S UPV HF signal + Mod Dist interference signal: DUT R&S UPV A multisine is added in. Explanation of the DUT R&S UPV multisine settings: No of Sine Frequency Level Comment f nf LF interference signal (supplied by –140 Br Ref R&S UPV)

  • Page 71: Dfd Difference-Frequency Distortion

    R&S UPV Test Sequence DFD difference-frequency distortion Formulas for the parameters "Mean frequency", "Upper frequency" and "Difference frequency" used below for the test: For Meas Mode IEC 268: For Meas Mode IEC 118:    Diff  Mean  Mean Upper ...
  • Page 72 Test Sequence R&S UPV Signal generation: Addition of two signals using the resistor network: Gen1 (DUT R&S UPV): Generates U with f = 7 kHz to 100 kHz (Low Dist for > 80 kHz) Gen2 (Ref R&S UPV Low Dist): Generates U with f = 7 kHz to 100 kHz Both signals are attenuated by the resistor network by a value of 6.02 dB.

  • Page 73: Dfd D3 Inherent Distortion

    R&S UPV Test Sequence DFD d3 inherent distortion Set DUT R&S UPV: Generator Config Generator Function Instrument Analog Function Sine Channel Low Dist Output Type Unbal Frequency Bandwidth Voltage Analyzer Config Analyzer Function Instrument Analog Function 2  1 Channel Meas Mode d3 *) Coupling...

  • Page 74: Dfd D2 / D3 Measurement Error

    Test Sequence R&S UPV DFD d2 / d3 measurement error Set R&S UPV: Generator Config Generator Function Instrument Analog Function Multisine Channel No of sine Output Type Unbal Freq No1 Bandwidth 80 kHz Volt No1 Ref Voltage 2.0 V  ...
  • Page 75 R&S UPV Test Sequence DFD d2 measurement error Formulas For Meas Mode IEC 268: For Meas Mode IEC 118:             Set R&S UPV: U1 = U2 = –6.0 dBr, U4 = U5 = –140 dBr, Volt No. 3 according to table above Generator: and test report Analyzer:...

  • Page 76: Dim Dynamic Intermodulation Factor

    Test Sequence R&S UPV DIM dynamic intermodulation factor Note: A test of the analyzer function can be performed only with the installed option R&S UPV-B3. DIM inherent distortion Note: The tolerances in the test report apply according to the data sheet for loop measurement R&S UPV generator/analyzer ...

  • Page 77: Performance Test Audio Monitor

    R&S UPV Test Sequence Performance Test Audio Monitor Before starting the test, set the R&S UPV to a defined initial status. To do this, call up the default setting: Press the PRESET key and confirm your input request with “” Press the MENU key and select “Preset (Load Default)”...

  • Page 78: Functional Test, Internal Speaker

    Test Sequence R&S UPV Generator Phone and Speaker Out Analyzer 600 W Fig. 1-1 Sequential measurement of Phone Out with your own analyzer As can be seen in Fig. 1-1, you can use this circuit arrangement to use your own analyzer to measure the technical features of the headphone output.

  • Page 79: Phone Out: Source Switching

    R&S UPV Test Sequence Phone Out: source switching The R&S UPV offers various monitoring facilities:  Input: You can directly monitor the input voltage to the analyzer.  Monitor: You can monitor the input voltage to the analyzer after the prefilter. ...

  • Page 80: Phone Out: Channel Switching

    Test Sequence R&S UPV Phone Out: channel switching Set R&S UPV: *) according to test sequence *) according to test sequence  Plug the headphones into the jack on the front panel of the R&S UPV. Test sequence:  In the Auxiliaries Panel, set the channel to "Both". ...

  • Page 81: Phone Out: Output Level And Offset

    R&S UPV Test Sequence Phone Out: output level and offset If the R&S UPV does not have the option R&S UPV-U2 (BNC Phone Out) installed, we recommend using an adapter cable to access the measurement results from the monitoring output. This cable should convert from the jack on the front panel of the R&S UPV to 2 * BNC or XLR jacks.

  • Page 82: Phone Out: Frequency Response

    Test Sequence R&S UPV Phone Out: frequency response Set R&S UPV: Same as above. Meas. instrument: AC voltmeter or R&S UPV analyzer Measurement: Measure the frequency response for the left and right channels. Set the "Volume" to 0 dB (=max). The reference is the voltage measured at 1 kHz. The output voltage should be approx.

  • Page 83: Aux Out: Dc Level

    R&S UPV Test Sequence Aux Out: DC level Set R&S UPV: *) Set DC value according to test report Meas. instrument: R&S UPV analyzer  Set the DC value according to the test report. Measurement:  Connect the BNC jack for Aux Out on the back panel of the R&S UPV to the analyzer input.

  • Page 84: Aux Out: Inherent Distortion

    Test Sequence R&S UPV Meas. instrument: R&S UPV analyzer Test setup: Connect Aux Out to an analyzer input. You will need an adapter from BNC to XLR. Measurement: In the Generator Config Panel, set the channel to "2 = 1". Set the frequency value according to the test report.

  • Page 85: Performance Test R&S Upv-B1 (Low Distortion Generator)

    R&S UPV Test Sequence Performance Test R&S UPV-B1 (Low Distortion Generator) Before starting the test, set the R&S UPV to a defined initial status. To this end, call up the default setting: Press the PRESET key and confirm your input request with “ ” Press the MENU key and select “Preset (Load Default)”...

  • Page 86: Frequency Response

    Test Sequence R&S UPV Frequency response Set R&S UPV: *) according to test report *) according to test report Meas. instrument: AC voltmeter Measurement: Connect the frequency counter to the output of the R&S UPV generator. You will need an adapter XLR female / 2 * banana plug for this purpose. Relative display in dB, reference is the voltage measured at 1 kHz.

  • Page 87: Thd Inherent Distortion

    R&S UPV Test Sequence THD inherent distortion Test method: In the audio frequency range, the harmonics suppression of the R&S UPV generator is typ. 115 dB to 125 dB, depending on the set frequency. The R&S UPV analyzer features about the same harmonics suppression so that the inherent distortions of the generator cannot be directly checked using the R&S UPV analyzer or any other audio analyzer currently available on the market.
  • Page 88 Test Sequence R&S UPV Avg. Count: 8  Modify the FFT Graph1 display to full-screen.  Press the Single key to end the measurement. This is indicated by a dark Single LED  In the FFT Graph 1 Panel (Softkeys): click “Marker”...
  • Page 89 R&S UPV Test Sequence Evaluation of the measurement for this example:  Read off the values for U in the above figure. Multiplication by a results in the real value of the harmonics U [μV] [nV] 108,3 2.85 0,309 57,6 0,104 64,4 0,097...

  • Page 90: Thd+N Inherent Distortion

    Test Sequence R&S UPV THD+N inherent distortion Set R&S UPV: *) according to test report *) according to test report Measuring instrument: Analyzer for THD+N: Ref R&S UPV Settings of the Ref R&S UPV analyzer for: Instrument Analog 22 kHz Analog 250 kHz Channel Ch1 Input...

  • Page 91: Performance Test R&S Upv-B2 (Digital Audio I/O 192 Khz)

    R&S UPV Test Sequence Performance Test R&S UPV-B2 (Digital Audio I/O 192 kHz) Before starting the test, set the R&S UPV to a defined initial status. To do this, call up the default setting: Press the PRESET key and confirm your input request with “” Press the MENU key and select “Preset (Load Default)”...

  • Page 92: Level Error, Bal Output

    Test Sequence R&S UPV Level error, Bal output Set R&S UPV: Same as above. Meas. instrument: Oscilloscope with 10:1 probe (or DUT R&S UPV with option R&S UPV-K22) Measurement: To save the cost of adapting the balanced output to the unbalanced input of the oscilloscope in this measurement, use a high-impedance probe without a terminating impedance to measure the open-circuit voltage of the Bal output.

  • Page 93: Sampling Rate Measurement

    R&S UPV Test Sequence Sampling rate measurement Set R&S UPV: *) set according to test report Meas. instrument: Frequency counter  Measurement from 30 kHz to 200 kHz Measurement:  Connect the frequency counter to Sync Out to measure the clock rate. ...

  • Page 94: Phase To Ref

    Test Sequence R&S UPV Phase To Ref Set R&S UPV: *) set according to test report Test setup: Connect the XLR connector "Ref In" to "Aux Out" on the rear panel of the R&S UPV. If the option R&S UPV-K22 is not installed, you must verify the data only using the Ref R&S UPV with the option R&S UPV-K22.

  • Page 95: Digital Audio Analyzer

    R&S UPV Test Sequence Digital Audio Analyzer Digital inputs Set R&S UPV: *) set according to test report Test: Connect the individual digital inputs of the R&S UPV (Bal, Unbal, Optical) one after another to the corresponding digital output of the R&S UPV. Select the input to be tested on the analyzer.

  • Page 96: Performance Test R&S Upv-B3 (Second Analog Generator)

    Test Sequence R&S UPV Performance Test R&S UPV-B3 (Second Analog Generator) Before starting the test, set the R&S UPV to a defined initial status. To do this, call up the default setting: Press the PRESET key and confirm your input request with “ ” Press the MENU key and select “Preset (Load Default)”...

  • Page 97: Sinewave Frequency Response

    R&S UPV Test Sequence Sinewave frequency response Set R&S UPV: *) according to test report Meas. instrument: AC voltmeter Measurement: Connect the frequency counter to the output of the R&S UPV generator. You will need an adapter XLR female / 2 * banana plug for this purpose. Relative display in dB, reference is the voltage measured at 1 kHz.

  • Page 98: Dc Offset 0 V: Residual Dc (Ch2)

    Test Sequence R&S UPV DC offset 0 V: residual DC (Ch2) Set R&S UPV: *) according to test report Meas. instrument: DC voltmeter Measurement: To enable measurement of the small DC offset, the AC level of the generator must be switched off (set voltage in generator function panel to 0 V). To set the generator hardware according to the levels specified in the performance test report, select Volt Range = Fix in the Generator Config Panel and choose the desired voltages.

  • Page 99: Dc Offset: Setting Error (Ch2)

    R&S UPV Test Sequence DC offset: setting error (Ch2) Set R&S UPV: *) according to test report *) according to test report Meas. instrument: DC voltmeter Measurement: Connect the DC voltmeter to the Ch2 output of R&S UPV generator and measure the DC voltage at the output of the R&S UPV generator.

  • Page 100: Thd+N Inherent Distortion (Ch2)

    Test Sequence R&S UPV THD+N inherent distortion (Ch2) Set R&S UPV: *) according to test report *) according to test report Measuring instrument: Analyzer for THD+N: Ref R&S UPV Settings of the Ref R&S UPV analyzer for: INSTRUMENT ANLG 22 kHz ANLG 80 kHz Channel(s) Ch1 Input...

  • Page 101: Dim Level Error (Ch2)

    R&S UPV Test Sequence DIM level error (Ch2) Set R&S UPV: *) according to test report Meas. instrument: Analyzer for DIM: R&S UPV Analyzer settings: Measurement: Connect the R&S UPV analyzer internally to the R&S UPV generator. For the remaining R&S UPV settings and measurement procedure, see the test report.

  • Page 102: Dim Inherent Distortion (Ch2)

    Test Sequence R&S UPV DIM inherent distortion (Ch2) Set R&S UPV: As before during measurement of the DIM level accuracy Meas. instrument: Analyzer for DIM: R&S UPV Analyzer settings: As before during measurement of the DIM level accuracy Measurement: Connect the R&S UPV analyzer internally to the R&S UPV generator. For the remaining R&S UPV settings and measurement procedure, see the test report.

  • Page 103: Unbalance Rejection (Ch2)

    R&S UPV Test Sequence Set R&S UPV: Instrument Analog, Bandwidth 22 kHz Channel(s) Ch1 Input Set according to R&S UPV generator Common Float Ch1 Range Auto Function Unit Reference Value: 10.00 V Test setup Connect the Ref R&S UPV analyzer to the output of the R&S UPV generator via a shielded cable.
  • Page 104 Test Sequence R&S UPV Measuring instrument: Selective voltmeter: R&S UPV Set Ref R&S UPV: Instrument Analog, Bandwidth 22 kHz (Analyzer) Channel Ch1 Input Common Float Ch1 Range Auto Function RMS Selective Unit Ch1 Reference Value: 10.00 V Bandwidth BP 3 % Freq Mode Fix: Set according to the frequency of the R&S UPV generator...

  • Page 105: Phase Coincidence

    R&S UPV Test Sequence Phase coincidence Set R&S UPV: *) according to test report Meas. instrument: Phase meter: R&S UPV Analyzer settings: Test setup Connect the R&S UPV analyzer inputs internally to the outputs of the R&S UPV generator.  Set the R&S UPV generator according to the test report. Measurement: ...

  • Page 106: Performance Test R&S Upv-B20 (Digital Audio I/O 48 Khz)

    Test Sequence R&S UPV Performance Test R&S UPV-B20 (Digital Audio I/O 48 kHz) Before starting the test, set the R&S UPV to a defined initial status. To do this, call up the default setting: Press the PRESET key and confirm your input request with “ ” Press the MENU key and select “Preset (Load Default)”...

  • Page 107: Thd

    R&S UPV Test Sequence THD + N Set R&S UPV: Meas. instrument: Device under test R&S UPV Analyzer settings: Total inherent distortion of analyzer and generator together as specified in data sheet. Error of internal Sample Frequency Set R&S UPV: 1146.2084.82 1.79...

  • Page 108: Range Of Sampling Rate

    Test Sequence R&S UPV Meas. instrument: Frequency counter Measurement: Measurement of the 48 kHz sampling rate Connect the frequency counter to Trigger Output to measure the clock rate. Set a sampling rate of 48 kHz on the generator and compare it to the displayed value on the frequency counter For the maximum frequency offset, see test report.

  • Page 109: Performance Test R&S Upv-B41 (I 2 S Interface)

    R&S UPV Test Sequence Performance Test R&S UPV-B41 (I S Interface) Before starting the test, set the R&S UPV to a defined initial status. To do this, call up the default setting: Press the PRESET key and confirm your input request with “” Press the MENU key and select “Preset (Load Default)”...

  • Page 110: Analyzer Pll

    Test Sequence R&S UPV Analyzer PLL Set R&S UPV: *) as shown in the table below In the Function Config Panel, set the unit to FS. Table 1-1 Settings for testing the analyzer PLL Meas # Word Length Sample Freq MClk Ratio Audio Bits 32 bit...

  • Page 111: Generator Pll

    R&S UPV Test Sequence Generator PLL Set R&S UPV: *) as shown in the table below In the analyzer function panel, set Freq/Phase to Sample Freq. Table 1-2 Settings for testing the generator PLL Meas # Word Length Sample Freq MClk Ratio Audio Bits 32 bit...

  • Page 112: Performance Test R&S Upv-B42 (Universal Serial Interface)

    Test Sequence R&S UPV Performance Test R&S UPV-B42 (Universal Serial Interface) Switch off the R&S UPV and disconnect the power plug. Remove the cover of the left extension slot (slot 1) on the rear by using a TORX TX 8 screwdriver then insert the B42 option and screw down. Connect the B42 board with the external probe according to the following draft.
  • Page 113 R&S UPV Test Sequence 1146.2084.82 1.85...
  • Page 114 Test Sequence R&S UPV 1146.2084.82 1.86...
  • Page 115 R&S UPV Test Sequence Generator: Sync to intern Manual Instructions: Preset the R&S UPV and make the following settings: 1146.2084.82 1.87...
  • Page 116 Test Sequence R&S UPV The first synchronization test should result in the following frequency values on the pins listed below: Interface to DUT [Generator] PIN Plug X11 Signal Frequency PIN Plug X11 Signal Frequency TX_MCLK_OUT 768 kHz ± 5% 15 TX_DATA1 48 kHz ±...
  • Page 117 R&S UPV Test Sequence Generator: Sync to extern Wordclock Manual Instructions: Make the following settings in the “Generator Config” Panel: To save an external signal source, the generator will be synchronized by signals of the analyzer. The displayed measurement results in the R&S UPV firmware are not meaningful, since a vice versa synchronization by an external wordclock between analyzer and generator is not supported.
  • Page 118 Test Sequence R&S UPV Generator: Sync to extern Wordclock / Bitclock Manual Instructions: Make the following settings in the “Generator Config” Panel: The external wordclock and bitclock signals will be generated by the anylazer again. This operation mode is aczually a valid operation mode and the R&S UPV firmware measurement results can be used as a means of functionality check.
  • Page 119 R&S UPV Test Sequence Analyzer: Sync to extern Wordclock Manual Instructions: Make the following settings in the “Analyzer Config” Panel: Like in the generator tests, now the analyzer is synchronized by its counterpart in order to save an external signal generator. This operation setup produces no meaningful measurement results by the firmware and is only used to check whether the following signals are generated by the analyzer.

  • Page 120: Performance Test R&S Upv-B48 (8 Channel Analyzer)

    Test Sequence R&S UPV Performance Test R&S UPV-B48 (8 Channel Analyzer) Before starting the test, set the R&S UPV to a defined initial status. To do this, call up the default setting: Press the PRESET key and confirm your input request with “” Press the MENU key and select “Preset (Load Default)”...

  • Page 121: Level Error At 1 Khz

    R&S UPV Test Sequence *) according to test report Meas. instrument: AC voltmeter Test setup: Connect the AC voltmeter to a balanced output of the R&S UPV generator. You will need an adapter XLR female / 2 * banana plug for this purpose. Connect the other balanced output of the R&S UPV generator to the output switcher R&S UPZ via an XLR cable.

  • Page 122: Frequency Response

    Test Sequence R&S UPV Frequency response Set R&S UPV: same as before R&S UPV Ref Gen: Level and frequency according to test report. Ranges 0.2 V / 3.0 V / 12.0 V Fix Reference frequency is 1 kHz Meas. instrument: AC voltmeter Test setup: same as before.

  • Page 123: Phase Synchronism

    R&S UPV Test Sequence Phase synchronism Set R&S UPV: *) according to test report Test setup: The R&S UPV Ref Generator provides the signal to all 8 channels simultaneously via the R&S UPZ. Measurement: Remaining R&S UPV settings and measurement procedure according to test report.

  • Page 124: Thd+N Inherent Distortion

    Test Sequence R&S UPV THD+N inherent distortion Note: This test is made as a loop measurement along with the R&S UPV low distortion generator. Set R&S UPV: *) according to test report *) according to test report Measurement: Set the R&S UPV analyzer and generator according to test report. The signal should be supplied via multicore cable and R&S UPZ.

  • Page 125: Mod Dist Inherent Distortion

    R&S UPV Test Sequence MOD DIST inherent distortion Set R&S UPV: Measurement: Read off the mod dist value in dB in the numeric display. DFD inherent distortion Set R&S UPV: 1146.2084.82 1.97...

  • Page 126: Inherent Noise

    Test Sequence R&S UPV *) according to test report Measurement: Read off the mod dist value in dB in the numeric display. Inherent noise Set R&S UPV: *) according to test report Terminate input externally with ≤ 50 . Use the multicore cable, an R&S UPZ, Test setup: an XLR/BNC adapter and 50 ...

  • Page 127: Offset Voltage

    R&S UPV Test Sequence Offset voltage Set R&S UPV: *) according to test report Short-circuit the input to the analog 8 channel analyzer or terminate it into 10 . Analyzer input: To do this use the multicore cable, an R&S UPZ and an XLR cable. Connect the XLR cable from busbar “B”...

  • Page 128: Peak Detector

    Test Sequence R&S UPV Measurement: Read off the DC measurement value in V in the numeric display. Peak detector Note: Each of the 8 channels has its own peak detector, which can detect an overrange or an underrange condition. Set R&S UPV: *) according to test report 1146.2084.82 1.100...

  • Page 129: Cross Talk Attenuation

    R&S UPV Test Sequence Measurement: Set the generator signal according to test report, launch a single measurement and evaluate the result. With an input signal of 0.4 V the determined fix range is underranged and the status line must show: With an input signal of 3.0 V the determined fix range is well supplied and the status line must show: With an input signal of 4.0 V the determined fix range is overranged and the...

  • Page 130: Common Mode Rejection Cmrr

    Test Sequence R&S UPV Test setup: Connect the signal generator to the R&S UPV-B48 inputs via the multicore cable and the R&S UPZ output switcher. The output of signal generator must connected to busbar “B” of R&S UPZ. The busbar “A” is terminated by a resistor with a value of 100 Ω...
  • Page 131 R&S UPV Test Sequence *) according to test report Test setup: Connect the signal generator to the R&S UPV-B48 inputs via the multicore cable and the R&S UPZ output switcher. The output of signal generator must connected to busbar “A” of R&S UPZ. The busbar “B” is terminated by a resistor with a value of 100 Ω...

  • Page 132: Input Impedance

    Test Sequence R&S UPV Input Impedance Set R&S UPV: Meas. instrument: ohmmeter Test setup: Plug in the multicore cable into the 25 pole D sub jack. Measurement: The input impedance of each channel 1 to 8 can be measured by an ohmmeter between pins 2 and 3 of XLR cable jacks.

  • Page 133: Performance Test R&S Upv-K22 (Jitter And Interface Test)

    R&S UPV Test Sequence Performance Test R&S UPV-K22 (Jitter and Interface Test) Before starting the test, set the R&S UPV to a defined initial status. To do this, call up the default setting: Press the PRESET key and confirm your input request with “” Press the MENU key and select “Preset (Load Default)”...

  • Page 134: Level Measurement, Bal Input

    Test Sequence R&S UPV Level Measurement, Bal Input Measurement: Set the input to Bal (XLR) in the Analyzer Config Panel. Connect the Bal output of the R&S UPV to the Bal input (XLR cable) and compare the measured level which is displayed on the R&S UPV with the set generator level.

  • Page 135: Input To Ref Phase Deviation

    R&S UPV Test Sequence Input to Ref Phase Deviation Set R&S UPV: *) according to test report Test setup: Connect the digital analyzer input to the digital generator output (either Intern, Bal, Unbal or Optical). Connect Aux In to Aux Out on the back panel of the R&S UPV. Measurement: Modify the frame phase in the Generator Config Panel and compare it with the value measured on the R&S UPV analyzer (numeric display).

  • Page 136: Jitter Generation And Measurement

    Test Sequence R&S UPV Jitter Generation and Measurement Note: For testing the individual functions of the generator as well as the measurement functions of the analyzer, a loop measurement is performed. Thus, the number of measuring instruments required for testing is reduced. You can use an existing modulation analyzer for phase modulation to check the measurement results produced by the jitter analyzer.

  • Page 137: Jitter Frequency Response

    R&S UPV Test Sequence Jitter Frequency Response Measurement: Vary the jitter frequency in the Generator Function Panel and compare it with the displayed "Input Peak" in the numeric display. In the Analyzer Config Panel, you will need to set a bandwidth of 80 kHz so that the upper test frequency can be measured.

  • Page 138: Inherent Jitter

    Test Sequence R&S UPV Inherent Jitter Set R&S UPV: Test setup: Connect the digital analyzer input to the digital generator output (either Intern, Bal, Unbal or Optical). Measurement: In the numeric display, read off the RMS or Inp Peak value. Note: Loop measurement using the R&S UPV digital analyzer 1146.2084.82...

  • Page 139: Performance Test R&S Upv-U2 (Bnc Phone Out)

    R&S UPV Test Sequence Performance Test R&S UPV-U2 (BNC Phone Out) Before starting the test, set the R&S UPV to a defined initial status. To do this, call up the default setting: Press the PRESET key and confirm your input request with “ ” Press the MENU key and select “Preset (Load Default)”...

  • Page 140: Measurement Of The Output Level

    Test Sequence R&S UPV Measurement of the output level Analyzer settings: Measurement of Phone Out Ch1 Measurement of Phone Out Ch2 Similar to the “Monitoring” performance test, the R&S UPV-U2 option can be Test setup checked sequentially using a R&S UPV analyzer channel. This saves the cost of additional test equipment.

  • Page 141: Channel Assignment

    R&S UPV Test Sequence Channel assignment A check is made whether the assignment of the Phone Out channels to the generator or analyzer channels (and thus the internal cabling with the BNC female connectors on the back panel of the R&S UPV) is correct.

  • Page 142: Performance Test Report

    Performance Test Report R&S UPV Performance Test Report Performance Test Report of Analog Generator Audio Analyzer R&S UPV Rohde & Schwarz R&S UPV / Analog Generator Order No. 1146.2003.02 Date: ... . Serial-No.: .
  • Page 143 R&S UPV Performance Test Report Measurement Act. Unit Sinewave Frequency Error 0.99999 1.00001 Frequency 1.00000 kHz DC Offset 0 V: Residual DC Output Unbal Voltage Range 8.0000 V 4.0000 V 0.5000 V Output 10  Impedance Voltage 1.0000 V DC Offset: Setting Error Output Unbal +0.98...
  • Page 144 Performance Test Report R&S UPV Measurement Act. Unit Mod Dist Inherent Distortion Lower Frequency 60 Hz Upper Frequency 4 kHz 7 kHz 10 kHz 20 kHz DFD Level Error 0.95 1.05 Mean Frequency 5 kHz 0.95 1.05 10 kHz 0.95 1.05 15 kHz 0.95...
  • Page 145 R&S UPV Performance Test Report Measurement Act. Unit Channel 2  1 -115 Unbalance Rejection Channel Frequency 1 kHz 20 kHz Channel Frequency 1 kHz 20 kHz *) If the option R&S UPV-U1 is built in, the output impedance must be 150  instead of 200 .

  • Page 146: Performance Test Report Of Analog Analyzer

    Performance Test Report R&S UPV Performance Test Report of Analog Analyzer Audio Analyzer R&S UPV Rohde & Schwarz Analog Analyzer Order No. 1146.2003.02 Date: ... . Serial No.: ... Name: .
  • Page 147 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit Frequency Response Analyzer Bandwidth 22 kHz Channel 1 Range Fix Input Voltage 3.0 V RMS 2.25 V  Frequency 10 Hz  20 Hz 0.01 0.01  50 Hz 0.01 0.01 ...
  • Page 148 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit Analyzer Bandwidth 22 kHz Channel 1 Range Fix Input Voltage 6.0 V RMS 4.5 V  Frequency 10 Hz  20 Hz 0.01 0.01  50 Hz 0.01 0.01  100 Hz 0.01 0.01...
  • Page 149 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit  5 kHz 0.01 0.01 10 kHz  0.01 0.01 22 kHz  0.02 0.02 40 kHz  0.03 0.03 Analyzer Bandwidth 40 kHz Channel 2 Range Fix Input Voltage 3.0 V RMS 2.25 V ...
  • Page 150 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit  120 kHz  150 kHz  180 kHz  200 kHz  250 kHz Analyzer Bandwidth 250 kHz Channel 2 Range Fix Input Voltage 100 mV RMS 75 mV Frequency 1 kHz ...
  • Page 151 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit  50 kHz 0.03 0.03  80 kHz  100 kHz  120 kHz  150 kHz  180 kHz  200 kHz  250 kHz Analyzer Bandwidth 250 kHz Channel 1 Range Fix Input Voltage...
  • Page 152 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit  50 kHz 0.03 0.03  80 kHz  100 kHz  120 kHz  150 kHz  180 kHz  200 kHz  250 kHz Analyzer Bandwidth 250 kHz Channel 1 Range Fix Input Voltage...
  • Page 153 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit  50 kHz 0.05 0.05  80 kHz  100 kHz  120 kHz  150 kHz  180 kHz  200 kHz  250 kHz Analyzer Bandwidth 250 kHz Channel 1 Range Fix Input Voltage...
  • Page 154 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit  50 kHz 0.05 0.05  80 kHz  100 kHz  120 kHz  150 kHz  180 kHz  200 kHz  250 kHz Overrange Test Channel 1 Range Fix Input Voltage 3.0 V RMS...
  • Page 155 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit V Filter Off Analyzer Bandwidth 250 kHz V Function RMS Filter Off Input Impedances Channel 1 k Impedance 200 k 600   300   298.5 301.5 Channel 2 k...
  • Page 156 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit Analyzer Bandwidth 22 kHz Channel 2 Range Fix 3.0 VRMS Input 3 V, Frequency 10 Hz 1 kHz 22 kHz Input 0,3 V 10 Hz 1 kHz 22 kHz Analyzer Bandwidth 250 kHz Channel 1 Range Fix 3.0 VRMS...
  • Page 157 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit   100 Hz   500 Hz   1 kHz   10 kHz   15 kHz   20 kHz   40 kHz   60 kHz ...
  • Page 158 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit   Frequency 1 kHz   10 kHz   15 kHz   20 kHz   40 kHz   60 kHz   80 kHz  ...
  • Page 159 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit DC Offset Analyzer Bandwidth 22 kHz Level Monitor DC Channel 1 Range Fix 100 mV  +0.1 300 mV  +0.3 1.0 V  3.0 V  10.0 V  30.0 V ...
  • Page 160 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit +0.5 V -1.60 1.60 -0.5 V -1.60 1.60 +0.3 V -2.00 2.00 -0.3 V -2.00 2.00 THD Total Harmonic Distortion THD Inherent Distortion  with Low Distortion Generator Function THD all di Prec Analyzer Bandwidth 22 kHz Channel 1 Freq...
  • Page 161 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit 3.0 V Unbal -106 1.0 V Unbal -106 Function THD all di Prec Analyzer Bandwidth 22 kHz Channel 2 Freq Range Fix Input Gen Out 10 Hz 10.0 V 10 V -100 3.0 V -100...
  • Page 162 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit Freq Range Fix Input Gen Out 50 Hz 10.0 V 10 V -100 3.0 V -100 3.0 V Unbal -100 1.0 V Unbal -100 100 Hz 10.0 V 10 V -100 3.0 V -100...
  • Page 163 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit 100 Hz 10.0 V 10 V -100 3.0 V -100 3.0 V Unbal -100 1.0 V Unbal -100 450 Hz 10.0 V 10 V -100 3.0 V -100 3.0 V Unbal -100 1.0 V...
  • Page 164 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit   60 dB   65 dB  70 dB  Function THD Select di, Even Harmonics 2 Dynamic Mode Prec Analyzer Bandwidth 22kHz Channel 2 Range Fix Fund. Freq. THD Nom.
  • Page 165 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit THD+N Inherent Distortion  with Low Distortion Generator Function THD+N, Dynamic Mode Prec Relection Bandw. 60 Hz, Frq. Lim. 20 Hz to 22 kHz Analyzer Bandwidth 22 kHz Channel 1 Freq Range Fix Input...
  • Page 166 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit 1.0 V -103.5 50 Hz 10.0 V 10 V -100 6.0 V -100 3.0 V -103.5 1.0 V -103.5 100 Hz 10.0 V 10 V -100 6.0 V -100 3.0 V -103.5 1.0 V -103.5...
  • Page 167 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit Freq. Range Fix Input Gen Out 20 Hz 3.0 V 2.5 V Ch1 Unbal 1 kHz 3 kHz 6 kHz 8 kHz 10 kHz 20 kHz Function THD+N, Dynamic Mode Prec Relection Bandw.
  • Page 168 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit 8 kHz 10 kHz 20 kHz If R&S UPV-B3 installed: Generator Function Stereo Sine Function THD+N, Dynamic Mode Prec Relection Bandw. 60 Hz, Frq. Lim. 20 Hz to 22 kHz Analyzer Bandwidth 22 kHz Analyzer Channel 2 Generator Bandwidth 22 kHz...
  • Page 169 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit   50 dB   50 Hz 100 Hz 30 dB   50 dB   200 Hz 400 Hz 30 dB   50 dB   450 Hz 900 Hz 30 dB...
  • Page 170 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit   25 kHz 50 kHz 30 dB   50 dB Function THD+N Dynamic Mode Prec Analyzer Bandwidth 250 kHz Channel 1, Range Fix 3.0 V RMS Fund. Freq. 2 Harm Freq THD+N Nom.
  • Page 171 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit   50 dB Mod Dist Modulation Factor Mod Dist Inherent Distortion Function Mod Dist, Dynamic Mode Prec Analyzer Bandwidth 22 kHz Channel 1 Gen Bandwidth 22 kHz, Low Dist Off Upper Frq Lower Frq Range Fix Input 4 kHz 30 Hz...
  • Page 172 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit 500 Hz 3.0 V 2.5 V -100 15 kHz 30 Hz 3.0 V 2.5 V 200 Hz 3.0 V 2.5 V 500 Hz 3.0 V 2.5 V 20 kHz 60 Hz 3.0 V 2.5 V 200 Hz...
  • Page 173 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit Low Dist Off 4 kHz 200 Hz 3.0 V 2.5 V 500 Hz 3.0 V 2.5 V 7 kHz 200 Hz 3.0 V 2.5 V 500 Hz 3.0 V 2.5 V 20 kHz 200 Hz 3.0 V...
  • Page 174 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit                   0.75 0.75 Function Mod Dist, Dynamic Mode Prec Analyzer Bandwidth 250 kHz Channel 2, Range Fix 3.0 V ModDist Upper...
  • Page 175 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit 20 kHz 80 Hz 6.0 V 2.3 V -112 225 Hz 6.0 V 2.3 V -112 525 Hz 6.0 V 2.3 V -112 975 Hz 6.0 V 2.3 V -112 2 kHz 6.0 V 2.3 V...
  • Page 176 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit 2 kHz 6.0 V 4.0 V -110 20 kHz 225 Hz 6.0 V 4.0 V -110 525 Hz 6.0 V 4.0 V -110 975 Hz 6.0 V 4.0 V -110 2 kHz 6.0 V 4.0 V...
  • Page 177 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit 975 Hz 6.0 V 4.0 V 2 kHz 6.0 V 4.0 V 7 kHz 225 Hz 3.0 V 2.3 V -110 525 Hz 3.0 V 2.3 V -110 975 Hz 3.0 V 2.3 V -110...
  • Page 178 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit 2 kHz 3.0 V 2.3 V 20 kHz 80 Hz 3.0 V 2.3 V 225 Hz 3.0 V 2.3 V 525 Hz 3.0 V 2.3 V 975 Hz 3.0 V 2.3 V 2 kHz 3.0 V...
  • Page 179 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit 2 kHz 6.0 V 4.0 V 20 kHz 225 Hz 6.0 V 4.0 V 525 Hz 6.0 V 4.0 V 975 Hz 6.0 V 4.0 V 2 kHz 6.0 V 4.0 V 50 kHz 225 Hz...
  • Page 180 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit 2 kHz 6.0 V 4.0 V 7 kHz 225 Hz 3.0 V 2.3 V 525 Hz 3.0 V 2.3 V 975 Hz 3.0 V 2.3 V 2 kHz 3.0 V 2.3 V 20 kHz 225 Hz...
  • Page 181 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit Dynamic Mode Prec Analyzer Bandwidth 22 kHz Channel 2, Range Fix 3.0 V Generator Bandwidth 22 kHz Mean Freq Diff Freq DFD-d2 nom.  5 kHz 125 Hz -40 dB -34 dB 7 kHz 125 Hz...
  • Page 182 Performance Test Report R&S UPV Measurement Min. Actual Max. Unit  15 kHz 100 Hz -60 dB -60 dB  200 Hz -60 dB -60 dB  500 Hz -60 dB -60 dB  1 kHz -60 dB -60 dB ...
  • Page 183 R&S UPV Performance Test Report Measurement Min. Actual Max. Unit 30 kHz 3.0 V 3.0 V 100 kHz 1.5 V 3.0 V 30 kHz 1.5 V 3.0 V 100 kHz 1.5 V 1.8 V 1.0 V 1.0 V 0.25 300.0 mV 2.96/14 kHz 100 kHz 3.0 V 3.0 V...

  • Page 184: Performance Test Report Of Audio Monitor

    Performance Test Report R&S UPV Performance Test Report of Audio Monitor Audio Analyzer R&S UPV Rohde & Schwarz Order No. 1146.2003.02 Date: ... . Serial No.: ... Name: .

  • Page 185: Performance Test Report Of R&S Upv-B1

    R&S UPV Performance Test Report Performance Test Report of R&S UPV-B1 Audio Analyzer R&S UPV Rohde & Schwarz Option R&S UPV-B1 (Low Distortion Generator) Order No. 1146.5202.02 Date: ... Serial No.: ... Name: .
  • Page 186 Performance Test Report R&S UPV Measurement Act. Unit Voltage 2.000 V Frequency 1 kHz 20 kHz -0.01 +0.01 100 kHz -0.15 +0.15 150 kHz -0.25 +0.25 Frequency Response (Bal) Channel 10  Impedance Voltage 2.000 V Frequency 1 kHz -0.01 +0.01 20 kHz -0.15...
  • Page 187 R&S UPV Performance Test Report Measurement Act. Unit Frequency 20 Hz -104 1 kHz -104 10 kHz -104 20 kHz -104 Voltage 2.5000 V Frequency 1 kHz -104 Analyzer Bandwidth 80 kHz Voltage 10.000 V Frequency 1 kHz 20 kHz Voltage 2.5000 V Frequency...

  • Page 188: Performance Test Report Of R&S Upv-B2

    Performance Test Report R&S UPV Performance Test Report of R&S UPV-B2 Audio Analyzer R&S UPV Rohde & Schwarz Option R&S UPV-B2 (Digital Audio I/O 192kHz) Order No. 1146.4306.02 Date: ... . Serial No.: .
  • Page 189 R&S UPV Performance Test Report Measurement Act. Unit Sample Rate 32 kHz ― Function THD+N -142 Input Peak -0.01 +0.01 dBFS Frequency 996.95 997.05 Phase -0.01 +0.01 Sample Rate 48 kHz ― Function THD+N -142 Input Peak -0.01 +0.01 dBFS Frequency 996.95 997.05...

  • Page 190: Performance Test Report Of R&S Upv-B3

    Performance Test Report R&S UPV Performance Test Report of R&S UPV-B3 Audio Analyzer R&S UPV Rohde & Schwarz Option R&S UPV-B3 (Second Analog Generator) Order No. 1146.4806.02 Date: ... . Serial No.: .
  • Page 191 R&S UPV Performance Test Report Measurement Act. Unit DC Offset +1.0000 V -1.0000 V +0.98 +1.02 Output -1.02 -0.98 10  Impedance DC Offset +2.0000 V +1.96 +2.04 -2.0000 V -2.04 -1.96 THD+N Inherent Distortion (Ch2) Output Unbal Analyzer Bandwidth 22 kHz Voltage 10.000 V...
  • Page 192 Performance Test Report R&S UPV Measurement Act. Unit Square/Sine 3.15/15 kHz Bandwidth 30 kHz 100 kHz Crosstalk Output Unbal Kanal 1  2 -105 Crosstalk Kanal 2  1 -105 Output -105 Kanal 1  2 Crosstalk -105 Kanal 2  1 Unbalance Rejection (Ch2) Channel Frequency...

  • Page 193: Performance Test Report Of R&S Upv-B20

    R&S UPV Performance Test Report Performance Test Report of R&S UPV-B20 Audio Analyzer R&S UPV Rohde & Schwarz Option R&S UPV-B20 (Digital Audio I/O 48kHz) Order No. 1402.2100.02 Date: ... . Serial No.: .

  • Page 194: Performance Test Report Of R&S Upv-B41

    Performance Test Report R&S UPV Performance Test Report of R&S UPV-B41 Audio Analyzer R&S UPV Rohde & Schwarz Option R&S UPV-B41 (I S Interface) Order No. 1146.5402.02 Date: ... . Serial-No.: .

  • Page 195: Performance Test Report Of R&S Upv-B42

    R&S UPV Performance Test Report Performance Test Report of R&S UPV-B42 Audio Analyzer R&S UPV Rohde & Schwarz Option R&S UPV-B42 (Universal Serial Interface) Order No. 1146.5802.02 Date: ... . Serial-No.: .
  • Page 196 Performance Test Report R&S UPV Measurement Actual Unit Generator: Sync to extern Masterclock TX_SCK_OUT 364,8 403,2 TX_FSYNC_OUT 45,6 50,4 TX_CHCLK_OUT 45,6 50,4 TX_DATA1 45,6 50,4 TX_DATA2 45,6 50,4 TX_DATA3 45,6 50,4 TX_DATA4 45,6 50,4 Analyzer: Sync to extern Wordclock RX_MCLK_OUT 729,6 806,4 RX_SCK_OUT...

  • Page 197: Performance Test Report Of R&S Upv-B48

    R&S UPV Performance Test Report Performance Test Report of R&S UPV-B48 Audio Analyzer R&S UPV Rohde & Schwarz Option R&S UPV-B48 (8 channel analyzer) Order No. 1402.2200.02 Date: ... . Serial-No.: .
  • Page 198 Performance Test Report R&S UPV Measurement Act. Unit Channel Range Fix Input Voltage 0.2 V 0.15 V 0.1491 0.1508 0.8 V 0.60 V 0.5965 0.6034 3.0 V 2.25 V 2.2370 2.2629 12.0 V 9.00 V 8.9483 9.0519 50.0 V 20.0 V 19.885 20.115 Channel...
  • Page 199 R&S UPV Performance Test Report Measurement Act. Unit Channel Frequency 20 Hz -0.1 +0.1 100 Hz -0.1 +0.1 1 kHz 20 kHz -0.1 +0.1 40 kHz -0.2 +0.2 Channel Frequency 20 Hz -0.1 +0.1 100 Hz -0.1 +0.1 1 kHz 20 kHz -0.1 +0.1...
  • Page 200 Performance Test Report R&S UPV Measurement Act. Unit Channel Frequency 20 Hz -0.1 +0.1 100 Hz -0.1 +0.1 1 kHz 20 kHz -0.1 +0.1 40 kHz -0.2 +0.2 Channel Frequency 20 Hz -0.1 +0.1 100 Hz -0.1 +0.1 1 kHz 20 kHz -0.1 +0.1...
  • Page 201 R&S UPV Performance Test Report Measurement Act. Unit Channel Frequency 20 Hz -0.1 +0.1 100 Hz -0.1 +0.1 1 kHz 20 kHz -0.1 +0.1 40 kHz -0.2 +0.2 Channel Frequency 20 Hz -0.1 +0.1 100 Hz -0.1 +0.1 1 kHz 20 kHz -0.1 +0.1...
  • Page 202 Performance Test Report R&S UPV Measurement Act. Unit Channel Frequency 20 Hz -0.5 +0.5 ° 1 kHz -0.5 +0.5 ° 20 kHz -0.5 +0.5 ° 40 kHz -1.0 +1.0 ° Channel Frequency 20 Hz -0.5 +0.5 ° 1 kHz -0.5 +0.5 °...
  • Page 203 R&S UPV Performance Test Report Measurement Act. Unit Channel Frequency Range Fix Input Voltage 20 Hz 12.0 V 10 V 3.0 V 2.5 V 0.8 V 0.6 V 100 Hz 12.0 V 10 V 3.0 V 2.5 V 0.8 V 0.6 V 1 kHz 12.0 V...
  • Page 204 Performance Test Report R&S UPV Measurement Act. Unit Channel Frequency Range Fix Input Voltage 20 Hz 12.0 V 10 V 3.0 V 2.5 V 0.8 V 0.6 V 100 Hz 12.0 V 10 V 3.0 V 2.5 V 0.8 V 0.6 V 1 kHz 12.0 V...
  • Page 205 R&S UPV Performance Test Report Measurement Act. Unit MOD DIST Inherent Distortion Channel DFD Difference Frequency Distortion DFD-d2 Inherent Distortion Channel -100 -100 -100 -100 -100 -100 -100 -100 DFD-d3 Inherent Distortion Channel Inherent Noise Channel V Function RMS Filter CCIR unwtd V Filter A weighting Channel...
  • Page 206 Performance Test Report R&S UPV Measurement Act. Unit Channel V Function RMS Filter CCIR unwtd V Filter A weighting Channel V Function RMS Filter CCIR unwtd V Filter A weighting Channel V Function RMS Filter CCIR unwtd V Filter A weighting DC Measurement Offset Voltage Channel...
  • Page 207 R&S UPV Performance Test Report Measurement Act. Unit DC Measurement Error Channel +3.0 V -1.20 +1.20 -3.0 V -1.20 +1.20 +0.3 V -3.00 +3.00 -0.3 V -3.00 +3.00 Channel +3.0 V -1.20 +1.20 -3.0 V -1.20 +1.20 +0.3 V -3.00 +3.00 -0.3 V -3.00...
  • Page 208 Performance Test Report R&S UPV Measurement Act. Unit Channel 0.4 VRMS grey grey 3.0 VRMS green green 4.0 VRMS Channel 0.4 VRMS grey grey 3.0 VRMS green green 4.0 VRMS Channel 0.4 VRMS grey grey 3.0 VRMS green green 4.0 VRMS Crosstalk Attenuation Channel Common Mode Rejection CMRR...
  • Page 209 R&S UPV Performance Test Report Measurement Act. Unit Channel Frequency 50 Hz 1 kHz 20 kHz Input Impedance Channel k k k k k k k k 1146.2084.82 1.181...

  • Page 210: Performance Test Report Of R&S Upv-K22

    Performance Test Report R&S UPV Performance Test Report of R&S UPV-K22 Audio Analyzer R&S UPV Rohde & Schwarz Option R&S UPV-K22 (Jitter und Interface Test) Order No. 1401.7909.02 Date: ... . Serial-No.: .
  • Page 211 R&S UPV Performance Test Report Measurement Act. Unit Jitter Generation and Measurement Jitter Amplitude Generator: Sample Freq 96.000 kHz Jitter Freq 1.0000 kHz Jitter Pk Ampl 0.1000 UI 0.090 0.110 0.5000 UI 0.450 0.550 1.0000 UI 0.900 1.100 2.5000 UI 2.250 2.750 Sample Freq...

  • Page 212: Performance Test Report Of R&S Upv-U2

    Performance Test Report R&S UPV Performance Test Report of R&S UPV-U2 Audio Analyzer R&S UPV Rohde & Schwarz Option R&S UPV-U2 (BNC Phone Out) Order No. 1402.1704.02 Date: ... . Serial No.: .
  • Page 213 R&S UPV Contents Chapter 2 Contents 2 Adjustment ............................2.1 Adjustment ............................2.1 Recommended Measuring Equipment ...................2.1 Manual Adjustment with Additional Tools..................2.2 Analog Generator........................2.2 Adjustment of the DC Offset ..................2.3 Adjustment of the Frequency Response................2.4 Adjustment of the Unbalance Rejection.................2.5 Analog Analyzer ..........................2.6 Adjustment of the Frequency Response................2.7 Adjustment of the Common-Mode Rejection ..............2.8 Option R&S UPV-B1 (Low Distortion Generator)..............2.10...
  • Page 214 Contents Chapter 2 R&S UPV Option R&S UPV-B48 (8 Channel Analog Board) ..............2.39 Software Adjustment, RMS Level Error ...............2.39 Software Adjustment, DC Offset..................2.40 1146.2084.82 I-2.2...

  • Page 215: Adjustment

    R&S UPV Adjustment 2 Adjustment Adjustment The general meaning of adjustment is to set the actual value of a particular parameter such that the deviation of the actual value from the nominal value does not exceed a certain tolerance (e.g. with level or frequency accuracy), or that the actual value does not exceed or fall below a specified limit value (e.g.

  • Page 216: Manual Adjustment With Additional Tools

    Manual Adjustment with Additional Tools R&S UPV Manual Adjustment with Additional Tools Analog Generator Preparation: Open the R&S UPV. • Switch off the R&S UPV and disconnect the power cable. • Place the R&S UPV on its handles and remove the rear housing feet (4 Torx screws at the corners of the instrument.

  • Page 217: Adjustment Of The Dc Offset

    R&S UPV Manual Adjustment with Additional Tools Adjustment of the DC Offset Note: Other adjustment procedures are not affected by this adjustment. Set R&S UPV: Meas. instrument: DC voltmeter Setup: Connect the DC voltmeter to the output of the R&S UPV generator. You will need an adapter XLR female / 2 * banana plug for this purpose.

  • Page 218: Adjustment Of The Frequency Response

    Manual Adjustment with Additional Tools R&S UPV Adjustment of the Frequency Response Note: Other adjustment procedures are not affected by this adjustment. Set R&S UPV: Meas. instrument: AC voltmeter Relative display in dB, reference corresponding to adjustment instructions. Setup: Connect the AC voltmeter to the output of the R&S UPV generator. You will need an adapter XLR female / 2 * banana plug for this purpose.

  • Page 219: Adjustment Of The Unbalance Rejection

    R&S UPV Manual Adjustment with Additional Tools Adjustment of the Unbalance Rejection Note: Other adjustment procedures are not affected by this adjustment. Set R&S UPV: Caution: To allow the necessary level to be set, it is necessary to set the Max Voltage to 20 V in the Generator Config Panel.

  • Page 220: Analog Analyzer

    Manual Adjustment with Additional Tools R&S UPV Analog Analyzer Preparation: Open the R&S UPV. • Switch off the R&S UPV and disconnect the power cable. • Place the R&S UPV on its handles and remove the rear housing feet (4 Torx screws at the corners of the instrument.

  • Page 221: Adjustment Of The Frequency Response

    R&S UPV Manual Adjustment with Additional Tools Adjustment of the Frequency Response In the case of the R&S UPV, only the frequency response of the two input dividers 15 dB and 30 dB is adjusted with an unbalanced input signal. Then, the common-mode rejection is adjusted while feeding in a common-mode signal based on the section "Adjustment of the Common-Mode Rejection".

  • Page 222: Adjustment Of The Common-Mode Rejection

    Manual Adjustment with Additional Tools R&S UPV Adjustment of the Common-Mode Rejection Set R&S UPV: Generator Config Instrument Analog Channel 2 = 1 Output Type Unbal Common Ground Generator Function Function Sine Low Dist (no check in the tick box) Frequency according to table Voltage...
  • Page 223 R&S UPV Manual Adjustment with Additional Tools Table for hardware adjustment: Range Voltage Frequency Adjustment Channel Function 1.0 V RMS 100 Hz R221 20 kHz R850 Differential amplifier 100 Hz R222 20 kHz R851 18.0 mV RMS 100 Hz R914 Input amplifier R915 10.0 V RMS...

  • Page 224: Option R&S Upv-B1 (Low Distortion Generator)

    Manual Adjustment with Additional Tools R&S UPV Option R&S UPV-B1 (Low Distortion Generator) Preparation: Open the R&S UPV. • Switch off the R&S UPV and disconnect the power cable. • Place the R&S UPV on its handles and remove the rear housing feet (4 Torx screws at the corners of the instrument.

  • Page 225: Adjustment Of The Frequency Response

    R&S UPV Manual Adjustment with Additional Tools Adjustment of the Frequency Response Note: Other adjustment procedures are not affected by this adjustment. Set R&S UPV: Meas. instrument: AC voltmeter Relative display in dB, reference corresponding to adjustment instructions. Setup: Connect the AC voltmeter to the output of the R&S UPV generator. You will need an adapter XLR female / 2 * banana plug for this purpose.

  • Page 226: Adjustment Of The Digital Amplitude

    Manual Adjustment with Additional Tools R&S UPV Adjustment of the Digital Amplitude Set R&S UPV: Analyzer settings if option R&S UPV-K22 is installed Measuring instrument:Oscilloscope Test setup: Connect the oscilloscope using a 75 cable and 75 terminating impedance to the Unbal output of the R&S UPV. If the option R&S UPV-K22 is installed, use a 75 cable to connect the Unbal output of the R&S UPV to the Unbal input.

  • Page 227: Option R&S Upv-B3 (Second Generator)

    R&S UPV Manual Adjustment with Additional Tools Adjustment: Set level Unbal of the Unbal digital output to 1.0000 V. Use R13 (TX AMPL ADJ) on the digital front panel (DFP) to adjust the output level on the oscilloscope to 1.00 V. Measure the AC voltage and note the measured value as the reference.

  • Page 228: Adjustment Of The Dc Offset

    Manual Adjustment with Additional Tools R&S UPV Adjustment of the DC Offset Set R&S UPV: Meas. instrument: DC voltmeter Setup: Connect the DC voltmeter to the output Ch2 of the R&S UPV generator. You will need an adapter XLR female / 2 * banana plug for this purpose. AC level: To measure the DC offset level, you will need to set the AC level to zero: –...

  • Page 229: Adjustment Of The Frequency Response

    R&S UPV Manual Adjustment with Additional Tools Adjustment of the Frequency Response Note: Other adjustment procedures are not affected by this adjustment. Set R&S UPV: Meas. instrument: AC voltmeter Relative display in dB, reference corresponding to adjustment instructions. Setup: Connect the AC voltmeter to the output of the R&S UPV generator. You will need an adapter XLR female / 2 * banana plug for this purpose.

  • Page 230: Adjustment Of The Unbalance Rejection

    Manual Adjustment with Additional Tools R&S UPV Adjustment of the Unbalance Rejection This adjustment is the same as for the analog generator, but different settings are required. Note: Other adjustment procedures are not affected by this adjustment. Set R&S UPV: Caution: To allow the necessary level to be set, it is necessary to set the Max Voltage to 20 V in the Generator Config Panel.

  • Page 231: Position Of Adjustment Components

    R&S UPV Manual Adjustment with Additional Tools Position of Adjustment Components Fig. 2-1 Adjustment Components of Analog Generator Fig. 2-2 Adjustment Components of Analog Analyzer 1146.2084.82 2.17...
  • Page 232 Manual Adjustment with Additional Tools R&S UPV Fig. 2-3 Adjustment Component of Digital Front Panel Fig. 2-4 Adjustment Components of Second Generator 1146.2084.82 2.18...

  • Page 233: Software Adjustment

    R&S UPV Software Adjustment Software Adjustment Procedure In the R&S UPV, a procedure is used that is referred to as software adjustment. The deviation of the actual value from the nominal value is measured. This deviation (referred to as correction factor) is stored in the R&S UPV and taken into account by the measurement software when controlling the analyzer and generator so that the error of the actual value remains within the tolerance.
  • Page 234 Software Adjustment R&S UPV There are six groups of correction data: Group Correction data for Backup file R&S UPV-B1 Low Distortion Generator eeprom_anaaudio.bin + Low Dist Gen. eepromdump.txt Analog Generator Anlg Generator Analog Analyzer Anlg Analyzer Digital Phase R&S UPV-B2 Digital Audio I/O 192 kHz with eeprom_digaudio.bin + R&S UPV-K22 eepromdump.txt...

  • Page 235: Diagnostic Mode

    R&S UPV Software Adjustment Diagnostic Mode Diagnostic mode allows extensive intervention in the hardware of the R&S UPV. Its use should be reserved for personnel employed by R&S representatives who are trained in how to service the R&S UPV. In addition to entering the correction factors for software adjustment, it is, for example, also possible to read out and modify the hardware settings for all of the R&S UPV modules.

  • Page 236: Software Adjustment Procedure

    Software Adjustment R&S UPV Software Adjustment Procedure Analyzer and generator always use the currently valid correction factors stored in the E PROM. Before performing a correction measurement, the correction factor must be set to the value 1. Before calling the automatic adjustment routines for the low distortion generator or the digital generator and analyzer, the respective correction factors need not be set to the value 1 (or 0 for DC offset correction of R&S UPV-B48)! Software Adjustment Procedure:...
  • Page 237 R&S UPV Software Adjustment Correction Factors in the E PROM Adjustment = Low Dist Gen Address Value Meaning cf_ldg_sin Sinus Level (at 1 V and 1 kHz) cf_ldg_imd IMD Level (at 1 V and 1 kHz) No adjustment cf_ldg_frq[0] Frequency range 0 (at 50 kHz) cf_ldg_frq[1] Frequency range 1 (at 10 kHz) cf_ldg_frq[2]...
  • Page 238 Software Adjustment R&S UPV Adjustment = Anlg Analyzer Address Value Meaning cal_notch[0][0] Notch frequency range 0, Ch1 (at 75 kHz) cal_notch[0][1] Notch frequency range 1, Ch1 (at 20 kHz) cal_notch[0][2] Notch frequency range 2, Ch1 (at 3.2 kHz) cal_notch[0][3] Notch frequency range 3, Ch1 (at 470 Hz) cal_notch[1][0] Notch frequency range 0, Ch2 (at 75 kHz) cal_notch[1][1]...

  • Page 239: Analog Generator

    R&S UPV Software Adjustment Analog Generator Preparation: After performing the hardware adjustment, the R&S UPV must be reassembled: Switch off the R&S UPV. Reinstall the option R&S UPV-B1 (low distortion generator) if it was previously removed. Slide on the instrument casing. Screw on the rear panel feet (Torx screwdriver, size 20).
  • Page 240 Software Adjustment R&S UPV Adjustment: Compute the correction factor: cf_agen_0 = a(act) You can enter the value you determine directly into the corresponding field. Use the following IEC/IEEE bus command to transfer the correction values to the R&S UPV: "DIAG:CAL CAGEn" "DIAG:CAL:ADDRess 0"...

  • Page 241: Analog Analyzer

    R&S UPV Software Adjustment Analog Analyzer Preparation: After performing the hardware adjustment, the R&S UPV must be reassembled: Switch off the R&S UPV. Slide on the instrument casing. Screw the rear panel feet back on (Torx screwdriver, size 20). Put the R&S UPV back into its normal operating position and power in on. Caution: Before carrying out a software adjustment, it is usually not necessary to perform a hardware adjustment.
  • Page 242 Software Adjustment R&S UPV Test setup: Connect the AC voltmeter to an output of the DUT R&S UPV generator. You will need an adapter XLR female / 2 * banana plug for this purpose. The test signal from the DUT R&S UPV Gen is fed via the internal generator / analyzer connection to both analyzer channels.

  • Page 243: Software Adjustment, Analyzer Rms Level Error (Bandwidth 250 Khz)

    R&S UPV Software Adjustment Software Adjustment, Analyzer RMS Level Error (Bandwidth 250 kHz) (Analog Analyzer adjustment group: Anlr0) Set R&S UPV: Analyzer Config Instrument Analog Bandwidth 250 kHz The further settings and signal supply are the same as for the 22 kHz bandwidth in section "Software Adjustment, Analyzer RMS Level Error (Bandwidth 22 kHz)", page 2.27.

  • Page 244: Software Adjustment, Analog Notch Filter

    Software Adjustment R&S UPV Software Adjustment, Analog Notch Filter (Analog Analyzer adjustment group: Anlr0 ) Set R&S UPV: Set the following for Ref Frequency: (= nominal frequency of the notch filter) according to the Table 2-1. For Notch Freq value: f (= nominal frequency of the notch filter) according to the Table...
  • Page 245 R&S UPV Software Adjustment Function Config Unit Reference Value 3.00 V Sweep Graph1 Config Set the panel as shown For X-Source under Ref Value, set the notch filter nominal frequency f according to the Table 2-1. Test setup: The test signal from the DUT R&S UPV Gen is fed via the internal generator / analyzer connection to both analyzer channels.
  • Page 246 Software Adjustment R&S UPV Correction measurement procedure: Set the nominal value of the notch filter notch frequency f according to the table below in the three panels Launch a single sweep by pressing the SINGLE button or clicking on the button in the toolbar After this procedure is successfully completed, read off the cursor windows in the sweep graphics:...

  • Page 247: Software Adjustment, Frequency & Phase

    R&S UPV Software Adjustment Transfer the correction values to the R&S UPV: Enter the correction factors you determined manually into the E PROM in the Diagnostic Panel under "Adjustment" for addresses 10 and 11 and transfer them: (for an explanation, see section "Diagnostic Mode", page 2.21).

  • Page 248: Option R&S Upv-B1 (Low Distortion Generator)

    Software Adjustment R&S UPV Option R&S UPV-B1 (Low Distortion Generator) No test equipment is required to adjust the low distortion generator. Using an automatically executed routine (starting with firmware version 1.2.0), the generator output signal is measured from the R&S UPV analyzer by way of the internal connection from the generator to the analyzer. Then, the correction factors for the level and frequency accuracy are computed and, assuming they lie within the permissible tolerances, they are entered into the E PROM.

  • Page 249: Software Adjustment, Sinewave Level

    R&S UPV Software Adjustment Software Adjustment, Sinewave Level You can adjust the sinewave level directly via the R&S UPV application program. Proceed as follows: Press the menu key on the R&S UPV front panel and select diagnostic panel below Utilities. Enter the password, i.e.

  • Page 250: Option R&S Upv-B2 (Digital Audio I/O 192 Khz)

    Software Adjustment R&S UPV Option R&S UPV-B2 (Digital Audio I/O 192 kHz) From FW version 1.2.0 onward you can adjust the option R&S UPV-B2 automatically. To execute calibration, open the menu bar at the top of the screen and select diagnostic panel: It is not necessary to enter a password in the diagnostic line.

  • Page 251: Option R&S Upv-B3 (Second Generator)

    R&S UPV Software Adjustment Option R&S UPV-B3 (Second Generator) From FW version 1.2.0 onward you can adjust the option R&S UPV-B3 automatically. To execute calibration, open the menu bar at the top of the screen and select diagnostic panel: It is not necessary to enter a password in the diagnostic line. Pressing the third “Exec“ button starts an automatic routine that calibrates the complete second generator.

  • Page 252: Software Adjustment, Sinewave Level

    Software Adjustment R&S UPV Software Adjustment, Sinewave Level Before starting the correction measurement, set the R&S UPV to a defined initial status by calling up the default setting: Press the PRESET key and confirm your input request with “ ” Press the MENU key and select “Preset (Load Default)”...
  • Page 253 R&S UPV Software Adjustment Option R&S UPV-B48 (8 Channel Analog Board) Caution: Prior to starting the adjustment measurements to determine the correction factors, the R&S UPV must warm up for at least one hour with the housing closed. The ambient temperature must be in the range 23 3/+7°C. Before starting the correction measurement, set the R&S UPV to a defined initial status.
  • Page 254 Software Adjustment R&S UPV Meas. instrument: AC voltmeter Test setup: Connect the AC voltmeter to an output of the DUT R&S UPV generator. You will need an adapter XLR female / 2 * banana plug for this purpose. The test signal from the DUT R&S UPV Gen is fed via the multicore cable and the R&S UPZ to all 8 analyzer channels.
  • Page 255 R&S UPV Software Adjustment Test setup: The 8 inputs of UPV-B48 are terminated by the output resistance of the deactivated generator via the multicore cable and the output switcher R&S UPZ. Measurement: Measure the DC voltage on Ch1 to Ch8 with the Level monitor. Enter the measured dc value as correction factors manually into the E PROM in the Diagnostic Panel under "Adjustment"...
  • Page 257 R&S UPV Contents Chapter 3 Contents 3 Repair ..............................3.1 Instrument Design and Functional Description ................3.1 Complete Instrument ........................3.4 Power Connector Board......................3.4 Front module controller .......................3.5 Digital Main Board........................3.6 Clock generation ......................3.8 DSP Module..........................3.9 Analog Generator........................3.10 Analog Analyzer ........................3.12 Analog Front Panel (AFP)......................3.20 Connectors for the Analog Generator ................3.20 Connectors for the Analog Analyzer ................3.20 Jack for the Monitoring Output..................3.20...
  • Page 258 Contents Chapter 3 R&S UPV Function Test ..........................3.34 Self-Test............................3.34 Short test of analog interfaces ....................3.35 Short test of digital interfaces....................3.36 Troubleshooting ..........................3.37 Measuring equipment and accessories ..................3.37 Error messages ........................3.38 Power-up problems........................3.38 Boot problems...........................3.38 Problems with Control and Display Elements ................3.39 Front-panel keyboard ....................3.40 Rotary knob........................3.41 Front-panel LEDs ......................3.42...
  • Page 259 R&S UPV Contents Chapter 3 Problems with two HW Optionen in the USI Slots ..............3.81 Errors in Digital Audio I/O (Options R&S UPV-B2/B20 and -K22) ..........3.82 Errors on I S Board (Options R&S UPV-B41)................3.87 Errors on USI Board (Options R&S UPV-B42) .................3.88 Recommendation in case of an error:................3.88 Check whether to probe is properly loaded..............3.88 Determine the source of the error ................3.88...
  • Page 260 Contents Chapter 3 R&S UPV Replacing the front unit ......................3.104 Replacing the USB ports on the front panel...............3.105 Replacing the combo drive ..................3.105 Replacing the analog front panel (AFP) ..............3.106 Replacing the digital front panel (DFP) ..............3.106 Replacing the rotary pulse generator (not with R&S UPV66) ........3.106 Replacing the DC/AC converter (not with FMR9 or R&S UPV66) ......3.107 Replacing the display adapter board................3.107 Replacing the TFT display (not with R&S UPV66).............3.108...
  • Page 261 R&S UPV List of Figures and Tables 3 Figures Fig. 3-1 DMB signal diagram.......................3.6 Fig. 3-2 Simultaneous signal function processing and signal monitoring of both channels..3.18 Fig. 3-3 Basic circuit principle for the LDG................3.25 Fig. 3-4 Test points on PCB ......................3.45 Fig.

  • Page 263: Repair

    R&S UPV Instrument Design and Functional Description 3 Repair Instrument Design and Functional Description In terms of the basic instrument, the R&S UPV is essentially a dual-channel audio analyzer for making measurements on analog interfaces. The frequency range of the analyzer is DC to 250 kHz. The frequency range of the generator is 0.1 Hz to 80 kHz.
  • Page 264 Instrument Design and Functional Description R&S UPV The digital subassemblies including the switching power supply are located in the upper part of the instrument. The analog audio board is located in the lower part and the power supply is by the left side panel.
  • Page 265 R&S UPV Instrument Design and Functional Description R&S UPV-U2 (BNC Phone Out)  Feeds the monitoring signals from the headphone jack to two BNC jacks on the rear panel.  Consists of two parts: – A subassembly which is installed on the digital main board. –...

  • Page 266: Complete Instrument

    Instrument Design and Functional Description R&S UPV Complete Instrument (See Fig. 3-14 and Fig. 3-15 Block diagram UPV parts 1 and 2) The Audio Analyzer R&S UPV can be operated from an AC voltage from 90 V to 132 V and from 198 V to 264 V.

  • Page 267: Front Module Controller

    R&S UPV Instrument Design and Functional Description With +12 V:  The slot on the rear panel of the instrument for the additional HW options  The operational amplifier on the option R&S UPV-B2/B20 (Digital Audio I/O)  The fans for the upper digital chamber ...

  • Page 268: Digital Main Board

    Instrument Design and Functional Description R&S UPV Digital Main Board The digital main board (abbreviated DMB in the following) is the central module of the digital circuit part in the R&S UPV. Fig. 3-1 shows this and also provides information about the interfaces via which the modules communicate with each other.
  • Page 269 R&S UPV Instrument Design and Functional Description The DMB contains the following circuit parts:  Field programmable gate array (FPGA)  PCI bridge  A/D converter (ADC) for the monitoring functionality  D/A converter (DAC) for the monitoring functionality  Power amplifier for loudspeaker, headphones and auxiliary output ...

  • Page 270: Clock Generation

    Instrument Design and Functional Description R&S UPV DSP Architecture Output Devices Generator Analog Board DAC Digital Audio Board Transmitter DSP Module Output Generator Extension Slot 1 2 DSPs Extension Slot 2 PCI Bus Analyzer Bridge Analog Board ADC Digital Audio Board Receiver DSP Module Input...

  • Page 271: Dsp Module

    R&S UPV Instrument Design and Functional Description DSP Module DSP Modul Link SDRAM Link 21161 21161 Link ext. Port 21161 Link DSP designation in DSP designation on DSP module complete system module Analyzer 1 Analyzer 1 Analyzer 1 Analyzer 2 Analyzer 2 Analyzer 2 Generator...

  • Page 272: Analog Generator

    Instrument Design and Functional Description R&S UPV Analog Generator (See Fig. 3-16 Block diagram, analog generator parts 1 and 2) The complete circuitry for the analog universal generator is housed on the analog audio board (AAB). It is powered by the analog power supply (APS) in a fully floating manner. This means the generator ground is not connected to the housing or analyzer ground so that all of the control signals from the DMB to AAB must be routed via optocouplers.
  • Page 273 R&S UPV Instrument Design and Functional Description Table 3-1 Level table Output voltage Hardware setting Peak to peak (for sinewave) Level control Final stage Attenuator 28.28 V – 14.14 V 6 – 0 dB 10.0 - 5.0 V 6 dB 0 dB 14.14 V –...

  • Page 274: Analog Analyzer

    Instrument Design and Functional Description R&S UPV Analog Analyzer Analog audio board (AAB) analyzer (see UPV block diagram in Fig. 3-18) The R&S UPV is equipped with an analog analyzer with four selectable bandwidths (22 kHz, 40 kHz, 80 kHz and 250 kHz). The analog analyzer has a dual-channel structure in all its functions. The input signals at the XLR front connectors run via direct plug connectors from the analog front panel (AFP) to the input sections of the two analog analyzer channels.
  • Page 275 R&S UPV Instrument Design and Functional Description Overview of measurement ranges based on a level plan UPV Analog Analyzer - Level Diagram 100 V 60 V -30 dB 30 V 18 V 10 V 0 dB 0 dB 0 dB Processing 5 dB -15 dB...
  • Page 276 Instrument Design and Functional Description R&S UPV are generated from the converter component synchronously to the data bits and supplied to the digital logic. The digital dual-channel data stream in I S format is serially read in to the FPGAs of the digital mainboard (DMB) in line with the bit clock rate for further digital signal processing in the DSPs.
  • Page 277 R&S UPV Instrument Design and Functional Description Measurement of THD, THD+N, Mod Dist with analog prefiltering and A/D converter For each of these measurement functions, there is a fast and a precision mode. In fast mode, analog signal processing is followed by direct digital signal processing in the DSP with the relevant measurement routines, as in the case of level measurement.
  • Page 278 Instrument Design and Functional Description R&S UPV Mod Dist:  Fast dynamic mode: Cycle similar to the direct measurement with A/D converter, where the DSP determines the levels and frequencies of the AF interfering carrier as well as the higher- frequency carrier and, in parallel, the intermodulation distortion of the signal to be analyzed.
  • Page 279 R&S UPV Instrument Design and Functional Description Measurement of DFD-d2 As with the distortion measurements described in the previous sections, the fast and precision dynamic modes are available for the 2nd-order difference-frequency distortion measurement mode. In fast mode, analog signal processing is followed by direct digital signal processing via the relevant measurement routines, as in the case of level measurement.

  • Page 280: Fig. 3-2 Simultaneous Signal Function Processing And Signal Monitoring Of Both Channels

    Instrument Design and Functional Description R&S UPV Level indicator (peak control in analog analyzer block diagram) To monitor the correct analog signal level, each analyzer channel has peak-hold detectors at several important signal points. During each measurement cycle, these detectors are evaluated by means of the firmware and are automatically reset via reset lines.
  • Page 281 R&S UPV Instrument Design and Functional Description Additional inputs and outputs on the analyzer of the analog audio board The two analyzer channels contain the following additional inputs and outputs so that analog functions can also be used in connection with R&S UPV options: ...

  • Page 282: Analog Front Panel (Afp)

    Instrument Design and Functional Description R&S UPV Analog Front Panel (AFP) The analog front panel (AFP) is a small separate board which houses the XLR male connectors for the generator outputs, the XLR female connectors for the analyzer inputs and the jack for the monitoring output.

  • Page 283: Analog Power Supply (Aps)

    R&S UPV Instrument Design and Functional Description Analog Power Supply (APS) The Analog Power Supply (APS) is a complete unit which is mounted on a separate sheet-metal frame. It consists of the following circuit parts:  AC line input with line voltage switching, line filter and primary fuses ...

  • Page 284: Toroidal Core Transformer

    Instrument Design and Functional Description R&S UPV Toroidal Core Transformer Due to the very demanding requirements, the transformer required for the APS uses a very costly design. Its construction as a toroidal core transformer ensures very low coupling into the sensitive analog circuit parts.

  • Page 285: Switching Power Supply (Sps)

    R&S UPV Instrument Design and Functional Description Switching Power Supply (SPS) The switching power supply is responsible for supplying power to the digital circuit parts of the R&S UPV. It is a highly efficient primary switching power supply and is operated with a clock frequency of about 130 kHz.

  • Page 286: Monitoring Internal Audio Signals

    Instrument Design and Functional Description R&S UPV Monitoring Internal Audio Signals The monitoring output allows you to monitor internal generator signals regardless of whether you are dealing with the analog or the digital generator. Both generators are based on digital signal generation using DSP on the digital main board (DMB).

  • Page 287: R&S Upv-B1 (Low Distortion Generator)

    R&S UPV Instrument Design and Functional Description R&S UPV-B1 (Low Distortion Generator) (See also Fig. 3-3 Block diagram, low distortion generator) The low distortion generator (LDG) is an RC oscillator which generates a sinewave signal with very low noise and harmonic distortion in the frequency range from 10 Hz to 185 kHz with a constant ≈...

  • Page 288: R&S Upv-B2 (Digital Audio I/O 192 Khz)

    Instrument Design and Functional Description R&S UPV Frequency range Compensation factor Frequency 185 kHz to 25 kHz cf_ldg_frq[0] 50 kHz 25 kHz to 1.9 kHz cf_ldg_frq[1] 10 kHz 1.9 kHz to 190 Hz cf_ldg_frq[2] 1 kHz 190 Hz to 10 Hz cf_ldg_frq[3] 100 Hz In order to determine the compensation factors described above, there is an automatic routine...

  • Page 289: Digital Audio Board (Dab)

    R&S UPV Instrument Design and Functional Description Digital audio inputs: The digital audio inputs (BAL and UNBAL) are connected via amplifiers and a comparator to the input multiplexer which is used to select the desired digital audio input (DIG-RX). Besides the optical input, a position is also possible internally which provides the signal supplied by the DAB (DIG-TX) back to its input for use in making an internal loop measurement.

  • Page 290: R&S Upv-B3 (Second Generator)

    Instrument Design and Functional Description R&S UPV Jitter modulator and demodulator, frame phase meter and jitter reference PLL: Jitter generation and jitter measurement (with option R&S UPB-B22) on the digital audio generator or analyzer involves the use of phase modulation or demodulation of the master clock which provides timing for the Tx1 module or which is recovered from the integrated PLL in the Rx1 receiver.

  • Page 291: R&S Upv-B20 (Digital Audio I/O 48 Khz)

    R&S UPV Instrument Design and Functional Description DIM generation: The master clock frequency of 24.576 MHz (divided by two) is fed to an FPGA. This module is implemented as a programmable divider that uses the 12.288 MHz to generate a squarewave voltage of 5.88 kHz or 6.3 kHz by applying different division factors depending on the setting in the generator function panel in the line “Square/Sine”.

  • Page 292: R&S Upv-B42 (Universal Serial Interface)

    Instrument Design and Functional Description R&S UPV R&S UPV-B42 (Universal Serial Interface) Basic principle: The option consists of an digital extension card, the “UPV-B42 Universal Serial Interface” which can be plugged in an extension slot of the UPV, as well as an external probe board to offer short connections between the generated or analyzed signals and the measured device under test.

  • Page 293: Probe Board

    R&S UPV Instrument Design and Functional Description Probe board: The sketch provides a rough overview of the probe. As one can see it basically consist of a central Virtex 4 FPGA and a few voltage regulators to adapt the FPGA outputs to the configured voltage level.

  • Page 294: R&S Upv-B48 (Analog 8 Channel Inputs)

    Instrument Design and Functional Description R&S UPV R&S UPV-B48 (Analog 8 Channel Inputs) (See Fig 3-24 Block diagram) The option consists of an analog and a digital section. The analog section is an 8 channel audio analyzer. Any of the input channels can be served commonly or independent from each other. All 8 inputs are available on a 25 pole D sub connector with TASCAM pinning.

  • Page 295: R&S Upv-U1 (Source Impedance 150 )

    R&S UPV Instrument Design and Functional Description R&S UPV-U1 (Source Impedance 150 ) The audio analyzer R&S UPV offers in the Generator Config Panel three different source impedances, if the output type „Bal“ is selected:  10   200  ...

  • Page 296: Function Test

    Function Test R&S UPV Function Test The settings and tests described in the following are used to quickly check the instrument's general functionality, without the use of external measuring equipment inasmuch as this is possible. They cover only part of the generator and analyzer functions and are used to test the instrument after options have been installed or modules exchanged.

  • Page 297: Short Test Of Analog Interfaces

    R&S UPV Function Test Short test of analog interfaces This short test lets you quickly check the analog interfaces of the R&S UPV. No cables or measuring equipment are required. The analyzer measures the generator signal via the internal connection. Before starting the short test, set the R&S UPV to a defined initial status by calling up the default setting: Press the PRESET key and confirm your input request with ""...

  • Page 298: Short Test Of Digital Interfaces

    Function Test R&S UPV Short test of digital interfaces This short test lets you quickly check the digital interfaces of the R&S UPV. No cables or measuring equipment are required. The analyzer measures the generator signal via the internal connection. If the option R&S UPV-B2/B20 (Digital Audio I/O) is not installed, you can omit this test, for it is not necessary.

  • Page 299: Troubleshooting

    R&S UPV Troubleshooting Troubleshooting Many faults have simple causes that can be traced without the need for numerous accessories. Since the R&S UPV has a generator and an analyzer, loop tests can be carried out for fault analysis in greater depth, whilst the ability to connect the generator and analyzer internally means that not a single external cable need be used.

  • Page 300: Error Messages

    Troubleshooting R&S UPV Error messages The first hint of possible operating problems in the R&S UPV may be an error message which is displayed due to an incorrect setting or because a hardware fault has been detected. If there is an incorrect setting, you will be told what needs to be changed in the input in order to eliminate the error.

  • Page 301: Problems With Control And Display Elements

    R&S UPV Troubleshooting Troubleshooting tip: If the R&S UPV hangs during the boot phase when the application program is displayed, the cause may be on the DMB or in a DSP module. To receive detailed error messages, it is recommended that you proceed as follows: ...

  • Page 302: Front-Panel Keyboard

    Troubleshooting R&S UPV Front-panel keyboard The instrument keyboard test is limited to testing the response of a few keys. Since the entire key mat is configured in rows and columns, the proper selection ensures that the connection to the controller detects all rows and columns. To check whether all keys on the front panel are functioning properly, select one key for each row and column and check its response when you press it.

  • Page 303: Rotary Knob

    R&S UPV Troubleshooting Rotary knob  No response to rotary knob? - Have you plugged in the cable from the rotary pulse generator to the FMC? - Does the current setting in the R&S UPV program prevent a rotary knob entry? For example, if the entry marker is on a graphical window without a pointer, the rotary knob is not functioning.

  • Page 304: Front-Panel Leds

    Troubleshooting R&S UPV Front-panel LEDs The LEDs on the front panel have various meanings. Status message: START, SINGLE, Speaker ON, REM, OUTPUT OFF Warnings: Generator OVLD, Analyzer OVLD Press key Effect STOP / CONT The START LED must be flashing. SINGLE In addition to the START LED, the SINGLE LED also illuminates.

  • Page 305: External Keyboard

    R&S UPV Troubleshooting External keyboard You can connect an external keyboard via one of the USB interfaces.  No response: - Is the keyboard cable properly plugged into the USB socket? If the connector is not properly inserted into the socket, the instrument cannot detect the keyboard.

  • Page 306: Fault In The Switching Power Supply / Power Connector Board

    Troubleshooting R&S UPV Therefore, we recommend checking every USB cable using the following easy method: Measure the electrical resistance from the shield contact of one connector to the shield contact of the other connector. For correct measurement results, consider the contact resistance at your probe tips.

  • Page 307: Power Connector Board (Pcb)

    R&S UPV Troubleshooting CAUTION If there is no measurable voltage or the voltage has an incorrect value and the suspicion exists that the cause is an excessively high output load, it is not advisable just to unplug the connections to the PCB. At certain output voltages the switching power supply needs a certain minimum load in order to operate correctly.
  • Page 308 Troubleshooting R&S UPV It is not easy to remove the DMB from the PCB without considerable effort, and so in the normal operating status a resistance measurement will clarify whether there is a short-circuit. If the R&S UPV is fitted with a FMR7 or FMR9 the additional fan for the SPS is connected to X11 on the left.

  • Page 309: Fault In Usb Device Interface

    R&S UPV Troubleshooting Fault in USB Device Interface Is the R&S UPV fitted with FMR7 or FMR9, so the device can be controlled via this interface. To check the connection use the NI-Visa-Tool with Version 3.4 or higher. Is an UPV connected, the program recognizes it as an USB-Device: To build up a communication between the controlling PC and the R&S UPV, click „Open VISA Test Panel“:...
  • Page 310 Troubleshooting R&S UPV Is connection to the R&S UPV possible by this test, so check first the cable from USB board inside and FMR7/FMR9. Is the cable o.k. a high probability for a defective FMR7/FMR9 exists. Faulty LAN Reset Button The R&S UPV66 is fitted with a reset button for LAN connections on the rear of the device.

  • Page 311: Fault In The Analog Power Supply (Aps)

    R&S UPV Troubleshooting Fault in the analog power supply (APS) The effects of a fault: The generator produces either no output signal or a distorted output signal and/or the analyzer either cannot measure or delivers incorrect test results. A first sign of this can occur when booting the R&S UPV, when although the application program starts correctly, the user interface is displayed and there are even no error messages on the screen during the boot procedure, nevertheless no relays can be heard clicking.

  • Page 312: Defective Analog Audio Board (Aab)

    Troubleshooting R&S UPV  Faulty supply voltages for the generator? - Are all cables plugged in at the power input port? If one of the flat-cable connectors on the power input port has no contact, the linear regulators on the APS board cannot produce or stabilize the DC voltages for the generator. - Is the cable from the toroidal core transformer to the APS board (X1) plugged in? The AC supply voltage is fed to the power switch via this connection.

  • Page 313: Defective Analog Signal Generation

    R&S UPV Troubleshooting Defective analog signal generation An initial criterion for correct control of the AAB from the DMB is whether you can hear individual relays while the R&S UPV application program is being started. If not, the DMB may be defective, the control cable may not be connected or the supply voltages from the analog power supply (APS) may be missing.

  • Page 314: Fig. 3-5 Data Couplers

    Troubleshooting R&S UPV 2. Using an ohmmeter, measure the resistance of the individual voltage pads on the AAB to ground. If the voltages on W13, i.e. those coming directly from the APS, are defective, the APS is one cause of the error (see). However, this may be the result of a short circuit on the AAB. If you do not detect a short circuit when measuring the resistance, material fatigue (ageing) may have caused a blown fuse or some other error on the APS.

  • Page 315: Fig. 3-6 Clocksignal At U3 Pin 2

    R&S UPV Troubleshooting Fig. 3-6 Clocksignal at U3 Pin 2 Fig. 3-7 Clocksignal at U3 Pin 6 Fig. 3-8 Clocksignal at U5 Pin 2 1146.2084.82 3.53...

  • Page 316: Fig. 3-9 Clocksignal At U5 Pin 6

    Troubleshooting R&S UPV Fig. 3-9 Clocksignal at U5 Pin 6 If the control signals to the data and clock couplers are missing, the AAB cannot set its hardware correctly. In this case, however, the DMB is causing the error. If the control signals are being properly applied to the inputs of the data and clock couplers but are either not present, distorted or have an incorrect level at their outputs, the cause is definitely on the AAB.

  • Page 317: If The Output Voltage Is Incorrect

    R&S UPV Troubleshooting If the output voltage is incorrect  Operating error? - Is the desired level permissible for the selected output type (in the Generator Config panel)? - Is the output voltage limited by the Max Voltage setting (in the Generator Config panel)? - Is a high output impedance (200 ...

  • Page 318: Malfunctioning Low Distortion Generator

    Troubleshooting R&S UPV If the option R&S UPV-B1 is installed, you can perform another test by switching between the universal and the low distortion generator to see what happens: If the distortions are eliminated with one of the two generators, the error is being caused by the module that emits the distorted output signal.

  • Page 319: Erroneous Second Generator

    R&S UPV Troubleshooting Erroneous Second Generator If option R&S UPV-B3 (Second Analog Generator) is installed, the Audio Analyzer R&S UPV provides two additional signal shapes:  Stereo sinewave (in conjunction with the universal generator on the AAB)  DIM signal If neither of these two signals can be set, various reasons are possible: ...

  • Page 320: Fig. 3-10 Voltages On The R&S Upv-B3

    Troubleshooting R&S UPV +15V -15V -20V +20V Fig. 3-10 Voltages on the R&S UPV-B3 1146.2084.82 3.58...

  • Page 321: Defective Analog Analyzer

    R&S UPV Troubleshooting Defective analog analyzer Simple tests for roughly determining the cause of the error The following tests can be carried out using correct generator signals in a loop measurement, e.g. with the analyzer setting under "Channel 2  1" with "Input Gen Ch1". The steps must be performed in the specified sequence, for otherwise the troubleshooting result may be incorrect.
  • Page 322 Troubleshooting R&S UPV If one or more supply voltages are faulty, the cause of the problem may be the AAB (short circuit) or the APS. To locate the faulty board, unplug W13 and check the following points: 1. Measure voltages directly on the connector for W13 (pins 21 to 24 or the instrument ground can be used as the reference ground) Pin 25, 26: +5 V...
  • Page 323 R&S UPV Troubleshooting Preliminary test when switching on the R&S UPV: To ensure correct initialization of the circuit functional groups on the analog analyzer, a reset signal is sent from the master reset of the controller module to the AAB analyzer during the power-up phase.
  • Page 324 Troubleshooting R&S UPV  Testing the control signal data streams for the relays and analog switches on both analyzer channels: Set the R&S UPV: Starting from the default setup at menu item "Bal" switch to "Gen Ch1" and test the control signals with the aid of the following oscillogram.
  • Page 325 R&S UPV Troubleshooting Oscillogram  analyzer control from DMB via EPLD D48: R&S UPV analyzer config panel Setting: Channel 2  1, switchover from input Bal  Gen Ch1 Trace Ch1: Test point X41 pin B17 Address strobe signal Trace Ch2: Test point X41 pin B18 Write strobe signal Trace Ch3: Test point X41 pin B20 Serial clock...
  • Page 326 Troubleshooting R&S UPV If the DSP error message is not displayed after you have restarted the test, the previous error message may have been the result of a hidden firmware error. If this error occurs again later, please report it to the Rohde & Schwarz Central Service indicating the firmware version, and if possible send the setup file by e-mail.
  • Page 327 R&S UPV Troubleshooting Function tests of the two-channel audio ADC for analog bandwidths 22 / 40 / 80 kHz: Before the tests load the R&S UPV default setup and analyzer config panel as follows. Set the R&S UPV: The following signals are generated from the two-channel audio ADC: Logical output levels are 0/+3.3 V ...
  • Page 328 Troubleshooting R&S UPV If the signals on P29, 30, 31 are correct, the symmetrical outputs from the following LVDS component, which are fed directly to the flat cable connection X41 to the DMB, should also be checked (for the location of the components see Fig.
  • Page 329 R&S UPV Troubleshooting Oscillogram  Highspeed ADCs Trace Ch1: Test point P33 Frame signal Trace Ch2: Test point P32 Serial clock Trace Ch3: Test point P34 Data from analyzer Ch1 Trace Ch4: Test point P58 Data from analyzer Ch2 Scope: Inputs DC Coupled These signals are generated from both the highspeed ADCs: Logical output levels are 0/+3.3 V.
  • Page 330 Troubleshooting R&S UPV  Faults relating to level monitoring and/or autoranging: Before the tests load the R&S UPV default setup and generator/analyzer panel as follows. Set the R&S UPV: Overrange test: Switch "Range Fix" from 3.0 V RMS to 6.0 V RMS in accordance with the table: Range Numeric display Status line...
  • Page 331 R&S UPV Troubleshooting The above test settings with the required performance of the R&S UPV analyzer are an example of measurement ranges with signals, in which unequivocal assignment of the fault is highly possible. The tests can also be performed in other measurement ranges with appropriately allocated voltage levels ...
  • Page 332 Troubleshooting R&S UPV Level exceeded in what are called the "precision" modes of the distortion measurements with the internally switched on analog filters "notch" or "DFD-d2" (see “Functional Description”); applicable as above to in-band and out-of-band signals. Overloaded low-impedance input impedances (300 Ω, 600 Ω). Though this case rarely occurs there can nonetheless be a hardware fault which prevents any further status reset via the firmware thereby blocking measurement.

  • Page 333: Fig. 3-11 Section Of The Component Location Plan For The Aab (Area Of The 80-Pin Ribbon Cable Connector X41 - Control/Data Connector Analyzer)

    R&S UPV Troubleshooting  The AAB must be replaced. In "Range Fix" mode, the status "Anlrx Over" and the measured value display "---" are likewise blocked for some seconds in this error situation, whereas in normal status these disappear immediately, to be replaced by the status "Anlrx Cont" or "Anlrx Terminated" and regular output in the numeric display.

  • Page 334: Fig. 3-12 Component-Side View Of The Analog Audio Board (Aab)

    Troubleshooting R&S UPV Analog Fan Connector B1 A1 R524 C117 X100 R222 R915 P73 P13 R524 R914 R221 P63 P3 C178 C258 R295 C175 C253 C177 R295 C176 R662 C174 C173 R661 Analyzer Ground (= UPV Ground) X410 X400 Generator Floating Ground Analyzer Inputs Connector Generator Outputs Connector Analyzer Channel 2 Analyzer Channel 1...

  • Page 335: Errors On The Digital Main Board

    R&S UPV Troubleshooting Errors on the Digital Main Board  No connection to a connected USB device via connectors X3 or X4 (instrument rear)? - Test 1: Voltage test on the USB connector Test the voltage without load between pin 4 (- pole) and pin 1 (+ pole). If the voltage exceeds 5.25 volts, the switching power supply supplies an overvoltage and must be replaced.
  • Page 336 Troubleshooting R&S UPV - Test 4: Short-circuit test on the DMB Check the resistances of USB connector X3 between the following pins: Pin 2 and pin 4 Pin 3 and pin 4 Pin 2 and pin 1 Pin 3 and pin 1 If one of the measured resistances is less than 10 k, the DMB is defective and must be replaced.
  • Page 337 R&S UPV Troubleshooting - Test 1: resistance test on the DMB Check the resistance between the matching pins of COM connector X2 and front module controller connector X92 according to the following table: X2 pin X92 pin If one of the measured resistances exceeds 13 , the DMB is defective and must be replaced.

  • Page 338: Error On The Audio Monitoring Output

    Troubleshooting R&S UPV Error on the audio monitoring output To allow audio monitoring of audio signals, you have to activate the audio monitoring function in the Auxiliaries panel. Setting the R&S UPV: If you have not enabled the Audio Monitor option, the entire audio monitoring function is deactivated. If Audio Monitor is activated, an LED at the loudspeaker icon will be illuminated.

  • Page 339: Phone Out

    R&S UPV Troubleshooting  Loudspeaker remains silent or very low? - Is the loudspeaker connected? The loudspeaker connection has two connectors: 1. Flat connector on the loudspeaker itself. 2. Connector on the DMB. If one of the two connectors is missing, the loudspeaker remains silent. - Is Signal Source set to Input? If no signal can be heard despite correct feed, try to switch to Generator under Signal Source.

  • Page 340: Option R&S Upv-U2

    Troubleshooting R&S UPV  None or only very low signal at the headphones output? - Are the headphones correctly connected? If the headphones’ headset plug is not correctly plugged in, it does not receive a signal. - Is Signal Source set to Input? If no signal can be monitored despite correct feed, try to switch to Generator under Signal Source.

  • Page 341: Errors On Analog Aux Out

    R&S UPV Troubleshooting Errors on Analog Aux Out Either a generator signal or a DC voltage can be output at Analog Aux Out. This is set in the corresponding block under Anlg Aux Out. Setting the R&S UPV: Anlg Aux Out is set to AudioMon Ch1: ...

  • Page 342: Error On The Trigger In/Out

    Troubleshooting R&S UPV Error on the Trigger In/Out Trigger output The trigger input and output settings are entered in the Auxiliaries panel. You can activate or deactivate (Enable check box) the functions of the two BNC connectors on the rear panel of the instrument separately from each other.

  • Page 343: Trigger Input

    R&S UPV Troubleshooting Trigger input No function has yet been implemented in the firmware. Problems with two HW Optionen in the USI Slots The R&S UPV has two extension slots for HW options on the rear. It can be a problem to fit an older device with two options simultaneously.

  • Page 344: Errors In Digital Audio I/O (Options R&S Upv-B2/B20 And -K22)

    Troubleshooting R&S UPV Errors in Digital Audio I/O (Options R&S UPV-B2/B20 and -K22) The “Numeric Display” shows “OFF“ or “---“ instead of the measurement values Appearance: After changing the settings the following windows appears: (sometimes) and (always) One reason for this error could be missing +5 V from DMB. The DSPs receive no clock from the UPV-B20 to read the data information.
  • Page 345 R&S UPV Troubleshooting Set R&S UPV: Starting from the default state *) Sampling frequency 30 kHz to 200 kHz Test setup: Frequency counter to Sync Output (to check the sampling rate) Troubleshooting tips for the audio data loop measurement: When the option R&S UPV-B2 is functioning properly, the frequency and amplitude value set in the Generator Function Panel will be measured and displayed by the digital analyzer.
  • Page 346 Troubleshooting R&S UPV Measurement 2: Digital loop measurement Frame Phase (with option R&S UPV-K22 only) Set R&S UPV: Starting from the default state *) Sampling frequency 30 kHz to 200 kHz  Set up an XLR cable connection between AUX In and AUX Out Test setup: on the rear panel of the R&S UPV.
  • Page 347 R&S UPV Troubleshooting Measurement 3: Digital loop measurement Common Mode (with option R&S UPV-K22 only) Set R&S UPV: Starting from the default state *) Sampling frequency 30 kHz to 200 kHz Test setup: Connect an XLR cable between the BAL output and BAL input. Common mode troubleshooting tips: When the option R&S UPV-B2/K22 is functioning properly, the common frequency and amplitude values set in the Generator Function Panel will be measured and displayed by the analyzer.
  • Page 348 Troubleshooting R&S UPV Measurement 4: Digital loop measurement Jitter (with option R&S UPV-K22 only) Set R&S UPV: Starting from the default state *) Sampling frequency 30 kHz to 200 kHz *) Internal clock or Ref PLL Jitter troubleshooting tips: When the option R&S UPV-B2/K22 is functioning properly, the jitter frequency and amplitude value set in the Generator Function Panel will be measured and displayed by the analyzer.

  • Page 349: Errors On I S Board (Options R&S Upv-B41)

    R&S UPV Troubleshooting Errors on I S Board (Options R&S UPV-B41) Measurement 1: Digital loop measurement Set R&S UPV: Starting from the default state 1146.2084.82 3.87...

  • Page 350: Errors On Usi Board (Options R&S Upv-B42)

    Troubleshooting R&S UPV Errors on USI Board (Options R&S UPV-B42) Recommendation in case of an error: Since it would require a quite sophisticated measurement manual to determine whether the error is originated by the probe or the USI board, it makes no sense to perform a lengthy error detection test.

  • Page 351: Module Replacement

    R&S UPV Module Replacement Module Replacement All R&S UPV modules and the connecting cables between them are shown in Fig. 3-14 and Fig. 3-15. Additional information can be found in the exploded view and the appropriate list of spare parts. Overview of modules The installation of the hardware options is described in chapter 4, Installation of Options.

  • Page 352: Removing The Instrument Casing

    Module Replacement R&S UPV Removing the instrument casing CAUTION Only an authorized Rohde & Schwarz representative should open the casing since the calibration label can be damaged and you would lose your warranty claim!  Switch off the R&S UPV and disconnect the power cable. ...

  • Page 353: Replacing The Analog Power Supply (Aps)

    R&S UPV Module Replacement  Push the AAB towards the rear panel of the instrument so that it unplugs from the connectors X410 and X411 to the analog front panel (AFP).  Now remove the AAB from the analog chamber by tilting it slightly upward. To install a new AAB, perform the steps in the reverse order.

  • Page 354: Replacing The Aps Board

    Module Replacement R&S UPV  The unit can now be removed from the APS bracket (be careful not to lose the additional spring plate on the side of the power input!). To install the power input (R&S stock no 0006.0919.00), perform the steps in the reverse order. Make sure that all cables to be connected make contact with the correct flat connectors.

  • Page 355: Replacing The Hard Disk Drive (Hdd)

    R&S UPV Module Replacement To install a new toroidal core transformer, perform the steps in the reverse order. Make sure that the cable outlet on the primary side projects into the clear space between the bracket and power input so that the cables are not pinched. Replacing the hard disk drive (HDD) The following description is valid for a HDD with parallel interface: ...

  • Page 356: Replacing The Lithium Battery In The Front Module Controller (Fmr)

    Module Replacement R&S UPV Fitting the FMR in reverse order.  After replacing the new FMR the R&S UPV BIOS must be updated. The BIOS incl. Installation Manual can be downloaded from GLORIS for FMR6 FMR7 FMR7 UPV66 FMR9 FMR9 UPV66 ...

  • Page 357: Replacing The Cpu Fan (For Fmr6 And Fmr7)

    R&S UPV Module Replacement Replacing the CPU fan (for FMR6 and FMR7)  Separate the new fan from the bundle 1091.2943.00 (CPU fan plus heat sink) by removing the four screws.  Disconnect the fan cable on FMR.  Remove the four screws of the CPU fan on FMR (see the following picture). ...

  • Page 358: Changing The Switching Power Supply (Sps)

    Module Replacement R&S UPV Changing the switching power supply (SPS)  Remove the HDD (see “Replacing the hard disk drive”).  Remove the front module controller (see “Replacing the front module controller”).  Disconnect the flexible green conductor to the PCB (front-panel LEDs, not with R&S UPV66).

  • Page 359: Replacing The Digital Main Board (Dmb)

    R&S UPV Module Replacement  Disconnect the power supply of the combo drive from the PCB (not necessary for R&S UPV66).  Unplug the cable to the digital fan from the PCB.  Remove the cable to SPS fan (not for FMR6) ...
  • Page 360 Module Replacement R&S UPV Restore UPV Device Key and Software Option Keys General After the UPV DMB has been replaced, Device Key and Software Option Keys have to be restored. This can only be performed by the central service department via remote control of UPV. Please get in contact with the person who is in charge for service of Audio Analyzer UPV.
  • Page 361 R&S UPV Module Replacement Check if process “portmap.exe” is running Open Task Manager: right-click on the Taskbar - select Task Manager from the menu. Or press ctrl+alt+del on an external keyboard Select the “Processes” tab in the menu and search for the image name “portmap.exe”. 1146.2084.82 3.99...
  • Page 362 Module Replacement R&S UPV If this process is not running you have to install it. This might be the case only on older UPVs with firmware version 1.4.0 or lower. On drive D: of UPV there is a folder “VXI-11-AddOn” containing the following files Run SetupVxi11.bat to install the VXI-11-AddOn which starts the portmap.exe process.
  • Page 363 R&S UPV Module Replacement On the “General” tab, select “Internet Protocol (TCP/IP)”, then click the Properties button. If not already set correctly, select “Obtain an IP address automatically”. Read the IP Address Open Task Manager. Select the “Applications” tab in the menu, then click the “New Task…” button. Enter “cmd”...
  • Page 364 Module Replacement R&S UPV Close Task Manager Enter “ipconfig” at the input prompt … … and you get the following informations about the Ethernet adapter Local Area Connection: Inform the central service about the displayed “IP Address”. Close the command window. Restore Device Key and Software Option Keys The central service will now remote operate the UPV and restore the Device Key and the previously installed Software Option Keys.

  • Page 365: Replacing The Dsp Modules

    R&S UPV Module Replacement Replacing the DSP modules See exploded view 1164.2003.01 page 1 The two DSP modules are plugged directly to the DMB but are covered by the FMR during operation. The boards themselves are fastened upside down on the DMB. ...

  • Page 366: Replacement Of Lan Reset Button (R&S Upv66 Only)

    Module Replacement R&S UPV Replacement of LAN Reset Button (R&S UPV66 only)  Disconnect the flat cable at FMR.  Loosen screws on the rear of the device.  Remove the button. Now the button can be removed from its own metal sheet. Replacing the internal loudspeaker ...

  • Page 367: Replacing The Usb Ports On The Front Panel

    R&S UPV Module Replacement Replacing the USB ports on the front panel  Remove the HDD (see “Replacing the hard disk drive”).  Remove the handles and the printed front panel (see "Replacing the front unit")  From the front unit, undo the two screws holding the mounting plate. ...

  • Page 368: Replacing The Analog Front Panel (Afp)

    Module Replacement R&S UPV Replacing the analog front panel (AFP) The AFP is part of the front unit. For this reason the front unit must first be removed from the instrument frame (see Replacing the front unit).  Remove the additional bent metal sheet from 2mm front metal sheet (R&S UPV66 only) ...

  • Page 369: Replacing The Dc/Ac Converter (Not With Fmr9 Or R&S Upv66)

    R&S UPV Module Replacement  Detach the ribbon cable on the front module controller.  Replace the rotary generator used previously with the new (cylindrical) model with R&S material no. 0852.2701.00 (this is a special number valid only for the “Old” vs. “New” exchange of the rotary generator).

  • Page 370: Replacing The Tft Display (Not With R&S Upv66)

    Module Replacement R&S UPV Replacing the TFT display (not with R&S UPV66) See exploded view 1146.2203.01 (page 2 with AUO display), item nos. 150, 152 to 155, 170, 180, 190. The TFT display is part of the front unit. It must be removed beforehand from the instrument frame (see “Exchanging the front unit”).

  • Page 371: Replacing The Keypad And The Softkeys (Not With R&S Upv66)

    R&S UPV Module Replacement Replacing the keypad and the softkeys (not with R&S UPV66) See exploded view 1146.2203.01, item nos. 80, 90, 100. Prior to exchanging the keypad, remove the front unit, the rotary pulse generator and the complete TFT display group (see “Exchanging the front unit”, “Exchanging the rotary pulse generator" and “Exchanging the TFT display”).

  • Page 372: Alignment And Testing After Exchanging Subassemblies

    Alignment and testing after exchanging subassemblies R&S UPV Alignment and testing after exchanging subassemblies  Analog audio board (AAB): No realignment or software adjustment as described in Chapter 2 “Alignment” is required since the board is shipped from the factory fully adjusted with the proper data. The software adjustment data for the analyzer and the generator are found on the E PROM on the AAB.

  • Page 373: Block Diagrams

    R&S UPV Block Diagrams Block Diagrams Fig. 3-14 Block Diagram R&S UPV (Part 1) 1146.2084.82 3.111...

  • Page 374: Fig. 3-15 Block Diagram R&S Upv (Part 2)

    Block Diagrams R&S UP Fig. 3-15 Block Diagram R&S UPV (Part 2) 1146.2084.82 3.112...

  • Page 375: Fig. 3-16 Block Diagram R&S Upv Analog Audio Board (Aab) Generator (Part 1)

    R&S UPV Block Diagrams Fig. 3-16 Block Diagram R&S UPV Analog Audio Board (AAB)  Generator (part 1) 1146.2084.82 3.113...

  • Page 376: Fig. 3-17 Block Diagram R&S Upv Analog Audio Board (Aab) Generator (Part 2)

    Block Diagrams R&S UP Fig. 3-17 Block Diagram R&S UPV Analog Audio Board (AAB)  Generator (part 2) 1146.2084.82 3.114...

  • Page 377: Fig. 3-18 Block Diagram R&S Upv Analog Audio Board (Aab) Analyzer

    R&S UPV Block Diagrams Fig. 3-18 Block Diagram R&S UPV Analog Audio Board (AAB)  Analyzer 1146.2084.82 3.115...

  • Page 378: Fig. 3-19 Block Diagram Dfp (To Option R&S Upv-B2/B20)

    Block Diagrams R&S UP Fig. 3-19 Block diagram DFP (to option R&S UPV-B2/B20) 1146.2084.82 3.116...

  • Page 379: Fig. 3-20 Block Diagram Dab (To Option R&S Upv-B2)

    R&S UPV Block Diagrams Fig. 3-20 Block Diagram DAB (to option R&S UPV-B2) 1146.2084.82 3.117...

  • Page 380: Fig. 3-21 Block Diagram Second Generator (Option R&S Upv-B3)

    Block Diagrams R&S UP Fig. 3-21 Block diagram second generator (option R&S UPV-B3) 1146.2084.82 3.118...

  • Page 381: Fig. 3-22 Block Diagram Dab (Option R&S Upv-B20)

    R&S UPV Block Diagrams Fig. 3-22 Block diagram DAB (option R&S UPV-B20) 1146.2084.82 3.119...
  • Page 382 Block Diagrams R&S UP S Board EEPROM Digital Main Board FPGA S Interface TX CLK IN PLL1 PLL2 Fig. 3-23 Block diagram I S Board (option R&S UPV-B41) 1146.2084.82 3.120...

  • Page 383: Fig. 3-24 Block Diagram 8 Channel Inpuits (Option R&S Upv-B48)

    R&S UPV Block Diagrams High Input Divider Amplifier ADC-LP X100 0 / -24dB 0 / +12 / +24dB EEPROM Diff- Cal factors Signal Over1 board ID Peakdetector Under1 to FPGA PK-res1 Com-Signal Data Ch1+2 Data Ch3+4 High Input Divider Amplifier X100 ADC-LP 0 / -24dB...

  • Page 384: Fig

    R&S UPV Contents Chapter 4 Contents 4 Firmware Update / Installing Options ................4.1 Troubleshooting During a Firmware Update .................4.1 PROM Data Management ......................4.2 Handling the E PROMs.......................4.2 Data Structure in the E PROM ....................4.3 Recording the Contents ......................4.4 Troubleshooting During E PROM Access ..................4.6 Windows XP Recovery and Backup Partition................4.7 Call the Windows XP Recovery and Backup Partition Menu............4.7...

  • Page 386: Firmware Update / Installing Options

    R&S UPV Troubleshooting During a Firmware Update 4 Firmware Update / Installing Options The R&S UPV firmware is supplied in a file named "setupxxxRelease.exe". The sequence of digits for "xxx" consists of the main version number immediately followed by the subversion number, revision number and build number.

  • Page 387: E 2 Prom Data Management

    E2PROM Data Management R&S UPV PROM Data Management In the R&S UPV, important data which must not be lost is managed in the E PROMs of the various modules. Among the most important elements of this data are the following: Device key (serial number) and enabled software options Calibration data for analog modules and the low distortion generator Versions (hardware options)

  • Page 388: Prom

    R&S UPV E2PROM Data Management If the E PROM management detects a problem in a subsequent firmware start, it can react positively: If the E PROM is blank but there is a backup on disk, then very probably the E PROM for the module has been swapped and the old content can be restored.

  • Page 389: Recording The Contents

    E2PROM Data Management R&S UPV Recording the Contents Every time the firmware starts, a full scan of all detected E PROMs takes place. The purpose of this scan is to detect modules and their associated hardware options, to read in valid calibration values and to detect special options such as U1 and U2.
  • Page 390 R&S UPV E2PROM Data Management contents of block modification_100: ServiceCode 0: 0 ServiceCode 1: 0 ServiceCode 2: 0 ServiceCode 3: 0 ServiceCode 4: 0 ServiceCode 5: 0 ServiceCode 6: 0 ServiceCode 7: 0 ServiceCode 8: 0 ServiceCode 9: 0 contents of block ANLR0_CAL: description of block : // --- Correction data of analog analyzer --- // number of values...

  • Page 391: Troubleshooting During E

    E2PROM Data Management R&S UPV Troubleshooting During E PROM Access When enabling options, changing calibration values or amending hardware codes, problems can arise in principle when one of the many checks within the firmware discovers an error. In all these cases messages are generated which can give precise information about the cause of the problem.

  • Page 392: Windows Xp Recovery And Backup Partition

    R&S UPV Windows XP Recovery and Backup Partition Windows XP Recovery and Backup Partition R&S UPV provides a backup and recovery partition. A backup of the factory system partition (C:\) is stored per default and can be recovered in case of a system crash. In addition, backups of up to 5 firmware versions can be stored on this partition.

  • Page 393: Backup Current System Partition

    Windows XP Recovery and Backup Partition R&S UPV Backup Current System Partition 1. Select the Make Backup button in the Windows XP Recovery and Backup Partition menu with the rotary knob. 2. Open the Make Backup menu with the key. ENTER The menu shows the current versions of the firmware and the software platform.

  • Page 394: Recover Factory Default

    R&S UPV Windows XP Recovery and Backup Partition 3. Select the Select Backup window with the rotary knob. 4. Select the backup to be restored with the up/down cursor keys and the key. ENTER 5. Select the Restore button with the rotary knob 6.

  • Page 395: Delete Backups

    Windows XP Recovery and Backup Partition R&S UPV Delete Backups Up to five backups in addition to the factory default can be stored on the recovery partition. To provide space for new backups it might be necessary to remove older backups. The factory default cannot be deleted.

  • Page 396: Installing Options

    R&S UPV Installing Options Installing Options Hardware Options Option R&S UPV-B1 (Low Distortion Generator) Switch off the R&S UPV and disconnect the power cable. Place the R&S UPV on its handles and remove its rear feet (four Torx screws at the corners of the instrument).

  • Page 397: Option R&S Upv-B2 (Digital Audio I/O 192 Khz)

    Installing Options R&S UPV Option R&S UPV-B2 (Digital Audio I/O 192 kHz) The R&S UPV-B2 option consists of two boards which are interconnected by a 26-pin ribbon cable. Switch off the R&S UPV and disconnect the power cable. Place the R&S UPV on its handles and remove its rear feet (four Torx screws at the corners of the instrument).

  • Page 398: Option R&S Upv-B3 (Second Generator)

    R&S UPV Installing Options • Load default setup. To do this press the "Preset" button on the R&S UPV front panel and press "Enter" to confirm the prompt. open the "File" menu and choose "Preset (Load Default)". The following panels are then displayed: Generator Config, Generator Function, Analyzer Config, Analyzer Function and the Numeric Display •...
  • Page 399 Installing Options R&S UPV - Analyzer Config: Channel 1&2 Ch2 Input Gen Ch2 Ch2 Range Fix 1.0 V - Diagnostic Panel: Calibration Cal Agen Cal Address • Enter the supplied calibration value in the "Cal Value" field. • Carry out the adjustment by selecting "Cal Agen" from the Calibration window. The output voltage on Ch2 should now be exactly 1.000 V.

  • Page 400: Option R&S Upv-B20 (Digital Audio I/O 48 Khz)

    R&S UPV Installing Options Option R&S UPV-B20 (Digital Audio I/O 48 kHz) The R&S UPV-B20 option consists of two boards interconnected by a 26-pin ribbon cable. 1. Switch off the UPV and disconnect the power cable. 2. Place the UPV on its handles and remove its rear feet (four Torx screws at the instrument corners). 3.

  • Page 401: Option R&S Upv-B41 (I 2 S Interface)

    Installing Options R&S UPV The Numeric Display must now show the following values: RMS: –20 dBFS (corresponds to 0.1 FS on the Generator Function panel) Inp Peak: –20 dBFS or 100.00 mFS Frequency: 0.9970 kHz or 997.00 Hz This completes the functional test for the R&S UPV-B20 option. Option R&S UPV-B41 (I S Interface) •...
  • Page 402 R&S UPV Installing Options Operating test Starting from default state (press Preset key) perform the following settings: Choose the „USI Dual Channel“ instrument in the „Generator Config“, as well as in the „Analyzer Config“ panel and activate the internal loop measurement between analyzer and generator by setting the signal source to intern in the „Analyzer Config“...

  • Page 403: Option R&S Upv-B48 (8 Channel Analog Inputs)

    Installing Options R&S UPV Option R&S UPV-B48 (8 Channel Analog Inputs) Fitting • upgrade the R&S UPV on firmware version 2.3.0 (see release notes) • switch off UPV, remove power plug • remove cover of one of the extension slots on the rear (screwdriver TORX TX 8) •...
  • Page 404 R&S UPV Installing Options Checking the modification After you install the R&S UPV-U1 option, no adjustments are required. It is only checked whether the option is known by the firmware. • Switch on the R&S UPV. • Install new software version if necessary. •...
  • Page 405 Installing Options R&S UPV • Measure output voltage of generator by means of analyzer. To this end, connect analyzer channel 1 with generator via an XLR cable (do not use the internal connection). - Generator channel 1: check RMS value: min. -2.5 %V, max. +2.5 %V - Generator channel 2: check RMS value: min.

  • Page 406: Option R&S Upv-U2 (Bnc Phone Out)

    R&S UPV Installing Options Option R&S UPV-U2 (BNC Phone Out) The signals available at the 6.3 mm jack on the R&S UPV front panel are also routed to two female BNC connectors on the R&S UPV rear panel when the R&S UPV-U2 option is installed. The R&S UPV-U2 option consists of a board that is screwed and soldered to the digital main board (DMB), plus two shielded cables.
  • Page 407 Installing Options R&S UPV Function check After you install the R&S UPV-U2 option, no adjustments are required. You merely have to perform a function check as follows: Switch on the R&S UPV. • Set to default state: Press the PRESET button on the front panel of the R&S UPV and respond to the prompt with by pressing the Enter key on the external keyboard.
  • Page 408 R&S UPV Installing Options Fig. 4-3 Position of female BNC connectors and adhesive label on the rear panel Fastening screw for R&S UPV-U2 board Fastening screw for cable tie Fig. 4-4 Fastening of the R&S UPV-U2 board and the W60/W70 cables 1146.2084.82 4.23...

  • Page 409: Software Options

    Installing Options R&S UPV Software Options Software options are installed via the "Install Options…" entry in the Utilities menu. The first line displays the hardware and software options that have been installed. In this example a K0 is installed, with all known software options enabled. Below that is additional information about option key management.

  • Page 410: Receiving The Option Key By E-Mail

    R&S UPV Installing Options Receiving the Option Key by E-Mail Copy the 30-digit number from the e-mail into a text file which you then transmit to the R&S UPV. On the R&S UPV open this file in NOTEPAD.EXE. You can now use the mouse to select the number and copy it to the input field with the aid of the clipboard.

  • Page 411: Option R&S Upv-K21 (Digital Audio Protocol)

    Installing Options R&S UPV Option R&S UPV-K21 (Digital Audio Protocol) CAUTION Valid for R&S UPV firmware version 1.2.0 or later. The hardware option R&S UPV-B2 (Digital Audio I/O 192 kHz) must be present. Installation When you open the "Install Options…" window the following menu is displayed: Now enter the key code and press "Enter"...

  • Page 412: Option R&S Upv-K22 (Jitter And Interface Test)

    R&S UPV Installing Options Option R&S UPV-K22 (Jitter and Interface Test) CAUTION Valid for R&S UPV firmware version 1.1.0 or later. The hardware option R&S UPV-B2 (Digital Audio I/O 192 kHz) must be present. Installation When you open the "Install Options…" window the following menu is displayed: Now enter the key code and press "Enter"...
  • Page 414 R&S UPV Contents Chapter 5 Contents 5 Documents ............................5.1 Spare Parts............................5.1 Available Power Cables ......................5.1 1146.2084.82 I-5.1...
  • Page 416 R&S UPV Spare Parts 5 Documents Spare Parts The stock numbers necessary for ordering replacement parts and modules can be found in the component lists further down. Risk of shock hazard and instrument damage CAUTION When replacing a module please note the safety instructions and the repair instructions given in chapter 3 and at the beginning of this service manual When shipping a module be careful to provide for sufficient mechanical and antistatical protection.
  • Page 418 Spare Part List...
  • Page 438 Mechanical Drawings...
  • Page 445 Block Diagrams...

This manual is also suitable for:
