Summary of Contents for Niviuk P Series

  • Page 1 ARROW P User manual...

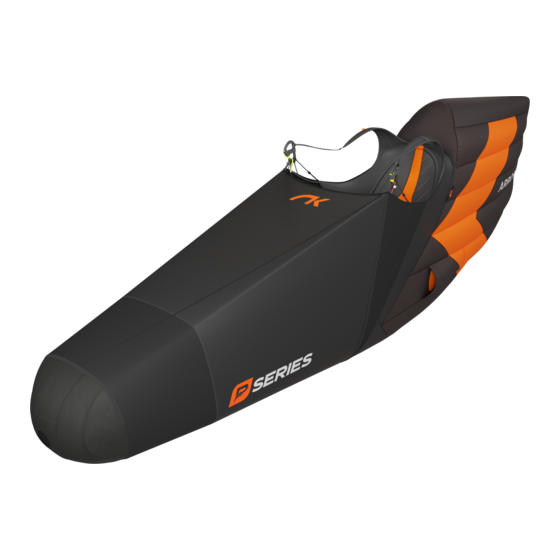

  • Page 2 ARROW P is one of the most stable harnesses and offers exceptional comfort and ergonomics for its weight. The ARROW P joins the new generation of Niviuk harnesses, with the aim of responding to the needs of all those pilots who want to go further.
  • Page 3 USER MANUAL This manual provides the necessary information on the main characteristics of your new harness. Whilst it provides information, it cannot be viewed as an instructional handbook and does not offer the training required to fly this type of harness.
  • Page 4: Table Of Contents

    2.3.5 POD 2.3.6 SPEED-BAR 5.2 STORAGE SPECIFICATIONS 5.3 CHECKS AND INSPECTIONS 2.4 INSTALLING THE PROTECTORS 5.4 REPAIRS 2.5 INSTALLING THE PARACHUTE 8.1 HARNESS MATERIALS 5.5 NIVIUK SERVICE 2.6 REPLACING THE POD 8.2 COMPATIBILITY 5.6 PRODUCT REGISTRATION 2.7 OPTIONAL ACCESSORIES 8.3 CERTIFICATION...
  • Page 5: Characteristics

    1. GENERAL CHARACTERISTICS 1.1 OVERVIEW OF THE HARNESS Aerodynamic tail Carabiners adjustable Speedbar hole Adjustable chest strap Rescue handle...
  • Page 6 3D-modelled seat Rescue compartment Foam protection Ballast pocket...
  • Page 7 Adjustable pod with inner side lines Adjustable shoulder straps Cockpit Adjustable coverleg strap Speedbar...
  • Page 8: Video Tutorial

    1.2 VIDEO TUTORIAL Check out the video tutorial with the explanation of all the features and functionalities of the harness on our YouTube channel. Video tutorial...
  • Page 9: Technical Data

    The total weight of the harness may differ ±5% due to variations in the weight of the fabric supplied by the manufacturers. Important notice: the sizes of this model are different from any other Niviuk harness. Please follow the specifications provided.
  • Page 10 Weight and height range table Weight (kg) To be tried on! It depends on the back and leg length.
  • Page 11: Target Group

    An ultralight harness, from 1.61 kg, the perfect partner for hike & fly enthusiasts. Like all our P Series products, light materials have been used for its development. The pod is made of D70, a lightweight fabric with good tear resistance, and the rest is made of Lycra light for added stretch.
  • Page 12: Design Process

    These were tested in all flight conditions. This intensive development of an innovative and modern harness has been made possible by the extensive experience of our team. All NIVIUK products undergo a thorough final inspection.
  • Page 13: Unpacking And Assembly

    2. II. UNPACKING AND ASSEMBLY 2.1 ASSEMBLING THE HARNESS Before your first flight we recommend making the initial adjustments of the harness using a hang frame. Position the harness and hang it from the carabiners. Sit in the harness and close it. Using the straps, adjust it to your individual preference. A number of easy-to-use adjustable straps allow the ARROW P to mould to the pilot’s body shape.
  • Page 14: Adjusting The Harness

    Niviuk R+D pilots provide the following tip for getting into the pod without getting stuck: put your left leg in first, and then put your right leg in. A good tip that works for any type of pod, just reverse the order of the legs as the diagonal closes! •...
  • Page 15: Installing The Protectors

    2.4 INSTALLING THE PROTECTORS We have worked to develop a very compact foam protection that offers Infbag: How do you inflate the Apair? Inflation: apply medium pressure the best compromise between lightness and impacts absorption. At 14 cm thick and weighing 320 g, it is made of three different layers of low To inflate the Apair protector, the method recommended by our When inflating Apair protector, it is crucial to use medium to moderate density foam.
  • Page 16: Installing The Parachute

    2.5 INSTALLING THE PARACHUTE STEP 2 To connect the rescue to the harness, pass the riser loop of your rescue around the 2 long lines/loops In the ARROW P, the parachute is integrated. We have focused on safety and ease of use by integrating coming out of the harness.
  • Page 17 STEP 5 STEP 8 Place the lines of your rescue inside the rescue container. Next, insert the rescue into the harness contai- Take the guide nylon rod and pass it through the first small loop on the right side. This will assist in installing ner.
  • Page 18 STEP 11 STEP 13 Next, pass the rescue Nylon rod thought the 2 flaps and remove the guide nylon rod. Hook the top Velcro on the rescue handle and you’re almost done. STEP 12 STEP 14 At this point, the rescue handle must look like the first picture. Then, enter the ends of the rescue nylon rod Finish closing the whole zip.
  • Page 19: Replacing The Pod

    2.6 REPLACING THE POD The ARROW P pod can be removed with a zip for easy replacement. Discover how to do it here. 2.7 OPTIONAL ACCESSORIES Ballast Camelbak Drink tube Pee tube Explore all the accessories and utilities of the Arrow P through the following link.
  • Page 20: In Flight

    3. IN FLIGHT CAUTION: stay away from mountain relief if you have to use to avoid this occurrence. Before hitting the water, it is recommended to 3.1 PRE-FLIGHT CHECKS your hands to get into the harness. You should always have your undo the buckles (without compromising safety) and to have enough hands on the brakes when near terrain.
  • Page 21: Types Of Flying

    4. TYPES OF FLYING 4.1 WINCH FLYING • The ARROW P is suitable for winch launching. • The winch release is attached by means of the main carabiners on the risers, where the wing is attached. 4.2 TANDEM The ARROW P is not recommended for tandem operation. 4.3 OTHER •...
  • Page 22: Care And Maintenance

    60ºC. to ensure maximum lightness. Like all our P Series products, light materials have been used for its development. The pod is made of D70, Whenever possible, keep the harness away from moisture and heat.
  • Page 23: Checks And Inspections

    5.6 PRODUCT REGISTRATION immediately. • The main aluminium carabiners must be replaced every two You can register your ARROW P on the Niviuk website in the MyNiviuk years or 500 flying hours or if they have any signs of damage. section and enjoy many benefits.
  • Page 24: Safety And Responsibility

    The warranty does not cover misuse of the equipment. • Any modification of the paraglider or its components invalidates the guarantee and its certification. • If you notice any defects in your harness, please contact Niviuk immediately for a more thorough inspection.
  • Page 25: Specifications

    Light lycra Body Main webbings Liros dyneema 4 mm Paragliding Harness - EN PH_364.2022 Inspection number : Niviuk Gliders Manufacturer : 8.2 COMPATIBILITY Drifter 2 M Model and size : Maximum pilot weight [kg] : Integrated container for rescue system:...
  • Page 26 Niviuk Paragliders C/ Del Ter 6 - D 17165 La Cellera de Ter - Girona - Spain +34 972 422 878 | info@niviuk.com www.niviuk.com...
