Summary of Contents for SC&T CA101

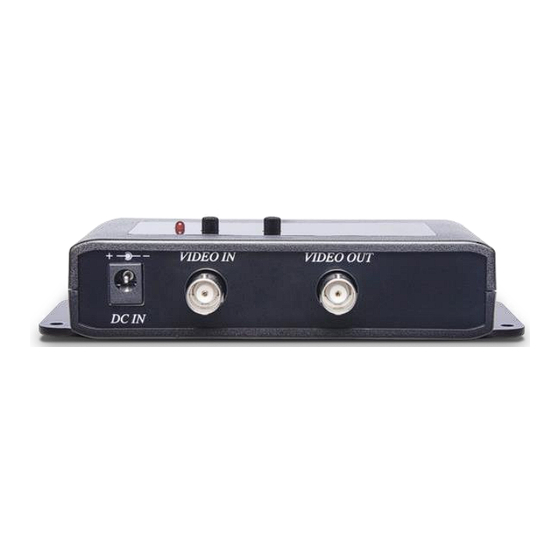

- Page 1 HD-TVI/ AHD/ HD-CVI/ CVBS Amplifier Series User Manual Model : CA101 CVBS Video Amplifier Smart Cabling & Transmission Corp. V1.0...
- Page 2 User Manual CA101 Introduction CA101 is a video amplifier that uses a coaxial cable to extend CVBS signal for up to 1000M. Features Supports CVBS video format. Signal extension up to 1000M. Supports 10dB image gain. Supports high frequency compensation ...
- Page 3 User Manual CA101 Specifications ITEM NO. CA101 Support Video Format CVBS Video Bandwidth 10Hz to 10MHz Max. Transmission Distance 1000M Ports & Interfaces Video Input 1 x BNC (0.8 to 1.2Vp-p, 75Ω) Video Output 1 x BNC (1V p-p, 75Ω)
