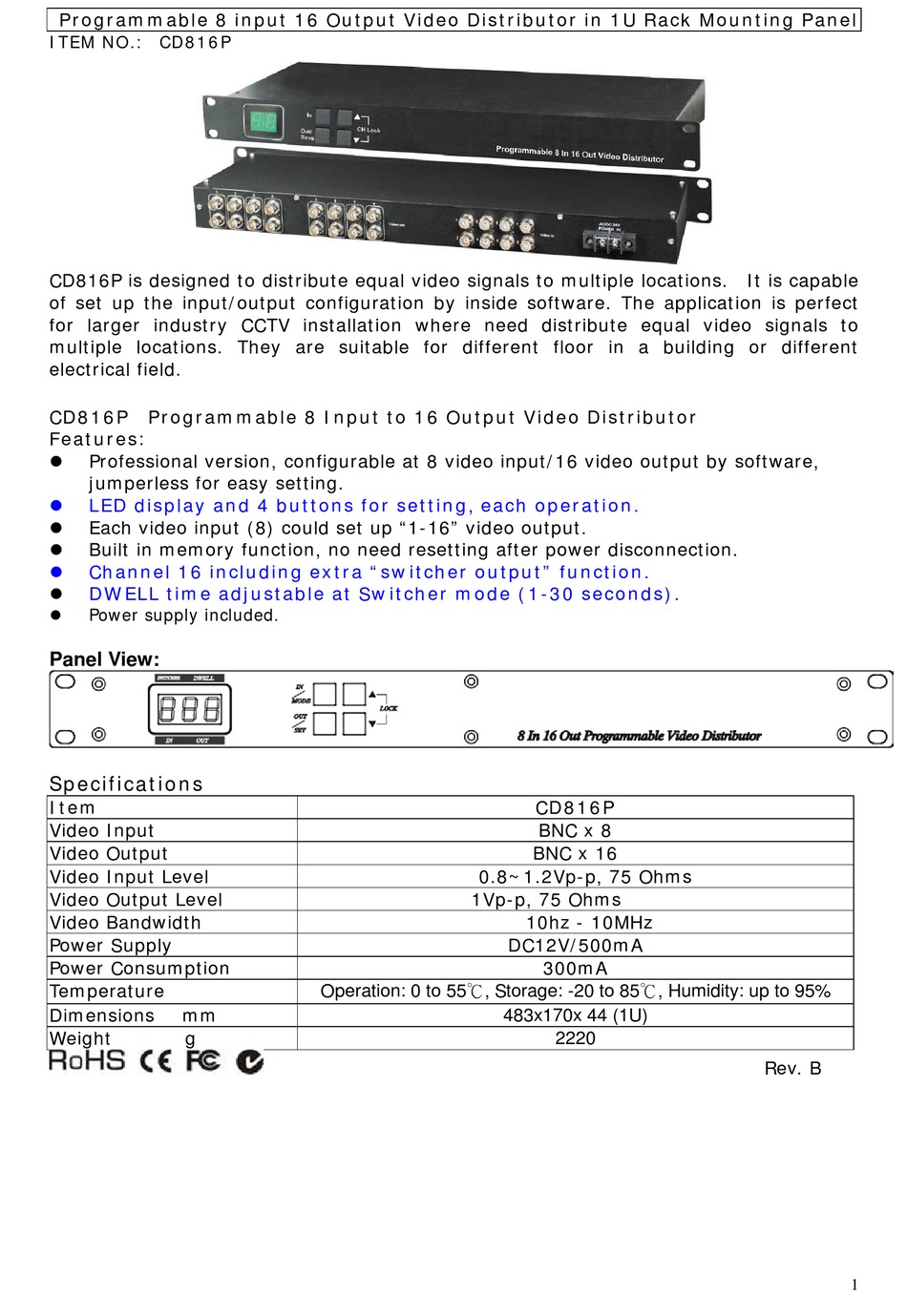

SC&T CD816P Manual

Programmable 8 input 16 Output Video Distributor in 1U Rack Mounting Panel
ITEM NO.: CD816P
CD816P is designed to distribute equal video signals to multiple locations. It is capable
of set up the input/output configuration by inside software. The application is perfect
for larger industry CCTV installation where need distribute equal video signals to
multiple locations. They are suitable for different floor in a building or different
electrical field.
CD816P Programmable 8 Input to 16 Output Video Distributor

Features:

Professional version, configurable at 8 video input/16 video output by software,

jumperless for easy setting.
LED display and 4 buttons for setting, each operation.

Each video input (8) could set up "1-16" video output.

Built in memory function, no need resetting after power disconnection.

Channel 16 including extra "switcher output" function.

DWELL time adjustable at Switcher mode (1-30 seconds).

Power supply included.

Panel View:

Specifications

Item
Video Input
Video Output
Video Input Level
Video Output Level
Video Bandwidth
Power Supply
Power Consumption
Temperature
Dimensions mm
Weight g
0.8~1.2Vp-p, 75 Ohms
1Vp-p, 75 Ohms
Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95%
CD816P
BNC x 8
BNC x 16
10hz - 10MHz
DC12V/500mA
300mA
483x170x 44 (1U)
2220
Rev. B
