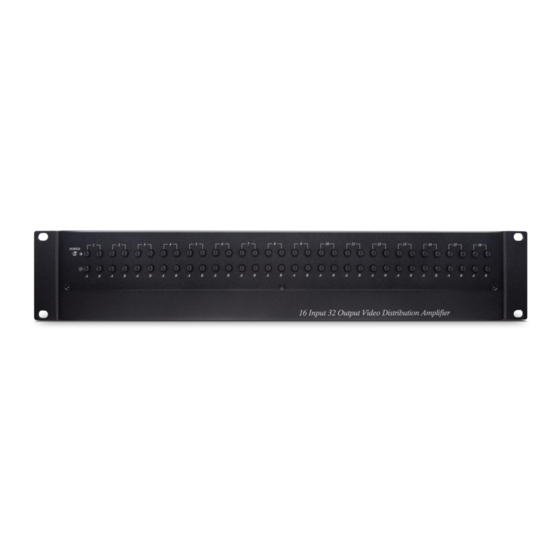

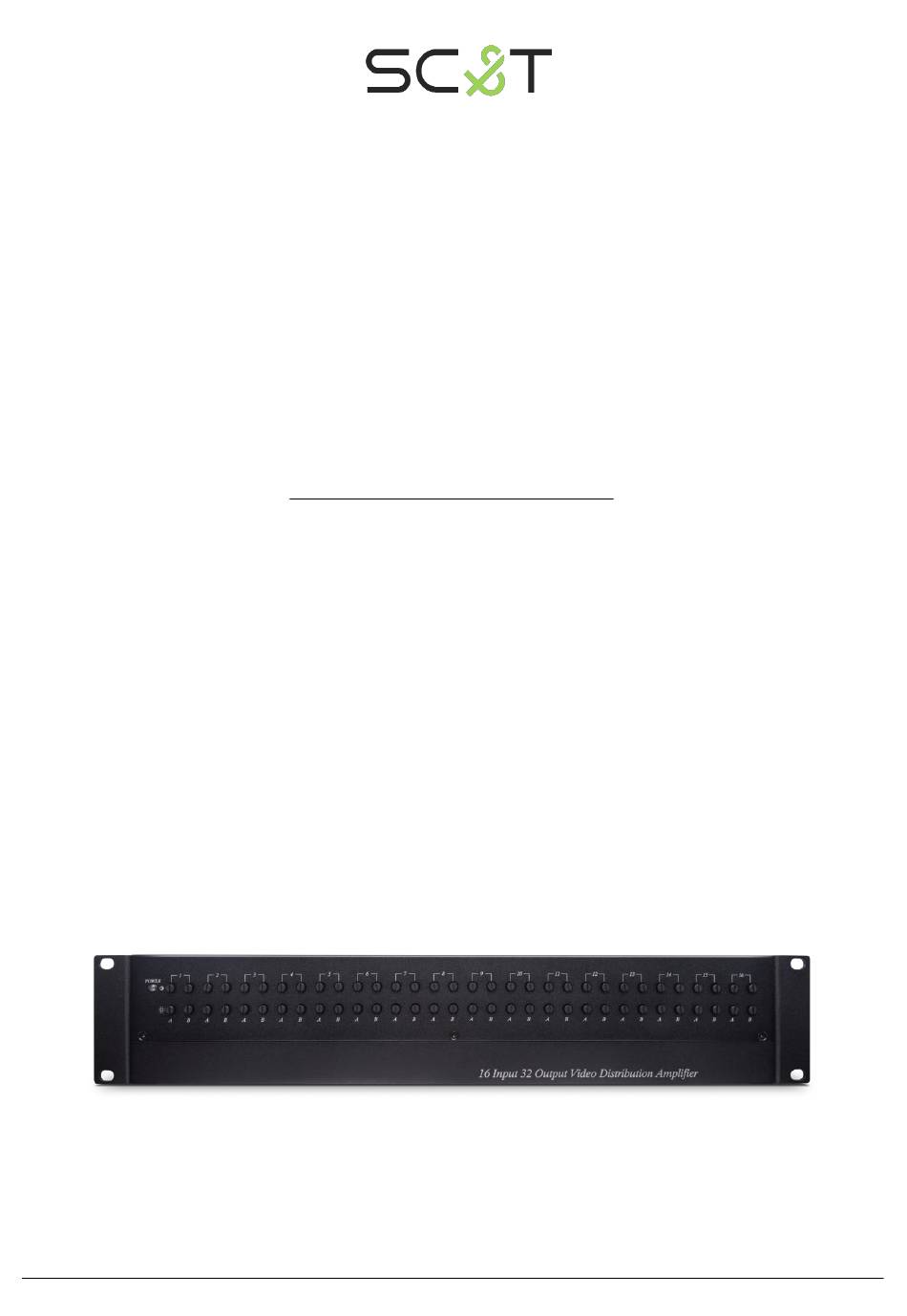

- Page 1 HD-TVI/ AHD/ HD-CVI/ CVBS Distributor Series User Manual Model : CD1632A 16 x 32 HD-TVI/AHD/HDCVI/CVBS Video Distribution Amplifier in 1U Rack Smart Cabling & Transmission Corp. V1.0...
- Page 2 User Manual CD1632A Introduction CD1632A is a video distribution amplifier that can split 16 CVBS signals into 32 ones and extend the signals for up to 1000M over coaxial cables. The device can apply to CCTV cameras, multiplexer, VCR, DVR…etc. Features Extend and split 16 CVBS signal into 32 ones ...
- Page 3 User Manual CD1632A Specifications ITEM NO. CD1632A Support Video Format HD-TVI, AHD, HDCVI, 960H, NTSC, PAL Max. Transmission Distance 1000M over RG59 coaxial cable Video Bandwidth 10 to 10MHz Ports & Interfaces Video Input 16 x BNC (0.8~1.2Vp-p, 75Ω) Video Output 32 x BNC (0.8~1.2Vp-p, 75Ω)
