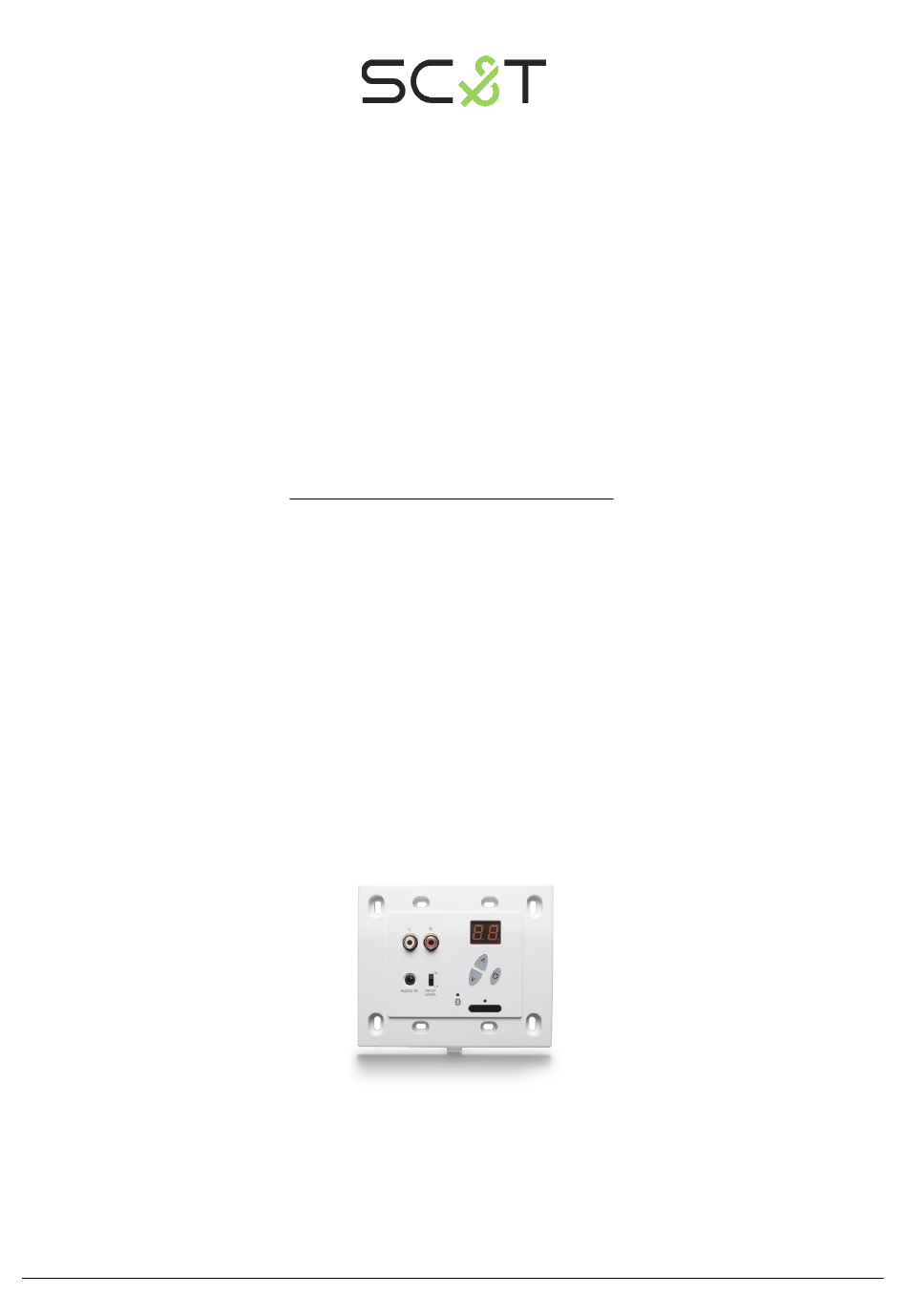

- Page 1 Audio Amplifier Series User Manual Model : VAI-3106D600 Wall Plate Type Bluetooth Digital Amplifier Smart Cabling & Transmission Corp. V1.0...
- Page 2 User Manual VAI-3106D600 Overview 6W RMS left and right channel digital amplifier extra built with BT-enabled facility is ideal for being used in classroom, conference or SOHO room. The unit is designed to not only enhance sound reinforcement but also allow to control most AV devices remotely through IR repeating function is also an additional feature.
-
Page 3: Specifications And Features
User Manual VAI-3106D600 Application Specifications And Features About Audio Output Power：2 x 6W(RMS)@ 8Ω. Line Audio Inputs： Stereo Phones ( L & R ) Stereo 3.5mm Jack (Priority) Hard wired line input via screw terminal(Rear PCB, In parallel with 3.5mm Jack Input) ... -
Page 4: Dimensions And Weights
User Manual VAI-3106D600 Dimensions And Weights VAI-3106D600 PWS-2415US RMC-111 Model 6W in-wall BT-enabled amplifier Switching power, US plug Dimensions 140 ( W ) × 120 ( H ) × 45 ( D ) mm. 117 ( W ) × 53 ( H ) × 32 ( D ) mm. 88x55x8mm Weight 0.25kg... -
Page 5: Product Views

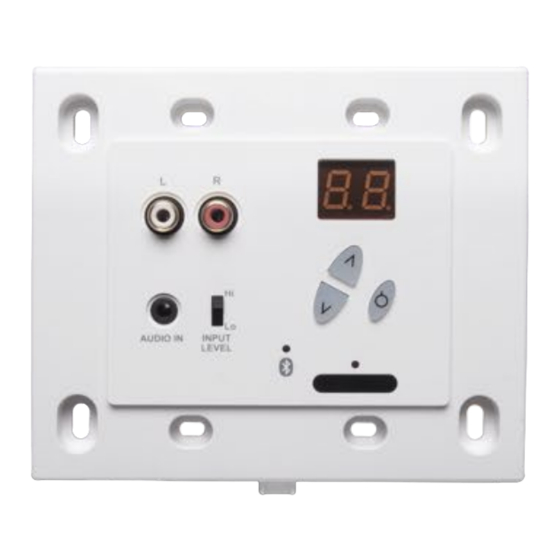

User Manual VAI-3106D600 Product Views Dual-RCA stereo Inputs Digit display 3.5mm audio Input Volume up Face Plate Volume Down Power on/off Hi / Lo input sensitivity Switch IR receiver window Bluetooth ® Indicator Speaker Output Connectors Wired Line Input Screw Terminal input... -
Page 6: Application Example
User Manual VAI-3106D600 Application Example: Notes on Bluetooth operations 1) Working mode/sleep mode: There is 3minutes working time for pairing or making connection when the Bluetooth receiver is powered on and entering into a working mode. If there is no pairing/connection being made within 3 minutes, the Bluetooth receiver will enter into a sleep mode which means the “pair”... - Page 7 User Manual VAI-3106D600 2) Automatic connection: The Bluetooth receiver will be in few seconds of searching once being powered on to sense and connect automatically to the previously last one- paired device. 3) memory function: The Bluetooth receiver is capable of storing up to 8 pairings and any new pairing will override the earliest one.
- Page 8 User Manual VAI-3106D600 Additional Factility Of Ir Repeating Function From a standard installation, the IR OUT terminal at the rear panel can be in parallel connection with 1units of dual emitter like as IEC-0002E-05 that allows you to get control onto your IR-controlled AV devices behind the close door up to 2units.
