ITEM NO.: HD02-4K, HD04-4K
HD02-4K, HD04-4K is a distribution amplifier for HDMI signals. Both of them support 3D and
resolution up to UHD 4K2K resolution. It reclocks and equalizes the signal and distributes it
to two, four identical outputs.
HD02
1 Input 2 4K2K Output HDMI Distribution Amplifier
Connects up to 2 HDMI displays at the same time from a digital video source.
Support up to 3D, 4Kx2K UHD , 12-Bit deep color.
Built in EDID learning/integration function.
Support LPCM 7.1、Dolby TrueHD、DTS-HD Master Audio.
Bandwidth: 25~340 Mhz.
HDMI 1.4a compliance, HDCP complaint.
DVI 1.0 compliance.
HD04
1 Input 4 Output 4K2K HDMI Distribution Amplifier
Identical to HD02-4K2K, but 4 HDMI displays at the same time from a digital
video source.

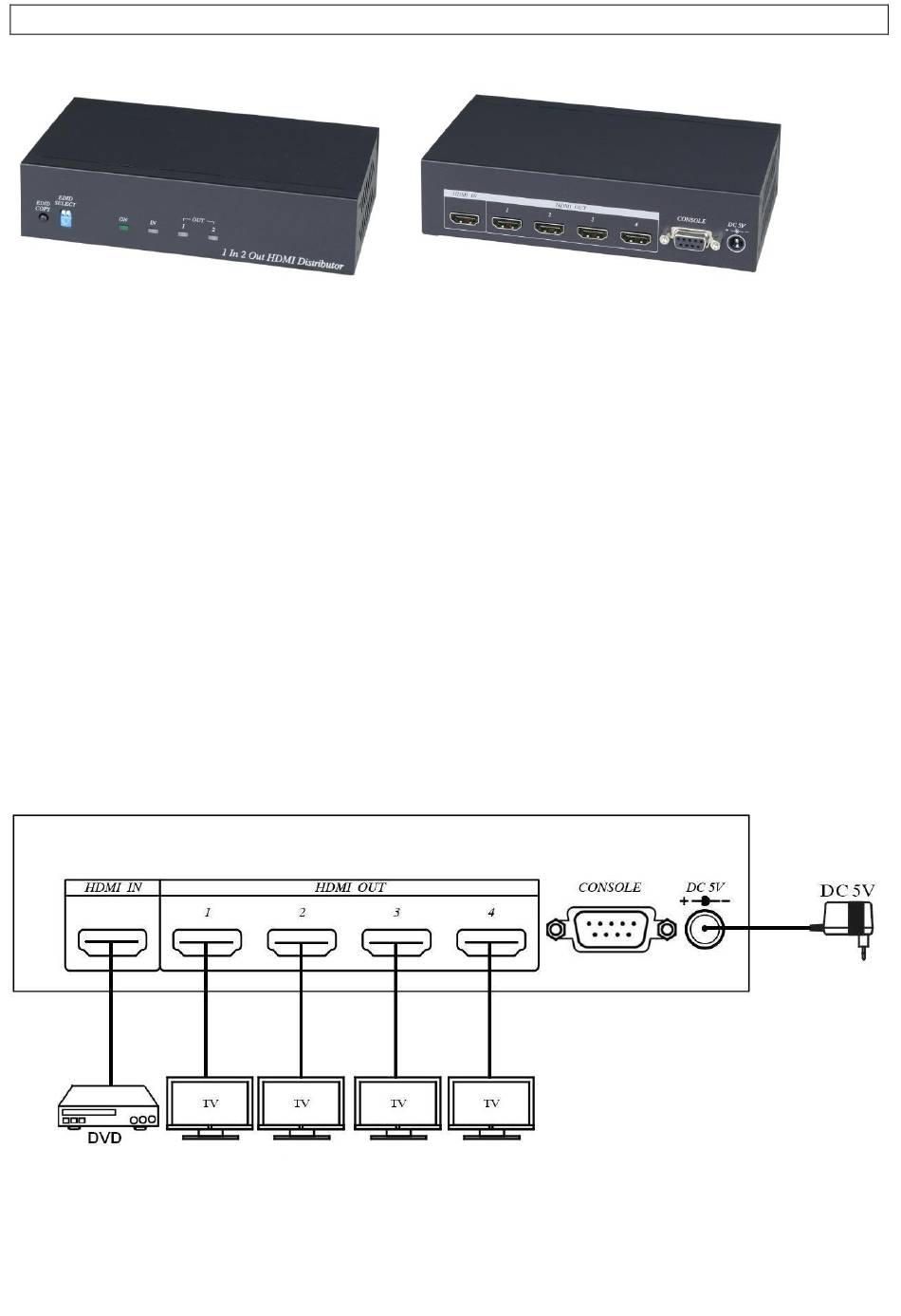

Installation View:
HDMI 4K2K Video Distribution Amplifier
