- Page 1 SDI Distributor User Manual Model : SDI04D 1 in 4 out 3G-SDI Distribution Amplifier Smart Cabling & Transmission Corp. V1.0 V1.0...

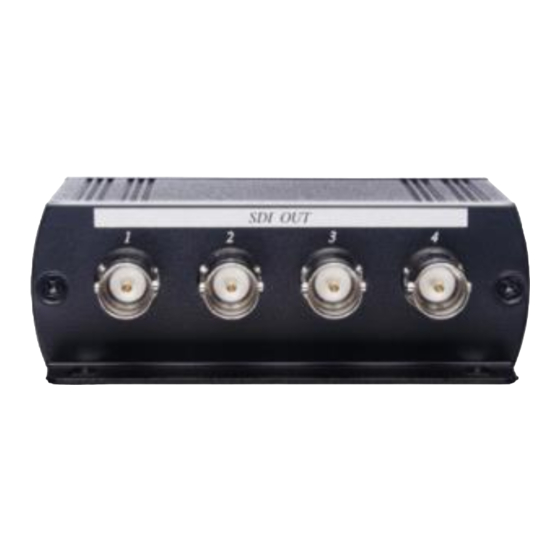

- Page 2 SDI04D Introduction SDI04D is a 1-in-4-out SDI distribution amplifier that can split one SDI for 4 SDI devices at remote side with transmission distance up to 400M. The re-clock function reduces the accumulated jitter and correctly displays the desired video.
- Page 3 User Manual SDI04D Panel View LED Indication LED Indicator LED Color Function Power Green ON/ OFF Power On/ Off Link BLUE ON/ OFF Linked/ Unlinked Jitter Name Output Jitter SD-SDI 0.02 UI p-p (Typical) HD-SDI 0.04 UI p-p (Typical) 3G-SDI 0.07 UI p-p (Typical)
- Page 4 User Manual SDI04D Specification ITEM NO. SDI04D Support SMPTE 259M Compliance SMPTE 292M SMPTE 424M Max. Video Resolution 3G-SDI 100M at 3G-SDI Transmission Distance 200M at HD-SDI 400M at SD-SDI Network Bandwidth 10/ 100Mbps Ports & Interfaces Video Input 1 x 75 Ω...
