14.

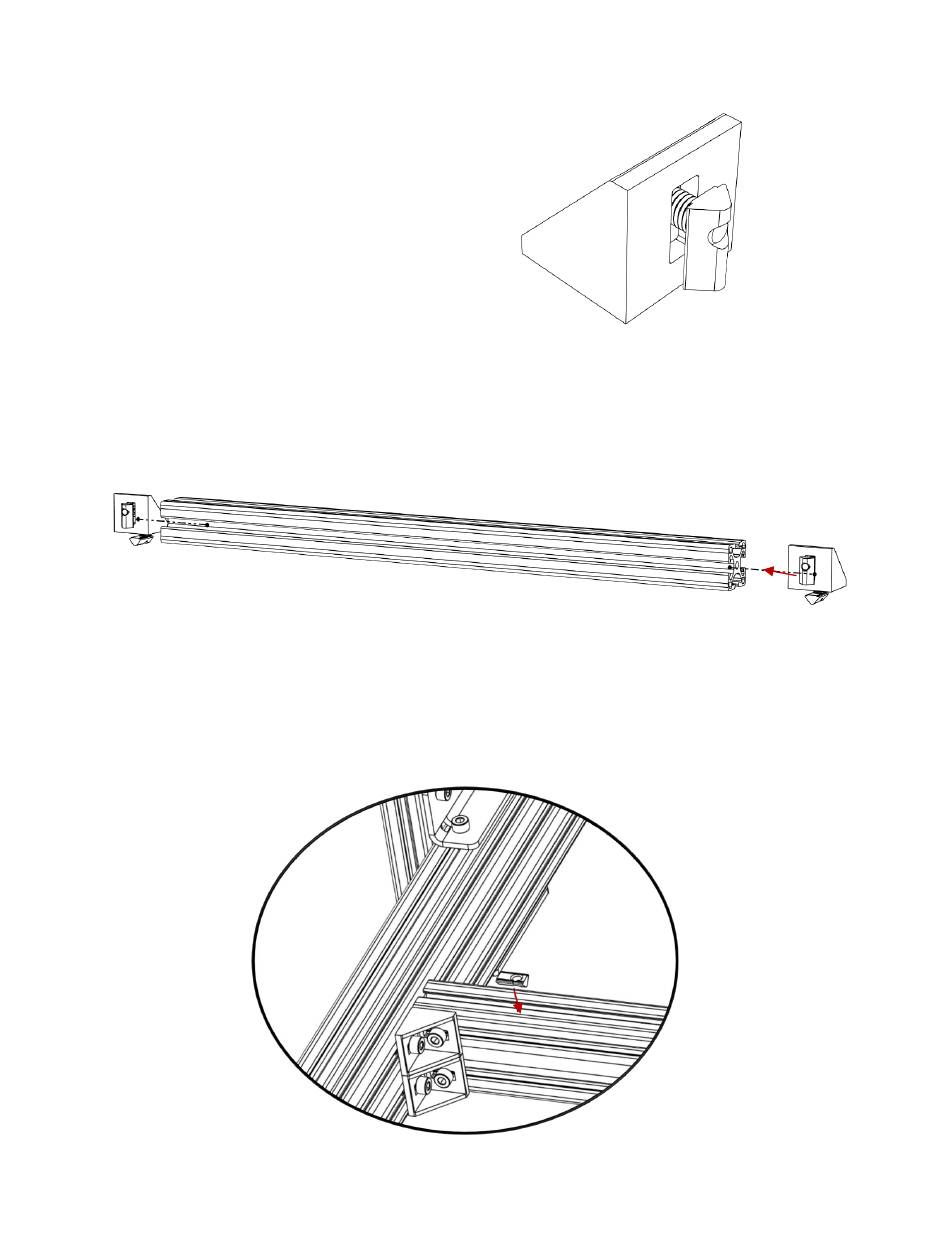

Prepare the snapped gussets with
4X
1X M8 T-Nut and 1X M8 X 16 socket
screw each, on the side where the
tabs were broken off.
15.
Place the gussets at each ends of the 1.5" X 22" extrusion. Repeat for both
pieces.
Tighten Fully.
2X
16.
Place 2X T-Nuts on each of the 3" X 19" that run across. Use the technique at
the page "T-Nut install tip" Further in this manual if you struggle with placing the
t-nut!
4X
9
