Installation Instructions for Altronix Sub-Assemblies to TV3:
1. Fasten spacers (provided) to pems that match the hole pattern for Altronix Power Supply/Chargers, Sub-Assembly boards or adapters.
Use snap on nylon spacers for the upper two mounting holes in the board.
Use metal spacers for the bottom mounting holes to provide sufficient grounding for the board.
2. Affix boards to spacers (Fig. 6, pg. 10) by pressing down the upper mounting holes onto nylon spacers.
Use provided mounting screws to affix the lower mounting holes. Make sure that boards are locked onto spacers.
3. For detailed information about installing and connecting Altronix sub-assemblies refer to the individual Installation Instructions
and Trove Installation Guide, Rev. 101817.

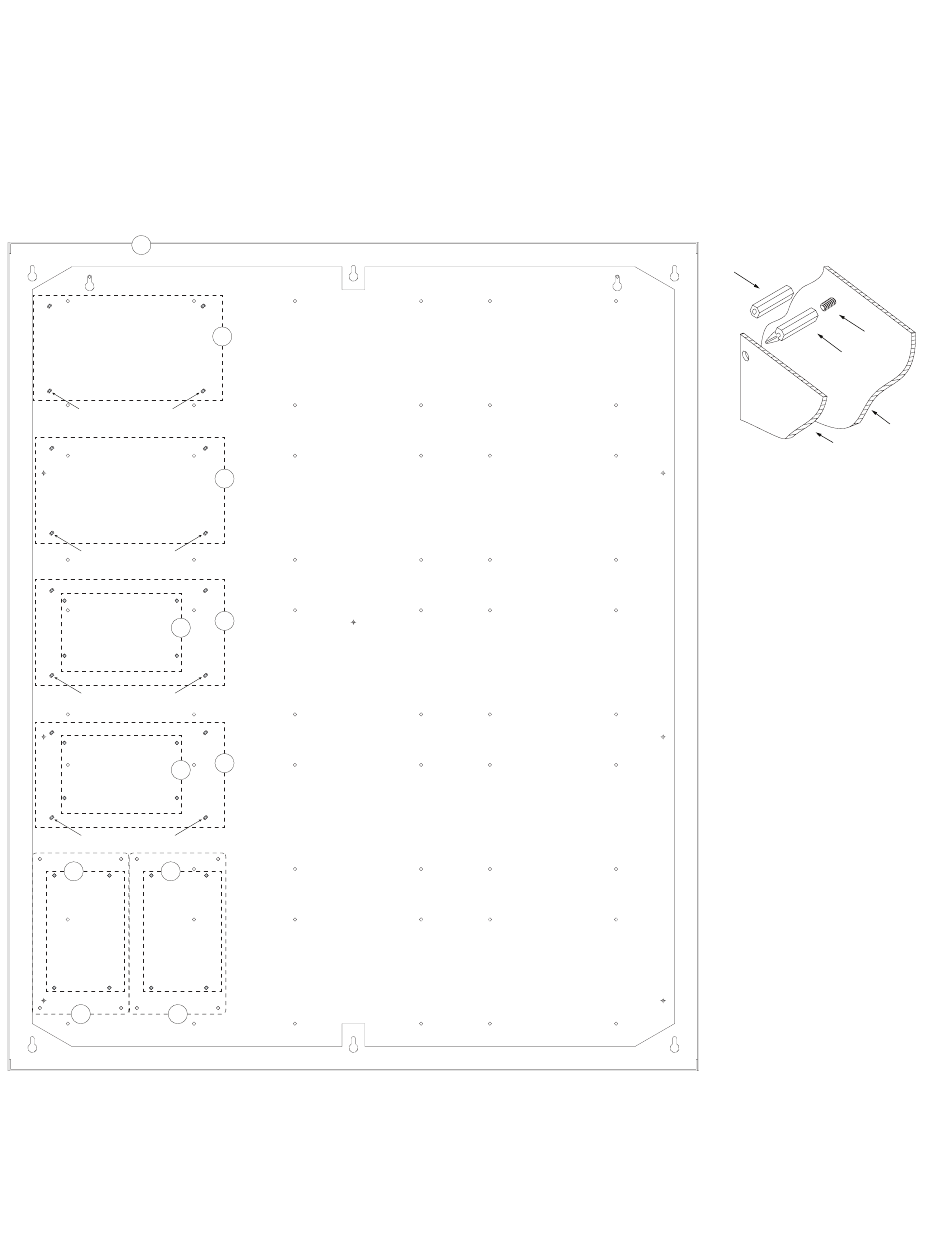

Fig. 6 - Refer to TV3 Sub-Assembly Position Chart, Pg. 9.
C
Metal Spacer Placement
Metal Spacer Placement
B
Metal Spacer Placement
B
Metal Spacer Placement
B B
D D
- 10 -
A
A
A
A
Nylon or Metal
Spacer
Pem
Snap On
Spacer
Sub-Assembly
Trove / HID VertX Installation Guide
Fig. 6a
Backplane
