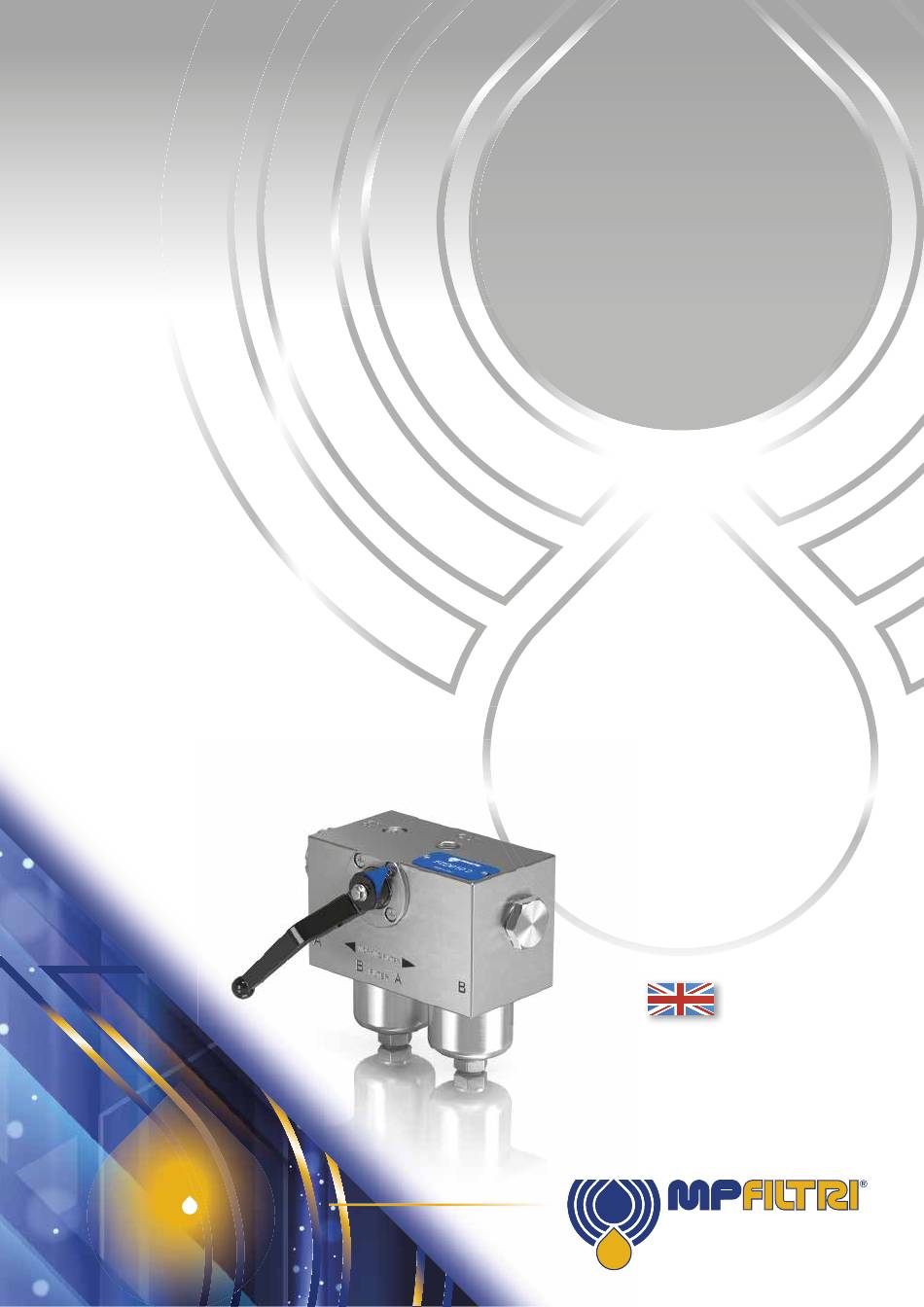

- Page 1 STAINLESS STEEL HI PRESSURE FILTERS INSTALLATION, SERVICE AND MAINTENANCE MANUAL AND SAFETY INSTRUCTIONS FZD010 PASSION PERFORM...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page Description General warnings Tools Handling Dimensional drawings Installation Commissioning Standard maintenance Filter element replacement Special maintenance Clogging indicator (or plug) replacement Seals replacement Instructions for use in explosive atmospheres Regulations Spare parts list Ordering code 13.1 Filter / Housing / Bowl 13.2 Filter element... -
Page 4: Description
- Do not operate the switching lever during the filter element replacement - The declared performances and the safety of the product are only guaranteed when MP Filtri original spare parts are used - Warranty is only effective if MP Filtri original spare parts are used. -
Page 5: Tools
FZD010 Tools FZD010 TOOL TIGHTENING TORQUE Differential indicator Wrench A/F 27/30/32 65 N∙m Bowl Socket wrench A/F 20 50 N∙m Connection G 3/8 Wrench A/F 22 Max 45 N∙m Connection 3/8-18 NPT Wrench A/F 19 Max 34 N∙m Breather plug G 1/8 Allen key A/F 5 12 N∙m... -
Page 6: Dimensional Drawings
Dimensional drawings WORKING FILTER FILTER Filter Filter Ø54 Drain plug Recommended clearance space for maintenance M6 - depth 10 mm Nr. 4 holes VENT Connection for differential indicator X2 plug not included Stainless steel high pressure filters... -
Page 7: Installation
Parts identification FZD010 FZD010 Item Description Clogging indicator connection Vent plug Drain plug Installation WORKING FILTER FILTER Clogging indicator connection Vent plug Drain plug - Check that the system working pressure does not exceed the maximum working pressure of the filter. -
Page 8: Standard Maintenance
Standard maintenance FILTER ELEMENT REPLACEMENT The clogging indicator monitors the conditions of the filter element in the working section of the filter. The alarm signal shown by the differential indicator during the normal working conditions (pressure, temperatures …) means that the filter element needs to be replaced. - Page 9 FZD010 - (Fig. 8) Unscrew the filter bowl while keeping the collection vessel - (Fig. 9) Pull the filter element out - Clean the cavity in the housing, the tap and the bowl. Check them for damage - Check the condition of the bowl seals and, if necessary, replace them referring to the “Special maintenance” paragraph - (Fig.
-
Page 10: Special Maintenance
Special maintenance CLOGGING INDICATOR (OR PLUG) REPLACEMENT - Check the availability of the right spare parts by comparing the part numbers shown on them with that shown on the filter name plate or spare parts list - For the disassembly and the assembly of the parts, please refer to the tools table in paragraph 3 - Switch off the system - (Fig. -
Page 11: Seals Replacement
FZD010 SEALS REPLACEMENT - Check the availability of the right spare parts by comparing the part numbers shown on them with that shown on the filter name plate or spare parts list - For the disassembly and the assembly of the parts, please refer to the tools table in paragraph 3 - Switch off the system - (Fig. - Page 12 Montaggio Smontaggio Smontaggio Montaggio Montaggio tappo di drenaggio contenitore elemento elemento contenitore - (Fig. 25) Lubricate the thread and the O-ring of the bowl, then screw the bowl in referring to the tightening torque table in paragraph 3 - (Fig. 26) Replace the O-rings of the indicator body and the breather plug - For the mounting/dismounting of the indicator, please refer to the paragraph “Clogging indicator replacement”...
- Page 13 FZD010 Stainless steel high pressure filters...
-
Page 14: Instructions For Use In Explosive Atmospheres
MP FILTRI has carried out a voluntary certification of a part of the product range in compliance with directive 2014/34/EU, in order to guarantee an appropriate degree of safety in these particular conditions. -
Page 15: Spare Parts List
Spare parts list FZD010 FZD010 12. Spare parts list Item Quantity Description Designation / Ordering code Complete filter Housing See “Ordering Code” table Bowl assembly Filter element Clogging indicator Seals kit 02050613 02050655 Item Q.ty Description Designation / ordering code Filter element seal O-Ring 121 - di = 15.88 - d... -
Page 16: Ordering Code
Inorganic microfiber 3 µm Inorganic microfiber 6 µm Inorganic microfiber 10 µm Inorganic microfiber 16 µm Inorganic microfiber 25 µm Element ∆p 210 bar 210 bar, stainless steel filter element Execution MP Filtri standard Customized Stainless steel high pressure filters... -
Page 17: Filter Element
Inorganic microfiber Inorganic microfiber 25 µm Seals Element ∆p 210 bar 210 bar, stainless steel filter element Execution MP Filtri standard Customized CLOGGING INDICATORS Electrical differential indicator Electrical / visual differential indicator Visual differential indicator Visual differential indicator Plug Stainless steel high pressure filters... -
Page 18: Troubleshooting
14. Troubleshooting 14.1 MISUSE OF THE PRODUCT This product should be connected to a hydraulic line; this must not exceed upper pressure limit of the product. his product should follow all standard operating procedures previously set at the operating location as well as the procedures required by the manufacturer. - Page 19 All data, details and words contained in this publication are provided for use by technically qualifi ed personnel at their discretion, without warranty of any kind. MP Filtri reserves the right to make modifi cations to the models and versions of the described products at any time for both technical and/or commercial reasons.
- Page 20 WORLDWIDE NETWORK CANADA CHINA FRANCE GERMANY INDIA SINGAPORE UNITED ARAB EMIRATES UNITED KINGDOM ITALY PASSION PERFORM mp ltri.com...
