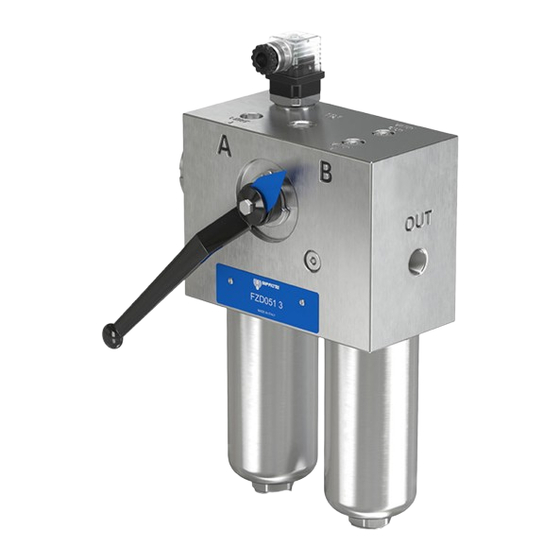

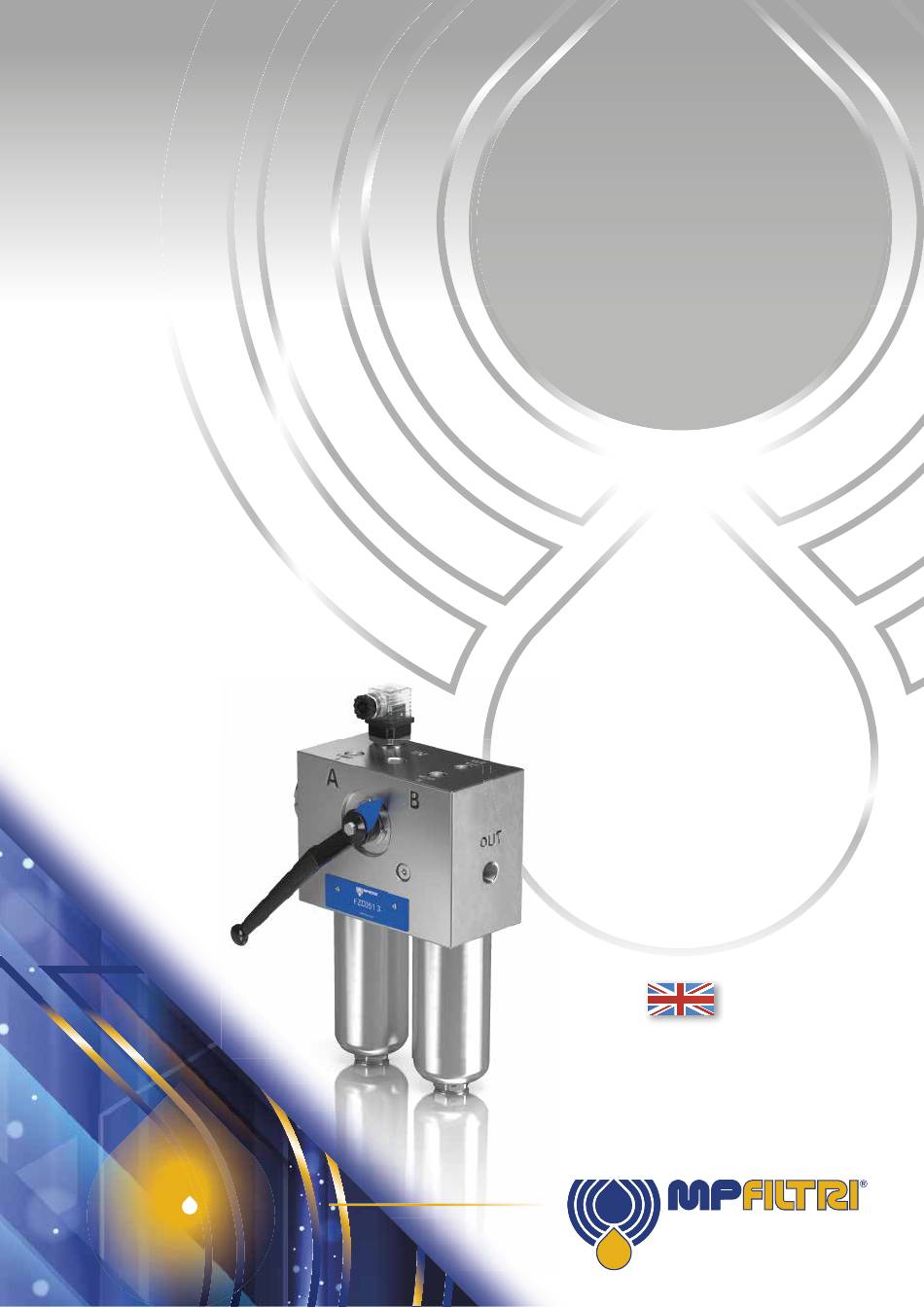

- Page 1 STAINLESS STEEL HI PRESSURE FILTERS INSTALLATION, SERVICE AND MAINTENANCE MANUAL AND SAFETY INSTRUCTIONS FZD051 PASSION PERFORM...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page Description General warnings Tools Handling Dimensional drawings Installation Commissioning Standard maintenance Filter element replacement Special maintenance Clogging indicator (or plug) replacement Seals replacement Instructions for use in explosive atmospheres Regulations Spare parts list Ordering code 13.1 Filter / Housing / Bowl 13.2 Filter element... -
Page 4: Description
- Do not operate the switching lever during the filter element replacement - The declared performances and the safety of the product are only guaranteed when MP Filtri original spare parts are used - Warranty is only effective if MP Filtri original spare parts are used. -
Page 5: Tools
FZD051 Tools FZD051 TOOL TIGHTENING TORQUE Differential indicator Wrench A/F 27/30/32 65 N∙m Bowl Socket wrench A/F 30 60 N∙m Connection G 3/4 Wrench A/F 32 90 N∙m Connection 3/4-11.5 NPT Wrench A/F 32 Max 100 N∙m Connection G 1/2 Wrench A/F 27 65 N∙m... -
Page 6: Dimensional Drawings
Connection for differential indicator X2 plug BALANCING Filter Filter Ø68 Drain plug Recommended clearance space for maintenance R - depth 7 mm Nr. 4 holes VENT FZD051 Filter length [mm] VENT VENT Connections 1/4” UNC G4-G5-G6 1/4” UNC Valves [mm] [mm] 182.5... -
Page 7: Installation
Parts identification FZD051 FZD051 Item Description Clogging indicator connection Vent plug Drain plug Installation Clogging indicator connection Vent plug Drain plug - Check that the system working pressure does not exceed The maximum working pressure of the filter. The maximum working pressure of the filter is shown on the identification plate... -
Page 8: Standard Maintenance
Standard maintenance FILTER ELEMENT REPLACEMENT The clogging indicator monitors the conditions of the filter element in the working section of the filter. The alarm signal shown by the differential indicator during the normal working conditions (Pressure, temperatures …) means that the filter element needs to be replaced. - Page 9 FZD051 - (Fig. 9) Drain the operating fluid from the bottom of the bowl into the collection vessel - (Fig. 10) Screw the drain plug in referring to the tightening torque table in paragraph 3 - (Fig. 11) Unscrew the filter bowl while keeping the collection vessel - (Fig.
-
Page 10: Special Maintenance
Filtro Apertura valvola Allentamento sfiato Serraggio sfiato Chiusura valvola Filtro Apertura valvola Allentamento sfiato Serraggio sfiato completo di bilanciamento 1 di bilanciamento 1 filtro "A" nuovo filtro "A" nuovo completo di bilanciamento 1 filtro "A" nuovo filtro "A" nuovo Filtro Apertura valvola Allentamento sfiato Serraggio sfiato... -
Page 11: Seals Replacement
FZD051 SEALS REPLACEMENT - Check the right spare filter element is available, compare the spare filter element part number with the spare parts list - Switch off the system - For the disassembly and the assembly of the parts, please refer to the tools table in paragraph 3 - (Fig. - Page 12 Sost. tappi sfiato Smontaggio ggio Serraggio sfiato Montaggio Smontaggio Apertura valvola Serraggio sfiato Montaggio Montaggio Chiusura valvola Smontaggio Serraggio sfiato Smontaggio ento contenitore di bilanciamento 2 + guarnizioni indicatore corpo indicatore filtro "B" nuovo di bilanciamento 2 connettore corpo indicato "OUT"...
- Page 13 FZD051 Stainless steel high pressure filters...
-
Page 14: Instructions For Use In Explosive Atmospheres
MP FILTRI has carried out a voluntary certification of a part of the product range in compliance with directive 2014/34/EU, in order to guarantee an appropriate degree of safety in these particular conditions. -
Page 15: Spare Parts List
FZD051 Spare parts list FZD051 12. Spare parts list Item Quantity Description Designation / Ordering code Item Q.ty Description Designation / ordering code Complete filter Complete filter See ordering table Housing Housing See ordering table See “Ordering Code” table Bowl assembly... -
Page 16: Ordering Code
6 µm Inorganic microfiber 10 µm Inorganic microfiber 16 µm Inorganic microfiber 25 µm Valves Element ∆p • 20 bar 210 bar • Execution 210 bar, stainless steel filter element • • MP Filtri standard Customized Stainless steel high pressure filters... -
Page 17: Filter Element
25 µm Seals Element ∆p 20 bar 210 bar 210 bar, stainless steel filter element Execution MP Filtri standard Customized INDICATORS Hazardous area electronic differential indicator Electrical differential indicator Electrical / visual differential indicator Visual differential indicator Visual differential indicator... -
Page 18: Troubleshooting
14. Troubleshooting 14.1 MISUSE OF THE PRODUCT This product should be connected to a hydraulic line; this must not exceed upper pressure limit of the product. his product should follow all standard operating procedures previously set at the operating location as well as the procedures required by the manufacturer. - Page 19 All data, details and words contained in this publication are provided for use by technically qualifi ed personnel at their discretion, without warranty of any kind. MP Filtri reserves the right to make modifi cations to the models and versions of the described products at any time for both technical and/or commercial reasons.
- Page 20 WORLDWIDE NETWORK CANADA CHINA FRANCE GERMANY INDIA SINGAPORE UNITED ARAB EMIRATES UNITED KINGDOM ITALY PASSION PERFORM mp ltri.com...
