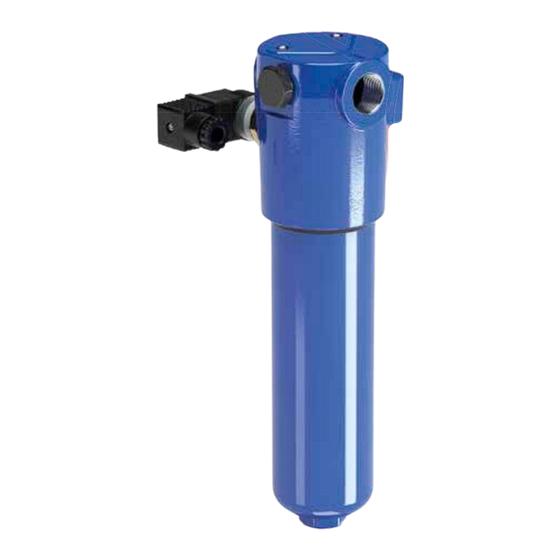

- Page 1 HI PRESSURE FILTERS INSTALLATION, SERVICE AND MAINTENANCE MANUAL AND SAFETY INSTRUCTIONS INSTRUCTIONS FHP065 FHP065 PASSION PERFORM...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page Description General warnings Tools Handling Dimensional drawings Installation Commissioning Standard maintenance Filter element replacement Special maintenance Clogging indicator (or plug) replacement Seals replacement Instructions for use in explosive atmospheres Regulations Spare parts list Ordering code 13.1 Filter / Housing / Bowl 13.2 Filter element... -
Page 4: Description
- Connect the filter with an anti-loosening system and regularly check the condition of the connection - The declared performances and the safety of the product are only guaranteed when MP Filtri original spare parts are used - Warranty is only effective if MP Filtri original spare parts are used. -
Page 5: Handling
FHP065 Handling - The unit is shipped in a cardboard box with dimensions depending on the order - The handling must be carried out in accordance with the laws in force in the country of use of the product - Handle the product with care, avoid impacts - Store in a dry and frost-free room - The unit should be stored in a suitable location away from the production area when not in use. -
Page 6: Dimensional Drawings
Dimensional drawings Connection for differential indicator T2 plug not included Recommended Ø68 clearance space for maintenance FHP065 R - depth 15 mm Nr. 2 holes Filter length [mm] Connections G1-G2 G3-G4-G5-G6 5/16” UNC High Pressure filters... -
Page 7: Installation
FHP065 Parts identification Parts identification FHP065 Installation Item Description Clogging indicator connection Identification plate Clogging indicator connection Identification plate - Check that the system working pressure does not exceed the maximum working pressure of the filter. The maximum working pressure of the filter is shown on the identification plate... -
Page 8: Standard Maintenance
Standard maintenance FILTER ELEMENT REPLACEMENT The clogging indicator monitors the conditions of the filter element. The alarm signal shown by the differential indicator during the normal working conditions (pressure, temperatures …) means that the filter element needs to be replaced. - Check the availability of the right spare filter element by comparing the part number shown on the element with that shown on the filter name plate or spare parts list - For the disassembly and the assembly of the parts, please refer to the tools table in paragraph 3... -
Page 9: Special Maintenance
FHP065 Special maintenance CLOGGING INDICATOR (OR PLUG) REPLACEMENT - Check the availability of the right spare parts by comparing the part numbers shown on them with that shown on the filter name plate or spare parts list - For the disassembly and the assembly of the parts, please refer to the tools table in paragraph 3 - Switch off the system - (Fig. -
Page 10: Seals Replacement
SEALS REPLACEMENT - Check the availability of the right spare parts by comparing the part numbers shown on them with that shown on the filter name plate or spare parts list - For the disassembly and the assembly of the parts, please refer to the tools table in paragraph 3 - Switch off the system - (Fig. - Page 11 FHP065 Smontaggio Montaggio Montaggio Montaggio Smontaggio Montaggio Sost. guarnizioni Sost. guarniz corpo indicatore corpo indicatore elemento contenitore connettore connettore elemento+contenitore indicatore Sost. guarnizioni Montaggio Sost. guarnizioni Sost. guarnizioni bypass connettore elemento+contenitore indicatore Sost. guarnizioni Montaggio Sost. guarnizioni Sost. guarnizioni bypass...
-
Page 12: Instructions For Use In Explosive Atmospheres
MP FILTRI has carried out a voluntary certification of a part of the product range in compliance with directive 2014/34/EU, in order to guarantee an appropriate degree of safety in these particular conditions. -
Page 13: Spare Parts List
FHP065 Spare parts list FHP065 12. Spare parts list Item Quantity Description Designation / Ordering code Complete filter Housing See “Ordering Code” table Bowl assembly Filter element Clogging indicator EPDM Item Description Q.ty Designation / ordering code Seals kit 02050265... -
Page 14: Ordering Code
SAE 12 - 1 1/16” - 12 UN Filtration rating (filter media) Inorganic microfiber 3 µm Valves Inorganic microfiber 6 µm Element ∆p Execution 20 bar • MP Filtri standard Inorganic microfiber 10 µm 20 bar • Customized Inorganic microfiber 16 µm 210 bar • Inorganic microfiber 25 µm... -
Page 15: Filter Element
25 µm Seals EPDM Element ∆p 20 bar 20 bar Execution 210 bar MP Filtri standard 210 bar Customized CLOGGING INDICATORS Electrical differential indicator Electrical differential indicator Electrical / visual differential indicator Electrical / visual differential indicator Electrical differential indicator... -
Page 16: Troubleshooting
14. Troubleshooting 14.1 MISUSE OF THE PRODUCT This product should be connected to a hydraulic line; this must not exceed upper pressure limit of the product. his product should follow all standard operating procedures previously set at the operating location as well as the procedures required by the manufacturer. - Page 17 NOTES High Pressure filters...
- Page 18 NOTES High Pressure filters...
- Page 19 All data, details and words contained in this publication are provided for use by technically qualifi ed personnel at their discretion, without warranty of any kind. MP Filtri reserves the right to make modifi cations to the models and versions of the described products at any time for both technical and/or commercial reasons.
- Page 20 WORLDWIDE NETWORK CANADA CHINA FRANCE GERMANY INDIA SINGAPORE UNITED ARAB EMIRATES UNITED KINGDOM ITALY PASSION PERFORM mp ltri.com...
