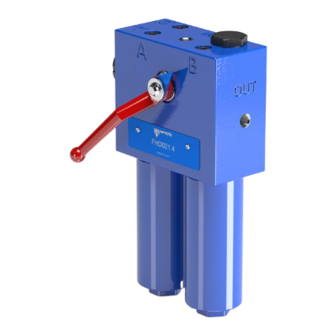

- Page 1 HI PRESSURE FILTERS INSTALLATION, SERVICE AND MAINTENANCE MANUAL AND SAFETY INSTRUCTIONS INSTRUCTIONS FHD021 FHD021 PASSION PERFORM...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page Description General warnings Tools Handling Dimensional drawings Installation Commissioning Standard maintenance Filter element replacement Special maintenance Clogging indicator (or plug) replacement Seals replacement Instructions for use in explosive atmospheres Regulations Spare parts list Ordering code 13.1 Filter / Housing / Bowl 13.2 Filter element... -
Page 4: Description
- Do not operate the switching lever during the filter element replacement - The declared performances and the safety of the product are only guaranteed when MP Filtri original spare parts are used - Warranty is only effective if MP Filtri original spare parts are used. -
Page 5: Tools
FHD021 Tools FHD021 TOOL TIGHTENING TORQUE Differential indicator Wrench A/F 27/30/32 60 N∙m Bowl Socket wrench A/F 30 45 N∙m Connection G 1/2 Wrench A/F 27 Max 65 N∙m Connection 1/2-14 NPT Wrench A/F 24 Max 60 N∙m Connection 3/4 - 16 (SAE 8) Wrench A/F 22 Max 55 N∙m... -
Page 6: Dimensional Drawings
Connection for differential indicator T2 plug Filter Filter Drain plug Ø55 Recommended clearance space for maintenance R - depth 7 mm Nr. 4 holes VENT VENT VENT FHD021 Filter length [mm] Connections G2 - G3 1/4” UNC High Pressure filters... -
Page 7: Installation
Parts identification FHD021 FHD021 Item Description Clogging indicator connection Identification plate Vent plug Drain plug Installation Clogging indicator connection Identification plate Vent plug Drain plug - Check that the system working pressure does not exceed the maximum working pressure of the filter. -
Page 8: Standard Maintenance
Standard maintenance FILTER ELEMENT REPLACEMENT The clogging indicator monitors the conditions of the filter element in the working section of the filter. The alarm signal shown by the differential indicator during the normal working conditions (Pressure, temperatures …) means that the filter element needs to be replaced. - Page 9 FHD021 - (Fig. 8) Screw the drain plug in referring to the tightening torque table in paragraph 3 - (Fig. 9) Unscrew the filter bowl while keeping the collection vessel - (Fig. 10) Pull the filter element out. Clean the cavity in the housing, the tap and the bowl. Check them for damage - Check the condition of the bowl seals and, if necessary, replace them referring to the “Special maintenance”...
-
Page 10: Special Maintenance
Special maintenance CLOGGING INDICATOR (OR PLUG) REPLACEMENT - Check the availability of the right spare parts by comparing the part numbers shown on them with that shown on the filter name plate or spare parts list - For the disassembly and the assembly of the parts, please refer to the tools table in paragraph 3 - Switch off the system - (Fig. -
Page 11: Seals Replacement
FHD021 SEALS REPLACEMENT - Check the availability of the right spare parts by comparing the part numbers shown on them with that shown on the filter name plate or spare parts list - For the disassembly and the assembly of the parts, please refer to the tools table in paragraph 3 - Switch off the system - (Fig. - Page 12 Sost. tappi sfiato rraggio sfiato Sost. guarnizioni + guarnizioni indicatore "OUT" elemento+contenitore Montaggio Montaggio Montaggio Montaggio Serraggio sfiato Serraggio sfiato Allentamento sfiato Allentamento sfia montaggio Smontaggio Smontaggio Smontaggio ontenitore contenitore elemento elemento elemento elemento contenitore contenitore filtro "B" nuovo filtro "B" nuovo "OUT"...
- Page 13 FHD021 High Pressure filters...
-
Page 14: Instructions For Use In Explosive Atmospheres
MP FILTRI has carried out a voluntary certification of a part of the product range in compliance with directive 2014/34/EU, in order to guarantee an appropriate degree of safety in these particular conditions. -
Page 15: Spare Parts List
Spare parts list FHD021 FHD021 12. Spare parts list Item Quantity Description Designation / Ordering code Complete filter Item Q.ty Description Designation / ordering code Housing Complete filter See ordering table See “Ordering Code” table Bowl assembly Housing See ordering table... -
Page 16: Ordering Code
Inorganic microfiber 6 µm Inorganic microfiber 10 µm Inorganic microfiber 16 µm Inorganic microfiber 25 µm M25 Wire mesh 25 µm Filtration rating Element ∆p 20 bar • 210 bar • • Execution MP Filtri standard Customized High Pressure filters... -
Page 17: Filter Element
Filtration rating Element ∆p 20 bar • 210 bar • • Execution MP Filtri standard Customized CLOGGING INDICATORS Electrical differential indicator Electrical differential indicator Electrical / visual differential indicator Electrical / visual differential indicator Electrical differential indicator Visual differential indicator... -
Page 18: Troubleshooting
14. Troubleshooting 14.1 MISUSE OF THE PRODUCT This product should be connected to a hydraulic line; this must not exceed upper pressure limit of the product. his product should follow all standard operating procedures previously set at the operating location as well as the procedures required by the manufacturer. - Page 19 All data, details and words contained in this publication are provided for use by technically qualifi ed personnel at their discretion, without warranty of any kind. MP Filtri reserves the right to make modifi cations to the models and versions of the described products at any time for both technical and/or commercial reasons.
- Page 20 WORLDWIDE NETWORK CANADA CHINA FRANCE GERMANY INDIA SINGAPORE UNITED ARAB EMIRATES UNITED KINGDOM ITALY PASSION PERFORM mp ltri.com...
