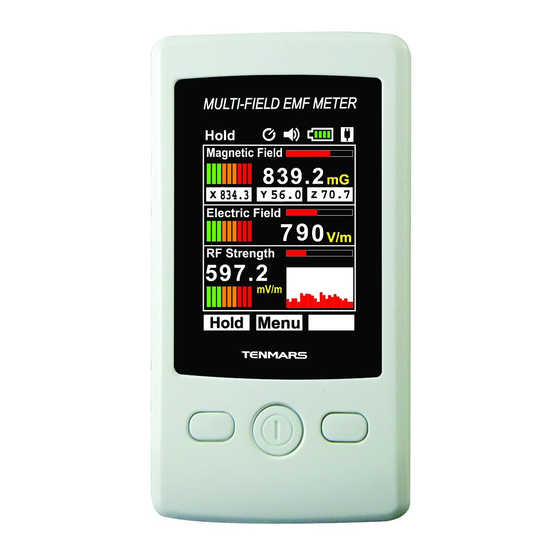

Tenmars TM-190 User Manual

Multi-field emf meter
Hide thumbs Also See for TM-190:
Table of Contents

Advertisement

Quick Links

MULTI-FIELD EMF METER
TM-190
User's Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TM-190 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tenmars TM-190

Summary of Contents for Tenmars TM-190

  • Page 1 MULTI-FIELD EMF METER TM-190 User’s Manual...
  • Page 2 English B2TM1900001...

  • Page 3: Table Of Contents

    Meun Features ............5 Identifying Parts ..........8 TFT description ..........9 Measurement Procedures ......10 4.1 POWER ON/OFF Button: ......... 10 ... 10 Reading Individual and Aggregated XYZ Axial Data: 4.3 Data hold (HOLD): ..........11 4.4 Menu Settings: ..........12 4.4.1.
  • Page 4 English 4.4.10. Alarm Sound: 4.4.11. Information: Specifications ..........25 5.1 Sensor type: LF Magnetic Fields (MF) ....25 5.2 Sensor type: LF Electric Fields ......25 5.3 Sensor type: RF Strength ......... 27 Battery replacement ........29 External USB power supply: ......30 Safety and maintenance standards ....

  • Page 5: Features

    English 1 Features  Data hold (HOLD)  Low battery indication： HIGH  Over load display “OL”.  External USB Power Supply: ” ”  Brightness options: low-Middle-high  Magnetic unit：Gauss(mG) or. Tesla(uT)  RF Strength Unit: (uW/m² ~mW/m²) (μW/cm²) (m V/m ~V/m) (mA/m) (dBm).
  • Page 6 English Japanese; Español.  Power Off Time：No; 1; 3; 5; 10; 15; 30. Factory default sets as “5”. Settings can be changed by the user. is displayed on the screen after power off time is set.  Keys/Alarm Sounds: On ;...
  • Page 7 TM-190 English  Electric field Measurement Precautions: Please perform tests according to the indicated direction . Please hold the meter at the bottom of the display, as shown in the figure below: Fig. 1 Electric Field measurement: Magnetic Fields Electric Field...

  • Page 8: Identifying Parts

    English international國際的 Council Recommendation1999/519/EC 42V/m(4.75W/m²) 59V/m(9.25W/m²) international國際的 ICNIRP Guidelines,April1998 42V/m(4.75W/m²) 59V/m(9.25W/m²) Austria 奧地利 ONORM S1120 49V/m(6.33W/m²) 61V/m(10W/m²) Belgium比利時 Belgisch Staatsblad F.2001-1365 21V/m(1.18W/m²) 30V/m(2.31W/m²) Germang 德國 26.Deutsche Verordnung 42V/m(4.75W/m²) 59V/m(9.25W/m²) italy意大利 Decreto n.381,1998 20V/m(1W/m²) 20V/m(1W/m²) the netherlands荷蘭 Health Council 51V/m(6.92W/m²) 83V/m(18W/m²) switzerland瑞士...

  • Page 9: Tft Description

    English 2.4” 240*320 resolution color TFT. Power and Menu button Hold and Enter button Select and Down button Mini USB power interface Battery cover 3 TFT description Data Hold indicator. Auto power off indicator. Buzzer indicator. Battery indicator.

  • Page 10: Measurement Procedures

    English Connecting a USB power indicator. Tesla(uT) or Gauss(mG) display. Electric Field (V/m) display. RF strength history histogram display. RF strength digital (mV/m/ W/m²/μW/cm²/dB) display. 10 Menu key indication 11 Hold/ Enter key indicator 12 RF electronic field warning indicator: GOOD/NORMAL/WARNING.

  • Page 11: Data Hold (Hold)

    English Direct the front section of the meter at the desired electromagnetic field for measurements. The meter simultaneously displays the electromagnetic field readings of individual and aggregated XYZ axes, where the aggregated calculation equation can be expressed as follows: Because of environment-related magnetic field factors, this electromagnetic field EMF meter may display a reading of under 0.50 mG prior to testing.

  • Page 12: Menu Settings

    English 4.4 Menu Settings: On the measurement screen: Press the middle button to enter the main menu, where 7 options can be selected, namely, Brightness, Magnetic unit, RF Strength Unit, Language, Power off, Sound, and Information. Press the right button to make the blue brick scroll down. Press the right button repeatedly, and the blue brick will cycle through the options.

  • Page 13: Option Buttons

    English 4.4.1. Option Buttons: Press the right button to scroll to and check the next check box. Press the right button repeatedly to cycle through the check boxes. Press the left button to exit to the main menu. Press the middle button to return to the previous setting menu.

  • Page 14: Screen Brightness Options

    English 4.4.2. Screen Brightness options: Following the operation procedures in 4.4, the Brightness setting comprises the following three options, namely, Low, Middle, and High. Under the sub-directory, use the option buttons to select and confirm the desired selection. Default: Middle 4.4.3.

  • Page 15: Rf Strength Unit

    English Default: mG 4.4.4. RF Strength Unit： Following the operation procedures in 4.4, the RF Strength Unit setting comprises the following five options, namely, uW/m² ~mW/m² , uW/cm² , mV/m~V/m, mA/m, and dBm (files are automatically skipped within the selected unit). Under the sub-directory, use the option buttons to select and confirm the desired selection.
  • Page 16 English Default: uV/m² ~ mW/m²...

  • Page 17: Language

    English 4.4.5. Language: Following the operation procedures in 4.4, the Language setting comprises the following five options, namely, English, Traditional Chinese, Simplified Chinese, Japanese, and Español (Spanish). Under the sub-directory, use the option buttons to select and confirm the desired selection.
  • Page 18 English Default: English...

  • Page 19: Power Off Time

    English 4.4.6. Power Off Time: Following the operation procedures in 4.4, the Power Off setting comprises the following seven options, namely, NO, 1, 3, 5, 10, 15, and 30 (min). Under the sub-directory, use the option buttons to select and confirm the desired selection. Default: 5min...

  • Page 20: Sound On/Off

    English 4.4.7. Sound on/off: Following the operation procedures in 4.4, the Sound setting comprises the following two options, namely, On and Off. Press the right button to scroll to and check the next check box. Press the right button to cycle thought he options. Press the left button to select the “Enable”...

  • Page 21: Keys/Alarm Sound

    English the Keys/Alarm Sound menu (Section 4.4.8). Press the left button to select the “Disable” setting and return to the main menu(Fig. 3). Press the middle button to return to the measurement screen 4.4.8. Keys/Alarm Sound: Following the selection of the Enable option in the Sound settings menu, the Keys/Alarm Sound setting comprises the following two options, namely, Keys and Alarm.

  • Page 22: Alarm Sound

    English 4.4.9. Keys Sound: Following the selection of the Keys option in the Keys/Alarm Sound settings menu, the Keys setting comprises 3 options, namely 1, 2, and 3. Press the right button to scroll to and check the next check box.

  • Page 23: Information

    English and 3. Press the right button to scroll to and check the next check box. Press the right button repeatedly to cycle through the options. Press the left button to exit to the main menu. Default: 3 4.4.11. Information: Following the operation procedures in 4.4, select the Information option to display the software version (V1.0).
  • Page 24 English...

  • Page 25: Specifications

    English Specifications 5.1 Sensor type: LF Magnetic Fields (MF)  The meter is equipped with three individual aerial sensors to measure EMFs. The overload indications can be displayed simultaneously on three axes (X, Y, Z):  Range: 20/200/2000mG, 2/20/200µT.  Resolution: 0.02/0.1/1 mG or 0.02/0.1/1 µT. ...
  • Page 26 English  Range: 50V/m to 2000V/m.  Frequency response: 50/60Hz  Accuracy: ± (7% 50dgt).

  • Page 27: Sensor Type: Rf Strength

    English 5.3 Sensor type: RF Strength  Frequency range：50MHz to 3.5GHz.  Accuracy: ± 2dB at 2.45GHz  Measurement units: uW/m²~mW/m²; μW/cm²; mV/m~V/m, mA/m, and dBm Specified measurement range: (0.02uW/m² to 554.6mW/m² )  (0.02uW/cm² to 55.4uW/cm² )(36.1mV/mto14.46V/m) (0.02mA/m  to 38.35mA/m)( -51dB to 16dBm) Display resolution: 0.02μW / m², 0.2μA / m, 0.2mV/m, m, ...
  • Page 28 English  Operating temperature & humidity: 5°C to 40°C, below 80% RH.  Storage temperature & humidity: -10°C to 60°C, below 70%.  Weight: About 120g.  Dimensions: 115(L)*60(W)*21(H) mm.

  • Page 29: Battery Replacement

    English 6 Battery replacement WARNING If the symbol “ ” appears on the screen, please replace the battery immediately Turn off the instrument.  Open the battery covers and remove the battery.  Take three new 1.5VAAA alkaline batteries, and install the ...

  • Page 30: External Usb Power Supply

    English 7 External USB power supply: External USB.  Specifications: Voltage DC 4.8 ~ 5.2V current ≧ 500mA.  icon is displayed when an external USB power  supply is connected to the meter. The meter determines connected USB cables to be ...

  • Page 31: Safety And Maintenance Standards

    English 8 Safety maintenance standards Do not operate around combustible gases or in damp  environment. Operating altitude: below 2,000m.  Operating environment: for indoor use, expose to pollution  level II. This is a precision device. During use or storage, do not go ...

  • Page 32: End Of Life

    English 9 End of life Caution This symbol indicates that equipment and its accessories shall be subject to a separate collection and correct disposal...
  • Page 33 Radiation meter, Clamp meter, Multimeter, Phase Rotation test, Digital Insulation teste Our products of high quality are selling well all over the world 器 TENMARS ELECTRONICS CO., LTD 6F, 586, RUI GUANG ROAD, NEIHU, TAIPEI 114, TAIWAN. E-mail: service@tenmars.com Http: //www.tenmars.com...
