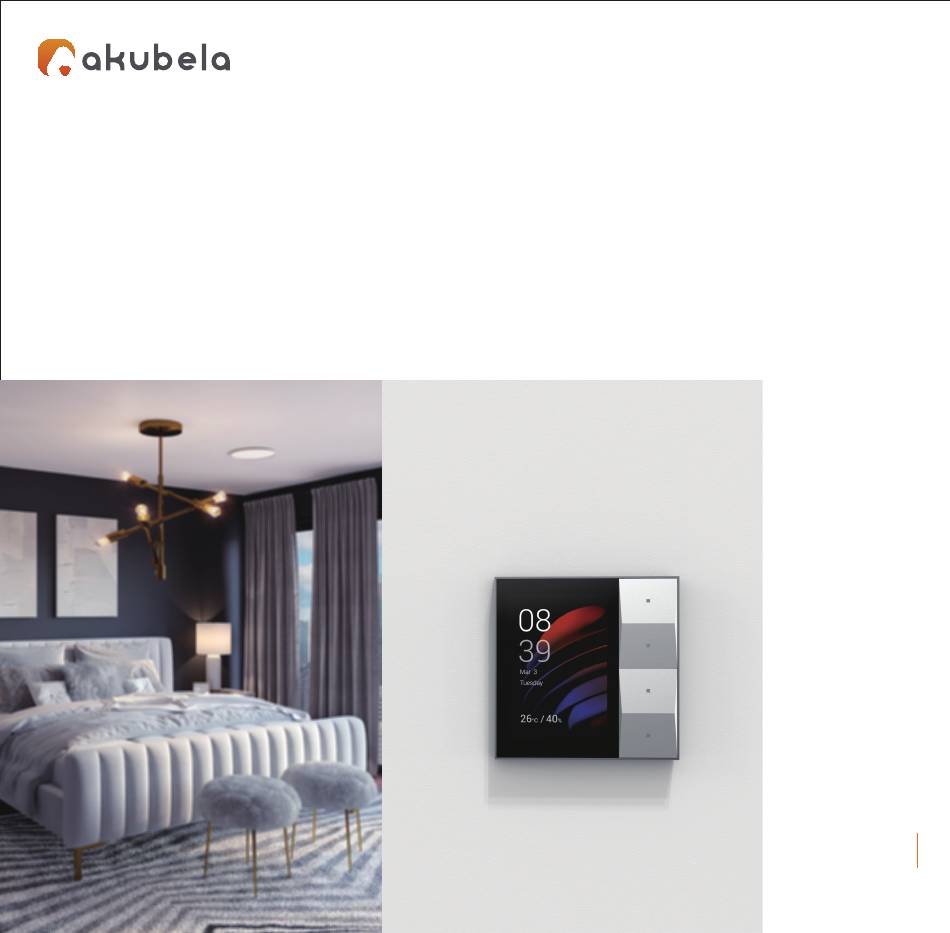

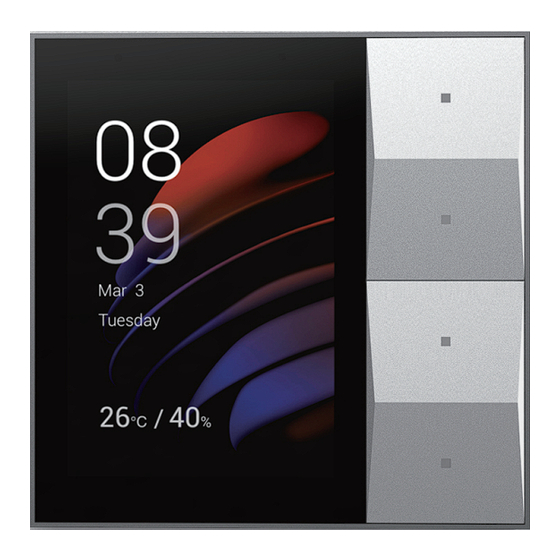

- Page 1 Installation Guide For HyPanel Lite Smarter Home Sweeter Life...
- Page 2 Welcome! This guide applies to KS41-PoE-EU model of HyPanel Lite. Contents...
- Page 3 Your first time installing this product may take up to 40 minutes. You’ ll get faster after each installation. Warning! Keep the device and all its parts out of the reach of children. The small parts or accessories contained may be a choking hazard to them.
- Page 4 HyPanel Lite X 1 Flush Mounted Module x1 M3x20mm Phillips Self Tapping Screw x2...
-
Page 5: Product Specifications
Product specifications BOTTOM VIEW 47.4 11.8 35.6 86.0 ＋ － 485A 485B RIGHT VIEW FRONT VIEW LEFT VIEW BACK VIEW 50.0 TOP VIEW... -
Page 6: Working Space
Working space Make sure the HyPanel Lite is compatible with the location where you want WALL WALL to install it. WALL WALL 50mm 40mm A 50mm(2 inches) deep electrical box is highly recommended for ease of installation. In some scenarios, especially when the wires can be pushed back into the wall far enough, it may be possible to use a 40mm(1.6 inches) deep box. - Page 7 Identify wires RS485-A RS485-B +(12~24V DC) 485-A 485-B RJ45 A positive DC (+) wire is often brown or red, and provides 12 -24 Volts of power to the device. A negative DC (-) wire is often blue or black. The RJ45 cable connecting with a PoE switch carries both data and power to the device, while the RJ45 with a non-PoE switch provides only Ethernet.
-
Page 8: Connect Wires
Connect wires Strip and straighten wires The wires used for 12-24V DC power supplier or RS485 communication should be 1.5mm² ~ 2.5mm² in size and have stripped and straight ends. Strip the wires by removing the plastic sheathing, and make sure the exposed wire ends measure approximately 8mm (5/16 inch) in length. - Page 9 If you want to power the device using PoE Plug the RJ45 Ethernet cable to the PoE port so that the module can receive both data and power. If you want to power the device with 12- 24V DC Plug the positive and negative DC wires to the corresponding terminals respectively.
- Page 10 Change the torque on the electric screwdriver to 5kgf.cm. Turn screws clockwise with the screwdriver. Do not fully tighten the screws. The screw head must protrude at least 3 mm (1/8 inch) from the wall surface.
- Page 11 Install flush mounted module Attach the flush mounted module to the electrical box. The screws should go through the holes on the module. Adjust the module to be level and ensure it is flush against the wall. Tighten the screws to attach the module to the wall, taking care not to over- tightened them.
-
Page 12: Install Panel
Install panel Position the panel at a tilt as the image shows. Press the panel into the flush mounted module until it clicks. - Page 13 If you need to remove the panel Insert a flat-head screwdriver with about 6mm width into the slot at the bottom edge. Gently pry the panel up.
- Page 14 If you need to remove the panel You are done with the HyPanel Lite installation! Start your smart home journey with Akubela now! For help or more assistance, contact us at: https://ticket.akuvox.com/ For videos, guides, and additional product formation, visit us at: https://knowledge.akuvox.com...
- Page 15 YS4 1 0 0 0 0 0 9...
