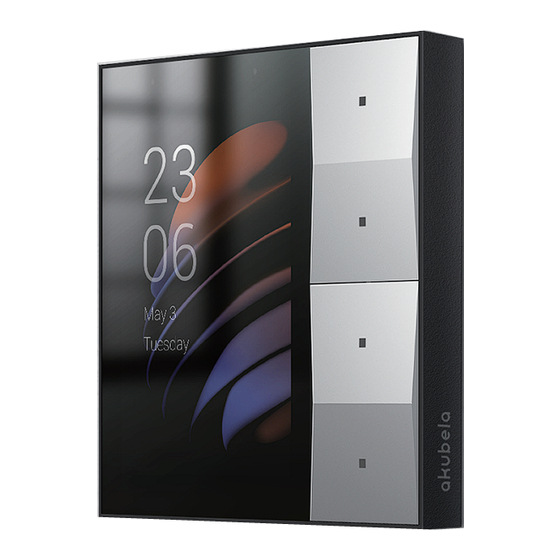

akubela HyPanel Lite KS41-R2-EU Installation Manual

Hide thumbs

Advertisement

Table of Contents

Installation Guide
For HyPanel Lite
Smarter Home
Sweeter Life

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HyPanel Lite KS41-R2-EU and is the answer not in the manual?

Questions and answers

Related Manuals for akubela HyPanel Lite KS41-R2-EU

Summary of Contents for akubela HyPanel Lite KS41-R2-EU

  • Page 1 Installation Guide For HyPanel Lite Smarter Home Sweeter Life...
  • Page 2 Welcome! This guide applies to KS41-R2-EU model of HyPanel Lite. Contents...
  • Page 3 Your first time installing this product may take up to 40 minutes. You’ ll get faster after each installation. Warning! The installation procedure involves handling high voltage wiring. Please be careful. To avoid serious personal injury, death, or property damage, turn OFF the power to the circuit and follow all safety precautions before proceeding.
  • Page 4 HyPanel Lite X 1 Flush Mounted Module x1 M3x20mm Phillips Self Tapping Screw x2...

  • Page 5: Product Specifications

    Product specifications BOTTOM VIEW 47.4 11.8 35.6 86.0 RIGHT VIEW FRONT VIEW LEFT VIEW BACK VIEW 50.0 TOP VIEW...

  • Page 6: Working Space

    Working space Make sure HyPanel Lite is compatible with the location where you want to WALL WALL install it. WALL WALL 50mm 40mm GROUND A 50mm(2 inches) deep electrical box is highly recommended for ease of installation. In some scenarios, especially when the wires can be pushed back into the wall far enough, it may be possible to use a 40mm(1.6 inches) deep box.

  • Page 7: Maximum Load

    Maximum load The total load of the device(s) connected to flush mounted module must be less than 1200W(Max load). The wattage of a resistive load appliance, e.g., an incandescent bulb, must be less than 800W. The wattage of a LED lamp or compact fluorescent lamp(CFL) must be less than 400W.
  • Page 8 WARNING! Turn OFF the circuit breaker before wiring and proceeding! Always use a voltage detector to verify the power is OFF before wiring and installation!
  • Page 9 Identify wires L In(180-260V AC) L1 Out A Neutral wire(N) typically comes from the wall. The Line wire(L) provides 180-260 Volts of power to the HyPanel Lite. L1 and L2 are Load wires that connect the HyPanel Lite to the light bulbs orother devices, e.g., fans or curtain motors.

  • Page 10: Connect Wires

    Connect wires Strip and straighten wires Wires connected to HyPanel Lite should be 1.5mm² ~ 2.5mm² in size and have stripped and straight ends. Remove the plastic sheathing of the wire, and make sure the exposed wire ends measure approximately 8mm (5/16 inch) in length. Connect all wires Always make sure the arrow on the front of the flush mounted module is pointing up.
  • Page 11 Plug the wires to the corresponding ports on the back of the flush mounted module. Tighten the screws clockwise with a flat-head screwdriver until wires are secure. - 485-A 485-B Double check by gently tugging on each wire. Plug the RJ45 network cable to the Ethernet port if you need to use the wired network.
  • Page 12 Change the torque on the electric screwdriver to 5kgf.cm. Turn screws clockwise with the screwdriver. Do not fully tighten the screws. The screw head must protrude at least 3 mm (1/8 inch) from the wall surface.
  • Page 13 Install flush mounted module Attach the flush mounted module to the electrical box. The screws should go through the holes on the module. Adjust the module to be level and ensure it is flush against the wall. Tighten the screws to attach the module to the wall, taking care not to over- tightened them.
  • Page 14 Test connected devices Turn on the circuit breaker to provide power to the flush mounted module. Press the button on the module to check if the connected devices can work. If the devices do not turn on/off, do NOT install the panel. Turn the power off and re-check the wire connections.

  • Page 15: Install Panel

    Install panel Warning Turn OFF the circuit breaker before you install the panel Position the panel at a tilt as the image shows. Press the panel into the flush mounted module until it clicks.
  • Page 16 If you need to remove the panel Insert a flat-head screwdriver with about 6mm width into the slot at the bottom edge. Gently pry the panel up.
  • Page 17 You are done with the HyPanel Lite installation! Start your smart home journey with Akubela now! For help or more assistance, contact us at: https://ticket.akuvox.com/ For videos, guides, and additional product formation, visit us at: https://knowledge.akuvox.com...
