ROOMS TO GO I824-40 Assembly Instructions Manual

ASSEMBLY
INSTRUCTIONS
Thank you for purchasing this quality product. Place all wooden parts on a clean and smooth surface such
as a rug or carpet to avoid the parts from being scratched. Be sure to check all packing materials carefully
for small parts may have come loose inside the carton during shipment, clarify and count all parts and
compare with the parts list below. Do not tighten all screws / bolts until all completely assembled.
Parts List
No. Description
1 Back Panel
2 Shelf Panel
3 Table Top
4 Left Panel
5 Right Panel
Upright Left
6
7 Upright Right
8 Adjustable Shelf
9 Modesty Panel
10 Metal Rail
11 Metal Leg
NOTE : YOU WILL ALSO NEED A SCREWDRIVER (NOT PROVIDED)
These parts are cumbersome and heavy. Therefore, two people are recommended in order to prevent
personal injury and insure the parts are not damaged during the assembly.
Important Notes
*Keep all hardware parts out of reach
of children!
*Tighten screws periodically! With the
use of this product bolts and screws
may become loose over time!
*Don't attempt to modify parts!
Cleaning instruction: Clean using soft cloth
Q.ty No. Description
1PC A Wood Dowels
1PC B Cam Lock
1PC C Cam Bolts
Screws
1PC D
Screws
E
1PC
1PC
F JCBC
1PC G Shelf Holder
Allen Key
1PC H
Cam Hole Cover
1PC I
2PCS
2PCS
4
Page 1/5

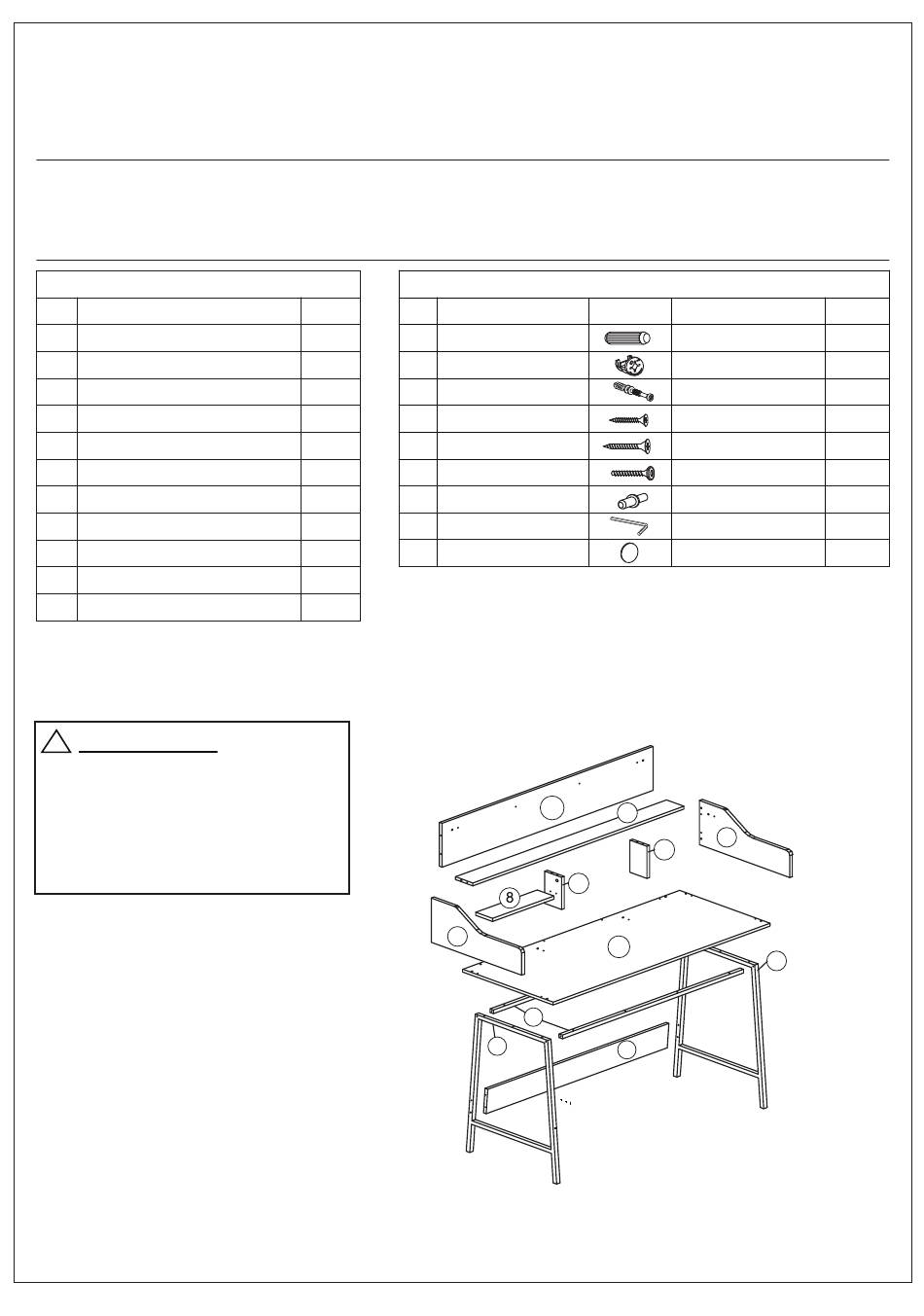

Hardware List
Sketch
1
2
7
6
3
10
11
9
ITEM NO.: I824-40
DESK
Size Q.ty
M8x 30mm
14pcs
D15mm x T11mm
8pcs
M6 x 40mm 8pcs
Ø4 x 32mm 14pcs
18pcs
Ø4 x 45mm
Ø6 x 35mm 4pcs
4pcs
Ø6 x 14mm
1pcs
M4
2pcs
D15mm
5
11
Made in Malaysia
