ROOMS TO GO Ardglass I201-42 Assembly Instructions Manual

ASSEMBLY
INSTRUCTIONS
Thank you for purchasing this quality product. Place all wooden parts on a clean and smooth surface such
as a rug or carpet to avoid the parts from being scratched. Be sure to check all packing materials carefully
for small parts may have come loose inside the carton during shipment, clarify and count all parts and
compare with the parts list below. Do not tighten all screws / bolts until all completely assembled.
Parts List
No. Description
1 Top Panel
2 Bottom Panel
3 Left Panel
4 Right Panel
Drawer Back Panel
5
Drawer Bottom Panel
6
Back Panel
7
Drawer Front Panel
8
Drawer Right Panel
9
10 Drawer Left Panel
NOTE : YOU WILL ALSO NEED A SCREWDRIVER (NOT PROVIDED)
These parts are cumbersome and heavy. Therefore, two people are recommended in order to prevent
personal injury and insure the parts are not damaged during the assembly.
Important Notes
*Keep all hardware parts out of reach
of children!
*Tighten screws periodically! With the
use of this product bolts and screws
may become loose over time!
*Don't attempt to modify parts!
Cleaning instruction: Clean using soft cloth
Q.ty No. Description
A Cam Bolt
1 PC
Cam Lock
B
1 PC
Wood Dowel
C
1 PC
Screw
D
1 PC
E Screw
1 PC
F1
Rail
1 PC
F2
Rail
1 PC
G Panel Clips
1 PC
H Leg
1 PC
I
Legs Connector
1 PC
J
Machine Screw
K Handle
L
Metal Connector
3
Page 1/7
Hardware List
Sketch
E1
1
4
7
5
C
10
2
E1
H
ITEM NO.: I201- 42

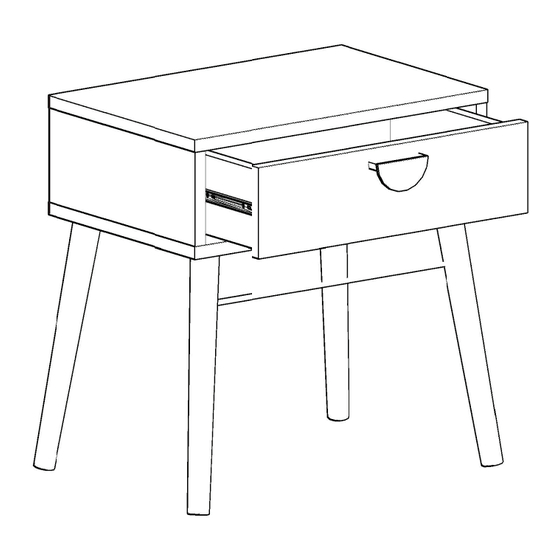

NIGHT STAND
Size Q.ty
M6 x 40mm 8pcs
8pcs
D:15 x T11mm
4pcs
M8 x 40mm
32pcs
M3.5 x 14mm
M4 x 35mm 8Pcs
2Pcs
250mm
2Pcs
250mm
4pcs
4pcs
4pcs
2pcs
M4 x 20mm
1pc
1pc
4
9
8
C
Made in Malaysia
C
E1
C
3
