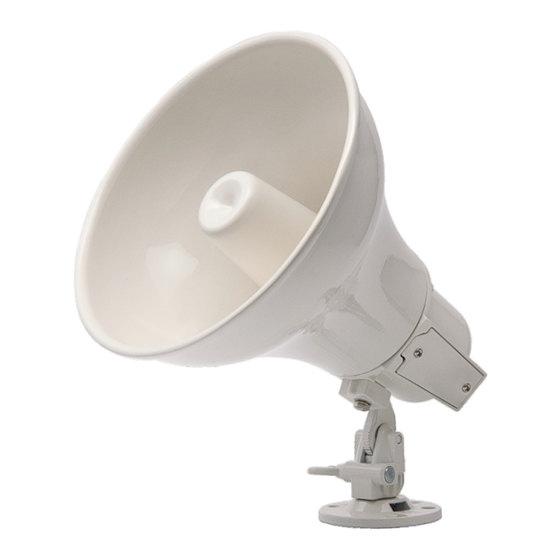

Horn speaker
Hide thumbs Also See for SH10:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SH10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zycoo SH10

Summary of Contents for Zycoo SH10

  • Page 2: Table Of Contents

    Contents 1. Preface ........................4 1.1 Audience ......................4 1.2 Revision History ....................4 2. Overview ........................5 2.1 Product Overview ....................5 2.2 Product Specifications ..................5 3. Login the Device ....................6 3.1 Device Info ......................7 3.2 Accessing the Web GUI ..................6 4.
  • Page 3 8. Maintenance ......................36 8.1 Upgrade ......................36 8.2 Import/Export ....................36 8.3 Auto Provisioning .................... 37 8.4 Diagnostic ....................... 38 8.5 Ethernet Capture .....................38 8.6 Test ......................... 39 9. Reports ........................ 41 9.1 Call Logs ......................41 9.2 Operation Logs ....................41...

  • Page 4: Preface

    This manual is intended to provide clear operating instructions for those who will configure and manage the SH10 Network Horn Speaker. By carefully reading and consulting this guide, users could solve the setting and deployment issues of the SH10 Network Horn Speaker.

  • Page 5: Overview

    2. Overview 2.1 Product Overview SH10 Network Horn Speaker is a SIP enabled horn speaker which provides exceptionally clear and intelligible voice for SIP paging, notification/tone broadcasting and streamed background music. It is suitable to be deployed in outdoor and other open spaces for public notifications and public safety purposes.

  • Page 6: Login The Device

    3. Login the Device 3.1 Accessing the Web GUI SH10 obtains the IP address through DHCP by default, please ensure that there is an available DHCP server in your LAN (If DHCP fails to obtain an address, it will use a static IP address: 192.168.1.101), and enter the IP address in the browser to access the device's...

  • Page 7: Device Info

    SIP Status SIP Account:  Display the SIP number configured on this device.  SIP Server: Display the SIP server (Such as ZYCOO IP Audio Center or IP PBX) address.  Register Status: Display the SIP number registration status. Device Information ...
  • Page 8 SH10 Network Horn Speaker User Guide Hardware Version:  Displays the hardware version number of the device. Software Version:  Display the system version number of the device.  Start Time: Displays the last time the device was started up.

  • Page 9: Sip Settings

    There are three (3) SIP accounts under the SIP Settings, one (1) primary and two (2) secondary for the use of different SIP accounts to proceed with various tasks. If the current device needs to cooperate with the ZYCOO IP Audio Center, please turn on the ‘Enable Integration with ZYCOO IP Audio Center’ option.
  • Page 10 SH10 Network Horn Speaker User Guide Secondary SIP 1 Account Secondary SIP 2 Account SIP Server:  Enter the IP address or domain name of the SIP server.

  • Page 11: P2P Account Settings

    STUN, TURN, and ICE modes are supported.  Enable Integration with ZYCOO IP Audio Center: This option is disabled by default. If you need to connect and use it with ZYCOO IP Audio Center, please enable this option. Only the main SIP account has this option.

  • Page 12: Advance Sip Settings

    SH10 Network Horn Speaker User Guide P2P Account  User Authentication: Enable/Disable the P2P authentication. User ID:  The User ID will be displayed as the outgoing number when calling out, or the number that another device needs to dial.
  • Page 13 SH10 Network Horn Speaker User Guide SIP Parameter Settings  Local Port: This setting represents the port used to receive SIP packets.  RTP Start Port: This setting represents the starting RTP port that will use for media sessions.  RTP End Port: This setting represents the end RTP port that the system will use for media sessions.

  • Page 14: Sip Function Settings

    SH10 Network Horn Speaker User Guide  Adaptive Noise Reduction: After enabling this feature, algorithms can suppress environmental noise collected by microphones.  Automatic Generation Control: After enabling this feature, the voice signal can be automatically enhanced according to the distance and size of the voice source. After optimization through the AGC, the effective pickup distance of our equipment can reach a maximum of more than 10 meters.

  • Page 15: Audio Codecs

     Beep Volume: Set the volume of the beep. 4.3.3 Audio Codecs SH10 supports 4 audio codecs: G.722 (wideband codec), G.711(Ulaw), G.711(Alaw), and Opus. To enable or disable an audio codec/codecs, please go to SIP Settings --> Audio Codecs page.
  • Page 16 SH10 Network Horn Speaker User Guide Please keep at least one codec enabled and supported by the SIP server, otherwise, SIP paging will not work.

  • Page 17: Function Settings

    If the user has installed a VMS that supports ONVIF, they can register ZYCOO network devices that support ONVIF on it for operation. Please go to Advanced Settings ---> ONVIF Settings to configure the ONVIF settings. For detailed multi-platform configuration guide, please refer to the ONVIF Feature Guide document on the ZYCOO official website.
  • Page 18 SH10 Network Horn Speaker User Guide Multicast  Priority: Priority from highest 9 to lowest 1.  Multicast Address: The multicast address range is 224.0.0.0 – 239.255.255.255.  Multicast Port: The multicast port range is 2000 – 65535.  Name: Customize the name of the multicast address.

  • Page 19: Advanced Settings

    SH10 Network Horn Speaker User Guide 6. Advanced Settings 6.1 Volume Settings To set the volume of the SH10, please go to Advanced Settings --> Volume page to configure. You can adjust the main volume as well as individual volume adjustments for each application.
  • Page 20 SH10 Network Horn Speaker User Guide App Volume Settings  SIP Volume: Set the specific volume for SIP application.  ONVIF Volume: Set the specific volume for ONVIF application.  Broadcast Volume: Set the specific volume for broadcast application.  Multicast Volume 1: Set the specific volume for multicast 1 application.

  • Page 21: Audio Priority Settings

    SH10 Network Horn Speaker User Guide  Multicast Volume 9: Set the specific volume for multicast 9 application. 6.2 Audio Priority Settings The audio priority can be set according to different applications(SIP, ONVIF, MULTICAST, BROADCAST). Priority 1 is the highest. You can drag the arrow on the right side to adjust the priority.

  • Page 22: Api Settings

    SH10 Network Horn Speaker User Guide Audio Files 6.4 API Settings This page is used to configure the API interface of the device. Through the API interface, you can realize device linkage, call control, relay control, and play sound by using the changing status of the call and/or relay.
  • Page 23 SH10 Network Horn Speaker User Guide Call Event URL Callback & Relay Event URL Callback When the call status changes, it will trigger an HTTP GET request to call a URL address. Within the URL address, you may use variables to identify some current information.

  • Page 24: I/O Settings

    SH10 Network Horn Speaker User Guide API Settings Using the API interface to realize features such as device linkage, call control, relay control, and play sound by the systems. Note: Authentication and encryption are not used in the API interface, so please pay attention to the security of the network environment when opening and using these API interfaces.
  • Page 25 SH10 Network Horn Speaker User Guide Key Signal Input Settings Input Type: Choose the Key Signal or Switch Signal to trigger events.  Key Event Action: Choose different event linkage including Outgoing Call, HTTP  Request and Play Audio. Outgoing Call: Make a call to the destination.
  • Page 26 SH10 Network Horn Speaker User Guide outgoing calls. Note: When using the P2P line to call, please specify the device’s number + IP address, such as 101@192.168.11.123. Press Again to End Call: After the call is connected, users can end the call or ...
  • Page 27 SH10 Network Horn Speaker User Guide...
  • Page 28 SH10 Network Horn Speaker User Guide Switch Signal Input Settings Input Type: Choose the Key Signal or Switch Signal to trigger events.  Close/Open Event Action: Choose different event linkage for the close/open status,  including Outgoing Call, Hangout, HTTP Request, Play Audio and Stop Audio.
  • Page 29 SH10 Network Horn Speaker User Guide Output Trigger Event Settings Broadcast Music Trigger: Disabled/On/Fast Flashing/Slow Flashing, enable this option  will trigger the relay when there is broadcast music on.  Broadcast Alarm Trigger: Disabled/On/Fast Flashing/Slow Flashing, enable this option will trigger the relay when there is a broadcast alarm on.

  • Page 30: Ptp Settings

    SH10 Network Horn Speaker User Guide Output Trigger Action Settings Trigger Type:  This setting represents the responses by the triggers, there are ‘On’, ‘Fast Flashing’, and ‘Slow Flashing’ options to choose from.  Reset Mode: This setting represents the reset mode after the trigger is responded, there are ‘Delay Reset’...
  • Page 31 SH10 Network Horn Speaker User Guide PTP Setting...

  • Page 32: System Settings

    7. System Settings 7.1 Network SH10 uses DHCP to dynamically obtain IP addresses by default. To change the IP assignment from DHCP to Static IP, please go to System--> Network page. Turn the DHCP switch button off to show the network parameter settings.

  • Page 33: Time

    Enter an alternative DNS server address, when the primary DNS fails, alternative DNS will be used. 7.2 Time SH10 obtains the time from the network time servers using NTP. To change the NTP settings, please go to System --> Time page. Time Settings ...

  • Page 34: Account

    This setting represents the new password user would like to set 7.5 Reboot & Reset SH10 can be rebooted and reset from the web management interface. If you need to reboot or reset the device, please go to System --> Reboot & Reset page.
  • Page 35 SH10 Network Horn Speaker User Guide Reboot & Reset Settings Users can restart the device without power failure on this page. The restart process takes about 10 seconds. After the restart is complete, refresh the page to log in again.

  • Page 36: Maintenance

    SH10 Network Horn Speaker User Guide 8. Maintenance 8.1 Upgrade To upgrade the device’s firmware, please go to System --> Upgrade page. Upgrade Settings  Current Firmware Version: Displays the version currently used by the system.  Last Update: Displays the last system updating time.

  • Page 37: Auto Provisioning

    SH10 Network Horn Speaker User Guide Please go to Maintenance --> Import/Export page to backup or recover. Import/Export 8.3 Auto Provisioning The system is supporting DHCP Option 066 and static TFTP/HTTP two auto provisioning methods. When the system starts by default and the network mode is in DHCP, it will try to grab option 066 from the DHCP data as the TFTP server address.

  • Page 38: Diagnostic

    SH10 Network Horn Speaker User Guide Auto Provisioning 8.4 Diagnostic Ping is a network administration utility or tool used to test connectivity on an IP network. Input other devices' IP addresses and click on the submit button to trace the network route.

  • Page 39: Test

    SH10 Network Horn Speaker User Guide Ethernet Capture 8.6 Test The detection feature provides an option for the user to check whether the speaker, microphone and relay will work functionally before registering it to the server. Please go to Maintenance --> Test page to test whether the component is working properly.
  • Page 40 SH10 Network Horn Speaker User Guide Speaker Test:  Click on the Start Test button, and the speaker will play a ringtone to test whether the speaker is working. If the speaker is working functionally, you should hear the voice back.

  • Page 41: Reports

    SH10 Network Horn Speaker User Guide 9. Reports 9.1 Call Logs Call Logs allows you to check the call related information such as Call Date, Time, Account, Telephone Number, Call Duration, Call Type and Status. Please go to Reports --> Call Logs page to view the logs.
  • Page 42 SH10 Network Horn Speaker User Guide Operation Logs...
  • Page 43 SH10 Network Horn Speaker User Guide...
