Summary of Contents for Perfect Prime LM533

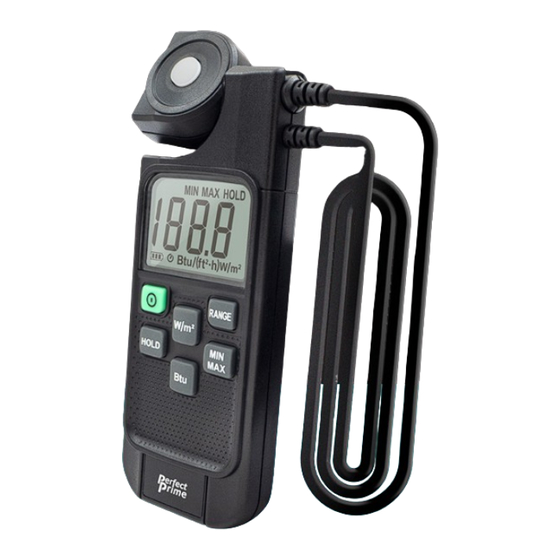

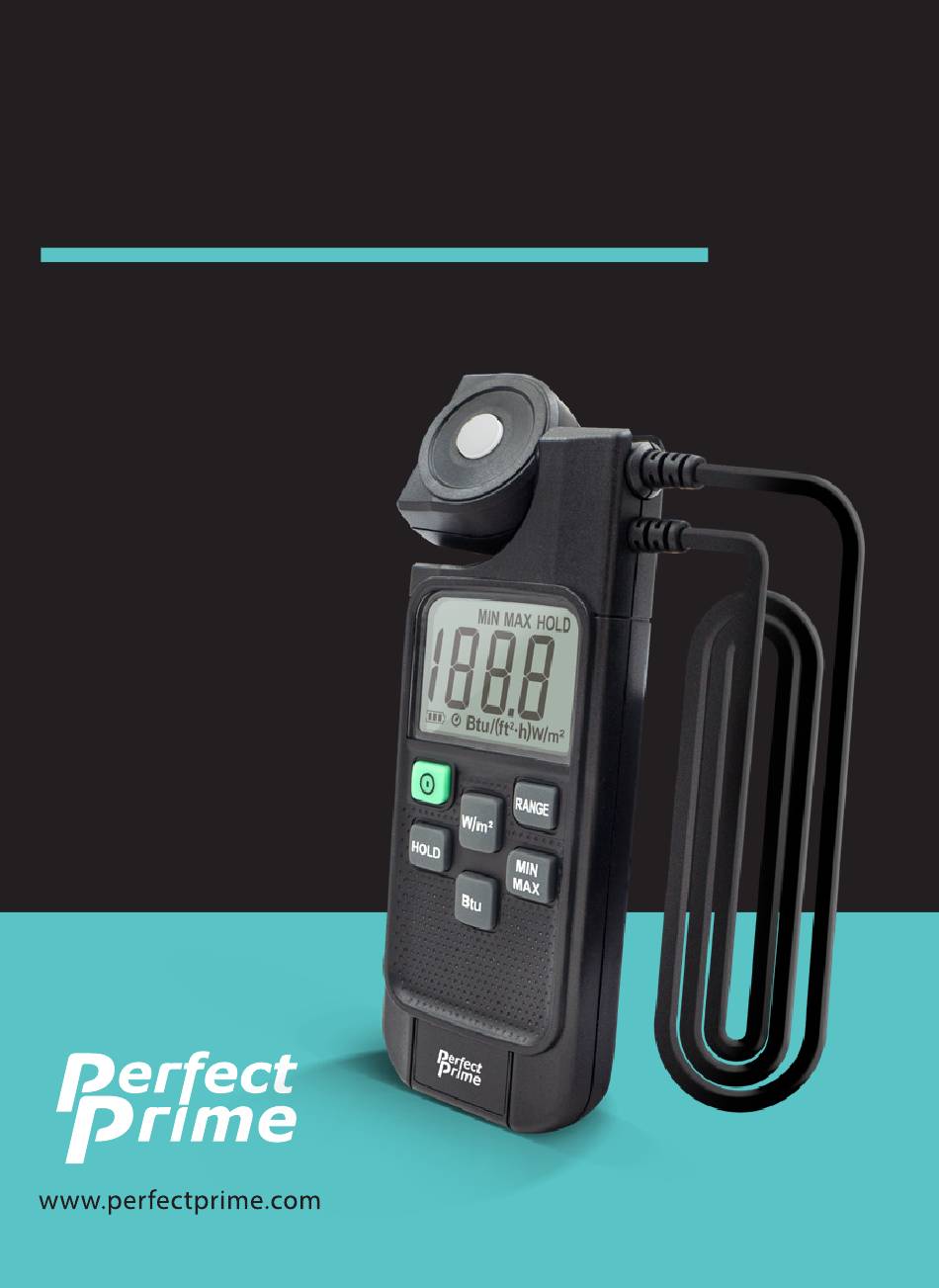

- Page 1 SOLAR LIGHT METER LM533 Instruction Manual...
-
Page 2: Table Of Contents
Contents 1. Safety Information ............. 2 2. Introduction ..............2 3. Precautions On Handling ............. 3 4. Maintenance ..............3 5. Symbol Definition & Button Location 5.1. LCD Display ..............4 5.2. Name of Parts & Position ..........5 - 7 6. -
Page 3: Safety Information
1. Safety Information 2. Introduction 1. Safety Information Read the following safety information carefully before attempting to operate or service the meter. Use the meter only as speci ed in this manual ; otherwise, the protection provided by the meter may be impaired. Environment Conditions: Altitude up to 2000 meters •... -
Page 4: Precautions On Handling
3. Precautions On Handling 4. Maintenance 3. Precautions on handling Operating carefully, and do not drop the meter or hit it with a hard object. Avoid using the meter in a dirty, dusty, or salt-air area or where there are corrosive gases. -
Page 5: Symbol Definition & Button Location
5. Symbol Definition & Button Location 5.1. LCD Display: Measuring value Maximum value indicator Battery status indicator Value hold indicator Auto power o indicator Unit indicator Minimum value indicator... -
Page 6: Name Of Parts & Position
5. Symbol Definition & Button Location 5.2. Name of Parts & Position: 1. Light Detecting Surface: This probe can be xed on the meter parallel or perpendicular to the LCD • surface. Or it may be detached from the unit to t the measuring requirement. - Page 7 5. Symbol Definition & Button Location 2. LCD Display: 2.2 inch large size back light LCD display Power button: Push this button to turn on the meter. Push this button again to turn it o . The unit will automatically turn itself o after 30 minutes if there is no key operation.
- Page 8 5. Symbol Definition & Button Location button: To switch the measuring scale to W/m HOLD button: The user may hold the present reading and keep it on the LCD display by pressing the button. To release the data held operation, user may press the button again.
-
Page 9: Specifications
6. Specifications 0.0 to 199.9/1999 W/m Measuring Range 2 0.0 to 199.9/634 BTU / (ft 、 0.0 ~ 1 BTU /(ft 0.0 ~ 1W/m Resolution Accuracy Typically within ± 10W/m [ ±3 BTU / (ft *h) ] or ±5% whichever is greater in sunlight Temperature ±0.38W/m / °C [±0.12BTU/(ft... - Page 10 6. Specifications Weight Approx. 185g Accessories Battery, instruction manual, carrying case.
- Page 11 CUSTOMER SERVICE INQUIRIES Your emails are important to us so we strive to reply all hours. In exceptional cases, inquiries and emails within we may require more time to respond. Thank you for your understanding. For more information about our products and services, please send us an email: cs@perfectprime.com For B2B or project-based application, please send an email:...
- Page 12 Tyche Smart Limited Retailer Email cs@perfectprime.com 2nd Floor, 107 Charterhouse Street, EC1M 6HW, London, Address England UNITED KINGDOM +44 203 7695377 Telephone...
