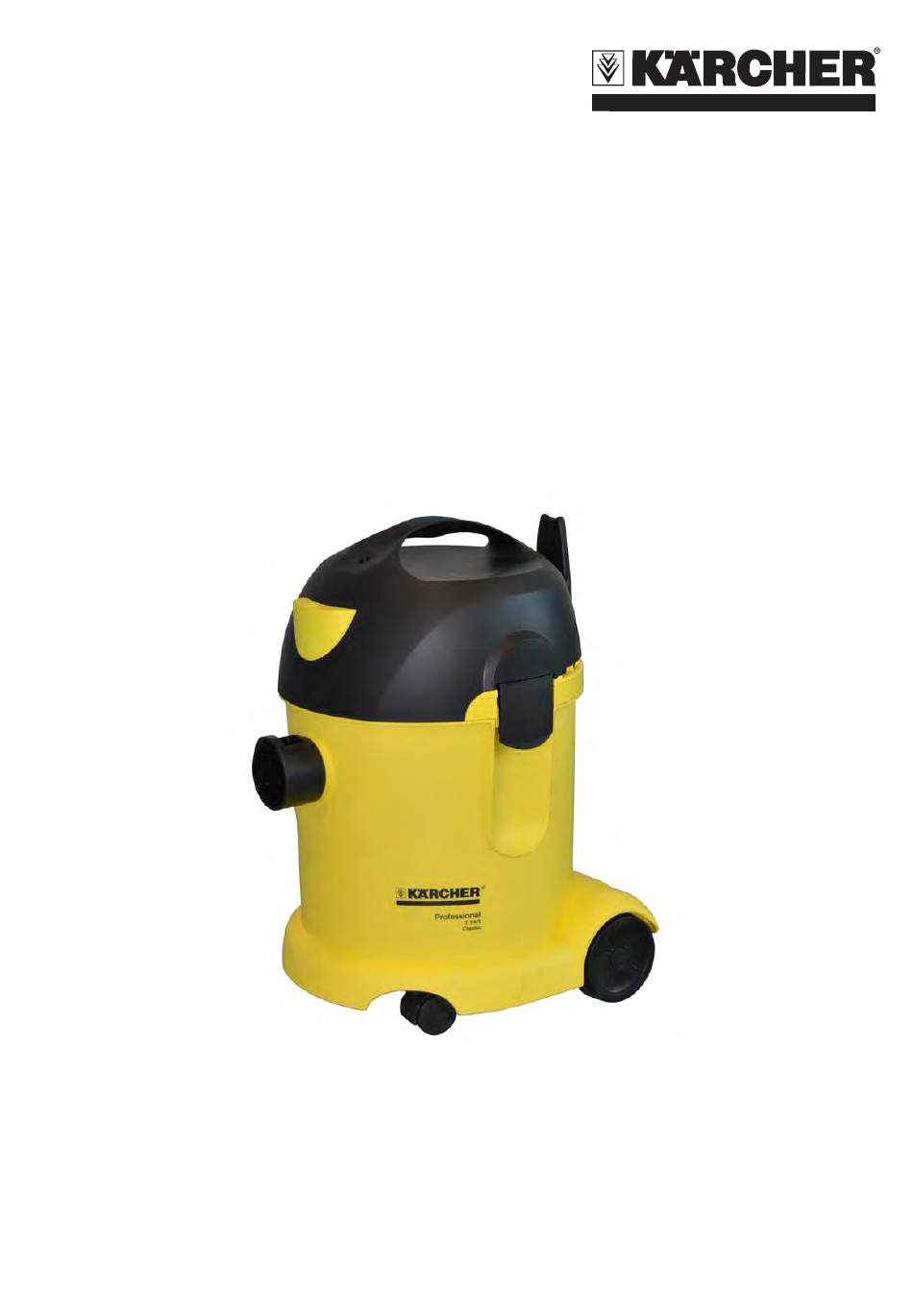

Preface Technical Features Good service work requires extensive and practice- 4.1 General oriented training as well as well-structured training Dry vacuum cleaner for cleaning floors and walls – materials. for commercial use. Hence we offer regular basic and advanced training Container capacity: 8 + 14 liter –...
5.2 Suction head (view from below) 1 Turbine casing 2 Motor filter 3 Container locking tab 5.3 Accessories The following accessories are enclosed in the device: 1 Suction hose with manifold 2 Suction tube, two-parts, plastic 3 Floor nozzle 4 Crevice nozzle 5 Upholstery nozzle English 5.906-555.0 Rev.
Basic settings and service procedures Danger First pull out the plug from the mains before carrying out any tasks on the machine. 6.1 Overview of the individual parts of the suction head 6.1.1 Cover English 5.906-555.0 Rev. 00 (06/12)
6.3 Remove the appliance cover 6.5 Replace appliance switch Remove suction basket from the container. Pull the appliance switch from its holder. Pull the connecting cable out on the appliance switch. Unscrew the screws of the top part of the casing. 6.6 Replace the appliance switch key ...
6.8 Replacing the suction turbine Remove casing of the suction turbine and pull off connection cables. Replace the suction turbine. Check the seal rings for damage. Replace damaged seal rings. Loosen the screws of the inner cover. ...
6.8.2 Replace the glide contacts of the suction 6.9 Replacing the mains cable turbine. 1 Plug contacts connection cable. Unscrew the safety screws of the pull relief. 2 Screws of contact part 3 Glide contact (carbon brush) Open pull relief so that the mains cable can be pulled out.
6.10 Maintenance jobs on the container 6.10.1Replace the suction air guidance Remove the screw from the wheel axle. Pull the wheel axle with the wheel out of the retain- Remove the wheel from the axle and replace it. 6.11 Replace container lock latches ...
Page 14
Technical Documentation Appliance type Appliance no.: Circuit dia- Operating in- Spare parts gram structions list T 8/1 ALA *EU 1.527-121.0 0.089-440.0 5.964-230.0 5.971-384.0 T 8/1 ALA *CN 1.527-122.0 0.089-440.0 5.964-223.0 5.971-384.0 T 8/1 ALA *SEA 1.527-123.0 0.089-440.0 5.964-230.0 5.971-384.0 T 8/1 ALA *AU 1.527-124.0...
Page 15
8.2 Special tools 8.3 Torques There are no special tools necessary. No data. 8.4 Circuit diagram The status of the attached circuit diagram represents please always use the current circuit diagram in DI- the creation date of the service manual. This circuit SIS.
