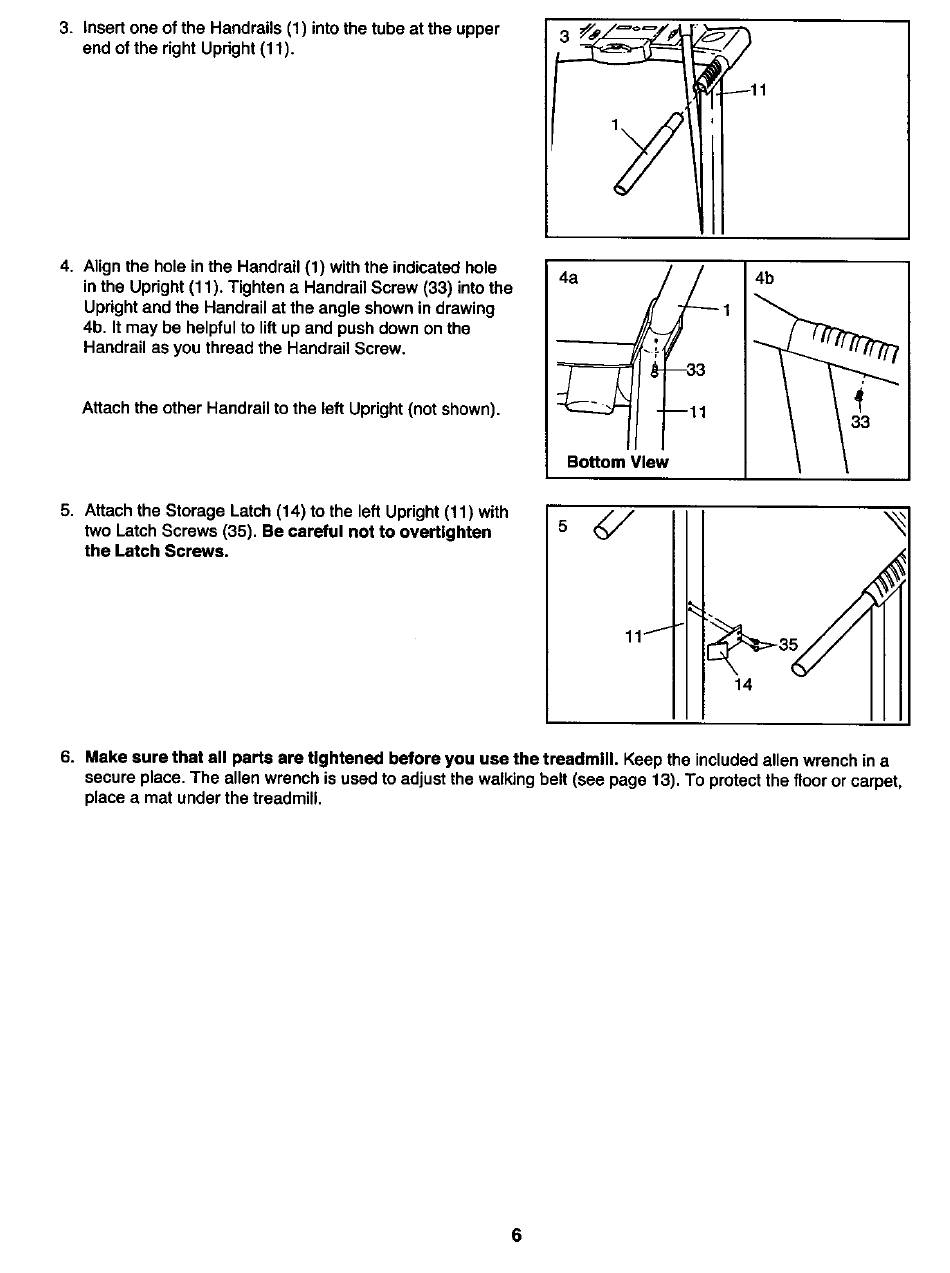

Pro-Form CROSSWALK 395CW User Manual page 6

3. Insert one of the Handrails (1) into the tube at the upper
end of the right Updght (11).
1\
4. Align the hole in the Handrail (1) with the indicatedhole
in the Upright (11). Tighten a Handrail Screw (33) intothe
Uprightand the Handrail at the angle shown in drawing
4b. It may be helpfulto lift up and push down on the
Handrail as you thread the Handrail Screw.
Attach the other Handrail to the left Upright (not shown).
4
--33
" --11
Bottom View
4b
5. Attach the Storage Latch (14) to the left Upright(11) with
two Latch Screws (35). Be careful not to overtlghten
the Latch Screws.
11j
"_35
14
6. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 13). To protectthe floor or carpet,
place a mat under the treadmill.
6
