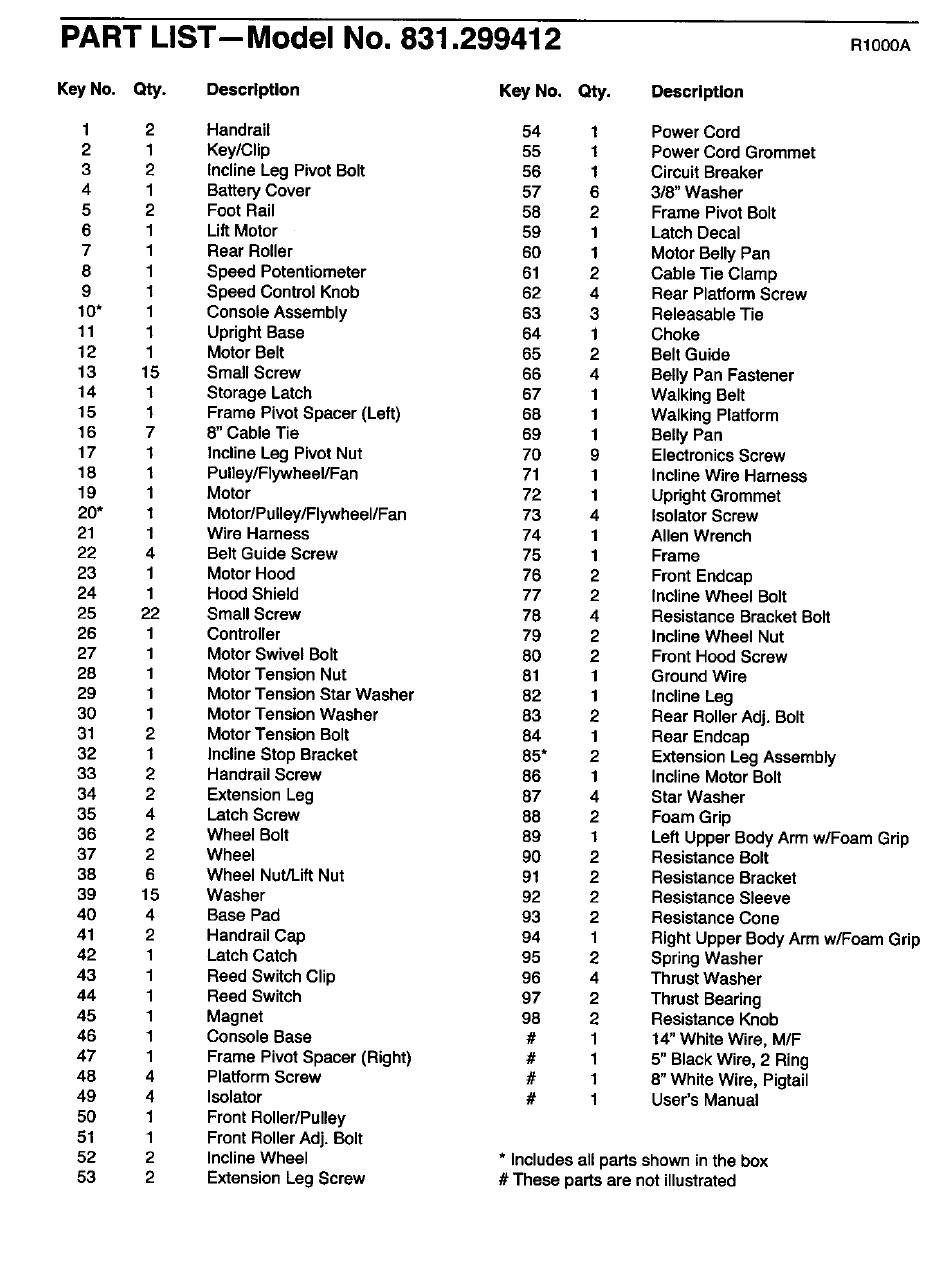

PART LIST-- Model No. 831.299412 RlOOOA
Key No. Qty. Description Key No.
1 2 Handrail 54
2 1 Key/Clip 55
3 2 Incline Leg Pivot Bolt 56
4 1 Battery Cover 57
5 2 Foot Rail 58
6 1 Lift Motor 59
7 1 Rear Roller 60
8 1 Speed Potentiometer 61
9 1 Speed Control Knob 62
10" 1 Console Assembly 63
11 1 Upright Base 64
12 1 Motor Belt 65
13 15 Small Screw 66
14 1 Storage Latch 67
15 1 Frame Pivot Spacer (Left) 68
16 7 8" Cable Tie 69
17 1 Incline Leg Pivot Nut 70
18 1 PuUey/Flywheel/Fan 71
19 1 Motor 72
20* 1 Motor/Pulley/Flywheel/Fan 73
21 1 Wire Harness 74
22 4 Belt Guide Screw 75
23 1 Motor Hood 76
24 1 Hood Shield 77
25 22 Small Screw 78
26 1 Controller 79
27 1 Motor Swivel Bolt 80
28 1 Motor Tension Nut 81
29 1 Motor Tension Star Washer 82
30 1 Motor Tension Washer 83
31 2 Motor Tension Bolt 84
32 1 InclineStop Bracket 85*
33 2 Handrail Screw 86
34 2 Extension Leg 87
35 4 Latch Screw 88
36 2 Wheel Bolt 89
37 2 Wheel 90
38 6 Wheel Nut/Lift Nut 91
39 15 Washer 92
40 4 Base Pad 93
41 2 Handrail Cap 94
42 1 Latch Catch 95
43 1 Reed Switch Clip 96
44 1 Reed Switch 97
45 1 Magnet 98
46 1 Console Base #
47 1 Frame Pivot Spacer (Right) #
48 4 PlatformScrew #
49 4 Isolator #
50 1 Front Roller/Pulley
51 1 Front Roller Adj. Bolt
52 2 InclineWheel
53 2 Extension Leg Screw
Qty.
1
1
1
6
2
1
1
2
4
3
1
2
4
1
1
1
9
1
1
4
1
1
2
2
4
2
2
1
1
2
1
2
1
4
2
1
2
2
2
2
1
2
4
2
2
1
1
1
1
Description
Power Cord
Power Cord Grommet
Circuit Breaker
318"Washer
Frame Pivot Bolt
Latch Decal
Motor Belly Pan
Cable Tie Clamp
Rear PlatformScrew
Releasable Tie
Choke
Belt Guide
Belly Pan Fastener
Walking Belt
Walking Platform
Belly Pan
ElectronicsScrew
InclineWire Harness
UprightGrommet
IsolatorScrew
Allen Wrench
Frame
Front Endcap
InclineWheel Bolt
Resistance Bracket Bolt
InclineWheel Nut
Front Hood Screw
Ground Wire
Incline Leg
Rear RollerAdj. Bolt
Rear Endcap
Extension Leg Assembly
Incline Motor Bolt
Star Washer
Foam Grip
Left Upper Body Arm w/Foam Grip
Resistance Bolt
Resistance Bracket
Resistance Sleeve
Resistance Cone
Right Upper Body Arm w/Foam Grip
Spring Washer
Thrust Washer
Thrust Bearing
Resistance Knob
14"White Wire, M/F
5" Black Wire, 2 Ring
8" White Wire, Pigtail
User's Manual
* Includesall parts shown in the box
# These parts are not illustrated
