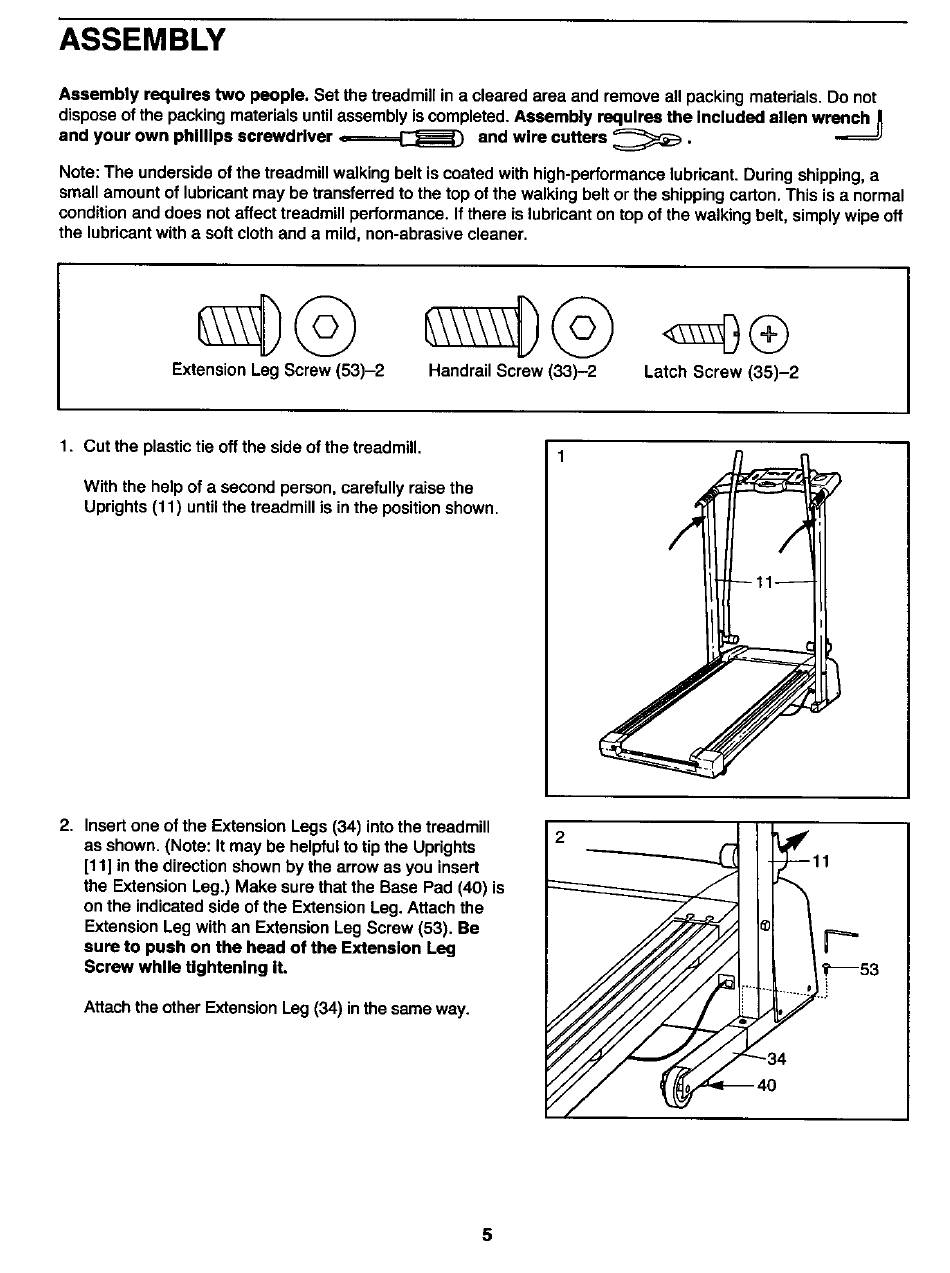

ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packingmaterials untilassembly is completed.Assembly requires the Included allen wR_n,_
and your own phillips screwdriver _=======[_ and wire cutters _.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant.During shipping,a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simplywipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Extension Leg Screw (53)-2
Handrail Screw (33)-2 Latch Screw (35)-2
1. Cut the plastic tie off the side of the treadmill.
With the help of a second person, carefully raise the
Uprights (11) until the treadmill is in the position shown.
2. Insert one of the Extension Legs (34) intothe treadmill
as shown. (Note: It may be helpfulto tip the Uprights
[11] in the direction shownby the arrow as you insert
the Extension Leg.) Make sure that the Base Pad (40) is
on the indicatedside of the Extension Leg. Attach the
Extension Leg with an Extension Leg Screw (53). Be
sure to push on the head of the Extension Leg
Screw while tightening it.
Attach the other Extension Leg (34) in the same way.
5
