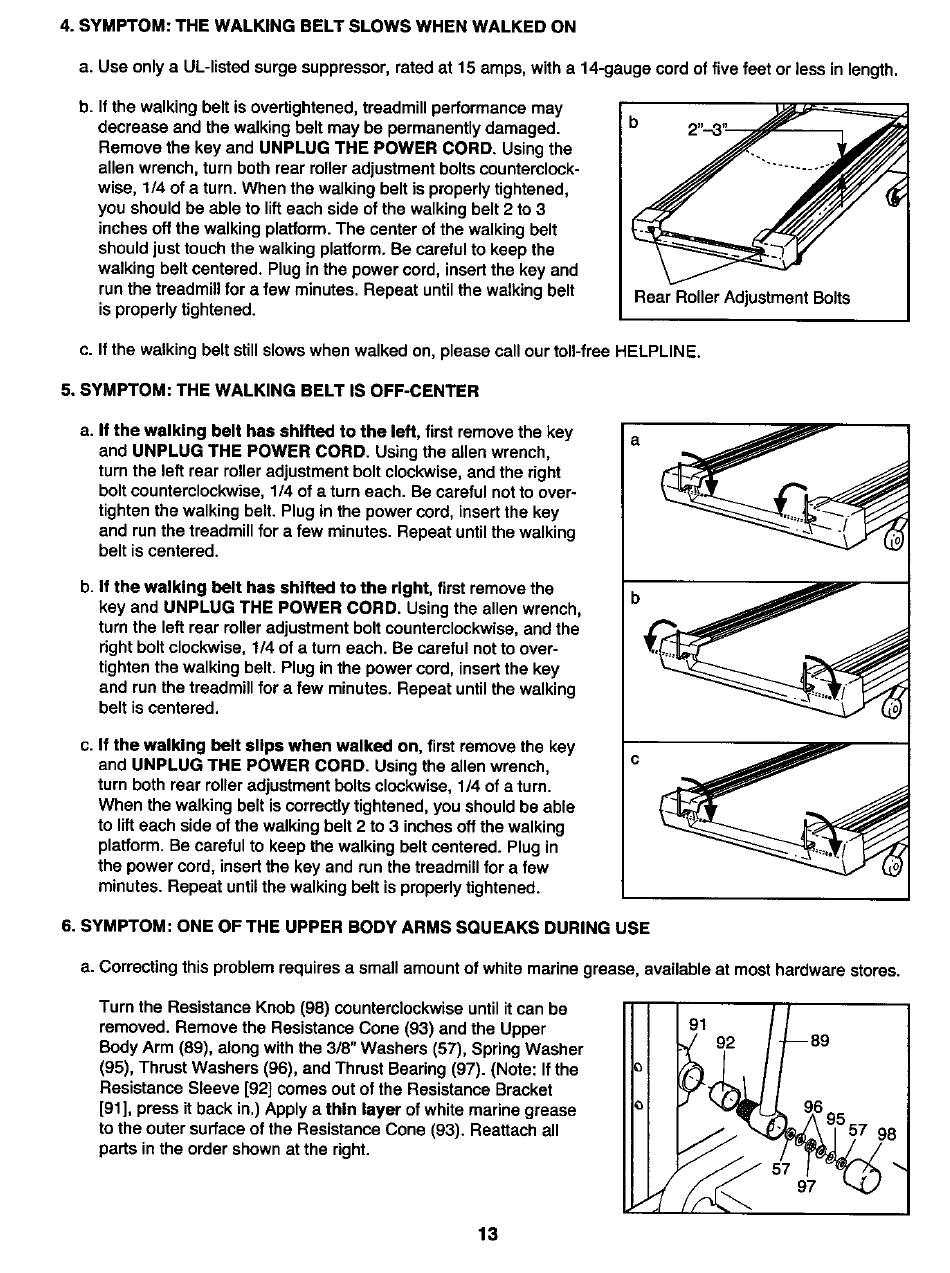

Pro-Form CROSSWALK 395CW User Manual page 13

4. SYMPTOM: THE WALKING BELT SLOWS WHEN WALKED ON
a. Use only a UL-listedsurge suppressor, rated at 15 amps, with a 14-gauge cord of five feet or less in length.
b. If the walking belt is overtightened, treadmillperformance may
decrease and the walking belt may be permanentlydamaged.
Remove the key and UNPLUG THE POWER CORD. Using the
allen wrench, turn both rear roller adjustmentbolts counterclock-
wise, 114of a turn. When the walking belt is properlytightened,
you shouldbe able to lift each side of the walking belt 2 to 3
inches off the walking platform.The center of the walking belt
shouldjust touchthe walking platform.Be carefulto keep the
walking belt centered. Plug in the power cord, insertthe key and
run the treadmillfor a few minutes. Repeat until the walking belt
is properly tightened.
Rear Roller AdjustmentBolts
c. If the walking belt still slows when walked on, please call our toll-free HELPLINE.
5, SYMPTOM: THE WALKING BELT IS OFF-CENTER
a. If the walking belt has shifted to the left, first remove the key
and UNPLUG THE POWER CORD. Using the allen wrench,
turn the left rear rolleradjustment bolt clockwise, and the right
bolt counterclockwise,1/4 of a turn each. Be careful not to over-
tighten the walking belt. Plug in the power cord, insertthe key
and run the treadmill for a few minutes. Repeat until the walking
belt is centered.
b. If the walking belt has shifted to the right, first remove the
key and UNPLUG THE POWER CORD. Using the allen wrench,
turn the left rear rolleradjustment boltcounterclockwise,and the
right bolt clockwise, 1/4 of a turn each. Be careful not to over-
tighten the walking belt. Plug in the power cord, insertthe key
and run the treadmill for a few minutes. Repeat until the walking
belt is centered.
c. If the walking belt slips when walked on, first remove the key
and UNPLUG THE POWER CORD. Using the allen wrench,
turn both rear roller adjustment belts clockwise, 1/4 of a turn.
When the walking belt is correctly tightened, you shouldbe able
to lift each side of the walking belt 2 to 3 inchesoff the walking
platform. Be careful to keep the walking belt centered. Plug in
the power cord, insertthe key and run the treadmillfor a few
minutes. Repeat untilthe walking belt is properlytightened.
a
6. SYMPTOM: ONE OF THE UPPER BODY ARMS SQUEAKS DURING USE
a. Correctingthis problem requires a small amount of white marine grease, available at most hardware stores.
Turn the Resistance Knob (98) counterclockwiseuntil it can be
removed. Remove the ResistanceCone (93) and the Upper
Body Arm (89), along with the 3/8" Washers (57), Spring Washer
(95), Thrust Washers (96), and Thrust Bearing (97). (Note: If the
Resistance Sleeve [92] comes out of the Resistance Bracket
[91], press it back in.) Apply a thin layer of white marine grease
to the outer surface of the Resistance Cone (93). Reattach all
parts in the order shownat the right.
91
92
13
