Summary of Contents for musikelectronic geithain ME901K1

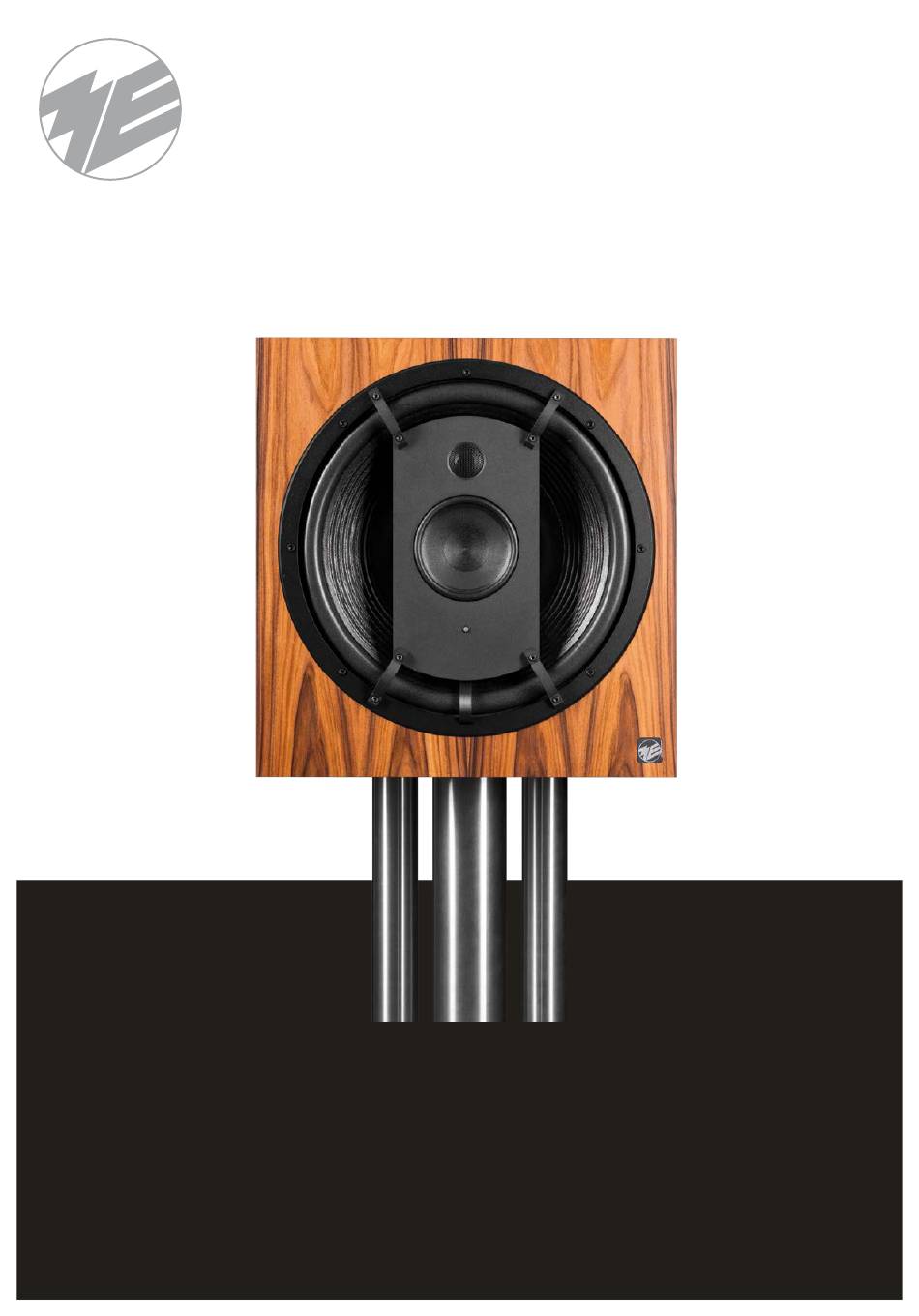

- Page 1 ME 901K1 Instructions for installation and use...
-
Page 2: Table Of Contents
Safety instructions Unboxing Delivery contents Cleaning Environmental conditions Guarantee acknowledgements Positioning Positioning near walls Stereo operation Surround operation Set-up the speakers Connecting the ME 901K1 Cable connection Adjustment controller Status indication Specifications Acoustic measurements Notes musikelectronic geithain GmbH ME 901K1... -
Page 3: Introduction
The usual burn-in period is not required, because the speakers are artificially aged in-house. Please read the technical description and manual to take advantage of the capabilities of these speakers and ensure safe operation. musikelectronic geithain GmbH ME 901K1... -
Page 4: Disclaimer
Technical data and appearances are subject to changes without notice. Errors and omissions excepted. Musikelectronic Geithain GmbH assumes no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph or statement contained herein. -
Page 5: System Description

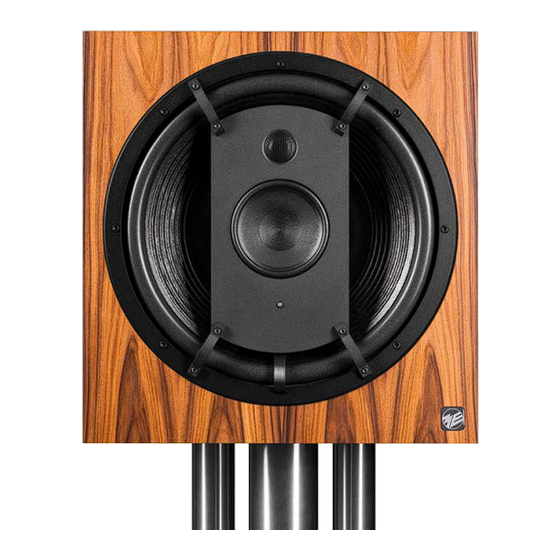

The concept of the active 3-way coaxial speaker ME 901K1 offers a high sound compatibility to the RL series and convinces with phenomenal spatiality. Additionally to the ME 901K1 an elegant stand is available. musikelectronic geithain GmbH ME 901K1... -
Page 6: Basic Information
; Clean only with dry or slightly moistened cloth. ; Protect the power cord from being walked on, pinched or damaged in any other way. Pay particular attention to plugs and the point where they exit the device. musikelectronic geithain GmbH ME 901K1... - Page 7 BASIC INFORMATION ; Do not attempt to service this product yourself as opening or removing cover may expose you to dangerous voltage or other hazards. ; Refer all servicing to qualified service personnel. musikelectronic geithain GmbH ME 901K1...
-
Page 8: Unboxing
45 % ... 75 % Guarantee acknowledgements Opening the device by unauthorized personnel leads to all claims under guarantee expire. In case of destruction by overload, misuse or outside influences there are no claims under guarantee. musikelectronic geithain GmbH ME 901K1... -
Page 9: Positioning
For optimum listening experience a minimum distance of 20 cm (7.9″) to walls and furniture should be ensured. Avoid corner installations because unwanted bass accentuation could arise. ; Minimum distance to wall b ≥ 20 cm (7.9″) musikelectronic geithain GmbH ME 901K1... -
Page 10: Stereo Operation
; Distance between speakers and your listening position a = 2 m … 4 m (6′7″ … 13′1″) ; Adjust the speaker horizontally to the height of the ear at the listening position musikelectronic geithain GmbH ME 901K1... -
Page 11: Surround Operation
; Distance between speakers and your listening position a = 2 m … 4 m (6′7″ … 13′1″) In case installation in the prescribed way is not possible in your listening room most decoding devices allow adjustments of single speakers. musikelectronic geithain GmbH ME 901K1... -
Page 12: Set-Up The Speakers
When the stated and your local mains voltage comply connect the mains connector of the amplifier to the socket with the included mains cable. musikelectronic geithain GmbH ME 901K1... -
Page 13: Cable Connection
The two-coloured LED at the front of the speaker is used as status indicator of the device. ; LED green: indicates normal operation of the device ; LED red: indicates the operation of the overload protection circuit; Output power limitation to protect the components from overloading musikelectronic geithain GmbH ME 901K1... -
Page 14: Specifications
520 mm × 310 mm × 200 mm (20.5″ × 12.3″ × 7.9″) Stand 600 mm × 470 mm × 410 mm (23.7″ × 18.6″ × 16.2″) Weight Loudspeaker 34.9 kg (77 lbs) Amplifier enclosure 13.3 kg (29.4 lbs) Stand 17 kg (37.5 lbs) musikelectronic geithain GmbH ME 901K1... - Page 15 Base plate in microstructure semi-gloss black As an alternative to the standardly provided MOSFET amplifier in an upright standing enclosure the 19-inch compatible Class D amplifier RL-Amplifier is also available. More information is available in the RL-Amplifier brochure. musikelectronic geithain GmbH ME 901K1...
-
Page 16: Acoustic Measurements
All acoustic measurements are carried out under anechoic conditions with 1 m (3′3″) distance. [dB] [Hz] FREE FIELD FREQUENCY RESPONSE 0° 45°h 180°h [Hz] TOTAL HARMONIC DISTORTIONS P = 96 dB -105 -120 -135 -150 -165 TOTAL CHARACTERISTIC 32 Hz 80 Hz 125 Hz musikelectronic geithain GmbH ME 901K1... -
Page 17: Notes
NOTES Notes musikelectronic geithain GmbH ME 901K1... - Page 18 NOTES musikelectronic geithain GmbH ME 901K1...
- Page 19 NOTES musikelectronic geithain GmbH ME 901K1...
- Page 20 BDA_ME 901K1_18.05.2018_ENV17 musikelectronic geithain gmbh STUDIO MONITORING - HIGHEND LOUDSPEAKER - SOUND REINFORCEMENT SYSTEMS SYSTEMS Nikolaistraße 7 04643 Geithain / Germany Phone: +49 (0) 34341 3110 Fax: +49 (0) 34341 31144 Email: info@me-geithain.de www.me-geithain.de...
