Summary of Contents for musikelectronic geithain ME150

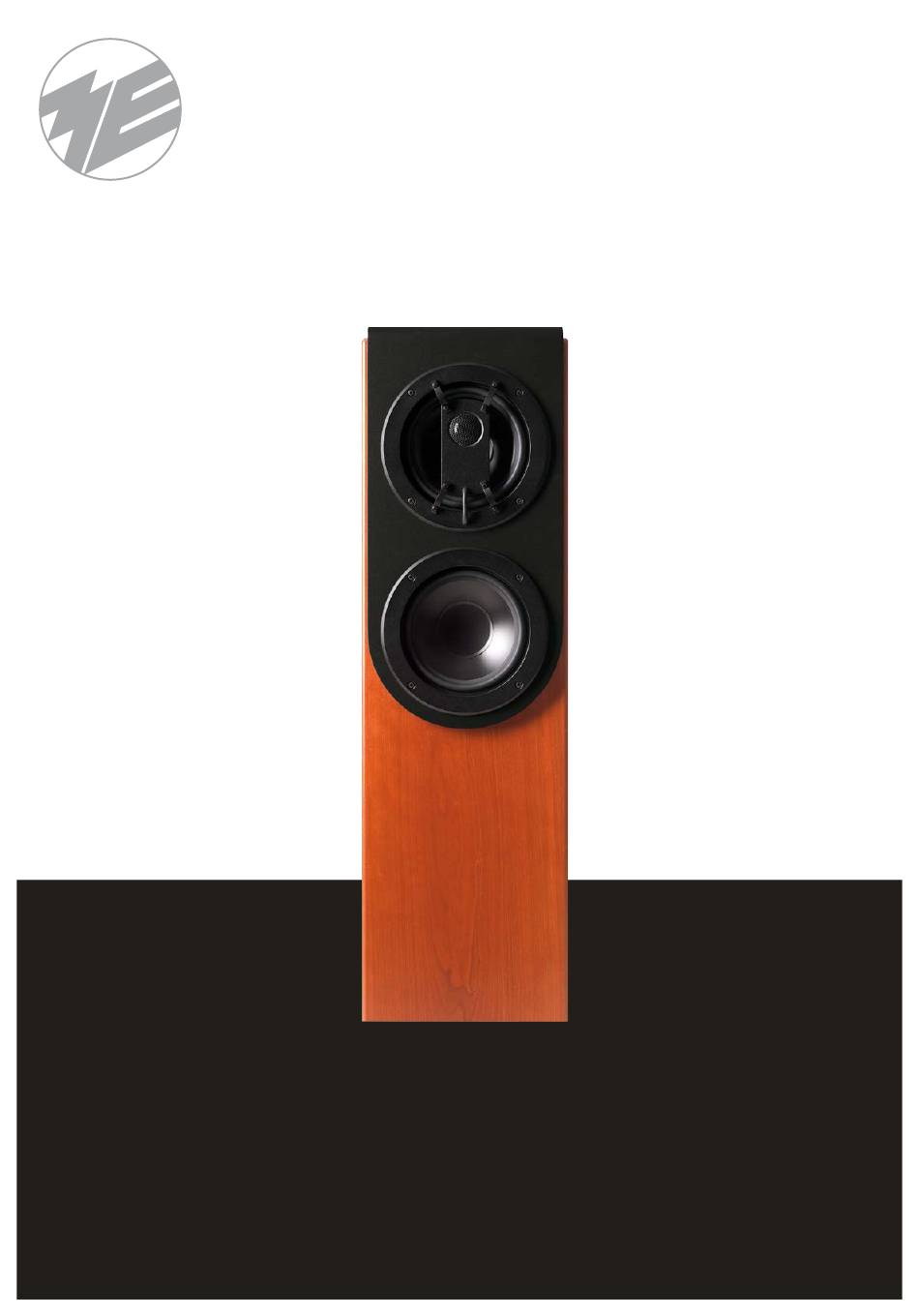

- Page 1 ME 150 Instructions for installation and use...
-
Page 2: Table Of Contents
Disclaimer System description Basic information Guidelines Safety instructions Unboxing Delivery contents Cleaning Environmental conditions Guarantee acknowledgements Positioning Positioning near walls Stereo operation Surround operation Connecting the speakers Single-wiring connection Bi-wiring connection Specifications Acoustic measurements Notes musikelectronic geithain GmbH ME 150... -
Page 3: Introduction
The usual burn-in period is not required, because the speakers are artificially aged in-house. Please read the technical description and manual to take advantage of the capabilities of these speakers and ensure safe operation. musikelectronic geithain GmbH ME 150... -
Page 4: Disclaimer
Technical data and appearances are subject to changes without notice. Errors and omissions excepted. Musikelectronic Geithain GmbH assumes no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph or statement contained herein. -
Page 5: System Description
Its sound keeps up with the outstanding performance of the active monitors. A down- to-earth speaker that does what it was created for - passing on the music just as it is being supplied.” Rolf Linden-Brüning, “Hörerlebnis” magazine, issue 63 (2008) musikelectronic geithain GmbH ME 150... -
Page 6: Basic Information
; The device shall not be exposed to dripping or splashing and no objects filled with liquids shall be placed on the device. ; Clean only with dry or slightly moistened cloth. ; Refer all servicing to qualified service personnel. musikelectronic geithain GmbH ME 150... -
Page 7: Unboxing
45 % ... 75 % Guarantee acknowledgements Opening the device by unauthorized personnel leads to all claims under guarantee expire. In case of destruction by overload, misuse or outside influences there are no claims under guarantee. musikelectronic geithain GmbH ME 150... -
Page 8: Positioning
For optimum listening experience a minimum distance of 50 cm (19.7″) to walls and furniture should be ensured. Avoid corner installations because unwanted bass accentuation could arise. ; Minimum distance to wall b ≥ 50 cm (19.7″) musikelectronic geithain GmbH ME 150... -
Page 9: Stereo Operation
; Distance between speakers and your listening position a = 2 m … 3.5 m (6′7″ … 11′6″) ; Adjust the speaker horizontally to the height of the ear at the listening position musikelectronic geithain GmbH ME 150... -
Page 10: Surround Operation
; Distance between speakers and your listening position a = 2 m … 3.5 m (6′7″ … 11′6″) In case installation in the prescribed way is not possible in your listening room most decoding devices allow adjustments of single speakers. musikelectronic geithain GmbH ME 150... -
Page 11: Connecting The Speakers
Remove the bridges between the high and low frequency terminals before connecting the speakers to the amplifier. Check the connection for the right polarity. The gold-plated screwed joints are labelled with a + and a – and mustn’t be interchanged. musikelectronic geithain GmbH ME 150... -
Page 12: Specifications
285 mm × 330 mm (11.3″ × 13″) Weight 26 kg (57.4 lbs) Design of the cabinet Body MDF wood in ash black veneered; different veneers and colours on request Acoustic baffle MDF wood in microstructure semi-gloss black musikelectronic geithain GmbH ME 150... -
Page 13: Acoustic Measurements
ACOUSTIC MEASUREMENTS Acoustic measurements All acoustic measurements are carried out under anechoic conditions with 1 m (3′3″) distance. [dB] [Hz] FREE FIELD FREQUENCY RESPONSE 0° 30°h 80 100 [Hz] TOTAL HARMONIC DISTORTIONS P = 96 dB musikelectronic geithain GmbH ME 150... -
Page 14: Notes
NOTES Notes musikelectronic geithain GmbH ME 150... - Page 15 NOTES musikelectronic geithain GmbH ME 150...
- Page 16 BDA_ME 150_17.05.2018_ENV17 musikelectronic geithain gmbh STUDIO MONITORING - HIGHEND LOUDSPEAKER - SOUND REINFORCEMENT SYSTEMS SYSTEMS Nikolaistraße 7 04643 Geithain / Germany Phone: +49 (0) 34341 3110 Fax: +49 (0) 34341 31144 Email: info@me-geithain.de www.me-geithain.de...
