Summary of Contents for musikelectronic geithain ME160

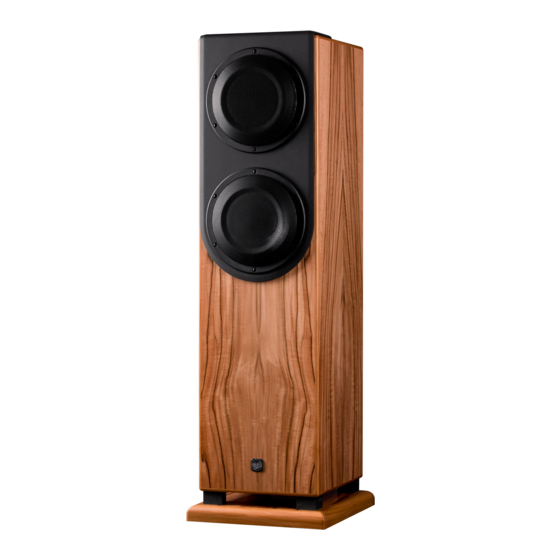

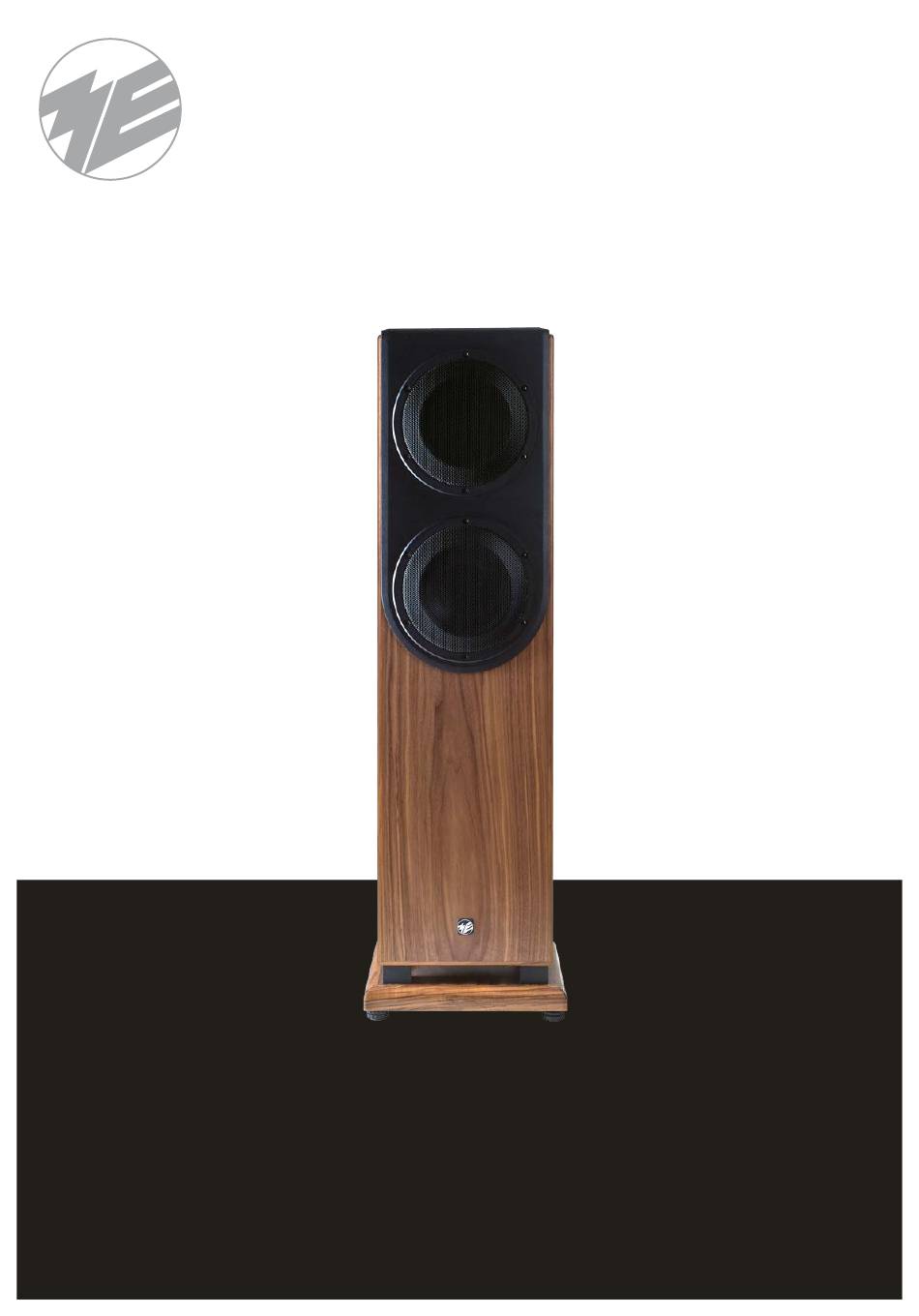

- Page 1 ME 160 Instructions for installation and use...
-
Page 2: Table Of Contents
Disclaimer System description Basic information Guidelines Safety instructions Unboxing Delivery contents Cleaning Environmental conditions Guarantee acknowledgements Positioning Positioning near walls Stereo operation Surround operation Connecting the speakers Single-wiring connection Bi-wiring connection Specifications Acoustic measurements Notes musikelectronic geithain GmbH ME 160... -
Page 3: Introduction
The usual burn-in period is not required, because the speakers are artificially aged in-house. Please read the technical description and manual to take advantage of the capabilities of these speakers and ensure safe operation. musikelectronic geithain GmbH ME 160... -
Page 4: Disclaimer
Technical data and appearances are subject to changes without notice. Errors and omissions excepted. Musikelectronic Geithain GmbH assumes no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph or statement contained herein. -
Page 5: System Description
However, all understatement is gone immediately if you feed the ME 160 with any music material independent of the genre. Then it really comes out, the proverbial wolf in sheep’s clothing...” Meik Wippermann, “Hörerlebnis” magazine, issue 72 musikelectronic geithain GmbH ME 160... -
Page 6: Basic Information
; The device shall not be exposed to dripping or splashing and no objects filled with liquids shall be placed on the device. ; Clean only with dry or slightly moistened cloth. ; Refer all servicing to qualified service personnel. musikelectronic geithain GmbH ME 160... -
Page 7: Unboxing
45 % ... 75 % Guarantee acknowledgements Opening the device by unauthorized personnel leads to all claims under guarantee expire. In case of destruction by overload, misuse or outside influences there are no claims under guarantee. musikelectronic geithain GmbH ME 160... -
Page 8: Positioning
For optimum listening experience a minimum distance of 50 cm (19.7″) to walls and furniture should be ensured. Avoid corner installations because unwanted bass accentuation could arise. ; Minimum distance to wall b ≥ 50 cm (19.7″) musikelectronic geithain GmbH ME 160... -
Page 9: Stereo Operation
; Distance between speakers and your listening position a = 2 m … 5 m (6′7″ … 16′5″) ; Adjust the speaker horizontally to the height of the ear at the listening position musikelectronic geithain GmbH ME 160... -
Page 10: Surround Operation
; Distance between speakers and your listening position a = 2 m … 5 m (6′7″ … 16′5″) In case installation in the prescribed way is not possible in your listening room most decoding devices allow adjustments of single speakers. musikelectronic geithain GmbH ME 160... -
Page 11: Connecting The Speakers
Remove the bridges between the high and low frequency terminals before connecting the speakers to the amplifier. Check the connection for the right polarity. The gold-plated screwed joints are labelled with a + and a – and mustn’t be interchanged. musikelectronic geithain GmbH ME 160... -
Page 12: Specifications
1,070 mm × 280 mm × 335 mm (42.2″ × 11.1″ × 13.2″) Base (W × D) 325 mm × 370 mm (12.8″ × 14.6″) Weight 32 kg (70.6 lbs) Design of the cabinet MDF wood in ash black veneered; different veneers and colours on request musikelectronic geithain GmbH ME 160... -
Page 13: Acoustic Measurements
ACOUSTIC MEASUREMENTS Acoustic measurements All acoustic measurements are carried out under anechoic conditions with 2 m (6′7″) distance. [dB] [Hz] FREE FIELD FREQUENCY RESPONSE 0° 30°h 80 100 [Hz] TOTAL HARMONIC DISTORTIONS P = 96 dB musikelectronic geithain GmbH ME 160... -
Page 14: Notes
NOTES Notes musikelectronic geithain GmbH ME 160... -
Page 15: Musikelectronic Geithain Gmbh Me
NOTES musikelectronic geithain GmbH ME 160... - Page 16 BDA_ME 160_17.05.2018_ENV17 musikelectronic geithain gmbh STUDIO MONITORING - HIGHEND LOUDSPEAKER - SOUND REINFORCEMENT SYSTEMS SYSTEMS Nikolaistraße 7 04643 Geithain / Germany Phone: +49 (0) 34341 3110 Fax: +49 (0) 34341 31144 Email: info@me-geithain.de www.me-geithain.de...
