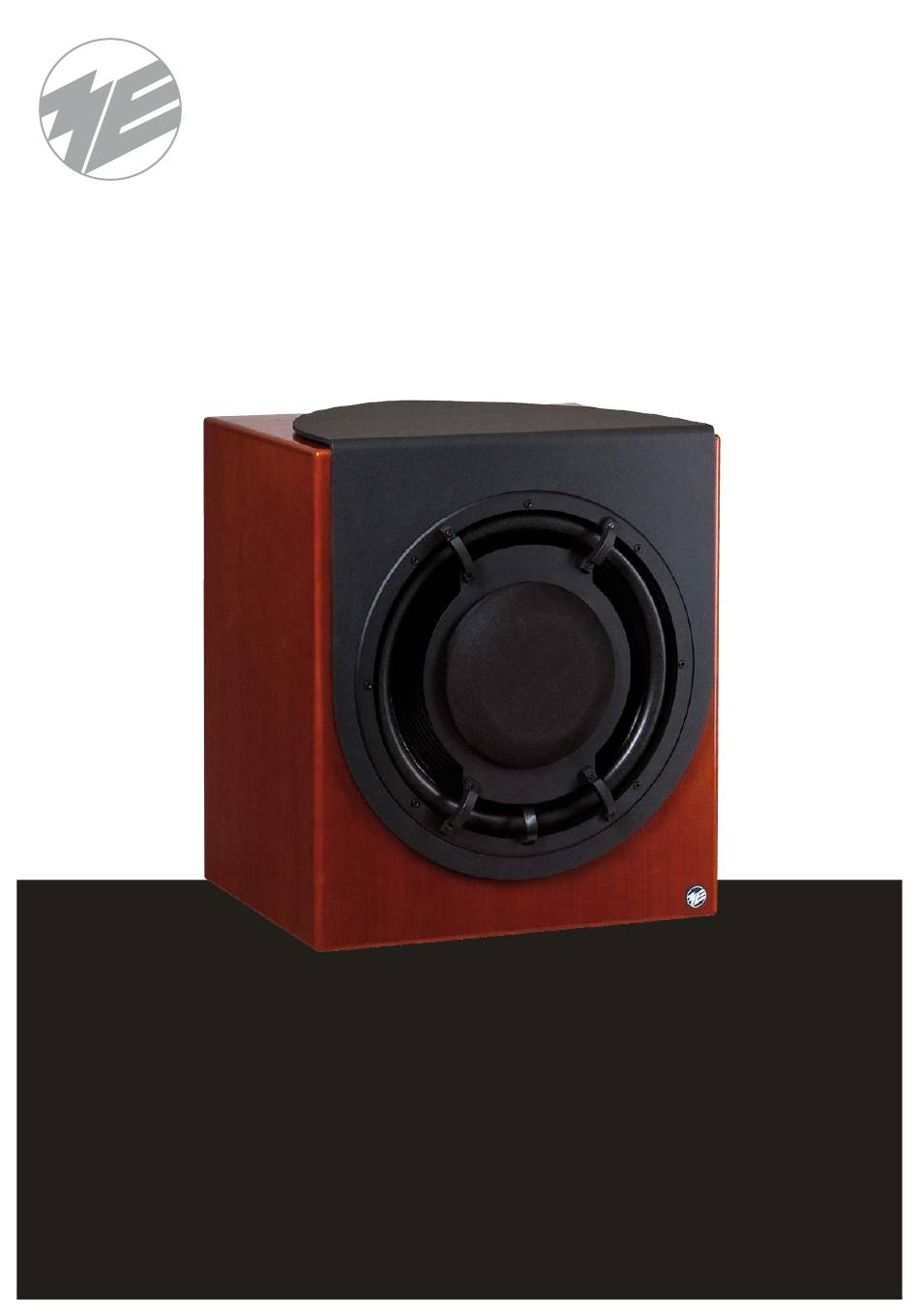

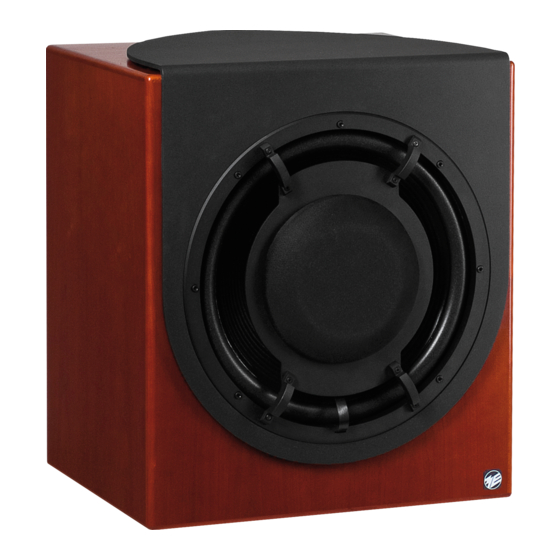

- Page 1 ME 801K Instructions for installation and use...
-
Page 2: Table Of Contents
Unboxing Delivery contents Cleaning Environmental conditions Guarantee acknowledgements Positioning Positioning near walls Stereo operation Surround operation Set-up the speakers Mains connection Cable connection Adjustment controller Status indication LFE input Bass extension Specifications Acoustic measurements Notes musikelectronic geithain GmbH ME 801K... -
Page 3: Introduction
The usual burn-in period is not required, because the speakers are artificially aged in-house. Please read the technical description and manual to take advantage of the capabilities of these speakers and ensure safe operation. musikelectronic geithain GmbH ME 801K... -
Page 4: Disclaimer
Technical data and appearances are subject to changes without notice. Errors and omissions excepted. Musikelectronic Geithain GmbH assumes no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph or statement contained herein. -
Page 5: System Description
Our reliable K Technology minimizes rearward-directed room reflections in the bass range and simplifies the positioning of the ME 801K in the listening room. The low coloration and low distortion of the 6.5-inch high-performance midrange system result from the intelligent combination of several construction details. -
Page 6: Basic Information
; Clean only with dry or slightly moistened cloth. ; Protect the power cord from being walked on, pinched or damaged in any other way. Pay particular attention to plugs and the point where they exit the device. musikelectronic geithain GmbH ME 801K... - Page 7 BASIC INFORMATION ; Do not attempt to service this product yourself as opening or removing cover may expose you to dangerous voltage or other hazards. ; Refer all servicing to qualified service personnel. musikelectronic geithain GmbH ME 801K...
-
Page 8: Unboxing
In case of damages report them to your retailer. Keep the packaging, in case the speaker has to be transported in the future. Delivery contents ; Speaker ME 801K ; Mains cable ; Technical description and user manual Cleaning The speaker is made of real wood veneer and needs to be nurtured in the same way as furnishings. -
Page 9: Positioning
Back wall reflections are unavoidable. The speakers ME 801K however utilize cardioid radiation characteristics with rearward attenuation greater than 10 dB. Because of this structural measurement installation near walls is considerably less critical. -
Page 10: Stereo Operation
; Distance between speakers and your listening position a = 3 m … 6 m (9′10″ … 19′8″) ; Adjust the speaker horizontally to the height of the ear at the listening position musikelectronic geithain GmbH ME 801K... -
Page 11: Surround Operation
; Distance between speakers and your listening position a = 3 m … 6 m (9′10″ … 19′8″) In case installation in the prescribed way is not possible in your listening room most decoding devices allow adjustments of single speakers. musikelectronic geithain GmbH ME 801K... -
Page 12: Set-Up The Speakers
When using a signal source with unbalanced outputs (RCA) you need to balance the connecting cables. This avoids hum and other noise interferences. The table and the following figure show the wiring. Unbalanced RCA to balanced XLR Connections Loudspeaker (XLR-3M) Cable Source (RCA) musikelectronic geithain GmbH ME 801K... -
Page 13: Adjustment Controller
By the bass extension an acoustical power enhancement in the lower frequency range is achieved and results in an even sound propagation especially in acoustically less damped rooms. musikelectronic geithain GmbH ME 801K... -
Page 14: Specifications
Design of the cabinet Body MDF wood in ash black veneered; different veneers and colours on request Acoustic baffle MDF wood in microstructure semi-gloss black Lateral mounting none; lateral mounting on request Handles none; handles on request musikelectronic geithain GmbH ME 801K... -
Page 15: Acoustic Measurements
All acoustic measurements are carried out under anechoic conditions with 1 m (3′3″) distance. [dB] [Hz] FREE FIELD FREQUENCY RESPONSE 0° 45°h 180°h 80 100 [Hz] TOTAL HARMONIC DISTORTIONS P = 100 dB -105 -120 -135 -150 -165 DIRECTIONAL CHARACTERISTIC 32 Hz 125 Hz musikelectronic geithain GmbH ME 801K... -
Page 16: Notes
NOTES Notes musikelectronic geithain GmbH ME 801K... - Page 17 NOTES musikelectronic geithain GmbH ME 801K...
- Page 18 NOTES musikelectronic geithain GmbH ME 801K...
- Page 19 NOTES musikelectronic geithain GmbH ME 801K...
- Page 20 BDA_ME 801K_16.05.2018_ENV17 musikelectronic geithain gmbh STUDIO MONITORING - HIGHEND LOUDSPEAKER - SOUND REINFORCEMENT SYSTEMS SYSTEMS Nikolaistraße 7 04643 Geithain / Germany Phone: +49 (0) 34341 3110 Fax: +49 (0) 34341 31144 Email: info@me-geithain.de www.me-geithain.de...
