Summary of Contents for musikelectronic geithain ME802K

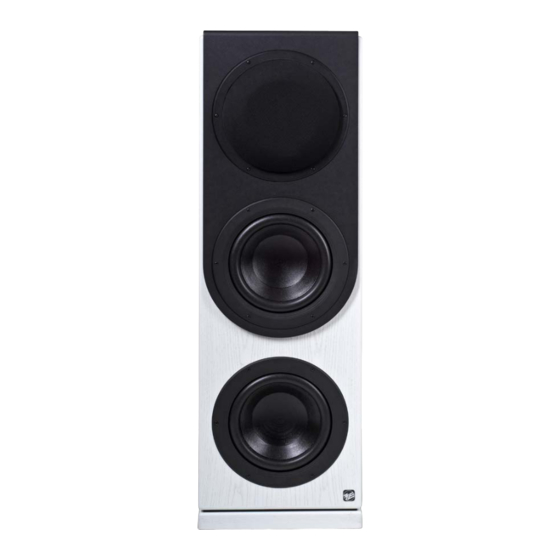

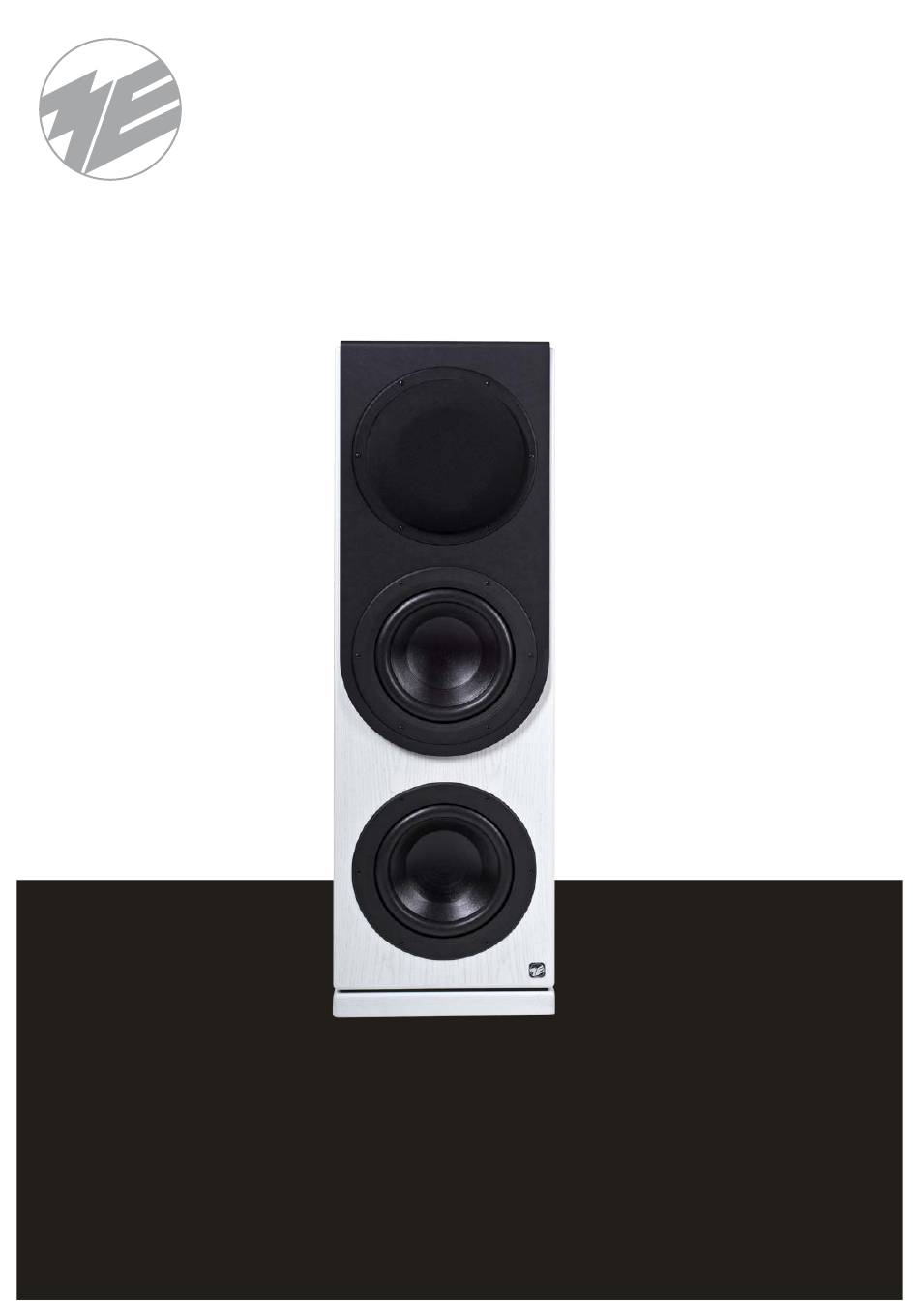

- Page 1 ME 802K Instructions for installation and use...
-
Page 2: Table Of Contents
Safety instructions Unboxing Delivery contents Cleaning Environmental conditions Guarantee acknowledgements Positioning Positioning near walls Stereo operation Surround operation Set-up the speakers Mains connection Cable connection Adjustment controller Status indication LFE input Specifications Acoustic measurements Notes musikelectronic geithain GmbH ME 802K... -
Page 3: Introduction
The usual burn-in period is not required, because the speakers are artificially aged in-house. Please read the technical description and manual to take advantage of the capabilities of these speakers and ensure safe operation. musikelectronic geithain GmbH ME 802K... -
Page 4: Disclaimer
Technical data and appearances are subject to changes without notice. Errors and omissions excepted. Musikelectronic Geithain GmbH assumes no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph or statement contained herein. -
Page 5: System Description
All these features make the ME 802K so unique on the loudspeaker market. It is ideal for large listening distances and for acoustically less attenuated rooms. musikelectronic geithain GmbH ME 802K... -
Page 6: Basic Information
; Clean only with dry or slightly moistened cloth. ; Protect the power cord from being walked on, pinched or damaged in any other way. Pay particular attention to plugs and the point where they exit the device. musikelectronic geithain GmbH ME 802K... - Page 7 BASIC INFORMATION ; Do not attempt to service this product yourself as opening or removing cover may expose you to dangerous voltage or other hazards. ; Refer all servicing to qualified service personnel. musikelectronic geithain GmbH ME 802K...
-
Page 8: Unboxing
45 % ... 75 % Guarantee acknowledgements Opening the device by unauthorized personnel leads to all claims under guarantee expire. In case of destruction by overload, misuse or outside influences there are no claims under guarantee. musikelectronic geithain GmbH ME 802K... -
Page 9: Positioning
For optimum listening experience a minimum distance of 20 cm (7.9″) to walls and furniture should be ensured. Avoid corner installations because unwanted bass accentuation could arise. ; Minimum distance to wall b ≥ 20 cm (7.9″) musikelectronic geithain GmbH ME 802K... -
Page 10: Stereo Operation
; Distance between speakers and your listening position a = 3 m … 8 m (9′10″ … 26′3″) ; Adjust the speaker horizontally to the height of the ear at the listening position musikelectronic geithain GmbH ME 802K... -
Page 11: Surround Operation
; Distance between speakers and your listening position a = 3 m … 8 m (9′10″ … 26′3″) In case installation in the prescribed way is not possible in your listening room most decoding devices allow adjustments of single speakers. musikelectronic geithain GmbH ME 802K... -
Page 12: Set-Up The Speakers
When using a signal source with unbalanced outputs (RCA) you need to balance the connecting cables. This avoids hum and other noise interferences. The table and the following figure show the wiring. Unbalanced RCA to balanced XLR Connections Loudspeaker (XLR-3M) Cable Source (RCA) musikelectronic geithain GmbH ME 802K... -
Page 13: Adjustment Controller
Output power limitation to protect the components from overloading LFE input The LFE input is useful if only the two lower woofers should exclusively reproduce the LFE channel. musikelectronic geithain GmbH ME 802K... -
Page 14: Specifications
1,155 mm × 366 mm × 423 mm (45.5″ × 14.5″ × 16.7″) Weight 82 kg (180.8 lbs) Design of the cabinet MDF wood in ash black veneered; different veneers and colours on request Acoustic baffle MDF wood in microstructure semi-gloss black musikelectronic geithain GmbH ME 802K... -
Page 15: Acoustic Measurements
All acoustic measurements are carried out under anechoic conditions with 2 m (6′7″) distance. [dB] [Hz] FREE FIELD FREQUENCY RESPONSE 0° 45°h 180°h 80 100 [Hz] TOTAL HARMONIC DISTORTIONS P = 100 dB -105 -120 -135 -150 -165 DIRECTIONAL CHARACTERISTIC 32 Hz 125 Hz musikelectronic geithain GmbH ME 802K... -
Page 16: Notes
NOTES Notes musikelectronic geithain GmbH ME 802K... - Page 17 NOTES musikelectronic geithain GmbH ME 802K...
- Page 18 NOTES musikelectronic geithain GmbH ME 802K...
- Page 19 NOTES musikelectronic geithain GmbH ME 802K...
- Page 20 BDA_ME 802K_16.05.2018_ENV17 musikelectronic geithain gmbh STUDIO MONITORING - HIGHEND LOUDSPEAKER - SOUND REINFORCEMENT SYSTEMS SYSTEMS Nikolaistraße 7 04643 Geithain / Germany Phone: +49 (0) 34341 3110 Fax: +49 (0) 34341 31144 Email: info@me-geithain.de www.me-geithain.de...
