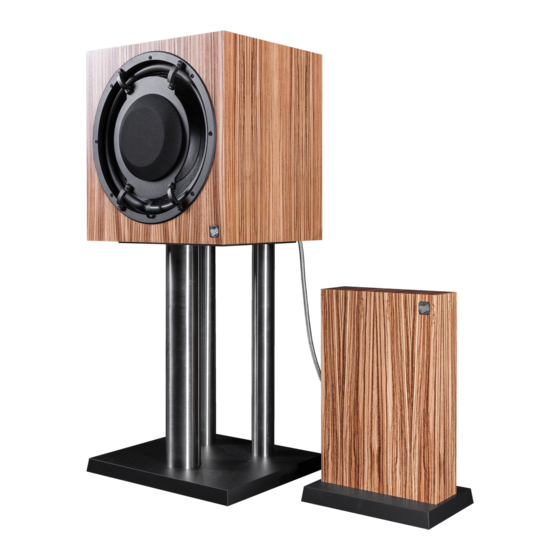

musikelectronic geithain
ME 801K1
Instructions for installation and use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ME 801K1 and is the answer not in the manual?

Questions and answers

Summary of Contents for musikelectronic geithain ME 801K1

  • Page 1 ME 801K1 Instructions for installation and use...
  • Page 2: Table Of Contents

    Unboxing Delivery contents Cleaning Guarantee acknowledgements Positioning Positioning near walls Stereo operation Surround operation Connecting the speakers 5.1 Connection of the speakers with the separate amplifier Mains connection Cable connection Status indication Adjustment controller Specifications Acoustic measurements Accessories Pedestal ME 901K1 Notes musikelectronic geithain GmbH ME 801K1...
  • Page 3: Introduction

    The usual burn-in period is not required, because the speakers are artificially aged in-house. Please read the technical description and manual to take advantage of the capabilities of these speakers and ensure safe operation. musikelectronic geithain GmbH ME 801K1...
  • Page 4: System Description

    500 W each in the mid and treble channels. Therefore dynamical limits of the whole system are no concern. Despite all of these features the ME 801K1 sticks to its roots and has all the virtues our customers value: neutrality, homogeneity, low colouration and longevity.
  • Page 5: Basic Information

    Do not try to insert anything into device openings. The device shall not be exposed to dripping or splashing and no objects filled with liquids shall be placed on the device. There is risk of electric shock when the device is open. Refer all servicing to qualified service personnel. Clean only with dry or slightly moistened cloth. musikelectronic geithain GmbH ME 801K1...
  • Page 6: Unboxing

    Surfaces can also be cleaned with tidy, slightly damped, fuzz-free, smooth cloth. Guarantee acknowledgements Opening the device by unauthorized personnel leads to all claims under guarantee expire. In case of destruction by overload, misuse or outside influences there are no claims under guarantee. musikelectronic geithain GmbH ME 801K1...
  • Page 7: Positioning

    10 dB. Because of this structural measurement installation near walls is considerably less critical. For optimum listening experience a minimum distance of 20 cm (7,9‘‘) to walls and furniture should be ensured. Avoid corner installations because unwanted bass accentuation could arise. Minimum distance to wall b ≥ 20 cm (7.9‘‘) musikelectronic geithain GmbH ME 801K1...
  • Page 8: Stereo Operation

    For precise, spacial reproduction turn the speakers inside, directed to the hearing zone. 60° hearing zone Distance between speakers and your listening position a = 3 ... 6 m (10 ... 20 ft) musikelectronic geithain GmbH ME 801K1...
  • Page 9: Surround Operation

    The angle between center and rear speakers should be about 110° - 120°. 110° ... 120° 60° hearing zone Distance between speakers and your listening position a = 3 ... 6 m (10 ... 20 ft) musikelectronic geithain GmbH ME 801K1...
  • Page 10: Connecting The Speakers

    Balanced connector Balanced connector Unbalanced connector (amplifier) (signal source) (Signal source) Earth Pin 1 Pin 1 Ring Signal + Pin 2 Pin 2 Signal - Pin 3 Pin 3 Ring musikelectronic geithain GmbH ME 801K1...
  • Page 11: Status Indication

    The speaker allows to connect the subwoofer BASIS 14K. To make use of this option utilize the output connector (Output Subwoofer) at the amplifier. Through the bass extension an acoustical power enhancement in the low frequency range is possible. musikelectronic geithain GmbH ME 801K1...
  • Page 12: Specifications

    Design of the Cabinet MDF-wood in ash black veneered optionally different veneers or colours Loudspeaker optionally available with holding device Amplifier base plate in microstructure semi-gloss-black Pedestal (optional available) fillable columns and top plate in polished stainless steel base plate in microstructure semi-gloss-black musikelectronic geithain GmbH ME 801K1...
  • Page 13: Acoustic Measurements

    All acoustic measurements are carried out under anechoic conditions with 2 m (6.6 ft) distance. [dB] [Hz] FREE FIELD FREQUENCY RESPONSE 0° 45°h 180°h 80 100 [Hz] TOTAL HARMONIC DISTORTIONS P = 100 dB -105 -120 -135 -150 -165 DIRECTIONAL CHARACTERISTIC 32 Hz 125 Hz musikelectronic geithain GmbH ME 801K1...
  • Page 14: Accessories

    ACCESSORIES Accessories Pedestal ME 801K1 Dimensions (H x W x D in mm): 600 x 470 x 410 Dimensions (H x W x D in inch): 23.6 x 18.5 x 16.1 total height (top edge loudspeaker): 1080 mm (42.5 inch)
  • Page 15: Notes

    NOTES Notes musikelectronic geithain GmbH ME 801K1...
  • Page 16 BDAME801K1V1160503EN musikelectronic geithain gmbh STUDIO MONITORING - HIGHEND LOUDSPEAKER - SOUND REINFORCEMENT SYSTEMS SYSTEMS Nikolaistraße 7 04643 Geithain / Germany Tel: +49 (0) 34341 3110 Fax: +49 (0) 34341 31144 E-Mail: info@me-geithain.de www.me-geithain.de...
