Summary of Contents for musikelectronic geithain ME 180

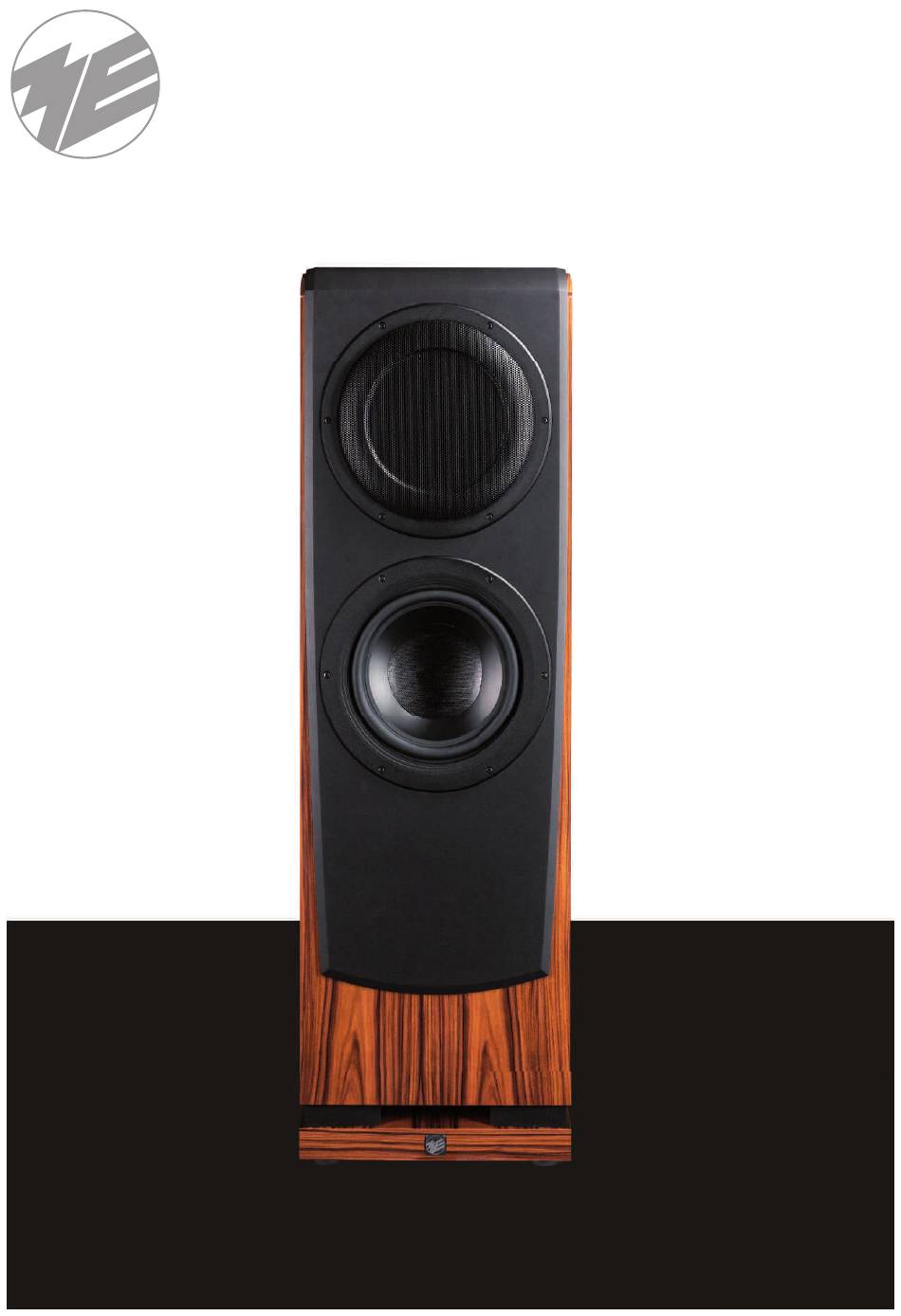

- Page 1 ME 180 Instructions for installation and use...
-
Page 2: Table Of Contents
Basic information Guidelines Safety instructions Unboxing Delivery contents Cleaning Environmental conditions Guarantee acknowledgements Positioning Positioning near walls Acoustical adjustments Stereo operation Surround operation Connecting the speakers Single-wiring connection Bi-wiring connection Technical data Acoustic measurements Notes musikelectronic geithain gmbh ME 180... -
Page 3: Introduction
The usual burn-in period is not required, because the speakers are artifi cially aged in-house. Please read the technical description and manual to take advantage of the capabilities of these speakers and ensure safe operation. musikelectronic geithain gmbh ME 180... -
Page 4: System Description
1-inch dome tweeters. Through this combination a sensitivity of 90 dB is achieved without wave guides. In connection with the linearised impedance the ME 180 is also the perfect partner to tube amplifi ers. Power compression and non-linear distortions are therefore very low, even in fortissimo passages. The directivity index of the system has been optimised to listening distances between 3 and 6 metres, providing a natural sound image in stereo and multi-channel operation. -
Page 5: Basic Information
The device shall not be exposed to dripping or splashing and no objects fi lled with liquids shall be placed on the device. There is risk of electric shock when the device is open. Refer all servicing to qualifi ed service personnel. Clean only with dry or slightly moistened cloth. musikelectronic geithain gmbh ME 180... -
Page 6: Unboxing
45 % ... 75 % Guarantee acknowledgements Opening the device by unauthorized personnel leads to all claims under guarantee expire. In case of destruction by overload, misuse or outside infl uences there are no claims under guarantee. musikelectronic geithain gmbh ME 180... -
Page 7: Positioning
≥ 0,5 m (20 ft) Acoustical adjustments The ME 180 is adjustable to the acoustic conditions of the listening room. All measures are executable independently. By closing the bass vent it is possible to reduce the bass increase due to speaker positioning close to walls. -
Page 8: Stereo Operation
(stereo triangle). A distance less or more than distance a should be avoided. For precise, spacial reproduction turn the speakers inside, directed to the hearing zone. 60° a = 3 ... 6 m (10 ... 20 ft) Hörzone musikelectronic geithain gmbh ME 180... -
Page 9: Surround Operation
110° ... 120° 60° Hörzone a = 3 ... 6 m (10 ... 20 ft) case installation in the prescribed way is not possible in your listening room most decoding devices allow adjustments of single speakers. musikelectronic geithain gmbh ME 180... -
Page 10: Connecting The Speakers
Remove the bridges between the high and low frequency terminals before connecting the speakers to the amplifi er. Check the connection for the right polarity. The gold-plated screwed joints are labelled with a + and a – and mustn’t be interchanged. musikelectronic geithain gmbh ME 180... -
Page 11: Technical Data
Dimensions (H x W x D) 1.165 x 357 x 419 mm (45.9’’ x 14.1’’ x 16.5’’) Weight 53 kg (116.8 lbs) Design of the Cabinet MDF-wood in ash black veneered optional different veneers or colours musikelectronic geithain gmbh ME 180... -
Page 12: Acoustic Measurements
0° (vented box) 0° (closed box) 200 Hz - 3 dB 45°h 3 kHz + 2 dB FREE FIELD FREQUENCY RESPONSE measured at half space 80 100 [Hz] TOTAL HARMONIC DISTORTIONS P = 105 dB / m musikelectronic geithain gmbh ME 180... -
Page 13: Notes
Notes Notes musikelectronic geithain gmbh ME 180... - Page 14 Notes musikelectronic geithain gmbh ME 180...
- Page 15 Notes musikelectronic geithain gmbh ME 180...
- Page 16 STUDIOTECHNIK - HIGHENDTECHNIK - BESCHALLUNGSTECHNIK Nikolaistraße 7 04643 Geithain / Germany Tel: +49 (0) 34341 3110 Fax: +49 (0) 34341 31144 E-Mail: info@me-geithain.de www.me-geithain.de...
