Summary of Contents for musikelectronic geithain ME100

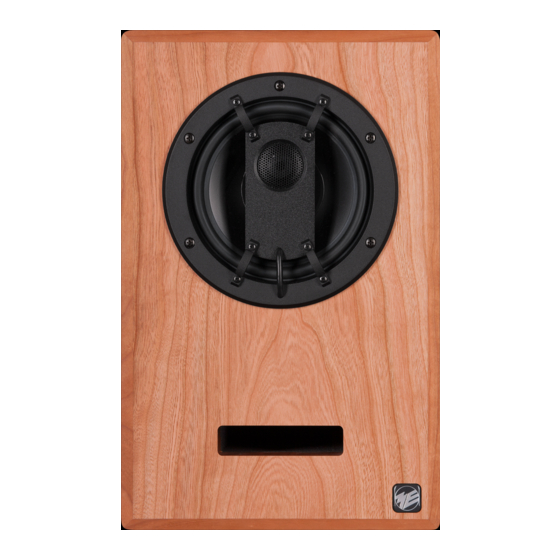

- Page 1 ME 100 ME 100C Instructions for installation and use...
-
Page 2: Table Of Contents
Safety instructions Unboxing Delivery contents Cleaning Environmental conditions Guarantee acknowledgements Positioning Positioning near walls Stereo operation Surround operation Alignment of the center speaker ME 100C Connecting the speakers Specifications Acoustic measurements Notes musikelectronic geithain GmbH ME 100 / ME 100C... -
Page 3: Introduction
The usual burn-in period is not required, because the speakers are artificially aged in-house. Please read the technical description and manual to take advantage of the capabilities of these speakers and ensure safe operation. musikelectronic geithain GmbH ME 100 / ME 100C... -
Page 4: Disclaimer
Technical data and appearances are subject to changes without notice. Errors and omissions excepted. Musikelectronic Geithain GmbH assumes no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph or statement contained herein. -
Page 5: System Description
RL model range of active loudspeakers and convinces with its phenomenal spatial imaging and neutrality. Moreover, the monitors stand out due to their well-balanced and low- distortion sound pattern and their high dynamic qualities. musikelectronic geithain GmbH ME 100 / ME 100C... -
Page 6: Basic Information
; The device shall not be exposed to dripping or splashing and no objects filled with liquids shall be placed on the device. ; Clean only with dry or slightly moistened cloth. ; Refer all servicing to qualified service personnel. musikelectronic geithain GmbH ME 100 / ME 100C... -
Page 7: Unboxing
45 % ... 75 % Guarantee acknowledgements Opening the device by unauthorized personnel leads to all claims under guarantee expire. In case of destruction by overload, misuse or outside influences there are no claims under guarantee. musikelectronic geithain GmbH ME 100 / ME 100C... -
Page 8: Positioning
For optimum listening experience a minimum distance of 50 cm (19.7″) to walls and furniture should be ensured. Avoid corner installations because unwanted bass accentuation could arise. ; Minimum distance to wall b ≥ 50 cm (19.7″) musikelectronic geithain GmbH ME 100 / ME 100C... -
Page 9: Stereo Operation
; Distance between speakers and your listening position a = 1.5 m … 3 m (4′11″ … 9′10″) ; Adjust the speaker horizontally to the height of the ear at the listening position musikelectronic geithain GmbH ME 100 / ME 100C... -
Page 10: Surround Operation
= 1.5 m … 3 m (4′11″ … 9′10″) In case installation in the prescribed way is not possible in your listening room most decoding devices allow adjustments of single speakers. musikelectronic geithain GmbH ME 100 / ME 100C... -
Page 11: Alignment Of The Center Speaker Me 100C
Do not operate the center speaker without the preassembled height-adjustable feet, otherwise air escapes through the threaded holes, affecting the reproduction qualtiy. When setting up the center speaker, make sure that there is at least 5 cm (2″) space above the loudspeaker. musikelectronic geithain GmbH ME 100 / ME 100C... -
Page 12: Connecting The Speakers
When connecting the speakers to an integrated amplifier or a power stage check the connection for the right polarity. The gold-plated screwed joints of the terminal are labelled with + and a -. Both mustn’t be interchanged. musikelectronic geithain GmbH ME 100 / ME 100C... -
Page 13: Specifications
MDF wood in ash black veneered; different veneers and colours on request ME 100 none; lateral mounting on request ME 100C with height-adjustable feet at the cabinet bottom Stand on request for ME 100 musikelectronic geithain GmbH ME 100 / ME 100C... -
Page 14: Acoustic Measurements
All acoustic measurements are carried out under anechoic conditions with 1 m (3′3″) distance. [dB] [Hz] FREE FIELD FREQUENCY RESPONSE 0° 45°h 80 100 [Hz] TOTAL HARMONIC DISTORTIONS P = 93 dB musikelectronic geithain GmbH ME 100 / ME 100C... -
Page 15: Notes
NOTES Notes musikelectronic geithain GmbH ME 100 / ME 100C... - Page 16 BDA_ME 100_ME 100C_17.05.2018_ENV17 musikelectronic geithain gmbh STUDIO MONITORING - HIGHEND LOUDSPEAKER - SOUND REINFORCEMENT SYSTEMS SYSTEMS Nikolaistraße 7 04643 Geithain / Germany Phone: +49 (0) 34341 3110 Fax: +49 (0) 34341 31144 Email: info@me-geithain.de www.me-geithain.de...
