Alarm codes

Installation and operating instructions • Isar BOOST5 • Ed.06/2024-05

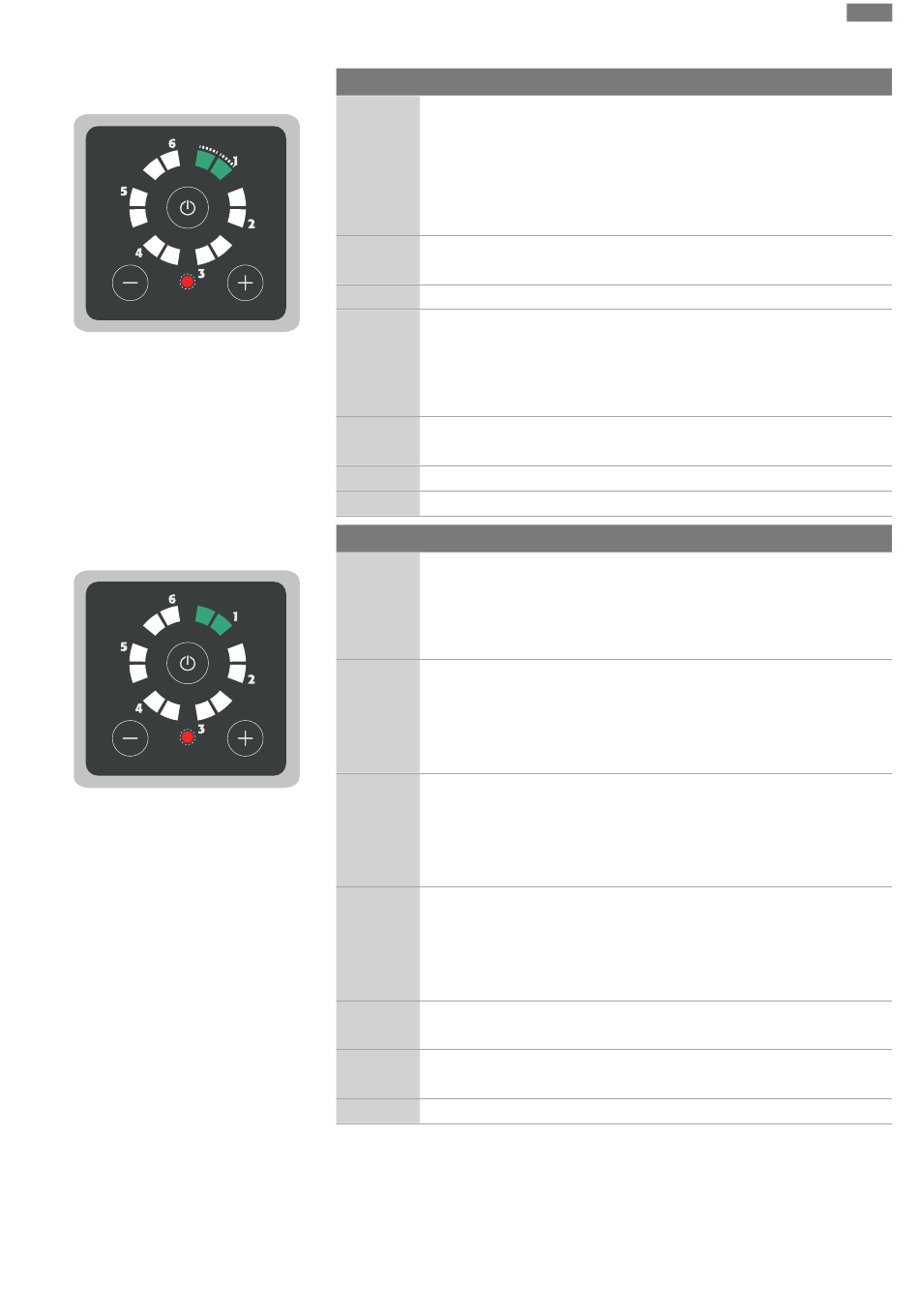

LED in range 1-6 flashes green + LED flashes red
Alarm 1 Low water
If there is low water on the suction side for more than 7 seconds, the alarm is
displayed.
• Check the water supply on the suction side.
• Fill pump.
The product restarts automatically after 1 min, 15 min, 30 min, 1 hr, etc.
Alarm 2 The product does not reach the set pressure.
• Contact customer service.
Alarm 3 /
Alarm 4 Outlet pressure below 0.2 bar (damaged pipe).
• Eliminate the cause.
• To reset the alarm, switch the product off and back on with the "On/Off"
operating button (Fig. 2, Item 3).
• Check why pressure was reset to zero.
Alarm 5 Supply voltage too low.
• Ensure a power supply of 230 V ±10%.
Alarm 6 Switch-off signal from the outside
Example Low water: LED 1 flashes green + red LED flashes
LED in area 1-6 lights up green + LED flashes red
Alarm 1 Short-circuit
• Switch off unit.
• Contact customer service.
• To reset the alarm, switch the product off and back on with the "On/Off"
operating button (Fig. 2, Item 3).
Alarm 2 Overcurrent
Current consumption exceeds the permissible tolerance.
• To reset the alarm, switch the product off and back on with the "On/Off"
operating button (Fig. 2, Item 3).
• If the alarm is still displayed, contact customer service.
Alarm 3 Module temperature too high
• Check the temperature of the fluid.
• If the fluid temperature exceeds 40 °C, contact customer service.
If the temperature drops below the alarm threshold, the product is automati-
cally reset.
Alarm 4 Motor temperature too high.
• Check the temperature of the fluid.
• If the fluid temperature exceeds 40 °C, contact customer service.
If the temperature drops below the alarm threshold, the product is automati-
cally reset.
Alarm 5 Pressure sensor signal fault
• Contact customer service.
Alarm 6 Volume flow sensor signal fault
• Contact customer service.
Example Short-circuit: LED 1 lights up green + red LED flashes
