Pioneering for You
Wilo-BAC
en Installation and operating instructions
2 133 933-Ed.02 / 2013-11-Wilo

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BAC and is the answer not in the manual?

Questions and answers

Summary of Contents for Wilo BAC

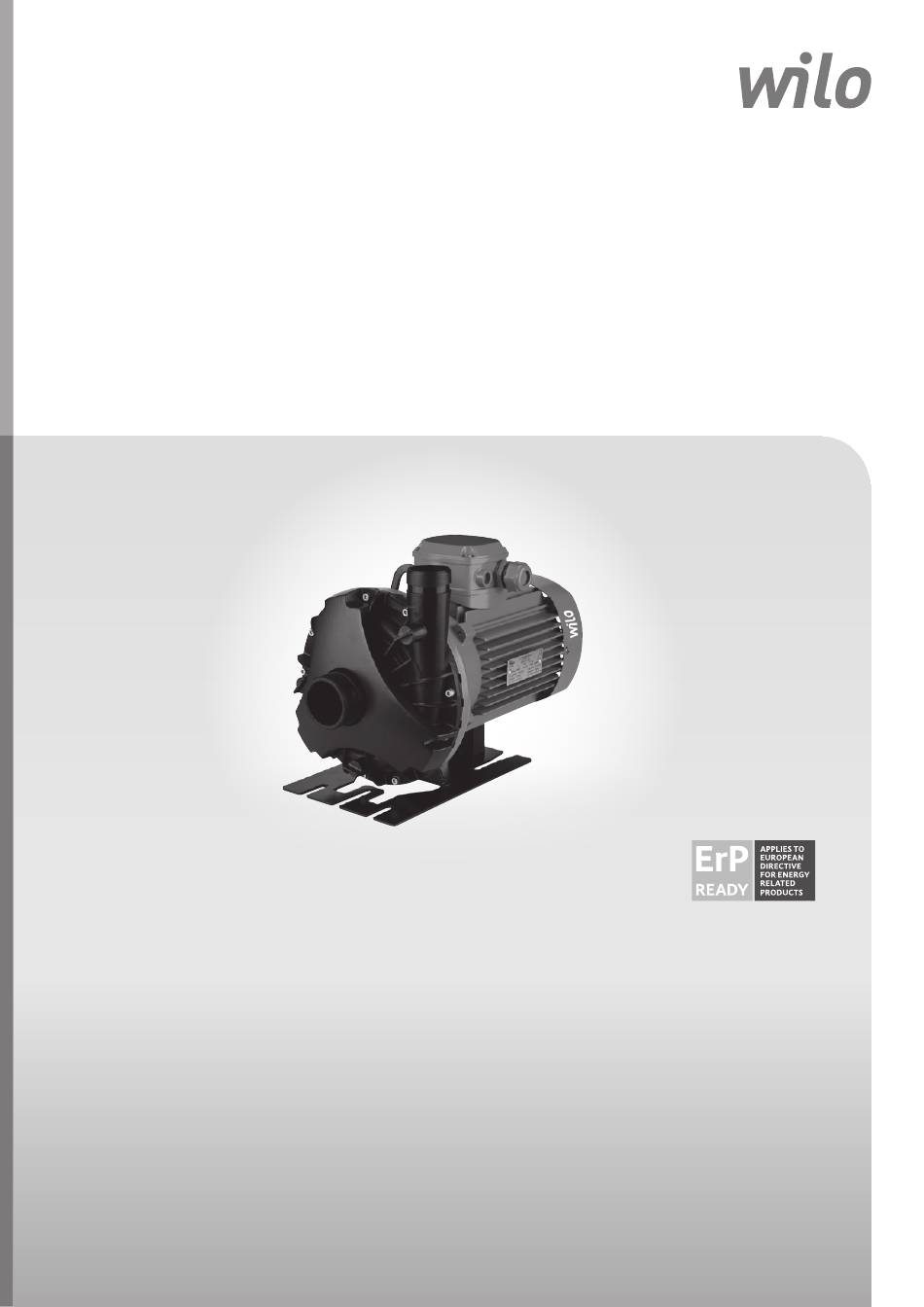

  • Page 1 Pioneering for You Wilo-BAC en Installation and operating instructions 2 133 933-Ed.02 / 2013-11-Wilo...
  • Page 3 Fig. 1: Fig. 2: 200 mm min. 100 mm min. A(B) Fig. 3:...
  • Page 5 Einbau- und Betriebsanleitung Installation and operating instructions Notice de montage et de mise en service Inbouw- en bedieningsvoorschriften...
  • Page 7 CAUTION! There is a risk of damaging the product/unit. “Caution” implies that damage to the product is likely if this information is disregarded. NOTE: Useful information on handling the product. It draws attention to possible problems. WILO SE 11/2013...
  • Page 8: Personnel Qualifications

    Work on the product/unit must only be carried out when at a stand- still. It is mandatory that the procedure described in the installation and operating instructions for shutting down the product/unit be complied with. Installation and operating instructions Wilo-BAC...
  • Page 9: Transport And Interim Storage

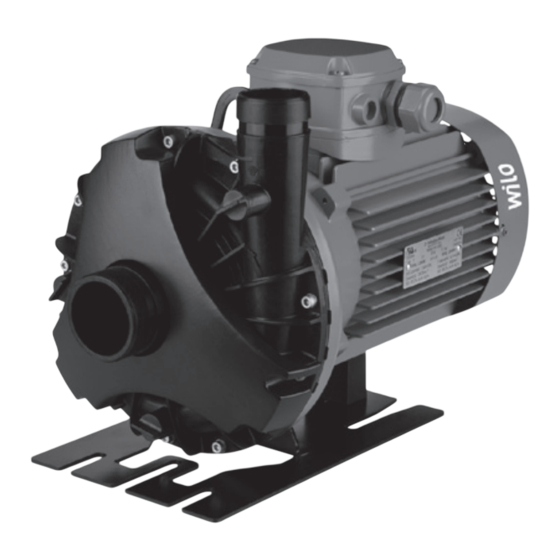

    Intended use Purpose BAC pumps are single-stage centrifugal pumps that are used for fluid circulation in buildings, agriculture and industry. Fields of application They may be used for: •...
  • Page 10: Product Information

    Bloc Air Conditioning Single-stage horizontal pump in monobloc construc- tion Diameter of pressure port [mm] -134 Impeller diameter [mm] /2,2 Rated motor power P [kW] Number of poles Three-phase R = Victaulic coupling S = Screwed connection Installation and operating instructions Wilo-BAC...
  • Page 11 The respective manufacturer's instructions are to be observed. • The fluid must be sediment-free. • Wilo's approval must be obtained for use of other media. • Mixtures with a proportion of glycol of > 10 % influence the Δp-v pump curve and the flow calculation.
  • Page 12: Description And Function

    HA Suction head HC Discharge head Design of product BAC pumps are non self-priming, single-stage centrifugal pumps in a horizontal monobloc construction. The suction port is arranged in an axial orientation and the pressure port is arranged in a radial orienta- tion.
  • Page 13: Connection Variants

    • A non-return valve can be fitted on the pressure pipe to protect the pump against fluid hammer. • For a direct connection to a public drinking water system, the suction pipe must also have a non-return valve and a guard valve. WILO SE 11/2013...
  • Page 14: Electrical Connection

    • The pump/installation must be grounded in compliance with local regulations. A ground fault interrupter can be used as an extra protec- tion. • The connection to the network must be in accordance with the con- nection plan. Installation and operating instructions Wilo-BAC...
  • Page 15 This allows an optimised pump output in a given installation and is also economically efficient. Operation with frequency converter Motors from Wilo/Salmson can generally be operated with external (of other manufacturers) frequency converters if these frequency converters comply with the demands specified in the application guideline IEC /TS 60034-17 and IEC/TS 60034-25.
  • Page 16 • Check if the direction of rotation is correct according to the arrow on the pump housing by briefly starting the pump. If the direction of rotation is not correct, invert 2 phases on the motor terminal board. Installation and operating instructions Wilo-BAC...
  • Page 17: Maintenance/Service

    Maintenance/Service Maintenance and repairs may only be carried out by qualified experts! It is recommended to have the pump serviced and checked by Wilo- Customer Service. DANGER! Risk of fatal injury! There is a mortal danger through shock when working on electrical equipment.
  • Page 18: Faults, Causes And Remedies

    Fill the storage tank, vent the pump ficient Wrong direction of rotation Invert two phases wires on the motor ter- minal block or circuit-breaker Wear of the internal parts Have the pump repaired by the after- sales service Installation and operating instructions Wilo-BAC...
  • Page 19: Spare Parts

    Remove the filter and clean it tially obstructed Spare parts Spare parts can be ordered from your local specialist and/or via Wilo customer service. To avoid queries and incorrect orders, all details on the rating plate should be submitted for each order.
  • Page 20 Authorized representative for the completion of the technical documentation: Pompes Salmson Personne autorisée à constituer le dossier technique est : 80 Bd de l’Industrie - BP0527 F-53005 Laval Cedex Dortmund, 15. Januar 2013 WILO SE Holger HERCHENHEIN Nortkirchenstraße 100 Group Quality Manager 44263 Dortmund Germany Document: 2117789.2...
  • Page 21 EG-verklaring van overeenstemming Dichiarazione di conformità CE Declaración de conformidad CE Hiermede verklaren wij dat dit aggregaat in de geleverde uitvoering voldoet aan de Con la presente si dichiara che i presenti prodotti sono conformi alle seguenti disposizioni Por la presente declaramos la conformidad del producto en su estado de suministro con las volgende bepalingen: e direttive rilevanti: disposiciones pertinentes siguientes:...
  • Page 22  $OFDO– GH +HQDUHV =,3 &RGH  Burton Upon Trent :,/2 3XPSV /WG :,/2 9LHWQDP &R /WG (Madrid) T +55 11 2923 (WILO) DE14 2WJ  *DQJVHR %XVDQ 4050-040 Porto +R &KL 0LQK &LW\ 9LHWQDP 9456 T +44 1283 523000...
  • Page 23 WILO SE Nortkirchenstraße 100 D-44263 Dortmund Germany T +49(0)231 4102-0 F +49(0)231 4102-7363 wilo@wilo.com Pioneering for You www.wilo.com...
