Epilog Laser Legend 36EXT Manual page 6

returns to its furthest back position, tighten the
screws.

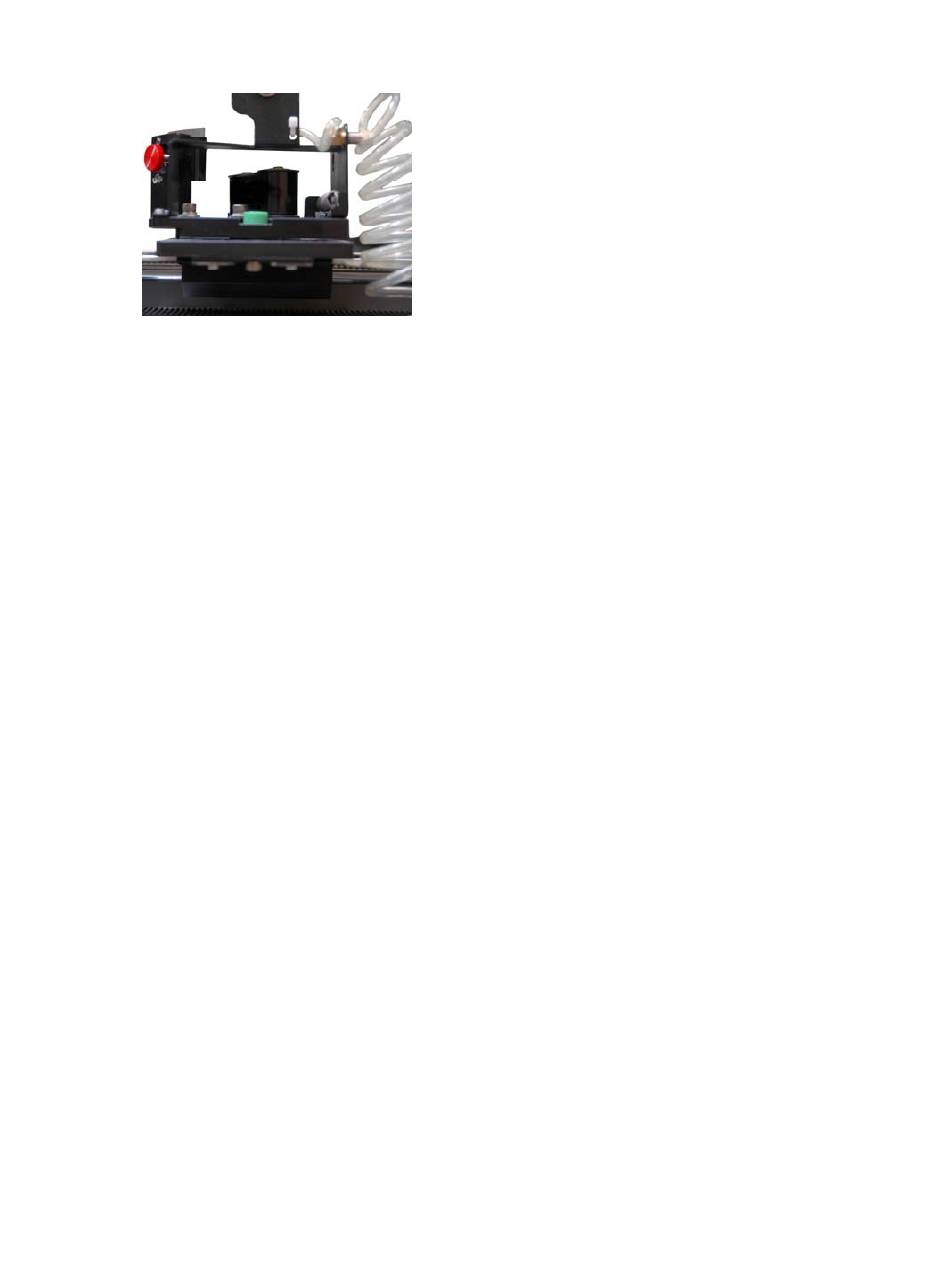

13. Put I-Beam cover back on. The cover does not need
to fit snuggly on the screws, rather, while
screwing in the front of the cover, raise the edge
up a little so the hexagonal screws do not hinder
the movement of the laser head. To make sure the
screws do not hinder the laser head, slide the
laser head back and forth along the I-beam after
the cover is fully mounted. If the edge of the
laser head hits a screw, loosen the front of the
cover, lift the cover a little and retighten the
screws.
14. Replace amplifier cover
15. Put back side panels
If you have any questions, please contact Epilog's
Technical Support
Phone 303.215.9171
Fax 303.531.7594
E-Mail tech@epiloglaser.com
