Epilog Laser Legend 36EXT Manual page 4

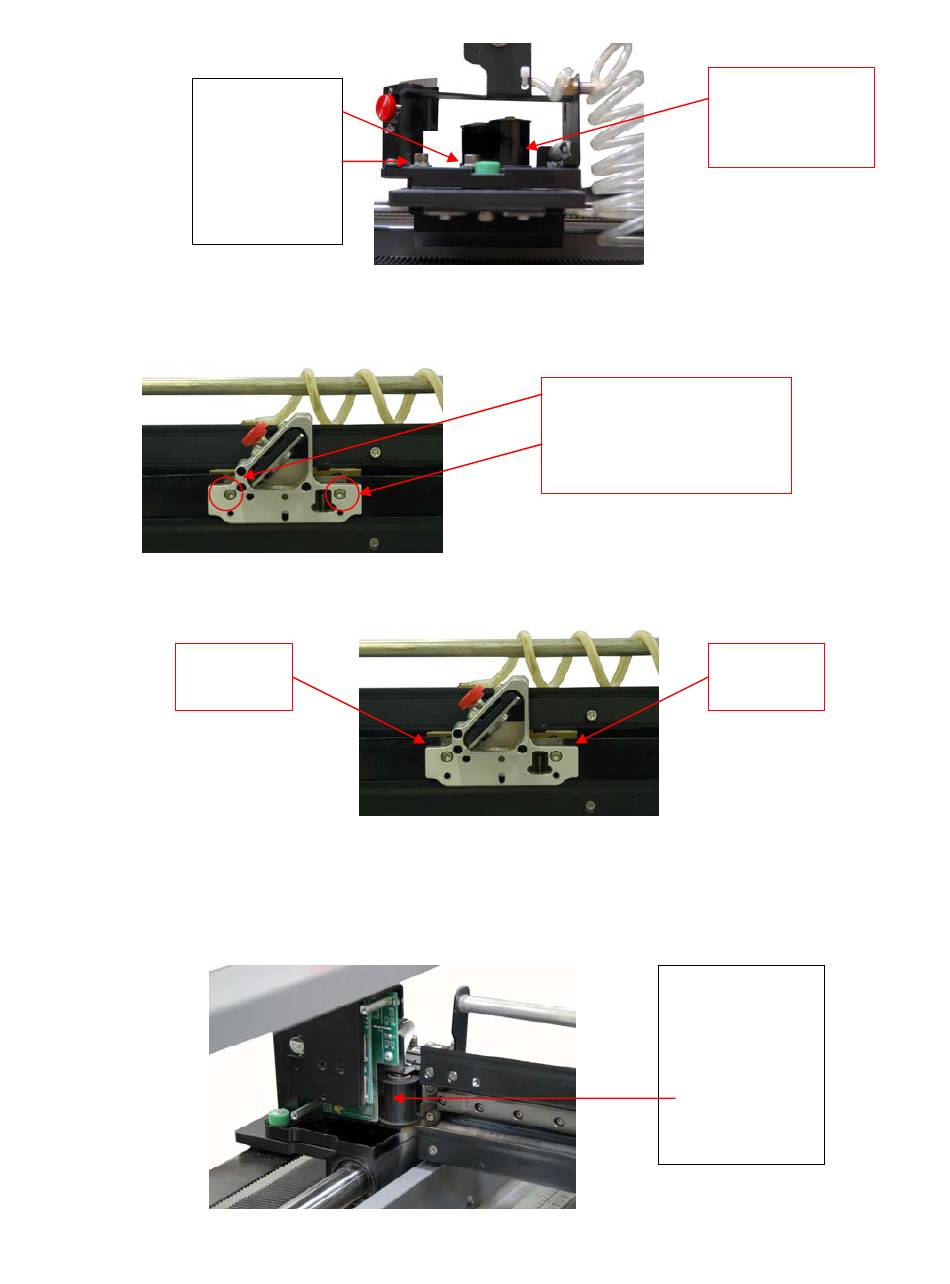

Tighten
these
screws to
hold the
spindle
in place
Press the spindle until the belt slackens.
8. Locate the ends of the belt connected to the laser
head. The belt is held by a clamp of two hexagonal
screws. Loosen these screws.
9. Pull the belt ends up and out of the clamp. By
pulling on one end of the belt slowly, the belt
will come out.
End of
Belt
10. Take a new belt and make sure the grooves are
towards the inside of the machine.
11. Put the left end of the belt through the left side
of the I-beam.
a. The belt should go between the black spindle
and the control board.
Press on
this
spindle
Using a 7/64
Allen wrench,
loosen these
screws
End of
Belt
Slide belt
through
the
spindle
and the
control
board
