Specification
Model
TR-Lite L2S5
Image sensor
1/2.9" CMOS 2МP
Resolution
FullHD(1920x1080)
Frame rate
FullHD@25fps
Electronic shutter speed
1/2 ~ 1/1 000 s
Day/Night Mode
Mechanical ICR
Sensitivity
0.005Lux (F1.8)
IR range
up to 30 m
Stroboscope
Lens (mm)
Field of view(horiz./vert.)
98˚±5˚ / 53˚±5˚
Pan: 0˚-355˚
Axes setting
Tilt: 0˚-75˚
Rotation: 0˚-360˚
WDR
Digital Noise Reduction
Video compression
Н.265 / H.264 / MJPEG
Bitrate
Up to 8Mbps
Audio
Built-in microphone
Power supply
PoE (802.3af) / 12V DC
PoE Class
Power consumption
DC: 2.6W
PoE: 3.5W
Case material
Metal / Plastic
Ø109.3 x 96.5
Dimensions (mm)
Weight Net/Gross (g)
320 / 420
Protection
Power surge
TVS 4000V
suppressor
Working temperature
-30°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
Yes
2.8
D-WDR
3D DNR
0
IP67
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
TR-Lite L2S5

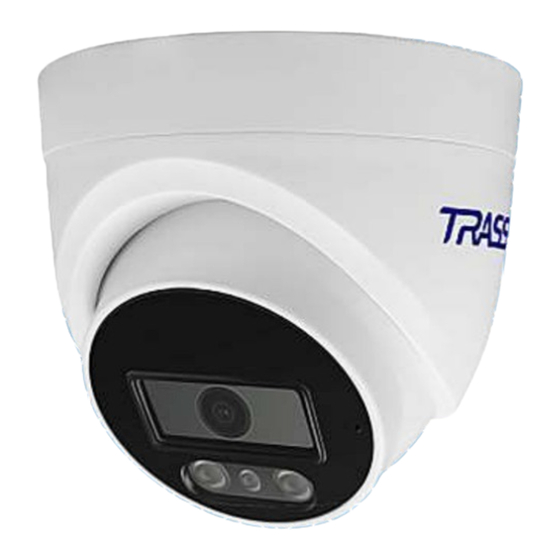

Outdoor IR Network Camera
2МP
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TRASSIR TR-Lite L2S5
Summary of Contents for TRASSIR TR-Lite L2S5
- Page 1 320 / 420 Protection IP67 Power surge TVS 4000V suppressor 2МP Working temperature -30°C … +60°C Data ___________________________ Stamp ___________________________ Here is the confirmation form for warranty assurance Note: read user manual before using Website: www.trassir.com For any inquiry: info@trassir.com...
- Page 2 There are 3 options to set up your camera: 1. Change IP address of a camera manually. To do this, connect the camera to the TRASSIR TR-Lite series video recorder. Go to the corresponding menu item and change the IP-camera network settings.
