TRASSIR TR-D7151IR1 Quick Start Manual

Specification
Model TR-D7151IR1
Image sensor 1/2.8" CMOS 5Мп
Resolution 5MP(2592x1944)
4MP(2592x1520)
3MP(2304x1296)
Frame rate
5MP@15fps
4MP@20fps
3MP@25fps
Electronic Shutter Speed 1/2 ~ 1/1 000 c
Day/Night Mode Mechanical ICR
Sensitivity 0.003Lux (F1.8)
IR range up to 10 m
Lens (mm) 1.4 / 1.9 / 2.8
Field of view (horiz./vert.) 1.4mm: 180˚ / 180˚
1.9mm: 126˚±5˚ / 95˚±5˚
2.8mm: 102˚±5˚ / 72˚±5˚
WDR Real WDR (120dB)
Digital noise reduction
Video compression
Н.265 / H.264
Bitrate up to 8Mbps
Local storage
MicroSD up to 128Gb
Audio Built-in microphone
Built-in speaker
Motion detector PIR-sensor
Corridor mode
IVS Human Detection
Line Crossing
Intrusion Detection
RTC
Power supply PoE (802.3af) / 12V DC
Class PoE
Power consumption DC: 3.9W
PoE: 4.6W
Case material
Dimensions (mm) 60 x 99 x 32.8
Weight Net/Gross (g)
Working temperature -10°C ... +50°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
3D DNR
Yes
Yes
3
Data ___________________________ Stamp ___________________________
Plastic
Here is the confirmation form for warranty assurance
95 / 220

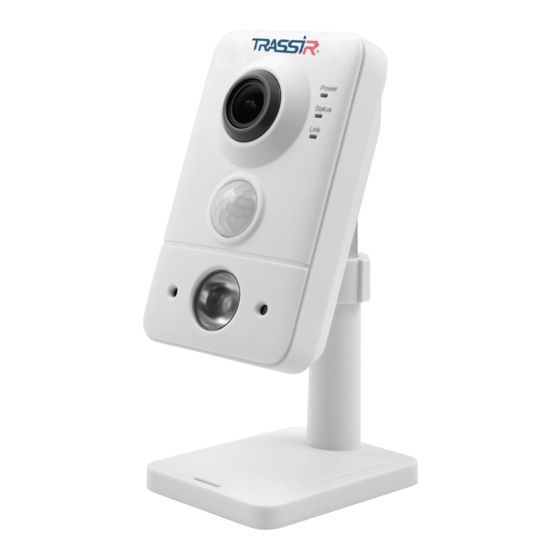

TR-D7151IR1
Indoor IR Network Camera
H.265
HEVC
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.comм
