TRASSIR TR-D4151IR1 Quick Manual

Specification
Model TR-D4151IR1
Image sensor 1/2.8" CMOS 5MP
Resolution 5MP(2592x1944)
4MP(2592x1520)
3MP(2304x1296)
Frame rate
5MP@15fps
4MP@20fps
3MP@25fps
Electronic shutter speed 1/2 ~ 1/1 000 s
Day/night mode Mechanical ICR
Sensitivity 0.003Lux (F1.8)
IR range up to 15 m
Lens (mm)
Field of view (horiz./vert.) 2.8мм: 102˚±5˚ / 72˚±5˚
3.6мм: 83˚±5˚ / 60˚±5˚
WDR Real WDR (120dB)
Digital noise reduction
Video compression Н.265 / H.264
Bitrate
up to 8Mbps
Local storage MicroSD up to 128GB
Audio
Built-in microphone
AudioIn / AudioOut
Corridor mode
IVS Human detection
Line crossing
Intrusion detection
RTC
Power supply PoE (802.3af) / 12V DC
PoE Class
Power consumption DC: 3.6W
PoE: 4.8W
Case material
Dimensions (mm) Ø102.2 x 56.4
Net/Gross weight (g) 310 / 400
Ingress protection IP66, IK10
Lightning protection TVS 4000V
Working temperature -40°C ... +60°C
Technical support
www: helpdesk.trassir.com
mail: helpdesk@trassir.com
2.8 / 3.6
3D DNR
Yes
Yes
3
Metal
Data ___________________________ Stamp ___________________________
Here is the confirmation form for warranty assurance
TR-D4151IR1

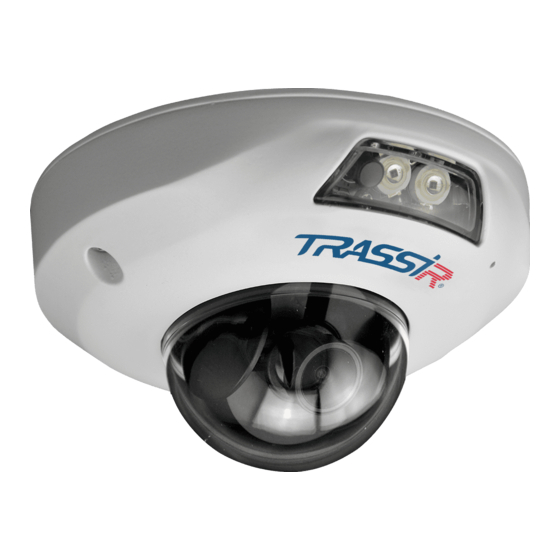

Outdoor IR Network Camera
H.265
HEVC
IK10
Note: read user manual before using
Website: www.trassir.com
For any inquiry: info@trassir.com
