The
Type
290
does
not use speedup
capacitors
or catch-
ing
diodes.
Use
of
these
capacitors
and
diodes
tends
to
test a circuit rather than
a transistor.
The
common
emitter,
base-driven circuit of the Type 290 introduces into the base
of
the
test
transistor
a
non-overshooting
step
of
current
equal to 1 ma/volt of input pulse in excess of Vibe.
The
collector
circuit
provides
a
resistive
load
of
200
ohms
monitored
by
an
internal
dc-coupled
passive
probe,
for measurement
of collector-to-emitter
saturation
potentials
and collector swings under saturated or linear conditions.
Transistor
input and
output
are
presented
in correct time
relationship either simultaneously for dual-trace systems or,
at the turn of a switch, for single-trace systems.
The input
monitor
and
output
of the
Type
290
Transistor
Switching-
Time Tester is at
a 50-ohm
impedance
level, allowing remote
location of the tester from the sampling system.
TWO
TRANSISTOR
TEST
SOCKETS
are
mounted
on
the
Type 290.
The sockets provide for easy insertion of the tran-
sistor
into
the
grounded-emitter
test
circuit.
One
socket
connects to the HIGH
collector voltage supply and the other
connects
to the LOW
collector voltage
supply.
A transistor
under
test in the
HIGH
socket
has
a passive
probe
output
attenuation
of 250-to-1
into the 50-ohm
output.
A transistor
under test in the LOW
socket
has an attenuation
of 50-to-]
from
the collector to the 50-ohm
output.
Lead
length of the
transistor
tested,
up
to
approximately
2
inches,
is
unim-
portant
at speeds
slower
than
2 nsec, due
to the choice
of
collector
load
resistance.
THREE
50-OHM
CONNECTORS
for
input,
output,
and
input monitor are conveniently
mounted
at the side of the
instrument.
INPUT
from
external
pulse
generator
determines
base
current of transistor under test.
For each volt of input pulse
above
Vp. there
is approximately
1 ma
of base
current.
OUTPUT
signal is taken from the collector of the transistor
under test.
The input signal can be switched to the output
for observation with a single trace system.
INPUT
MONITOR
permits
simultaneous
viewing
of the
input and
output of the transistor under test when
used with
TYPE
290
TRANSISTOR
SWITCHING-TIME
TESTER
The
Tektronix
Type
290
Transistor
Switching-Time
Tester
permits
dc-coupled
pulse-response
characteristics
of
fast-
switching transistors to be observed and
measured
on Tek-
tronix
oscilloscopes.
Driven
by a Tektronix
fast-rise pulse
generator
and
combined
with
a Tektronix
fast-rise
sample
oscilloscope, the Type
290
becomes
an
integral
part of a
transistor
testing
system
with
an
overall
transient
response
of less than
1 nanosecond.
(When
a non-sampling
oscillo-
scope
is used
with
plug-in
units
such
as
the
Type
82,
or
L, transient response
is limited by the risetime of the unit).
This system
can
test fast NPN
or PNP transistors on a short
duty-cycle
basis for delay, rise, storage, and fall times —
with
variable
collector
voltage
and
base
drive
conditions.
Since
these
characteristics
vary
considerably
with
operating
conditions,
the Type
290
supplies
a wide
range
of operat-
ing voltages.
a dual-trace
unit such
as the Type
4S1, 482, or Type
3S76.
The
input
monitor
has a 50-to-1
attenuation
ratio.
REGULATED
SUPPLIES
(with
Zener
diodes)
are
provided
for the collector and base supply sources.
Collector Voltage
is continuously variable from zero to 30 volts in the LOW
position
and
from
zero
to
100
volts
in the
HIGH
position.
Base
Supply
Voltage
is
continuously
variable
from
zero
to £10
volts
(through
10k).
POWER
REQUIREMENT
is
105v
to
125v
or
210v
to
250 v, 50
to
1200 cps,
15 watts.
MECHANICAL
FEATURES
include aluminum-alloy
chassis,
die-cast aluminum
top and
bottom
covers (with steel, wrap-
around
housing),
and
etched
circuit-board
chassis.
Overall
dimensions
are 73/,"
high
by 75/3" wide
by 5"
deep.
Net
weight
is 5 pounds.
Shipping
weight
9 pounds,
approx.

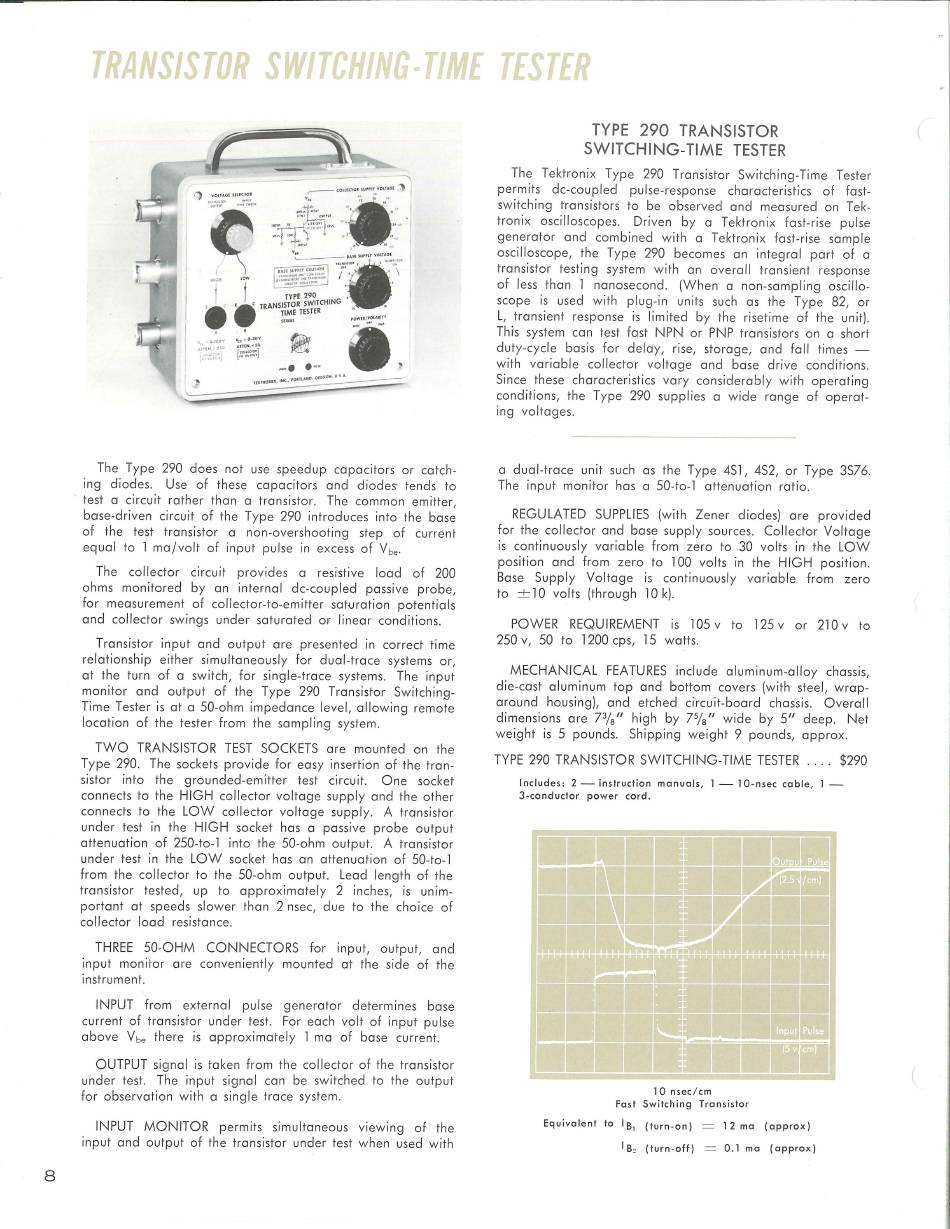

TYPE 290 TRANSISTOR SWITCHING-TIME TESTER
....
$290
Includes:
2 —
instruction
manuals,
1 —
10-nsec
cable,
1 —
3-conductor
power
cord.
10 nsec/cm
Fast
Switching
Transistor
Equivalent
to
Ip,
(turn-on)
=
12 ma
(approx)
IB,
(turn-off)
0.1
ma
(approx)
