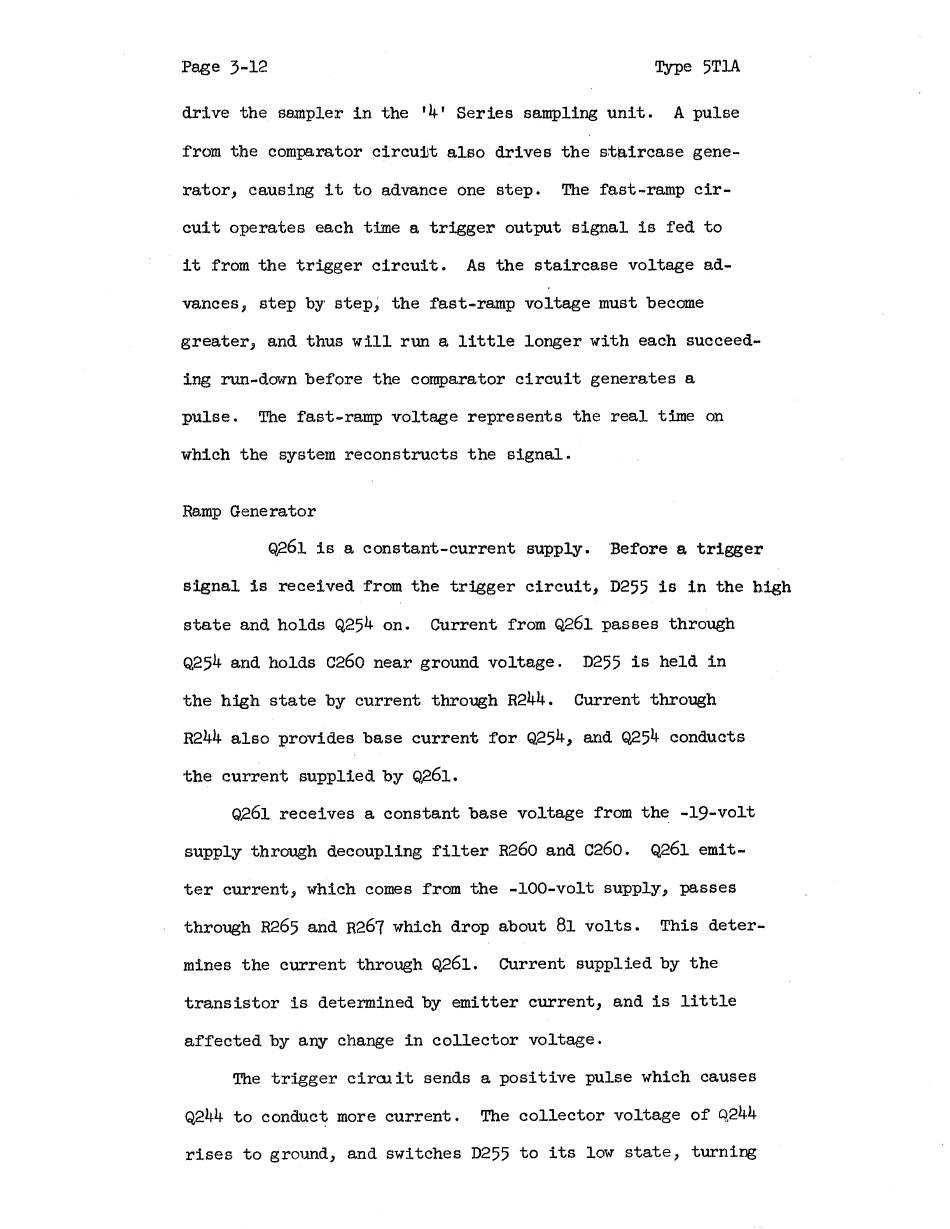

Page 3-12
,
Type ST1A
drive
the sampler in the
'4' Series
sampling unit.
A pulse
from
the
comparator
circuit
also
drives
the
staircase
gene-
rator,
causing
it to advance
one
step.
The
fast-ramp
cir-
cuit
operates
each
time
a trigger
output
signal
is
fed to
it
from
the
trigger
circuit.
As
the
staircase
voltage
ad-
vances,
step
by
step,
the
fast-ramp
voltage
must
become
greater,
and
thus
will
run
a little
longer
with
each
succeed~
ing
run-down
before
the
comparator
circuit
generates
a
pulse.
The
fast-ramp
voltage
represents
the
real
time
on
which
the
system
reconstructs
the
signal.
Ramp
Generator
Q261
is a constant-current
supply.
Before
a trigger
signal
is
received
from
the
trigger
circuit,
D255 is in the high
state and holds Q254 on.
Current from Q261 passes through
Q254 and holds C260 near ground voltage.
D255 is held in
the high
state by current
through
R244.
Current
through
R244 also
provides base
current
for Q254,
and Q254
conducts
the current
supplied by 9261.
9261 receives a constant base voltage from the -19-volt
supply through decoupling filter R260 and C260.
Q261 emit-
ter
current,
which
comes
from
the
-100-volt
supply,
passes
through
R265 and R267 which drop about
81 volts.
This
deter-
mines
the
current
through
Q261.
current
supplied by the
transistor
is
determined
by
emitter
current,
and
is
little
affected by any
change
in collector
voltage.
The
trigger
cirmit
sends
a positive
pulse
which
causes
Q2hk
to conduct more
current.
The collector
voltage
of qehh
rises
to ground,
and
switches
D255
to
its
low
state,
turning
