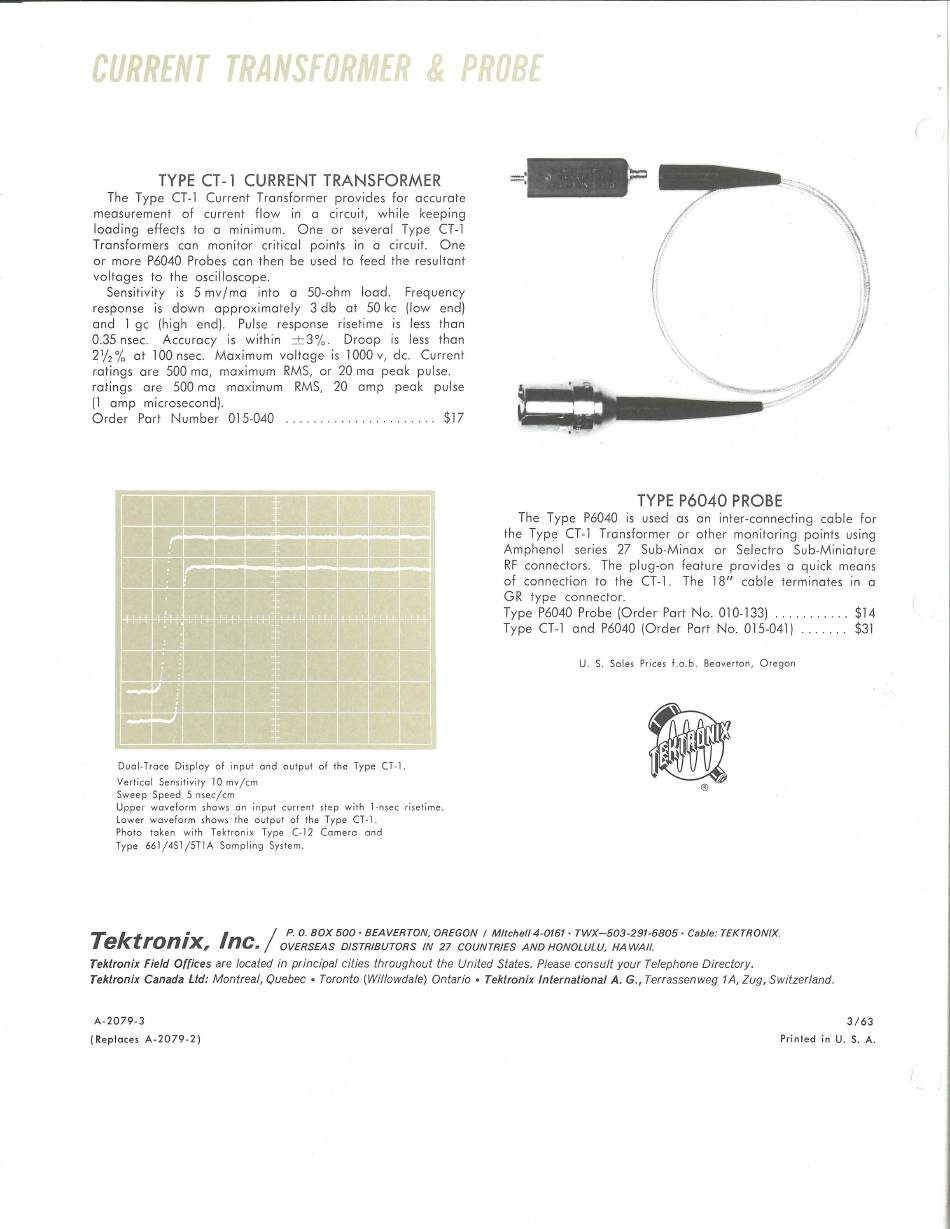

CURRENT TRANSFORMER & PROBE
TYPE CT-1 CURRENT TRANSFORMER
The Type CT-1] Current Transformer provides for accurate
measurement of current flow in a circuit, while keeping
loading effects to a minimum. One or several Type CT-1
Transformers can monitor critical points in a circuit. One
or more P6040 Probes can then be used to feed the resultant
voltages to the oscilloscope.
Sensitivity is 5mv/ma into a 50-ohm load. Frequency
response Is down approximately 3db at 50kc (low end)
and 1 gc (high end). Pulse response risetime is less than
0.35 nsec. Accuracy is within +3%. Droop is less than
2y% at 100 nsec. Maximum voltage is 1000 v, de. Current
ratings are 500 ma, maximum RMS, or 20 ma peak pulse.
ratings are 500ma maximum RMS, 20 amp peak pulse
(1 amp microsecond).
Order Part Number 015-040 ......... 00.0.0. u ee $17
Dual-Trace Display of input and output of the Type CT-1.
Vertical Sensitivity 10 mv/cm
Sweep Speed 5 nsec/cm
Upper waveform shows an input current step with 1-nsec risetime.
Lower waveform shows the output of the Type CT-1.
Photo taken with Tektronix Type C-12 Camera and
Type 661/4S1/5T1A Sampling System.
TYPE P6040 PROBE
The Type P6040 is used as an inter-connecting cable for
the Type CT-1 Transformer or other monitoring points using
Amphenol series 27 Sub-Minax or Selectro Sub-Miniature
RF connectors. The plug-on feature provides a quick means
of connection to the CT-1. The 18" cable terminates in a
GR type connector.
Type P6040 Probe (Order Part No. 010-133) ........... $14
Type CT-1 and P6040 (Order Part No. 015-041) ....... $31
U. S. Sales Prices f.0.b. Beaverton, Oregon
